  • Size: 4.3 TFT
  • Controller IC:ST7701S
  • Resolution:480× 3(RGB) × 800
  • Interface: SPI
  • Product description: Small 4.3 inch TFT LCD display 480x800 touchscreen
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

HICENDA This is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amorphous silicon TFT as a switching device. This module is composed of a Transmissive type TFT-LCD Panel, driver circuit,back-light unit. The resolution of a 4.3"TFT-LCD contains 480*800 pixels, and can display up to 65K/262K/16.7Mcolors.






GENERAL SPECIFICATION

Display Type: TFT display
Display Mode: Passive Matrix
Model Number:
HT43CRi01FJY-V7
Diagonal Screen size: 4.3 inch
Interface:
SPI
Backlight:

10-LEDs (white)
Number of Pixels:

800(RGB)x480

Panel Size:

60.66(W) ×104.25(H) ×2.0(D) (mm)
Driver IC:

ST7701S

Active Area:

56.16(W) × 93.60(H) (mm)
Display Mode:

Normally white/Transmissive
Pixel pitch:

0.0565(W) × 0.1695(H) MM

Weight:

0.183KG(Typ.)

Operating Temperature:

-20~70°

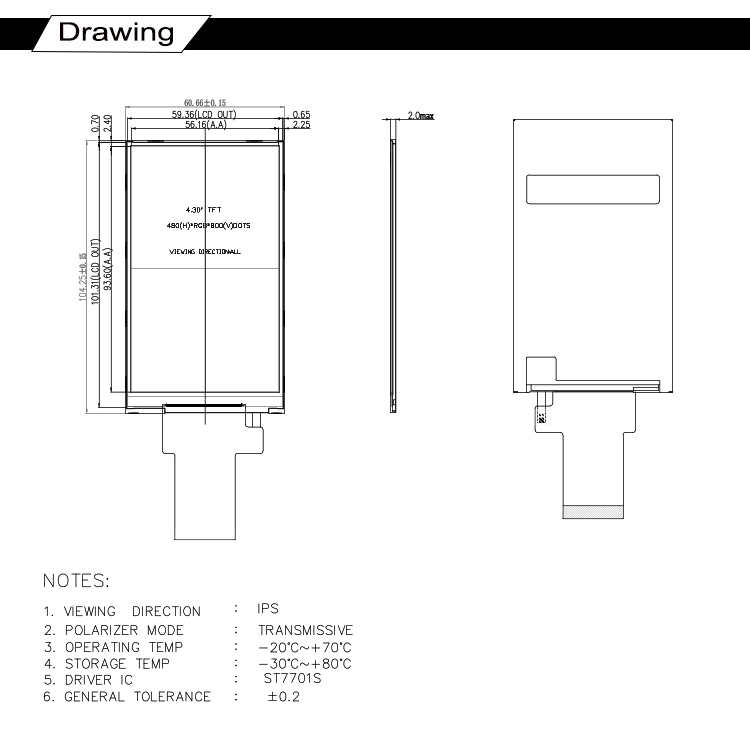

DRAWING

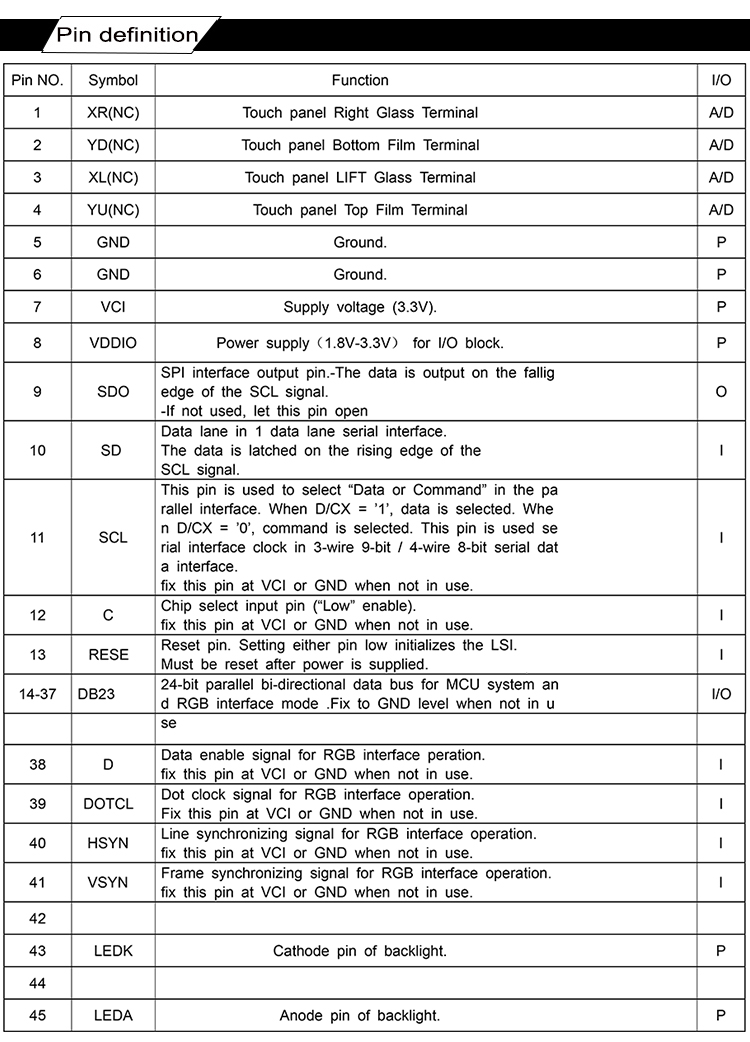

INTERFACE PIN FUNCTION
