TFT LCD Display 4.4 inch,320(RGB)x240

TFT LCD Display 4.4 inch,320(RGB)x240

TFT LCD Display 4.4 inch,320(RGB)x240

TFT LCD Display 4.4 inch,320(RGB)x240

TFT LCD Display 4.4 inch,320(RGB)x240

TFT LCD Display 4.4 inch,320(RGB)x240

Size: 4.4 TFT
Brand: Sharp Microelectronics
Resolution:320(RGB)x240
Interface:SPI 10P

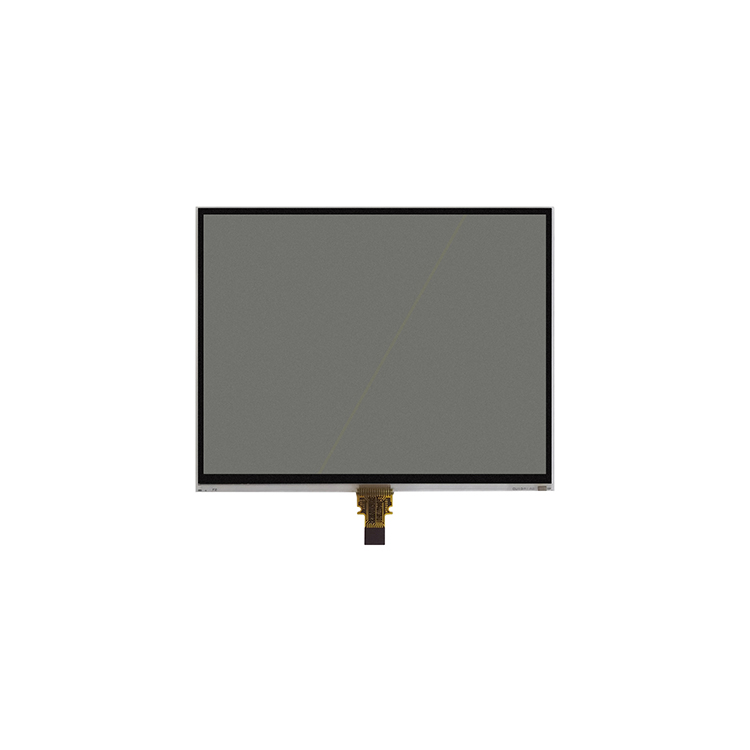

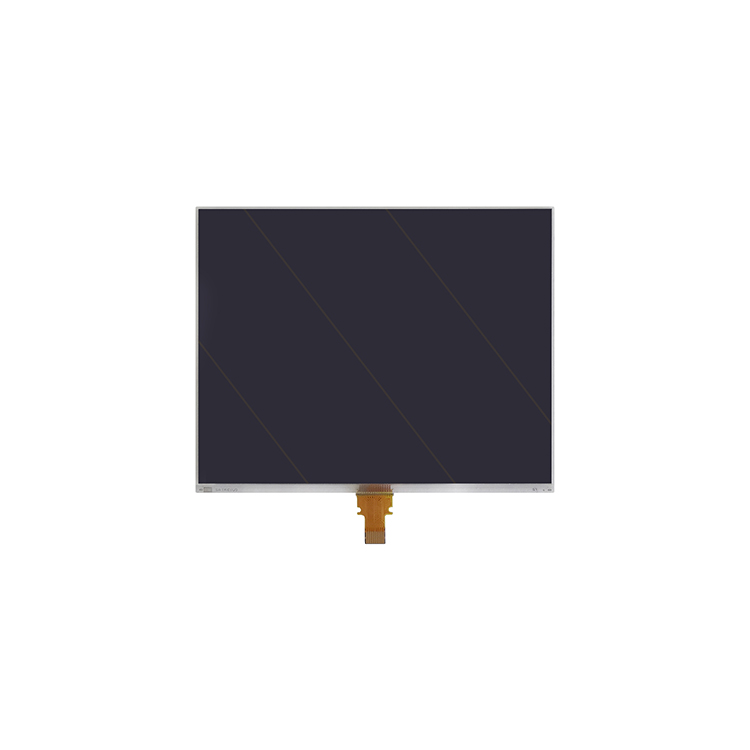

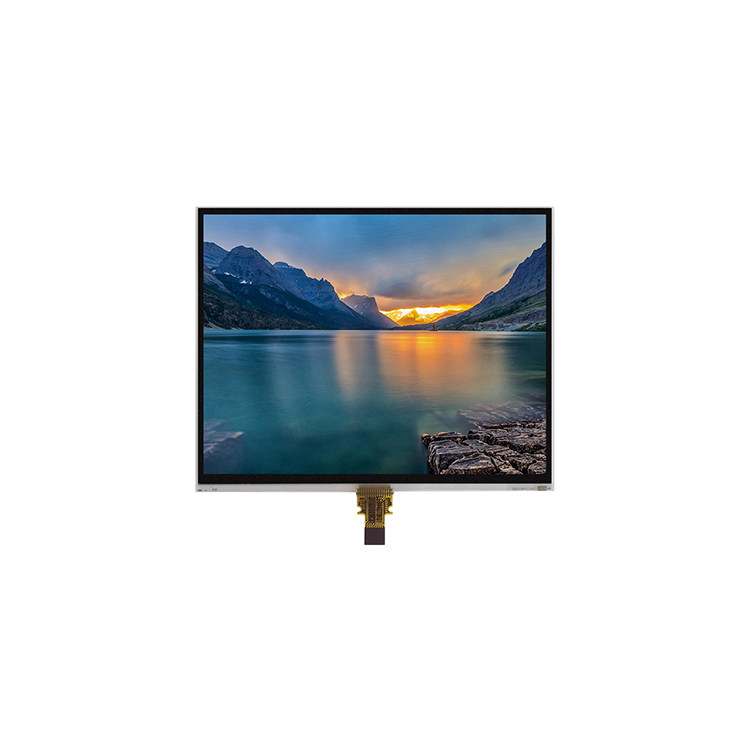

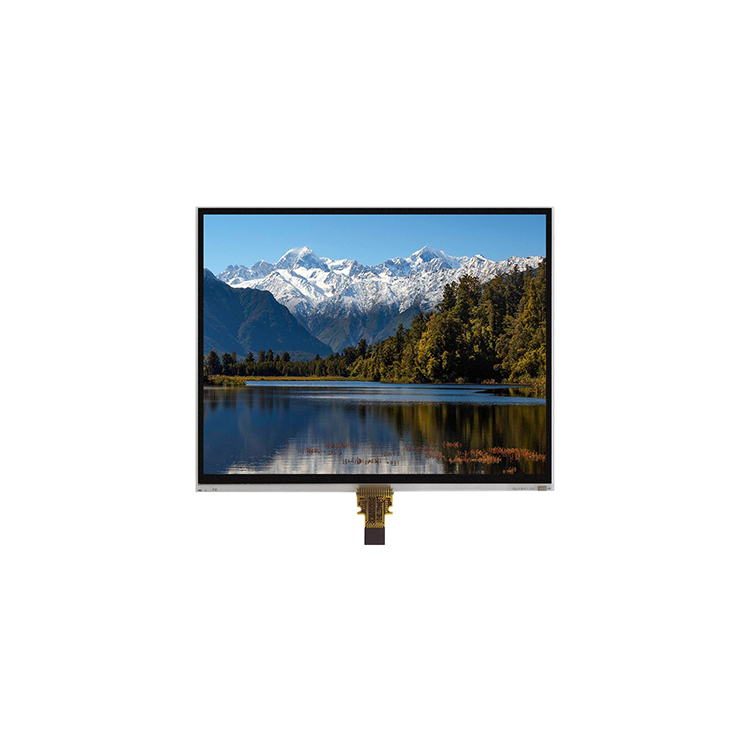

Product description: Sharp LS044Q7DH01 TFT LCD Display 4.4 inch,320(RGB)x240
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

LS044Q7DH01 supports display 320×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 89.6(W)×67.2(H) mm, outline size of 94.8(W)×75.2(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 26.0g. As a Normally White, Transflective LCM product, LS044Q7DH01 can provides , 18:1 (Typ.) reflective contrast ratio, 60/60/60/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 10/20 (Typ.)

GENERAL SPECIFICATION

Display Type:	TFT display
Display Mode:	Passive Matrix
Model Number:	LS044Q7DH01
Diagonal Screen size:	4.4 inch
Interface:	SPI 10P
Backlight:	10-LEDs (white)
Number of Pixels:	320(RGB)x240
Panel Size:	94.8(W) x 75.2(H) x 1.64(D)(mm)
Driver IC:	TBD
Active Area:	89.6(H) x 67.2(V) (mm)
Display Mode:	Normally white/Transmissive
Pixel pitch:	0.280 (H) x 0.280(V) MM
Weight:	TBD
Operating Temperature:	-20~70°

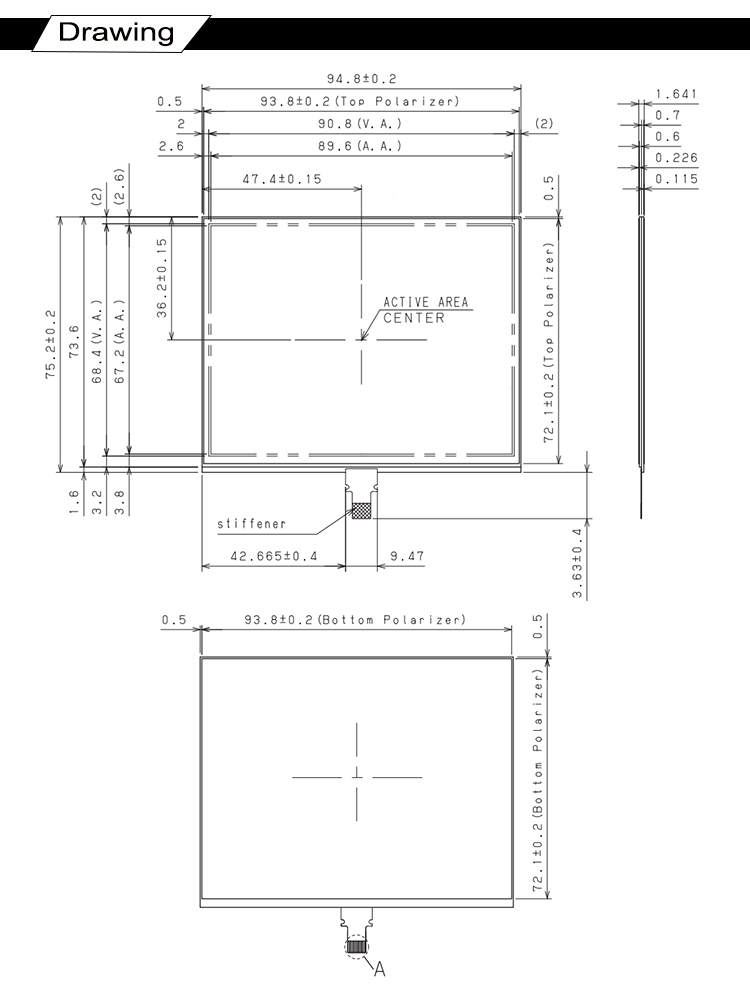

DRAWING

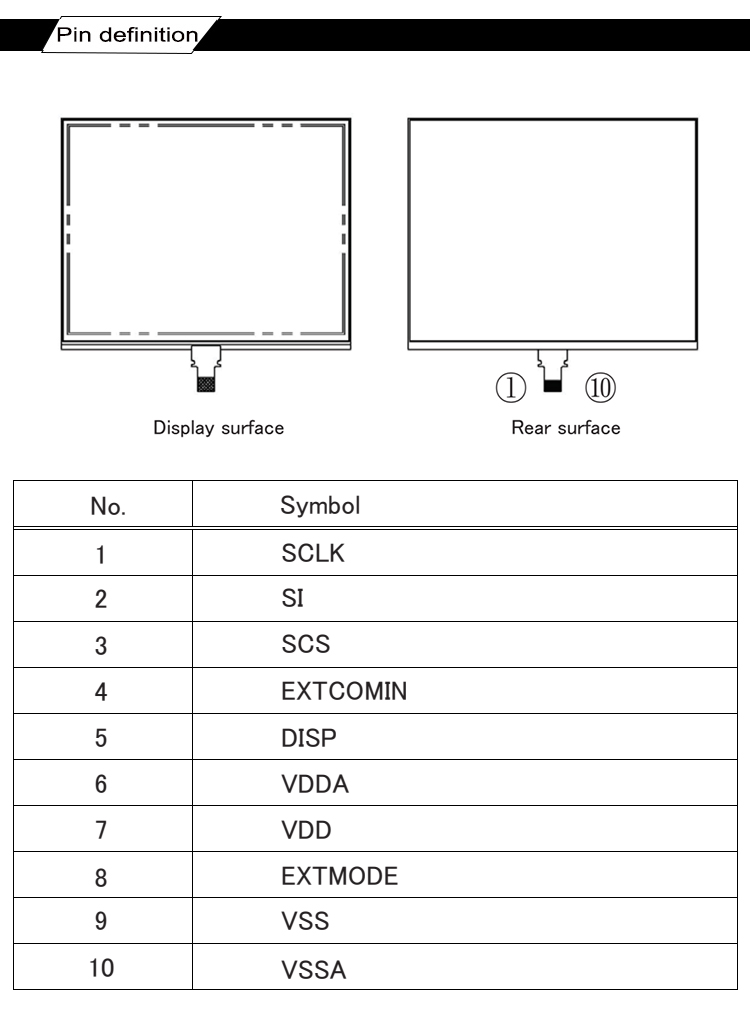

INTERFACE PIN FUNCTION
