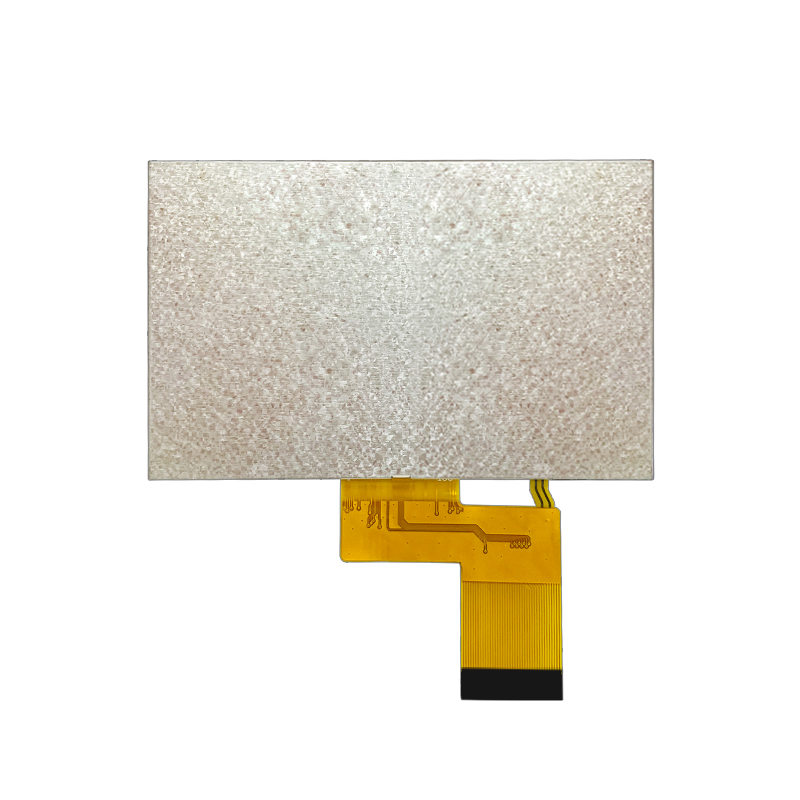

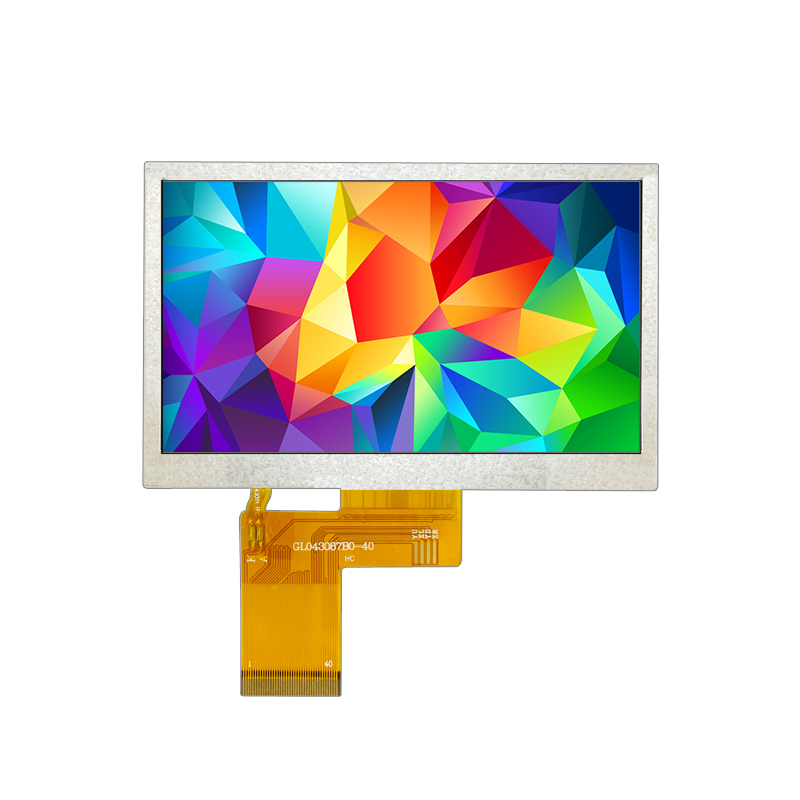

HD 4.3 inch TFT LCD display 480x272 square IPS ST7280 ic SPI 24-bit RGB interface

HD 4.3 inch TFT LCD display 480x272 square IPS ST7280 ic SPI 24-bit RGB interface

HD 4.3 inch TFT LCD display 480x272 square IPS ST7280 ic SPI 24-bit RGB interface

HD 4.3 inch TFT LCD display 480x272 square IPS ST7280 ic SPI 24-bit RGB interface

LCD Type：TFT TRANSMISSIVE
Size: 4.3
Resolution: 480*272
nterface:42-bit RGB parallel port
Product description: Hicenda Technology Co.,ltd can supply high quality 4.3 inch small tft display for medical or industrial device.High brightness 480*272 dot matrix 4.3 Inch tft lcd monitor
INQUIRY

1. Display Specifications

LCD Size: 4.3inches
Dot Matrix Size: 480*272
Backlight Type :Serial
Hardware Interface:42-bit RGB parallel port
Driver IC: ST7280
Operating Temperature: -20 - 70
Working Power Supply: 3.0V
PIN NO: 40Pin

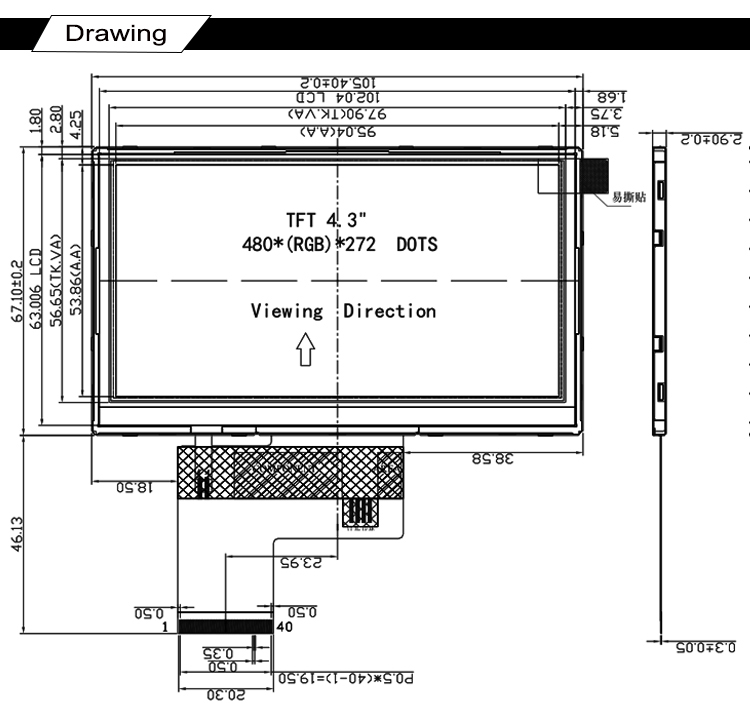

Display Area:95.04x53.856 mm
Size: 105.4(H)x67.10(V)x2.9(D)
Viewing Direction: 6 O'CLOCK

PINo Symbol Description

Pin	Define
1	GND GroundD
2	VCC Power 3.3V
3	SCL Serial clock pin.
4	SDA Serial data input
5	RES LCM Reset pin
6	DC Data/Command Control
7	CS Chip Select
8	BLK Backlight control pin
