4.3"

TFT LCD Display 4.3 inch,800(RGB)x480

TFT LCD Display 4.3 inch,800(RGB)x480

TFT LCD Display 4.3 inch,800(RGB)x480

TFT LCD Display 4.3 inch,800(RGB)x480

TFT LCD Display 4.3 inch,800(RGB)x480

TFT LCD Display 4.3 inch,800(RGB)x480

Size: 4.3 TFT
Controller IC: HX8238-D
Resolution:800(RGB)x480
Interface: 24-bit Parallel RGB
Product description: TFT LCD Display 4.3 inch,800(RGB)x480
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

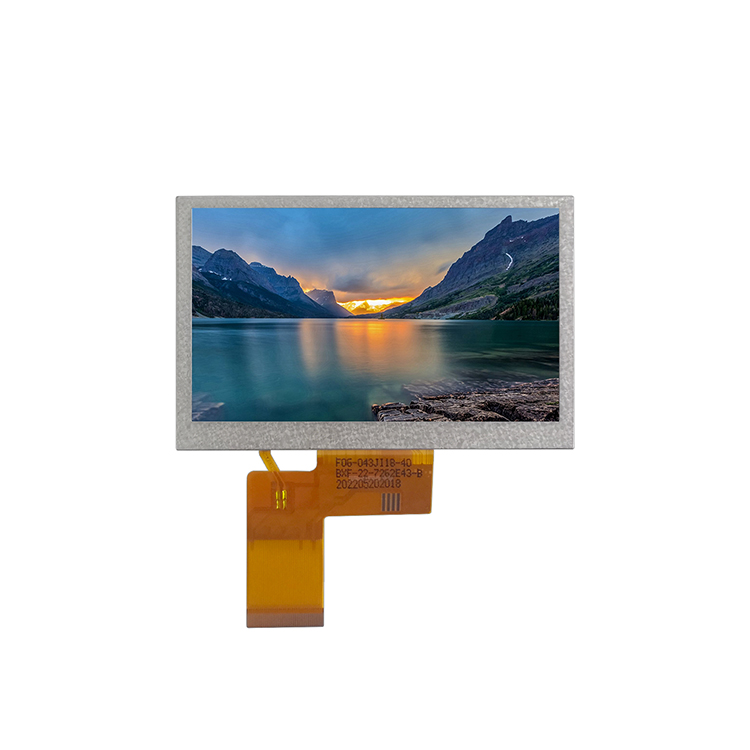

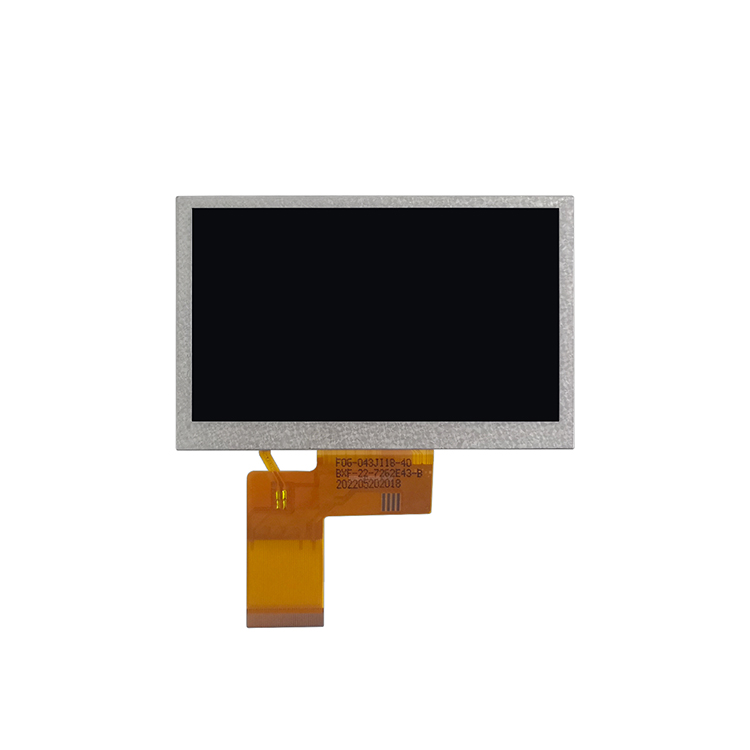

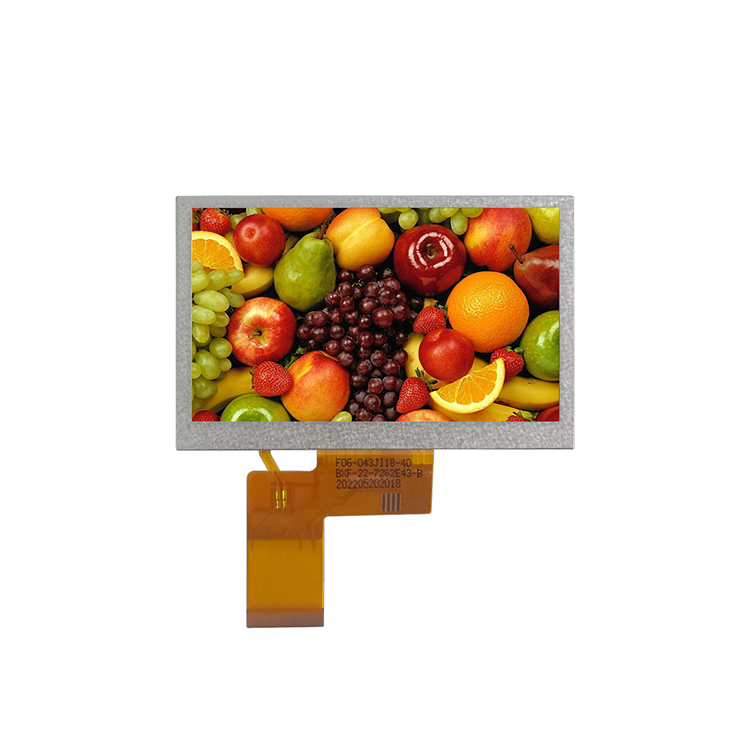

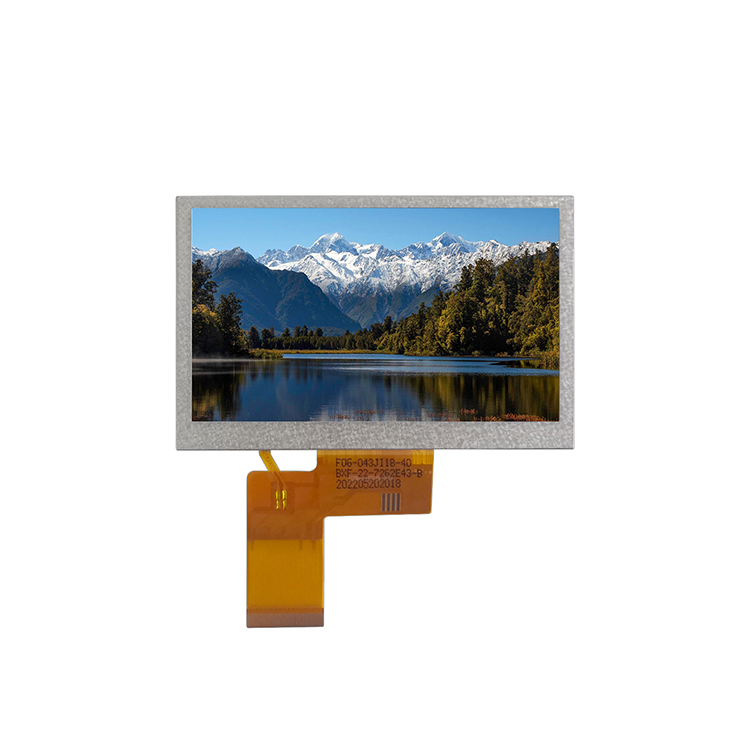

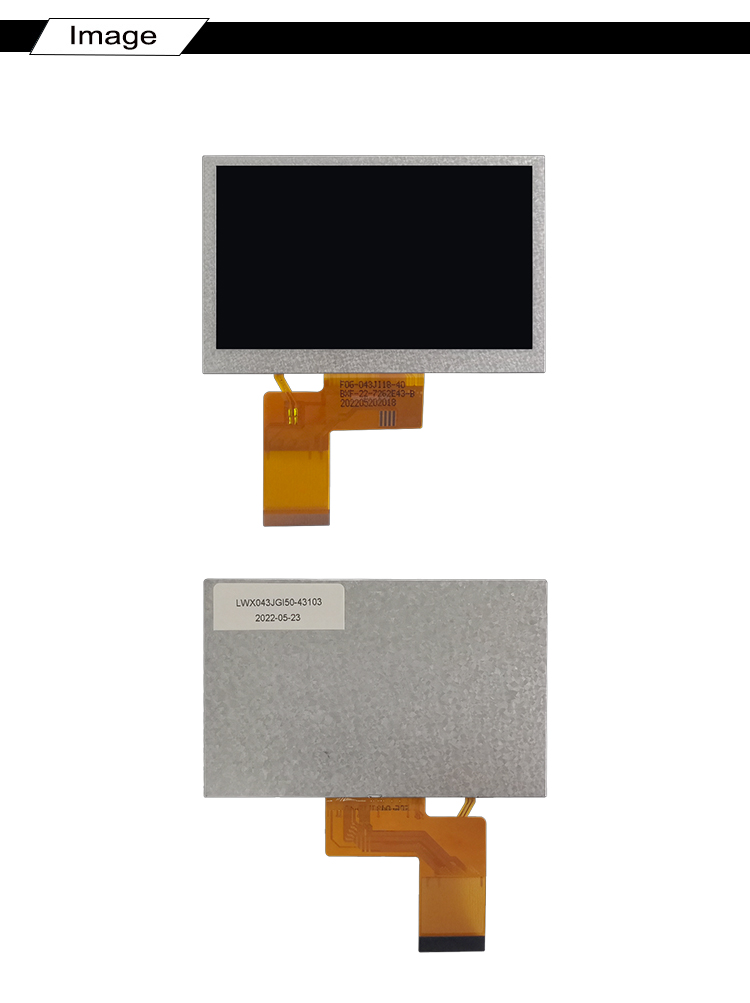

HICENDA TFT HT043WVI-05A is a TFT-LCD module. It is composed of a TFT-LCD panel, driver

IC, FPC, a back light unit. The 4.3inch display area contains 800x 480 pixels and can

display up to 16.7M colors. This product accords with RoHS

GENERAL SPECIFICATION

Display Type:	TFT display
Display Mode:	Passive Matrix
Model Number:	HT043WVI-05A
Diagonal Screen size:	4.3 inch
Interface:	24-bit Parallel RGB
Backlight:	10-LEDs (white)
Number of Pixels:	800(RGB)x480
Panel Size:	105.50(H)x67.20(V)x2.80(T) (mm)
Driver IC:	TBD
Active Area:	95.04x53.856(mm)
Display Mode:	Normally white/Transmissive
Pixel pitch:	0.1188(H)x0.1122(V) MM
Weight:	TBD
Operating Temperature:	-20~70°

DRAWING

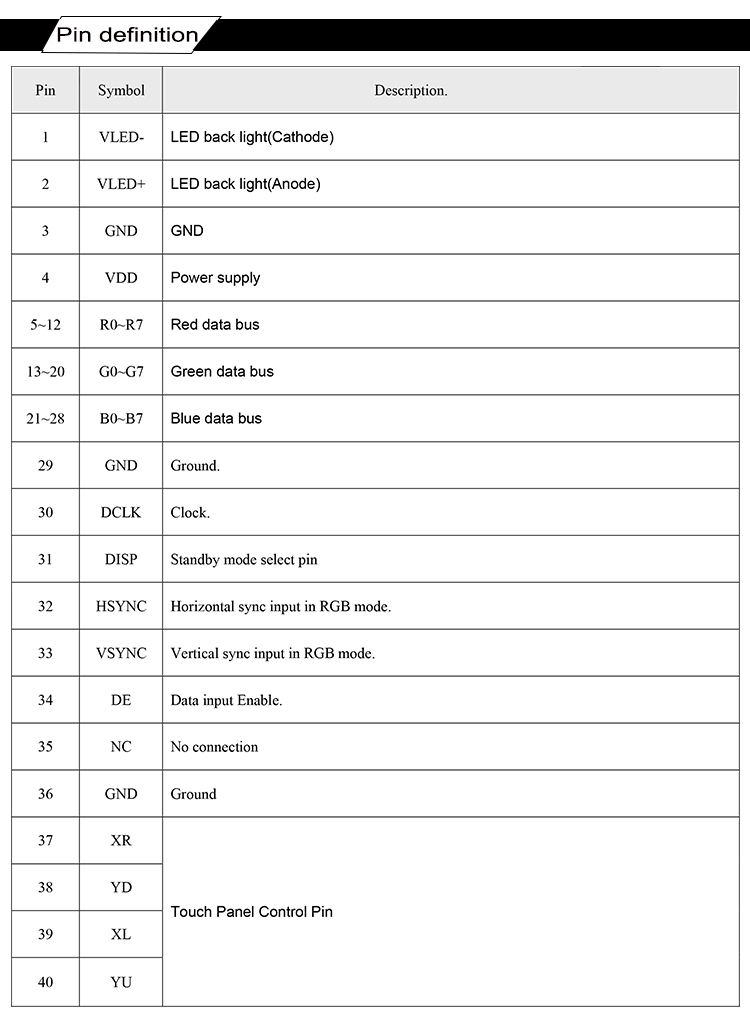

INTERFACE PIN FUNCTION
