4.0"

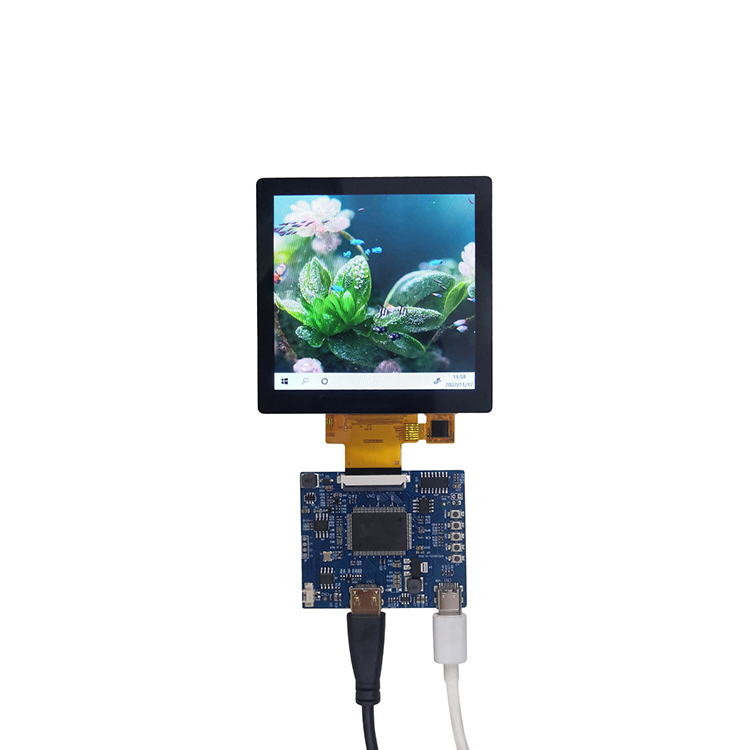

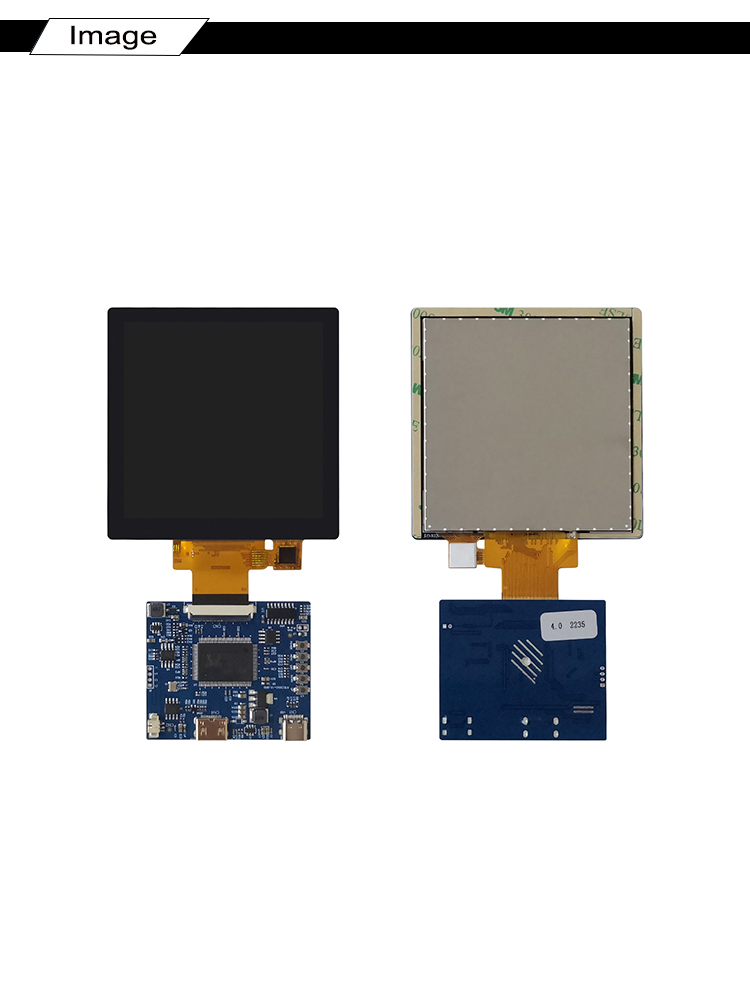

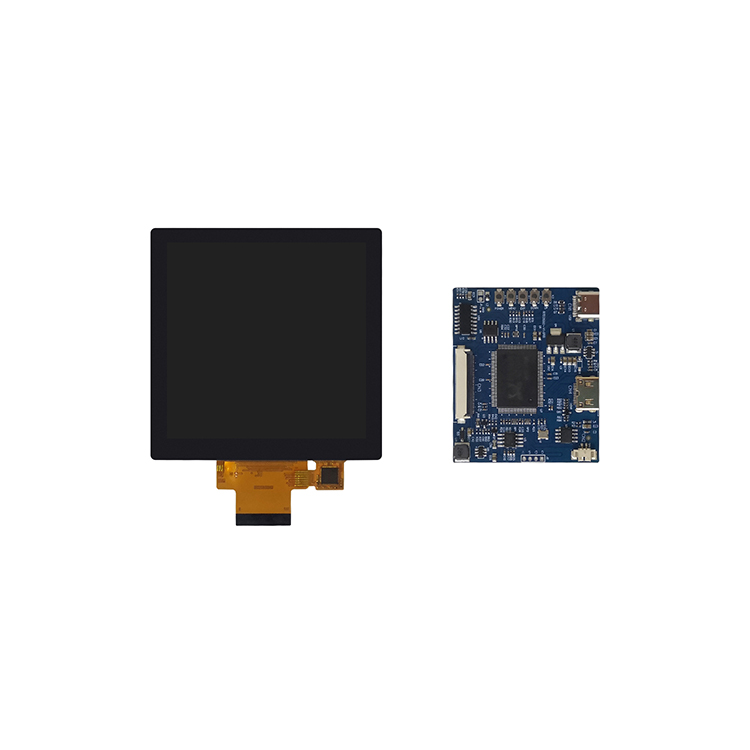

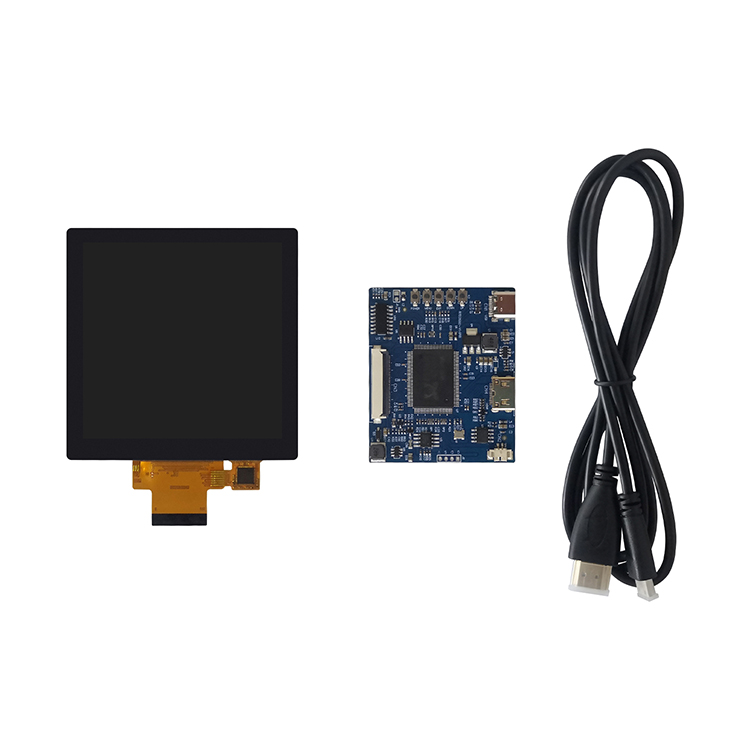

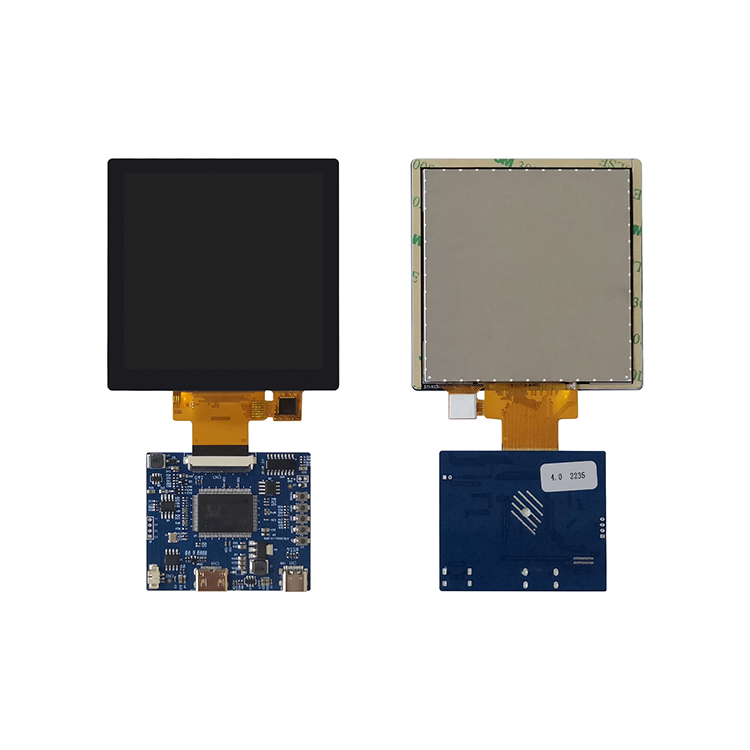

square 4 inch tft lcd display 480x480 with HDMI Driver Board

square 4 inch tft lcd display 480x480 with HDMI Driver Board

square 4 inch tft lcd display 480x480 with HDMI Driver Board

square 4 inch tft lcd display 480x480 with HDMI Driver Board

square 4 inch tft lcd display 480x480 with HDMI Driver Board

square 4 inch tft lcd display 480x480 with HDMI Driver Board

square 4 inch tft lcd display 480x480 with HDMI Driver Board

Size: 4.0 TFT
Controller IC: ST7701S
Resolution:480(RGB)×480
Interface: 3SPI+RGB
Product description: square 4 inch tft lcd display 480x480 with HDMI Driver Board
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA TFT HT040WQI-H401-R4018 with High Resolution (480 RGB x 480) is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT LCD panel, driver ICs, FPC and a

backlight unit.

GENERAL SPECIFICATION

Display Type:	TFT display
Display Mode:	Passive Matrix
Model Number:	HT040WQI-H401-R4018
Diagonal Screen size:	4.0 inch
Interface:	3SPI+RGB
Backlight:	LED
Number of Pixels:	480(RGB)×480
Panel Size:	84.284.33.2 (mm)
Driver IC:	ST7701S
Active Area:	71.86*70.18 (V) (mm)
Display Mode:	Normally white/Transmissive
Touch Driver IC:	GT911/GFF(mm)
Weight:	TBD
Operating Temperature:	-40~85°

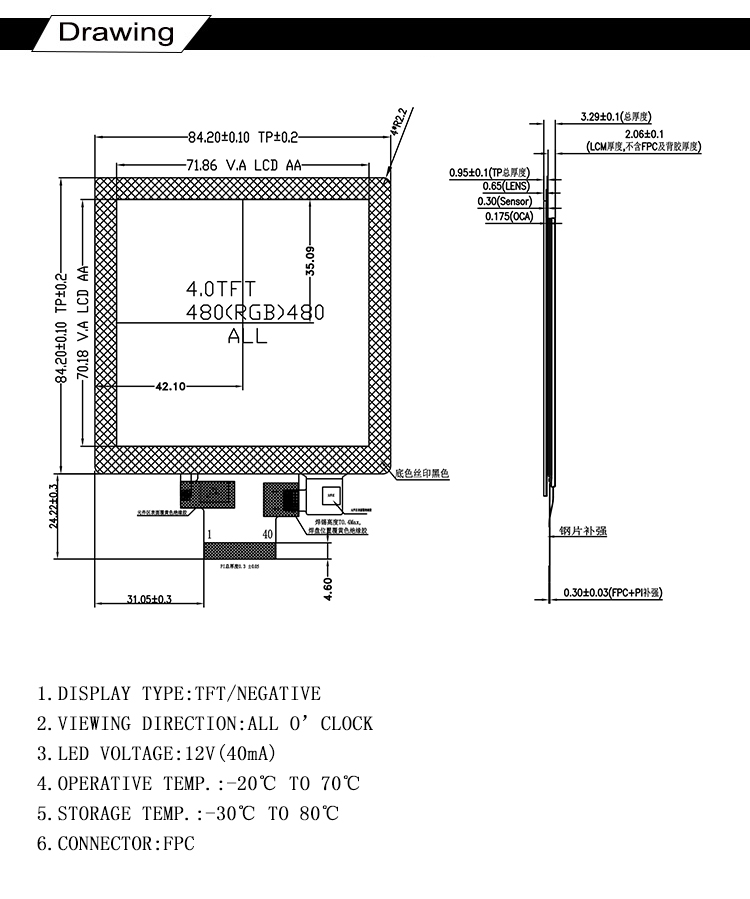

DRAWING

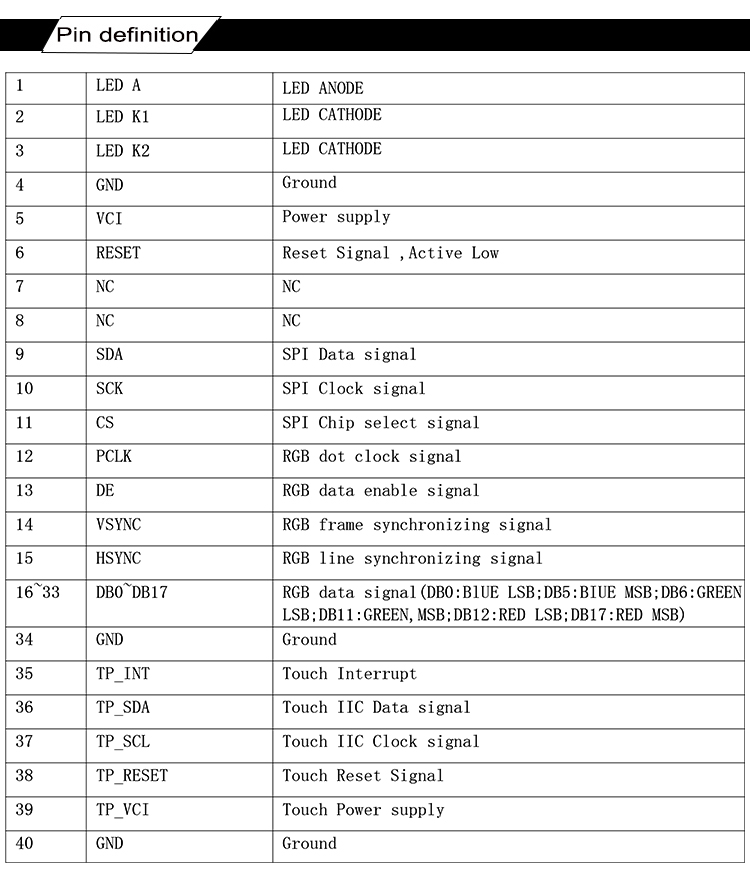

INTERFACE PIN FUNCTION
