2.8"

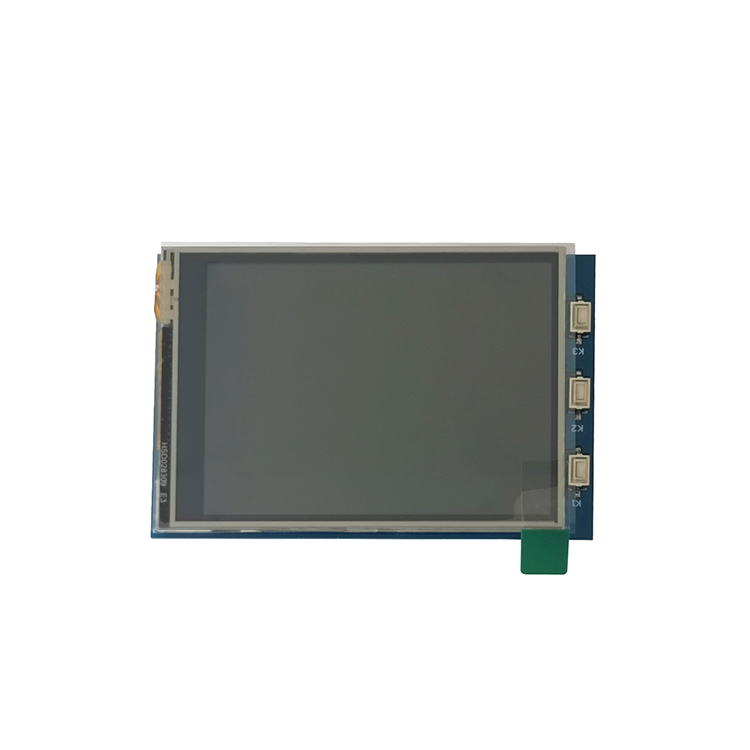

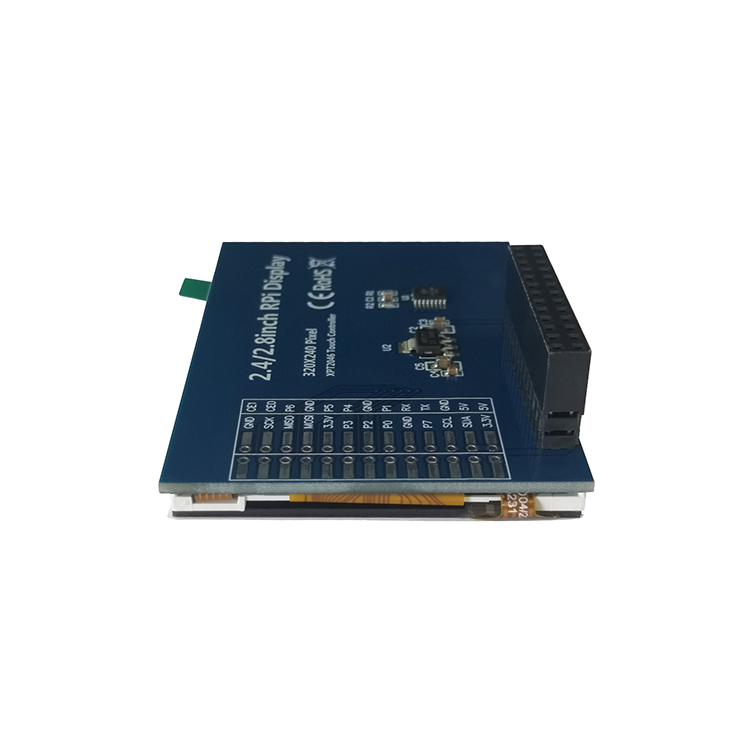

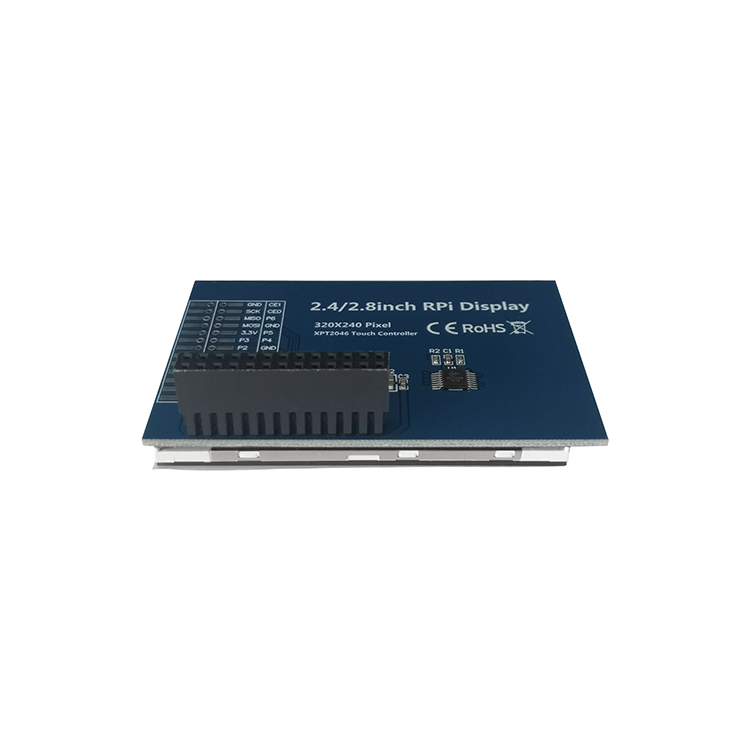

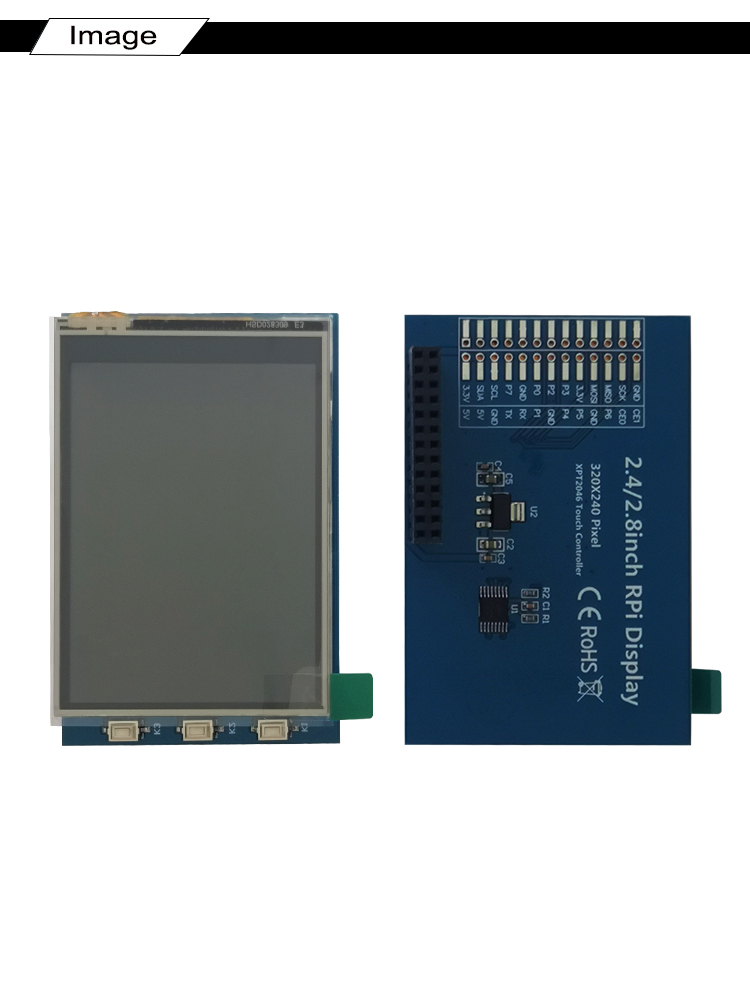

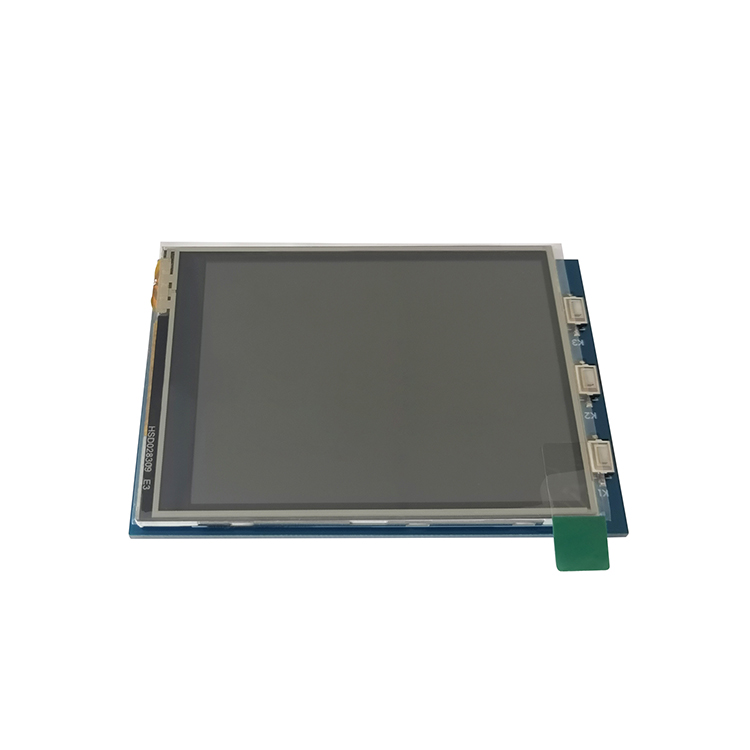

2.8 inch tft lcd display 320x240 with respberry pi board

2.8 inch tft lcd display 320x240 with respberry pi board

2.8 inch tft lcd display 320x240 with respberry pi board

2.8 inch tft lcd display 320x240 with respberry pi board

2.8 inch tft lcd display 320x240 with respberry pi board

2.8 inch tft lcd display 320x240 with respberry pi board

2.8 inch tft lcd display 320x240 with respberry pi board

Size: 2.8 respberry pi TFT
Controller IC:ILI9341
Resolution:320(RGB)x240
Interface:SPI
Product description: 2.8 inch tft lcd display 320x240 with respberry pi board
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

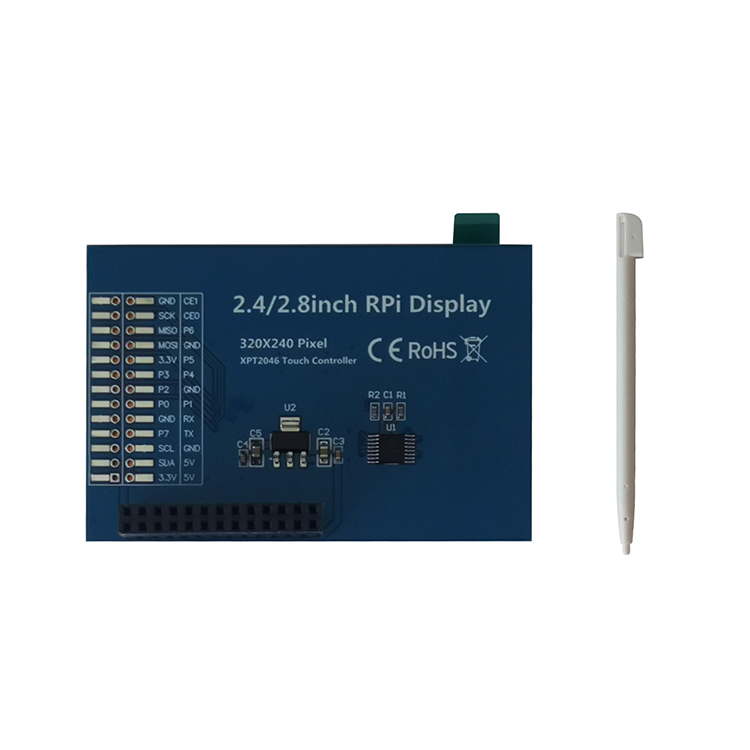

HICENDA TFT 2.8 TFT is High Resolution 230,400 Dots (320 RGB x 480) HT28320240 is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices, it is Resistance touch screen. and Support Raspberry Pi Pi3B+/Pi3/Pi2/ZERO and other full series versions. This product is composed of a TFT LCD panel, driver ICs, FPC and a backlight unit, and respberry pi board,

GENERAL SPECIFICATION

Display Type:	TFT display
Display Mode:	Passive Matrix
Model Number:	HT28320240
Diagonal Screen size:	2.8/ inch
Interface:	SPI interface
Backlight:	4 Chip White LED
Number of Pixels:	320(RGB)x240
Panel Size:	51.53x76.68 (mm)
Driver IC:	ILI9341
Active Area:	43.2x57.6 (mm)
Display Mode:	Normally white/Transmissive
Pixel pitch:	0.153(H) X 0.153(V) (mm)
Weight:	28(g)
Operating Temperature:	-40~85°

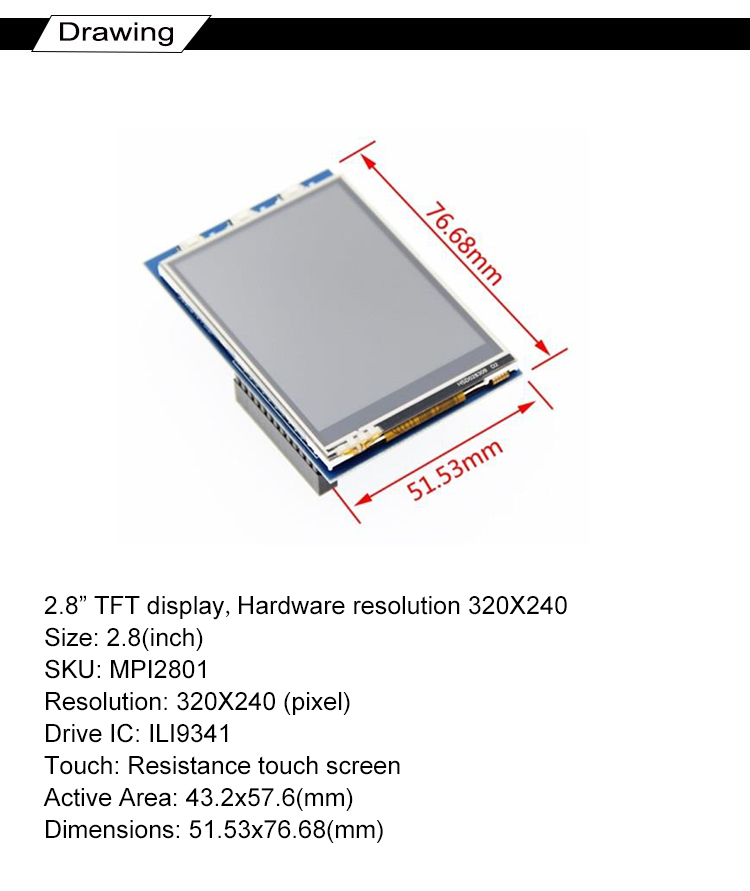

DRAWING

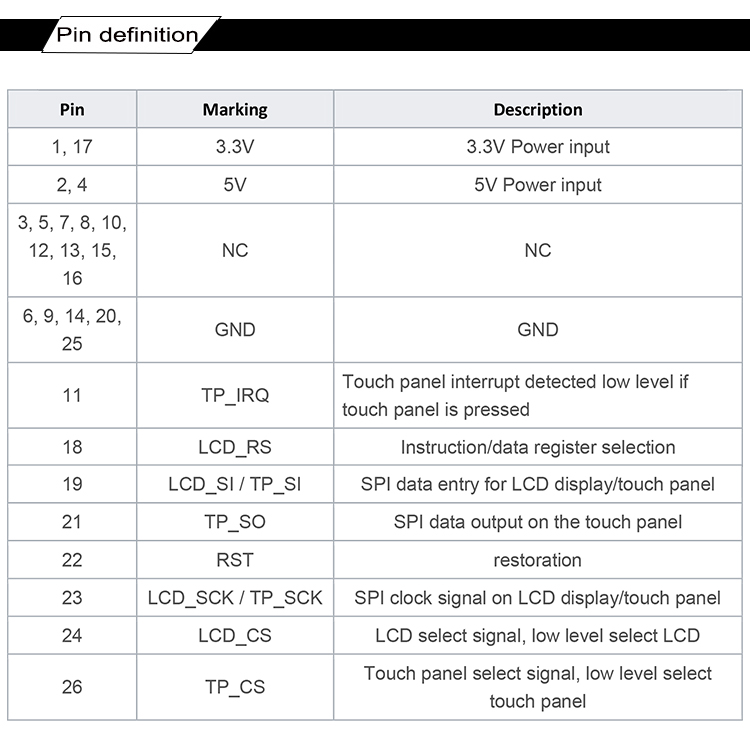

INTERFACE PIN FUNCTION

PREVIOUS：Small 4.3 inch TFT LCD display 480x800 touchscreen NEXT：3.12 Inch OLED Display 256X64 Graphic Display Module

RELATED PRODUCTS

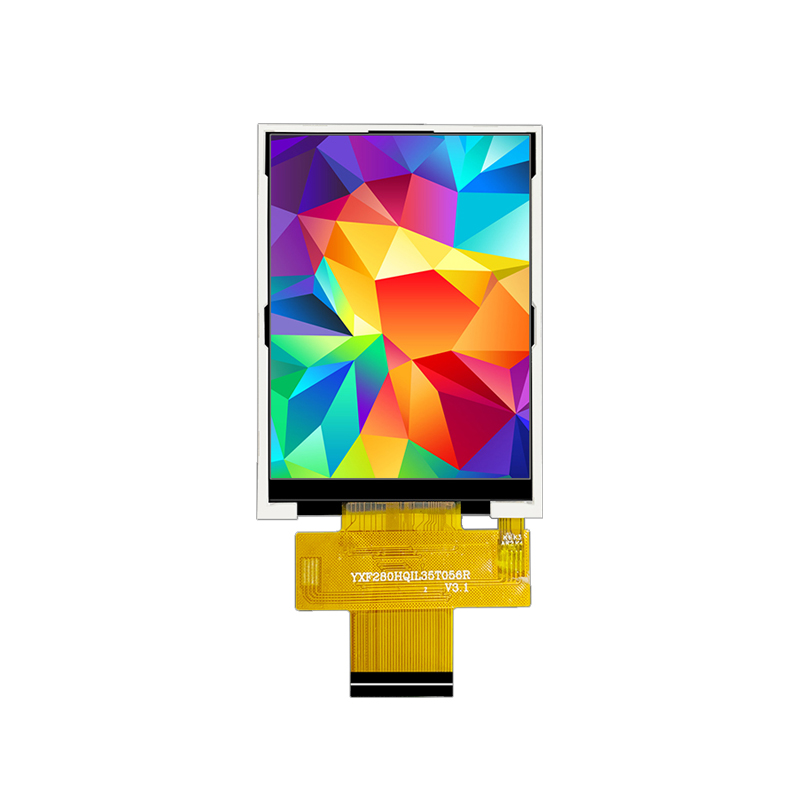

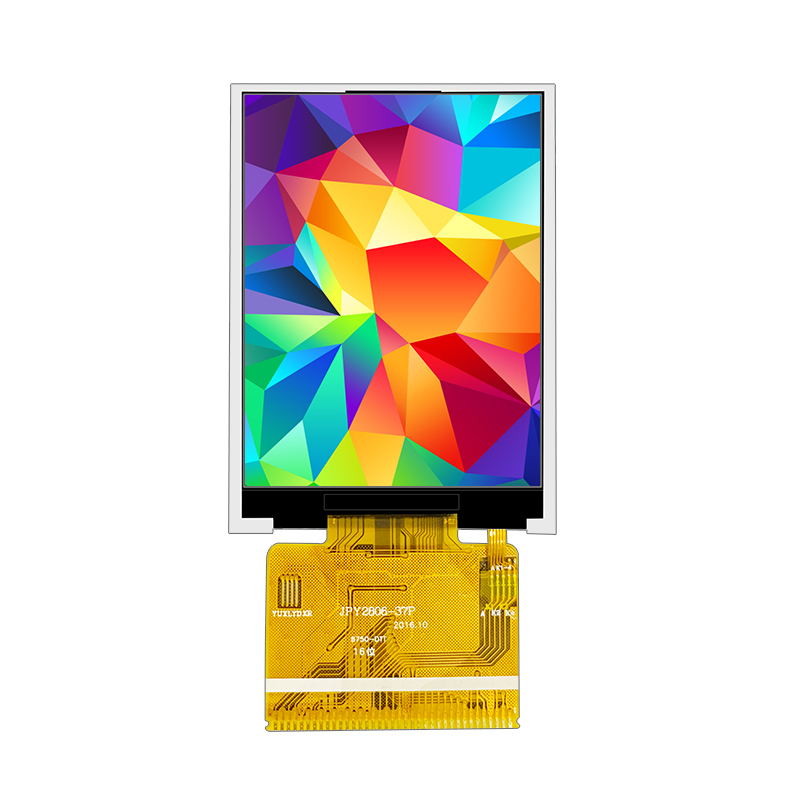

2.8 inch tft lcd module 240x320
