4.3"

TFT Display 4.3 inch 480x272 lcd touch screen module

TFT Display 4.3 inch 480x272 lcd touch screen module

TFT Display 4.3 inch 480x272 lcd touch screen module

TFT Display 4.3 inch 480x272 lcd touch screen module

TFT Display 4.3 inch 480x272 lcd touch screen module

TFT Display 4.3 inch 480x272 lcd touch screen module

TFT Display 4.3 inch 480x272 lcd touch screen module

Size: 4.3 TFT
Controller IC:ST7283
Resolution:480(RGB) x272
Interface: Parallel RGB 24-Bit

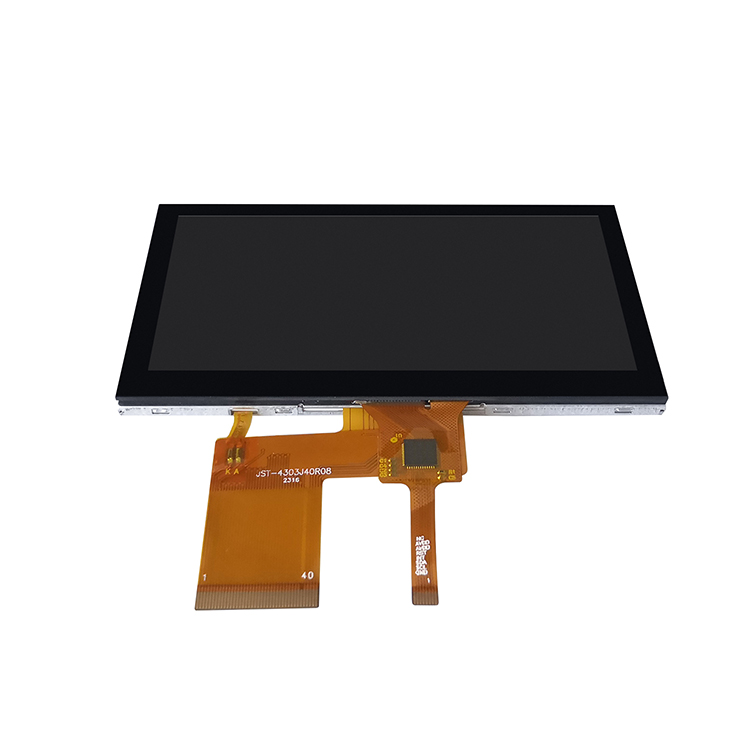

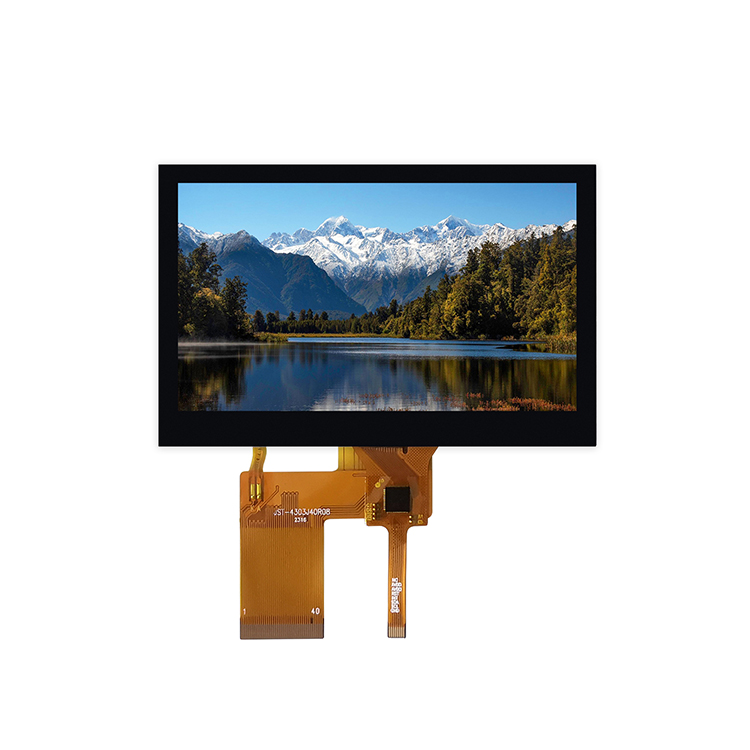

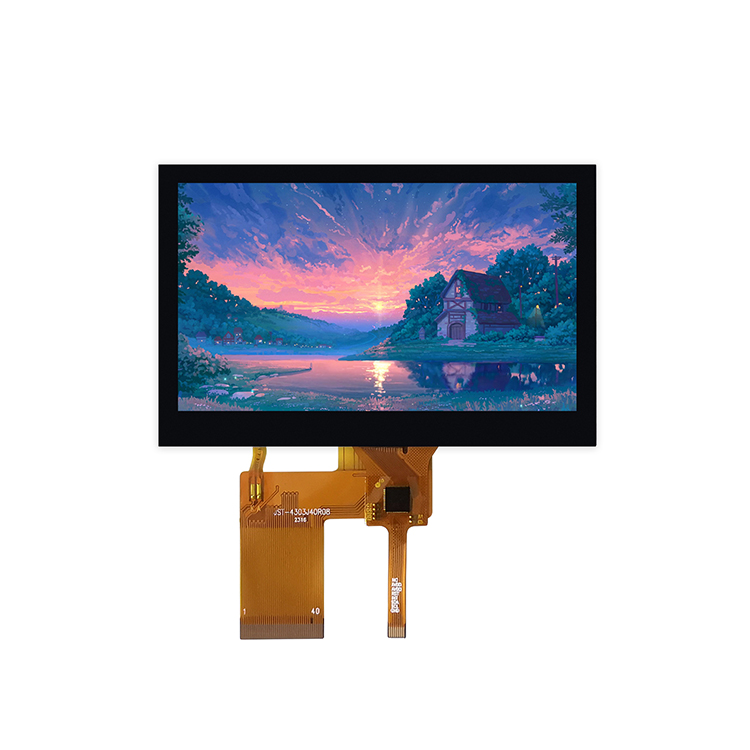

Product description: TFT Display 4.3 inch 480x272 lcd touch screen module
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA HT-4300H40R08IPS-V05 is a color active matrix LCD module incorporating

amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel,

driver IC, FPC and a back light unit. The module display area contains 480X272pixels. This

product accords with RoHS environmental criterion.

GENERAL SPECIFICATION

Display Type:	TFT display
Display Mode:	Passive Matrix
Model Number:	HT-4300H40R08IPS-V05
Diagonal Screen size:	4.3 inch
Interface:	Parallel RGB 24-Bit
Backlight:	7chips white LEDS, Serial
Number of Pixels:	480(RGB) x272
Panel Size:	105.40x67.10x3.0 (mm)
Driver IC:	ST7283
Active Area:	95.04x53.856(mm)
Display Mode:	Normally white/Transmissive
Operating Temperature:	-20~70°
Weight:	TBD
Storage temperature	-30~80°

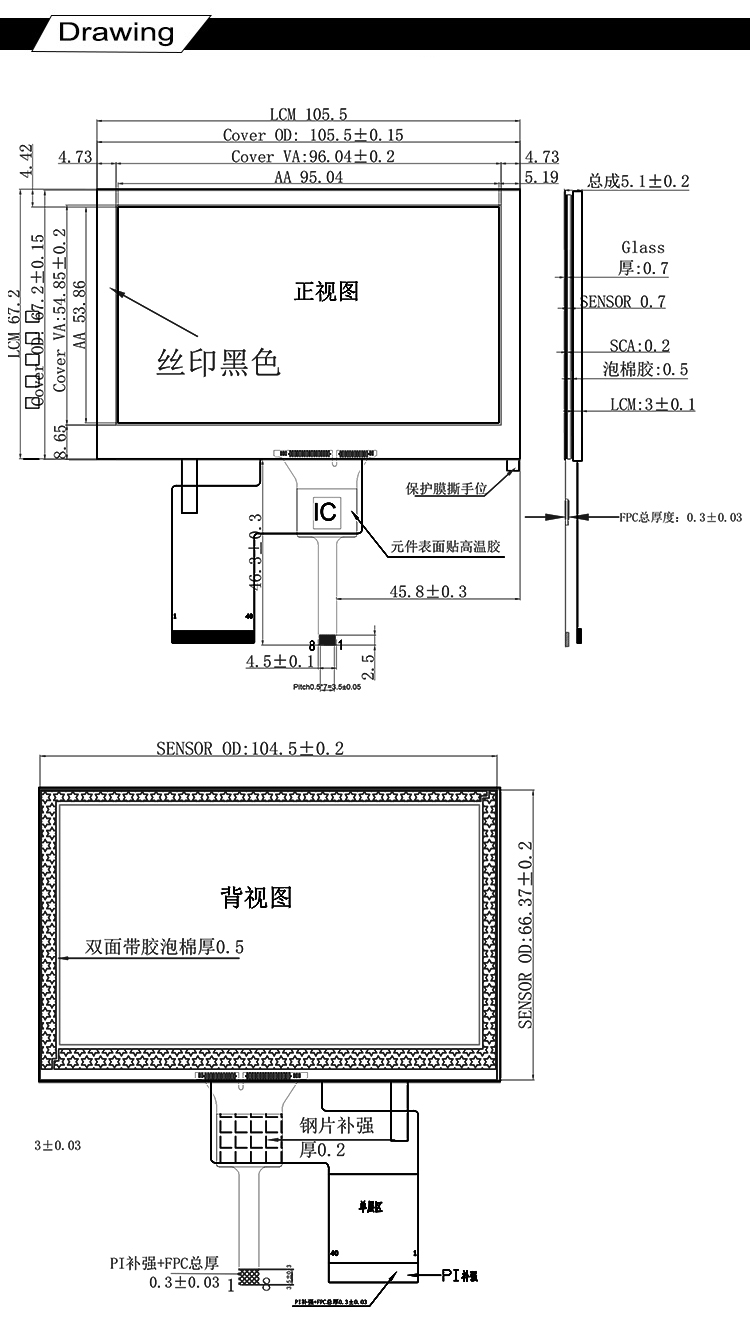

DRAWING

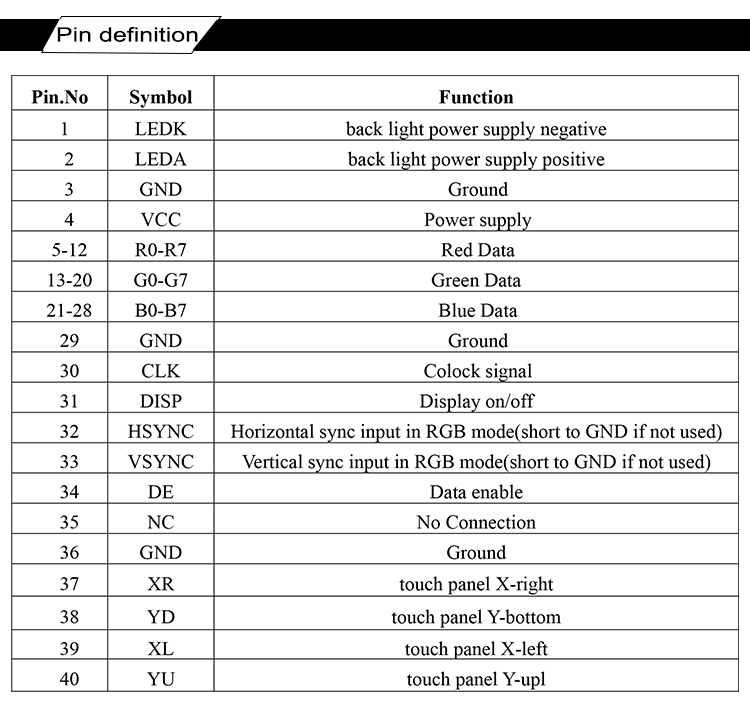

INTERFACE PIN FUNCTION
