DESCRIPTION

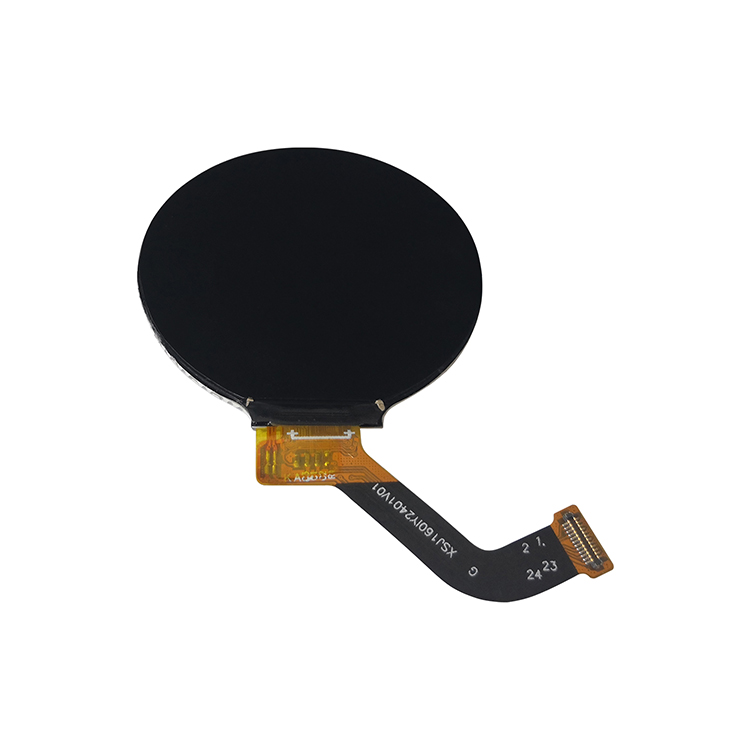

HICENDA HT1.6IPSTFT-24p is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 400X400 pixels and can display up to 262K colors. This product accords with RoHS environmentalcriterion.

GENERAL SPECIFICATION

Display Type:	Normally Black Transmissive LCD
Display Mode:	COLOR TFT
Model Number:	HT1.6IPSTFT
Diagonal Screen size:	1.6 inch
Interface:	MIPI interface
Drive Duty:	1/64 Duty
Number of Pixels:	400(RGB) x400
Panel Size	42.94 x45.89x1.65(mm)
Driver IC:	ST7797
Active Area:	39.84 x39.84(mm)
Viewing direction:	IPS(Full View)
Colors:	262K
Backlight Type:	3 LED Parrallel
Input voltage:	2.8~3.2V

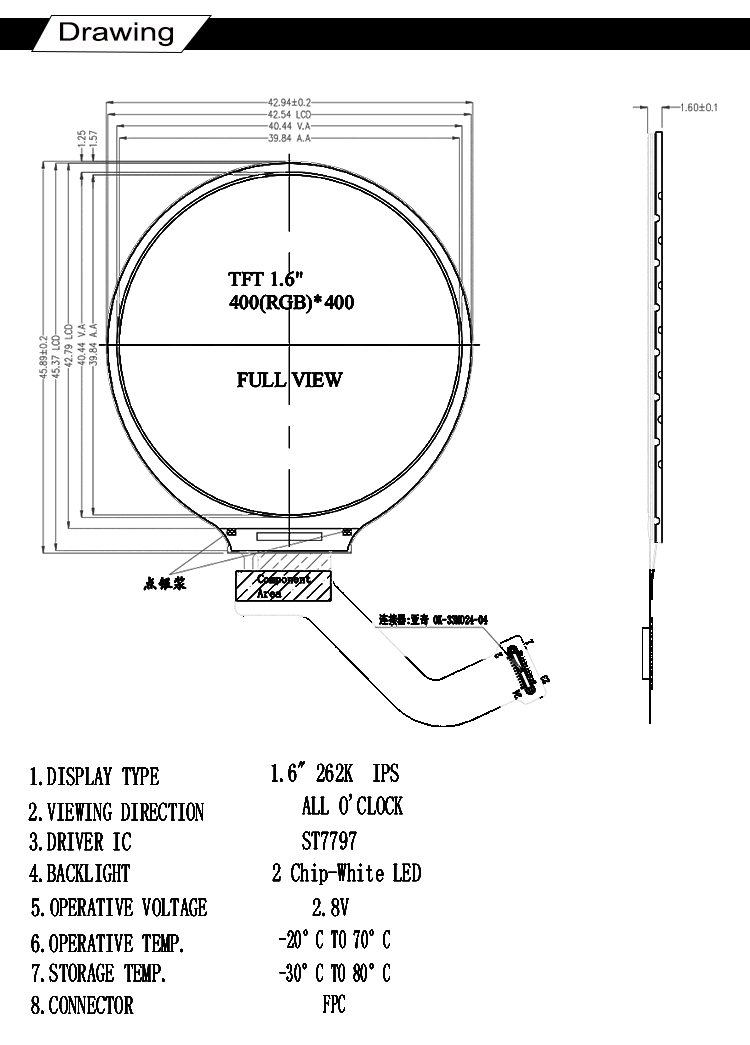

DRAWING

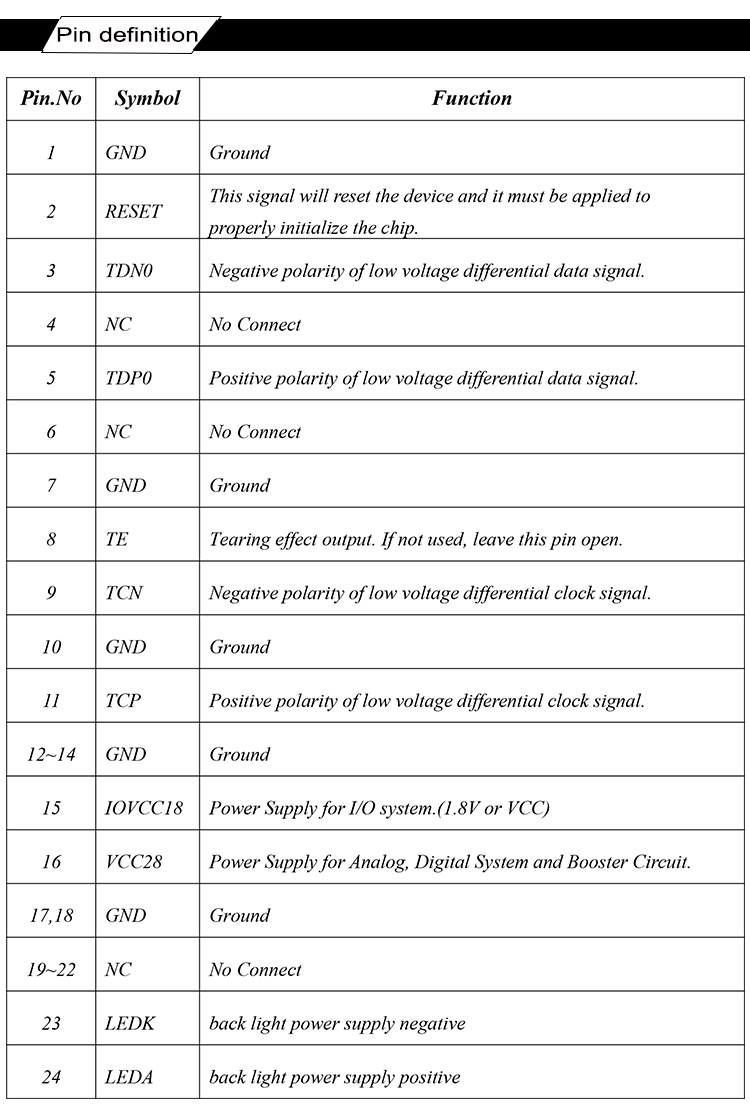

INTERFACE PIN FUNCTION
