TFT Display 4.3 inch 480x272 lcd screen module

  • Size: 4.3 TFT
  • Controller IC:ST7283
  • Resolution:480(RGB) x272
  • Interface: Parallel RGB 24-Bit
  • Product description: TFT Display 4.3 inch 480x272 lcd touch screen module
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

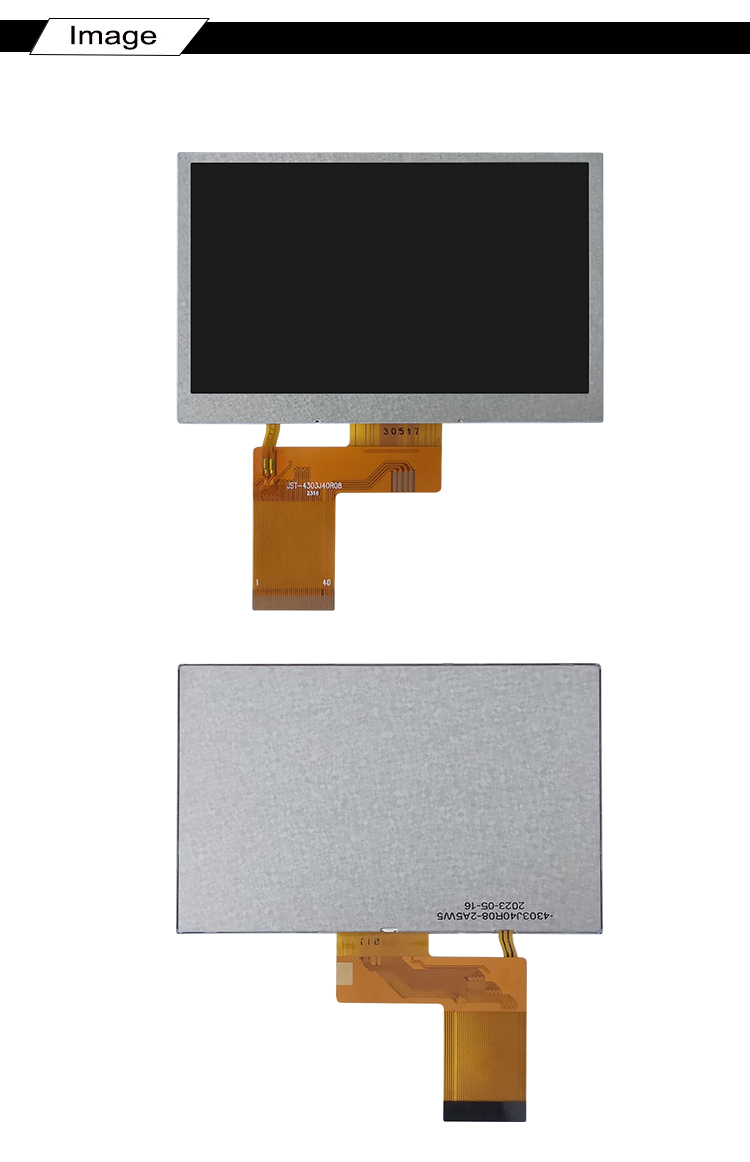

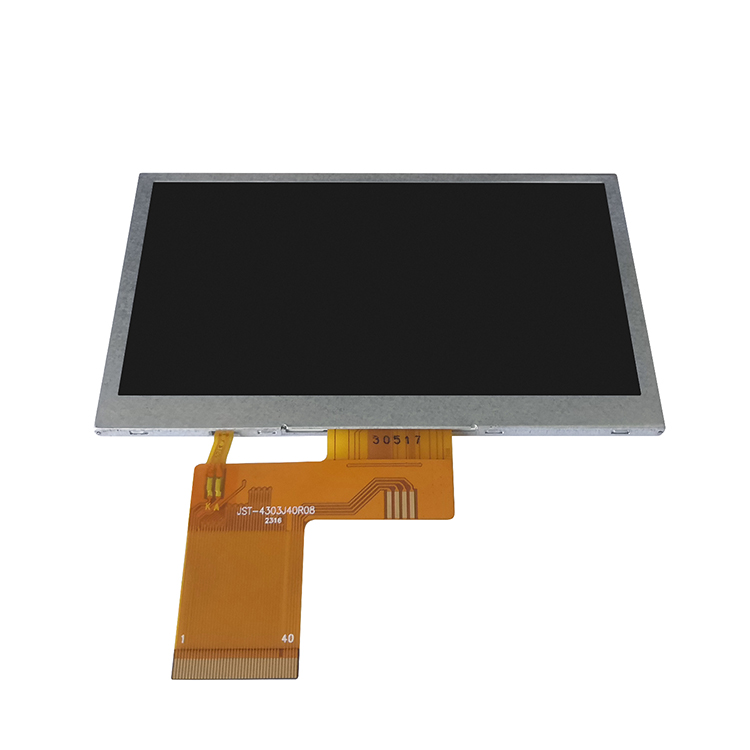

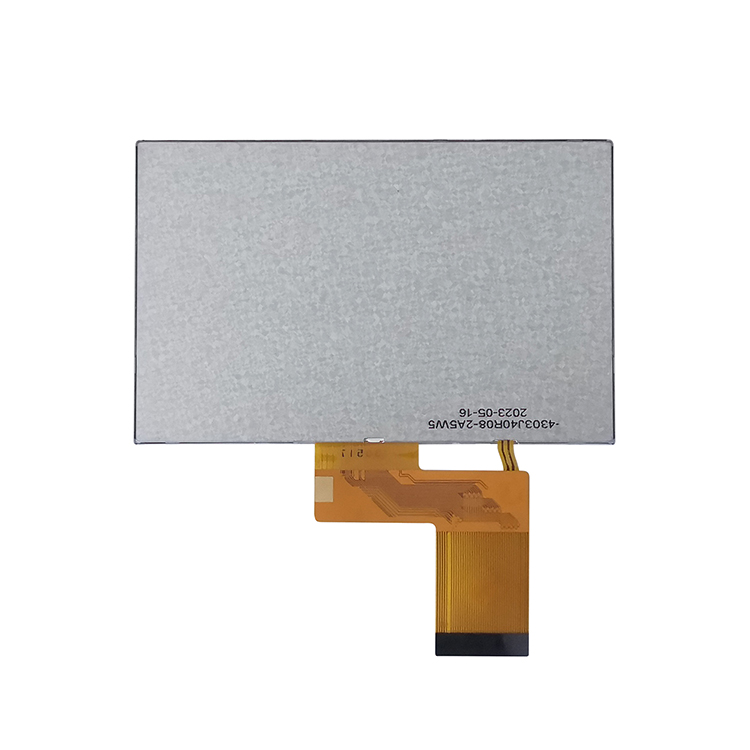

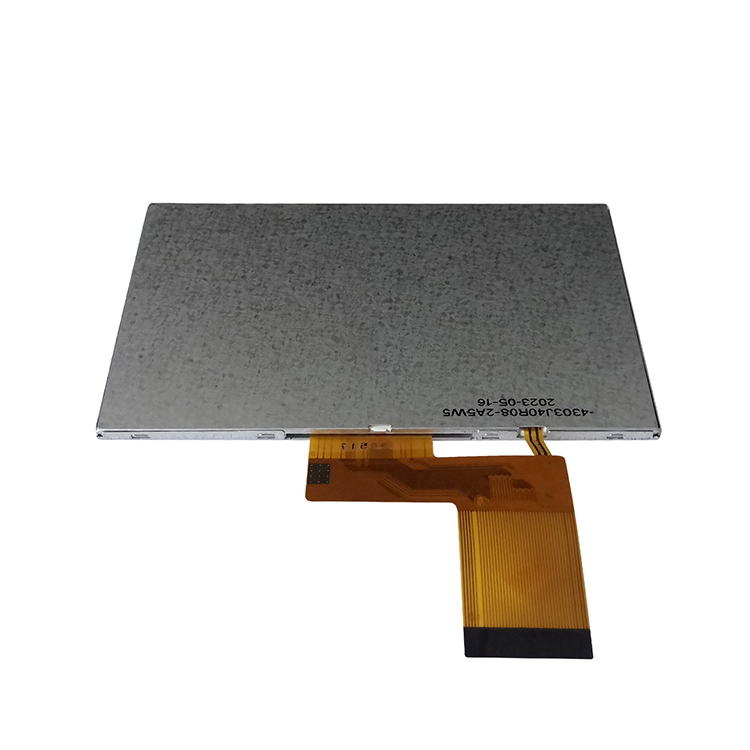

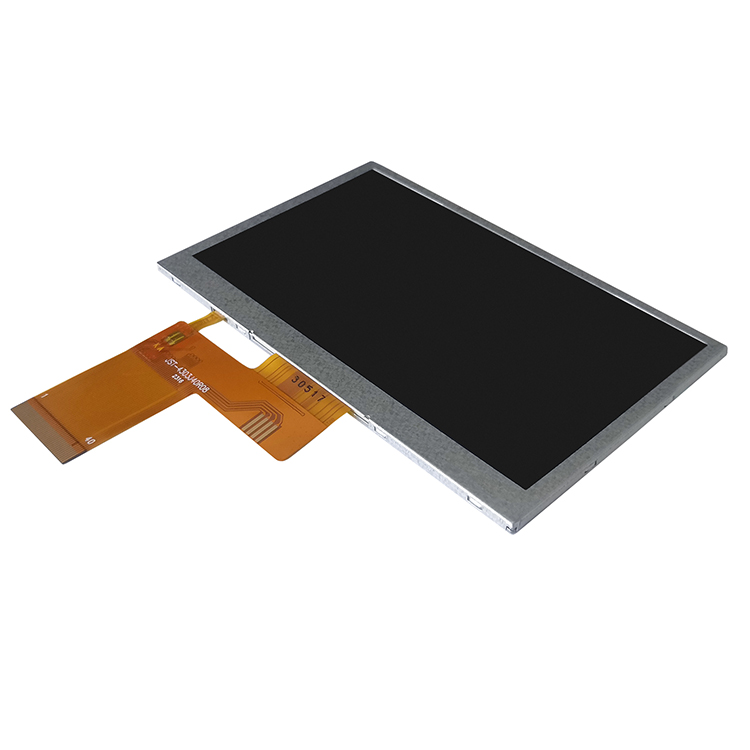

HICENDA HT-4300H40R08IPS-V05 is a color active matrix LCD module incorporating

amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel,
driver IC, FPC and a back light unit. The module display area contains 480X272pixels. This
product accords with RoHS environmental criterion.







GENERAL SPECIFICATION

Display Type: TFT display
Display Mode: Passive Matrix
Model Number:
HT-4300H40R08IPS-V05
Diagonal Screen size: 4.3 inch
Interface:
Parallel RGB 24-Bit
Backlight:

7chips white LEDS, Serial
Number of Pixels:

480(RGB) x272
Panel Size:

105.40x67.10x3.0 (mm)
Driver IC:

ST7283
Active Area:

95.04x53.856(mm)
Display Mode:

Normally white/Transmissive
Operating Temperature:

-20~70°

Weight:

TBD

Storage temperature


-30~80°

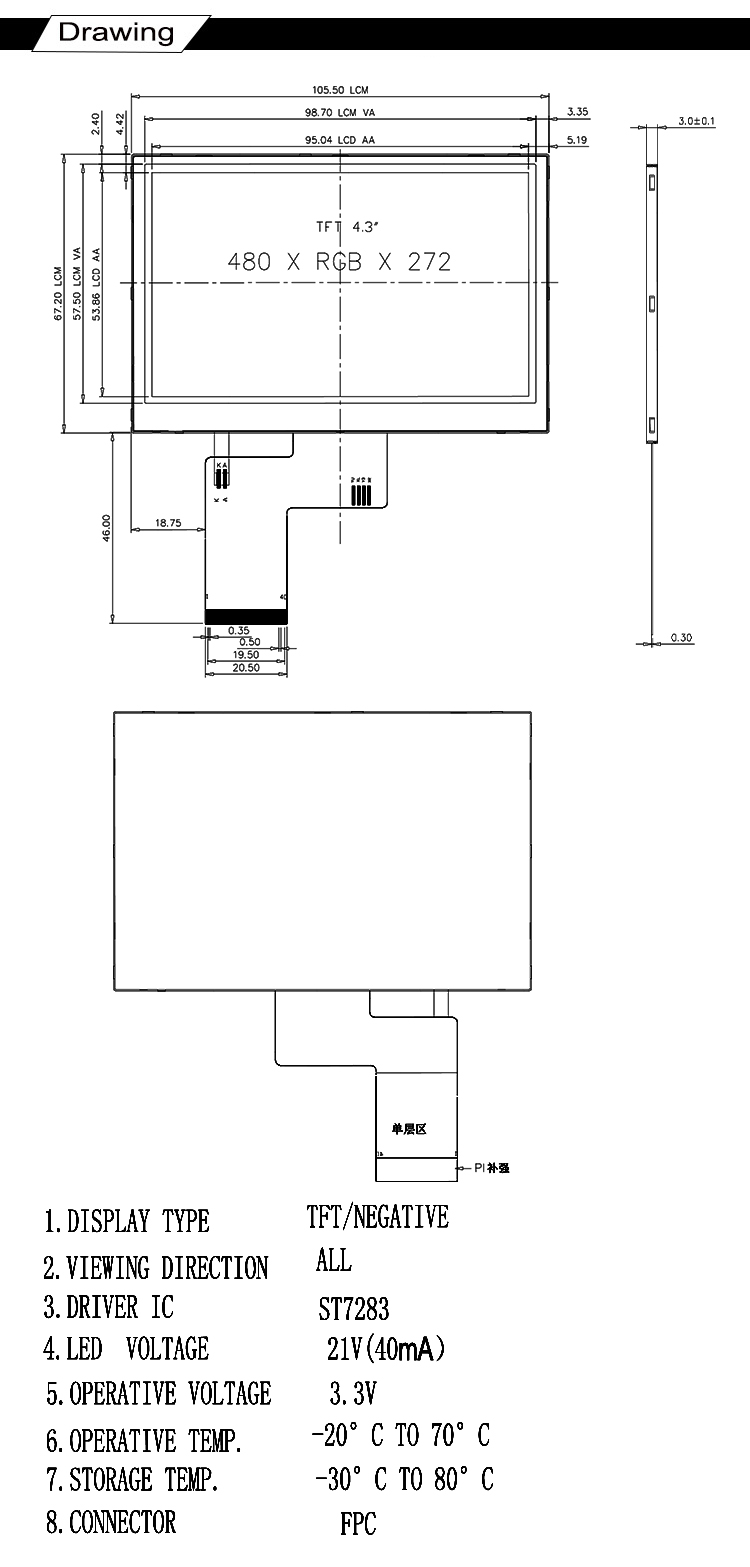

DRAWING

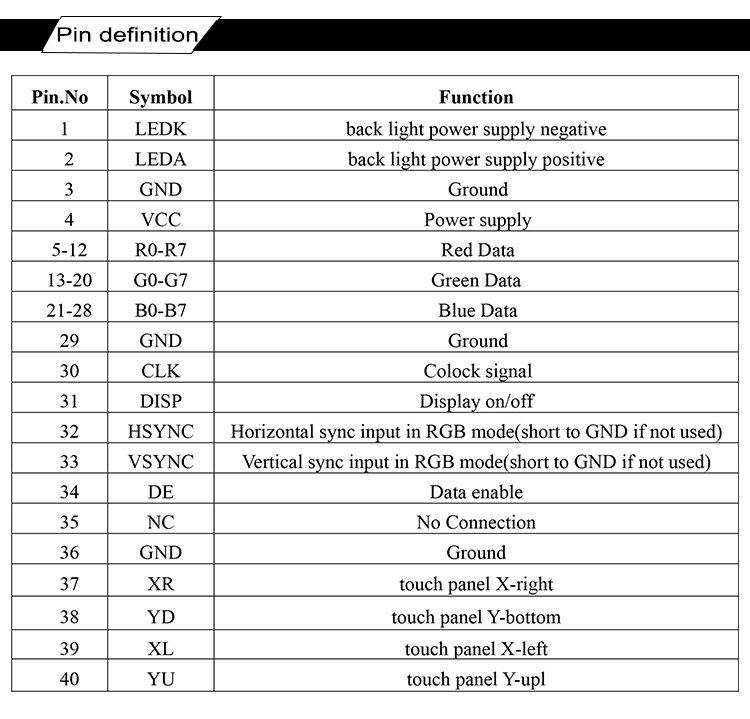

INTERFACE PIN FUNCTION
