7.0"

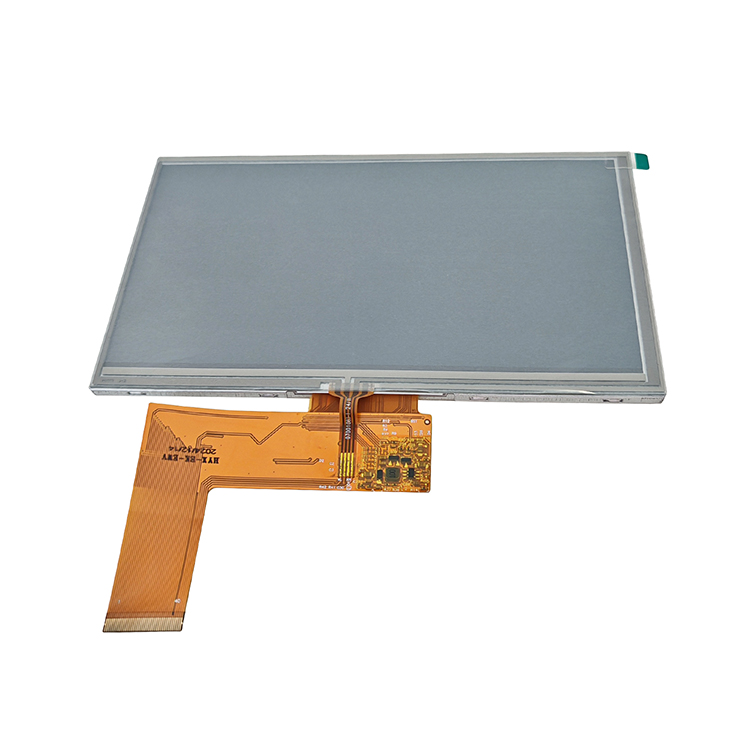

tft lcd display module 7 inch tft touch screen 800x480 with RTP

tft lcd display module 7 inch tft touch screen 800x480 with RTP

Size: 7.0 TFT
Interface:24Bit RGB
Resolution:800(H)x3(RGB)x480(V)
Brightness: 400(TYR)
Product description: tft lcd display module 7 inch tft touch screen 800x480 with RTP
INQUIRY

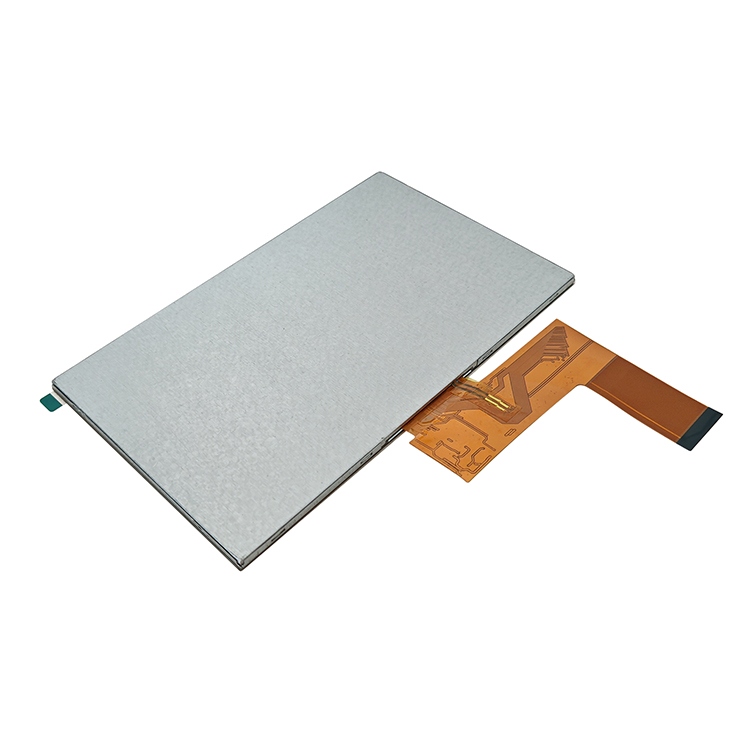

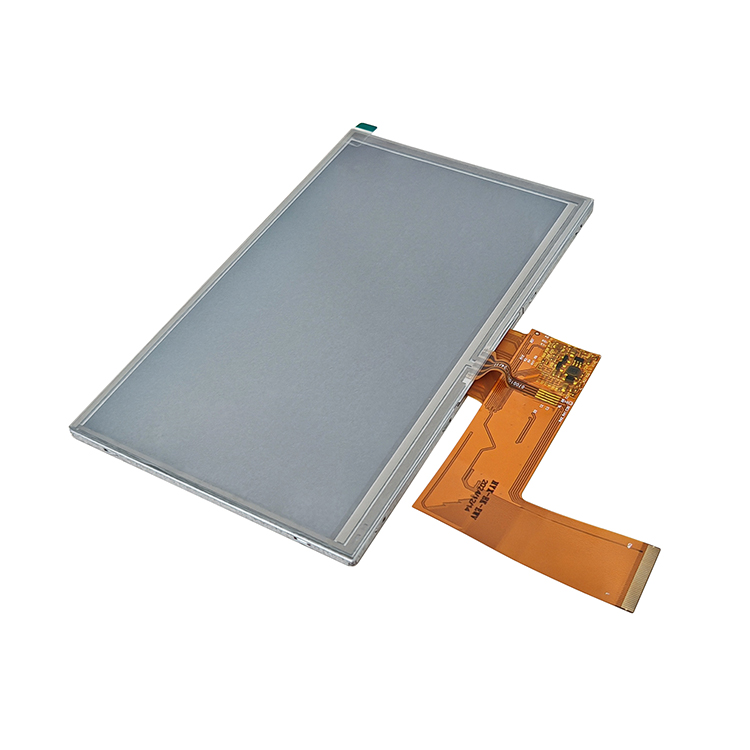

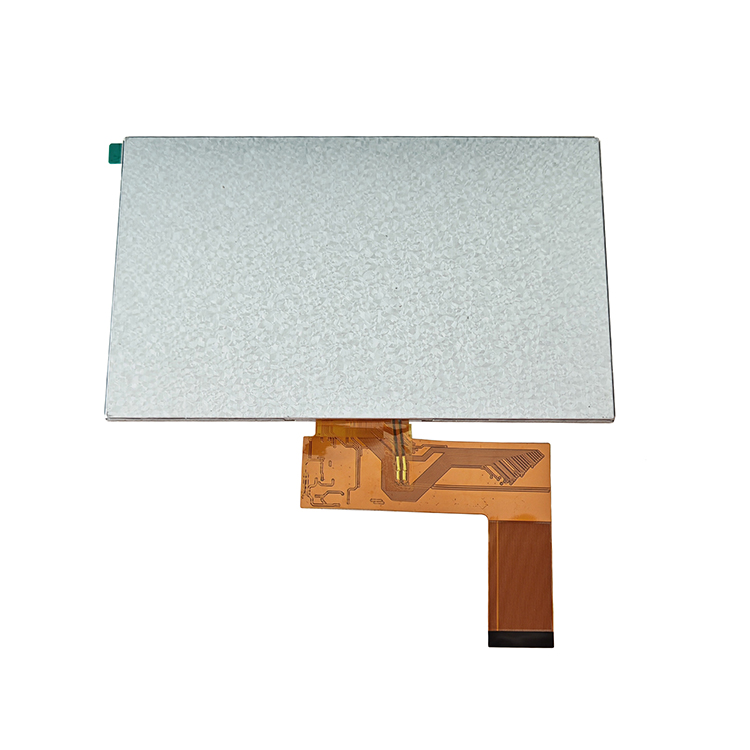

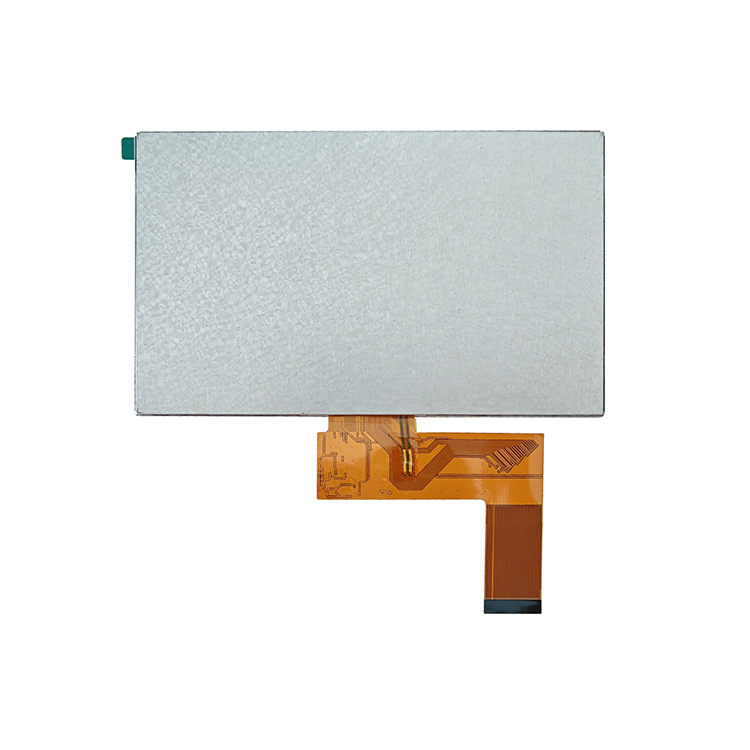

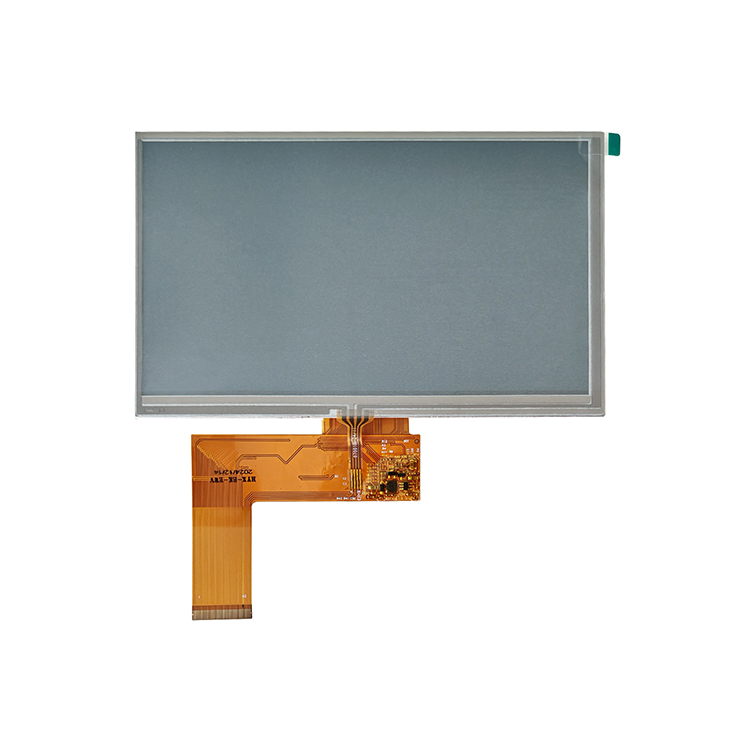

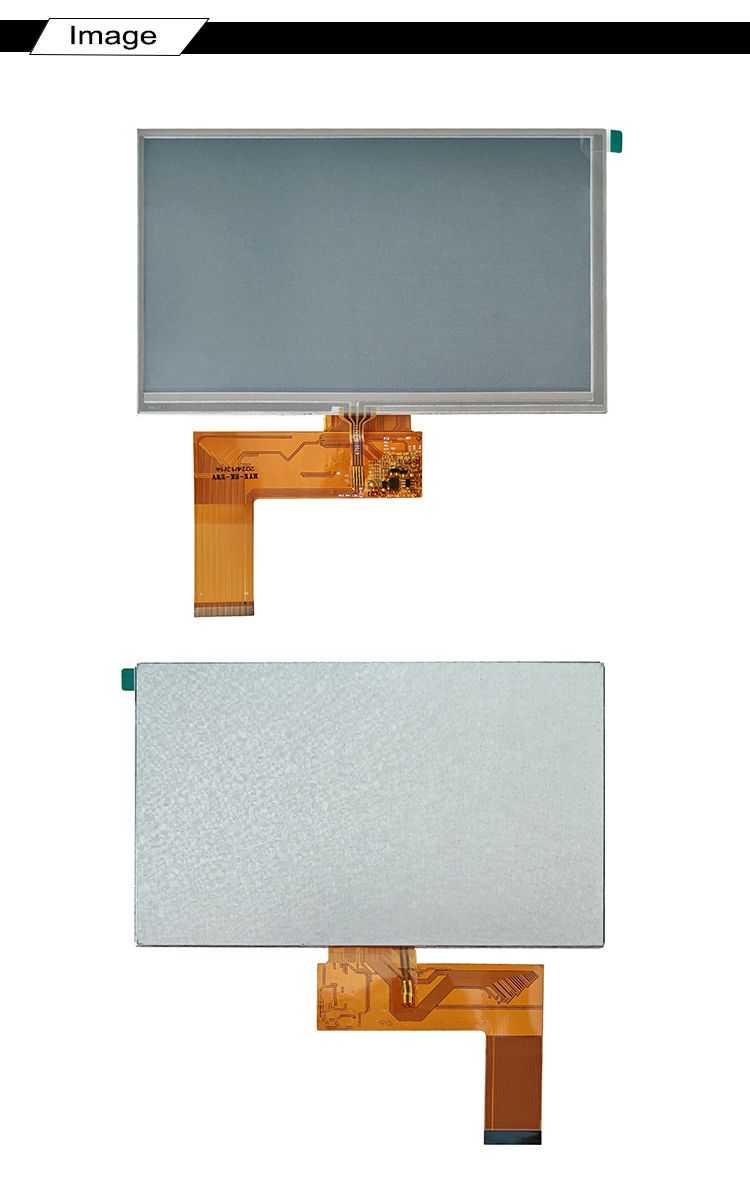

7" TFT LCD Display 800x480 touch screen with RTP

Please kindly contact us for full data sheet of the display.

The ZX070009B21A is a cutting-edge TFT LCD display module designed for a wide range of applications that require high-quality visual performance. This 7-inch screen boasts a resolution of 800x480 pixels and is equipped with a touch interface, offering users an interactive and responsive display. With an outline dimension of 165mm (width) x 100mm (height) x 3.5mm (thickness), this module is compact, yet capable of delivering vibrant and sharp images. The module supports a 24-bit RGB interface, with a pixel pitch of 0.1926mm (width) and 0.1790mm (height), providing a clear and crisp visual experience. Its display operates with a normally white TN (Twisted Nematic) mode, ensuring excellent brightness (400 cd/m²) and a contrast ratio of 350:1. This model is ideal for various electronic devices that require clear, colorful displays and is designed to perform well in a wide range of temperatures, from -10°C to 60°C during operation and -20°C to 70°C during storage.

Technical Specifications 7 TFT LCD Module

This section provides a comprehensive breakdown of the ZX070009B21A’s key technical specifications, which demonstrate its capability to meet high-performance standards in both commercial and industrial applications.

Specification Details

Model Number ZX070009B21A

Display Size 7 inches

Resolution 800 x 480

Outline Dimensions 165mm (W) x 100mm (H) x 3.5mm (T)

Active Area 154.08mm (W) x 85.92mm (H)

Pixel Pitch 0.1926mm (W) x 0.1790mm (H)

Pixel Arrangement RGB Vertical Stripe

Interface 24-bit RGB

Display Mode Normally White, TN

Brightness 400 cd/m²

Contrast Ratio 350:1

Operating Temperature -10°C to 60°C

Storage Temperature -20°C to 70°C

Specification	Details
Model Number	ZX070009B21A
Display Size	7 inches
Resolution	800 x 480
Outline Dimensions	165mm (W) x 100mm (H) x 3.5mm (T)
Active Area	154.08mm (W) x 85.92mm (H)
Pixel Pitch	0.1926mm (W) x 0.1790mm (H)
Pixel Arrangement	RGB Vertical Stripe
Interface	24-bit RGB
Display Mode	Normally White, TN
Brightness	400 cd/m²
Contrast Ratio	350:1
Operating Temperature	-10°C to 60°C
Storage Temperature	-20°C to 70°C

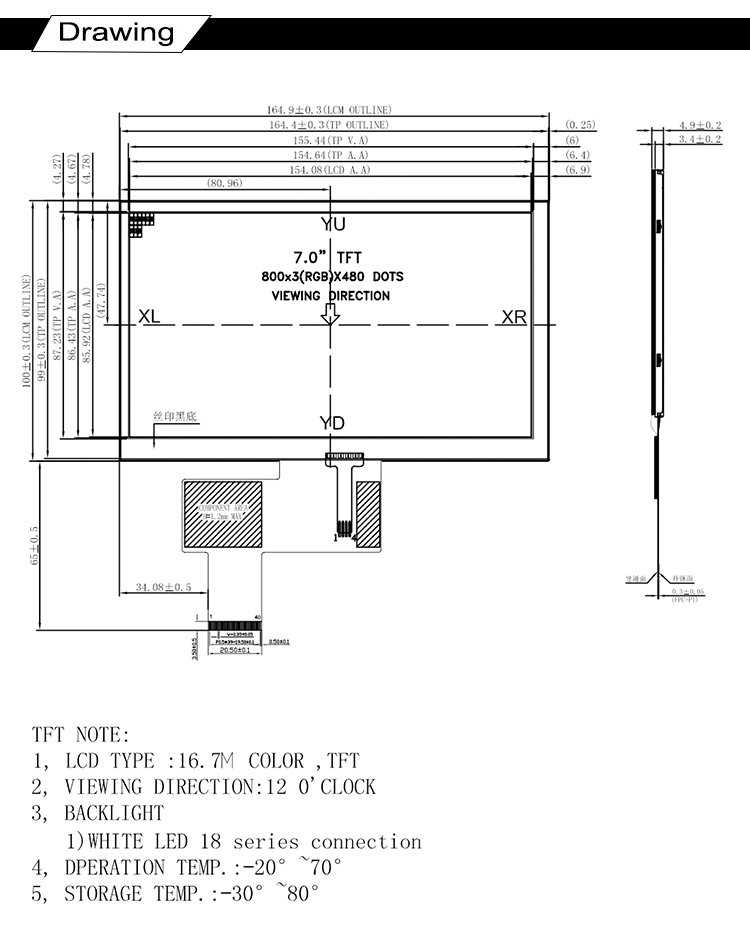

DRAWING

Key Features and Benefits of 7 INCH TFT DISPLAY

High Resolution for Detailed Displays

With a resolution of 800x480 pixels, the ZX070009B21A offers high clarity and detail, ensuring that content is crisp and easy to read. This makes the display suitable for various user interfaces, navigation systems, and industrial displays where fine details are essential.

Compact Design for Versatility

The 7-inch screen size coupled with a slim profile of 3.5mm in thickness allows for easy integration into devices with limited space. Its compact nature ensures that the display can be used in a range of compact applications, from handheld devices to embedded systems.

Brightness and Contrast for Clear Viewing

With a typical brightness of 400 cd/m² and a contrast ratio of 350:1, the ZX070009B21A provides vibrant colors and clear visibility even under challenging lighting conditions. The display performs well in environments with ambient light, offering optimal viewing angles and ease of use.

Wide Operating Temperature Range

The ZX070009B21A is engineered to perform under a wide range of environmental conditions. It operates reliably between -10°C to 60°C and can be stored at temperatures as low as -20°C and as high as 70°C, making it ideal for industrial and outdoor applications.

Low Power Consumption

The TFT display module's low power consumption—ranging from 0.4mW to 550mW—ensures energy efficiency, which is particularly beneficial in battery-powered applications. The balance between performance and energy use makes this display an excellent choice for portable devices.

Applications of 7 INCH TFT TOUCH SCREEN

The ZX070009B21A TFT LCD display module is designed for diverse applications. Its high-resolution touch interface and durability make it suitable for the following:

Consumer Electronics: Smartphones, tablets, and portable multimedia devices.
Industrial Equipment: HMI (Human-Machine Interface) systems and control panels.
Automotive Displays: Navigation systems and infotainment screens.
Medical Devices: Diagnostic equipment and patient monitoring systems.

The ZX070009B21A TFT LCD display module is a highly versatile, compact, and power-efficient solution for applications requiring high-definition visuals and durability. Its performance specifications make it a valuable addition to a wide range of products and systems, from consumer electronics to industrial applications. By integrating this advanced 7-inch touch screen, manufacturers can enhance the user experience with bright, detailed, and reliable displays.
