7-Inch Round TFT Display Module 1080×1080 MIPI Interface

  • Size: 7 round tft
  • Controller IC:FL5893
  • Resolution: 1080(RGB) x1080
  • Interface: MIPI interface
  • Product description: 7-Inch Round TFT Display Module 1080×1080 MIPI Interface
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION


HICENDA The 7-inch round TFT display module (Model: HD70001C30-Y) is an advanced circular LCD solution designed for high-end applications requiring both aesthetic innovation and superior display performance. Featuring a 1080(H) × 1080(V) resolution, wide IPS viewing angles, and robust environmental adaptability, this module provides excellent optical clarity and operational stability. Engineered with MIPI interface technology, it ensures high-speed data transfer, making it suitable for wearable devices, automotive clusters, smart home panels, and industrial instruments where precision visuals and round display geometry are demanded.




GENERAL SPECIFICATION


Parameter Specification
Model No.                                                                 HD70001C30-Y
Display Size 7 inch (Round)
Resolution 1080(H) × 1080(V)
Display Type a-Si TFT
Viewing Direction IPS, All Angle
Outline Dimension 186.15 (H) × 191.28 (V) mm
Active Area 177.55 (H) × 177.55 (V) mm
Pixel Pitch 0.1644 (H) × 0.1644 (V) mm
Pixel Arrangement RGB Stripe
Pin Count 30 pins
Driver IC FL5893
Display Color Monochrome (White/Blue)
Drive Duty 1/64 Duty
Interface MIPI
Backlight 14 White LEDs
Display Mode Transmissive, Active Matrix TFT
Operating Temp. -20℃ ~ +70℃
Storage Temp. -30℃ ~ +80℃




Structural and Optical Performance

Panel Design and Pixel Structure

The display adopts an RGB stripe pixel arrangement with a 0.1644 mm pitch, ensuring precise color rendering and high pixel density. Its active area of 177.55 mm diameter guarantees sharp and consistent visuals, while the IPS technology maintains accurate color reproduction and contrast from any viewing angle.

Backlight and Illumination

The integrated 14-white LED backlight system delivers uniform brightness across the circular display surface. With transmissive display mode and high optical efficiency, it supports clear visibility in both low-light and bright conditions, a key requirement for outdoor and dashboard applications.



Interface and Driving Technology

MIPI Interface Advantages

The use of the MIPI (Mobile Industry Processor Interface) provides high-speed, low-power data transmission, ensuring compatibility with modern processors and SOCs. This makes the module ideal for applications where high-definition content delivery and reduced signal distortion are essential.

Driver IC – FL5893

The integrated FL5893 driver IC enhances image processing efficiency and ensures stable frame refresh rates, enabling smooth motion display and minimized latency.



Application Fields

The 7-inch round TFT module is well-suited for multiple domains:

Automotive Displays: digital instrument clusters, round dashboard gauges.

Medical Devices: circular monitoring panels and diagnostic equipment.

Smart Home: thermostats, smart speakers, and control hubs.

Industrial Instruments: control panels, test equipment, and compact HMI systems.

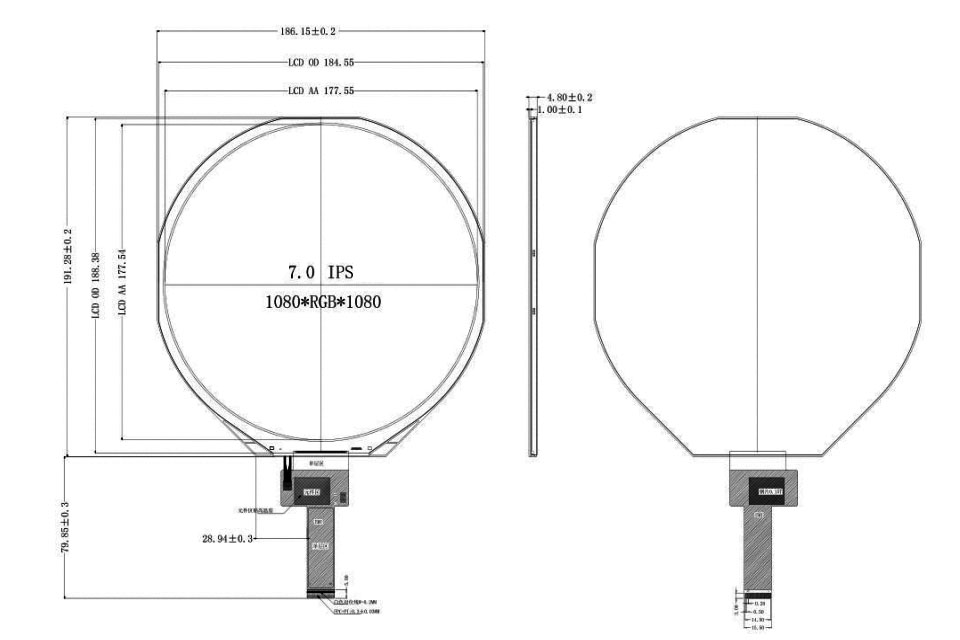

DRAWING

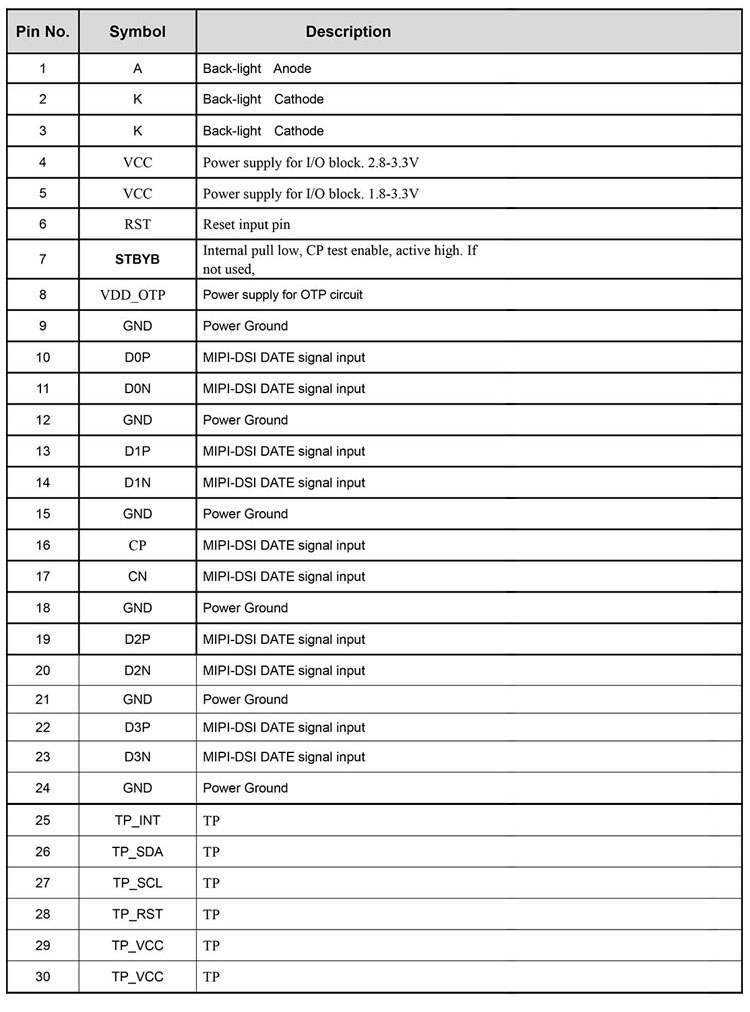

INTERFACE PIN FUNCTION







Conclusion

The HD70001C30-Y 7-inch round TFT display module combines high-resolution circular geometry, IPS wide viewing performance, robust thermal endurance, and MIPI high-speed interface into a compact yet versatile design. Its structural refinement and advanced driving technology ensure outstanding performance in environments where both functionality and innovative display shape are paramount.
