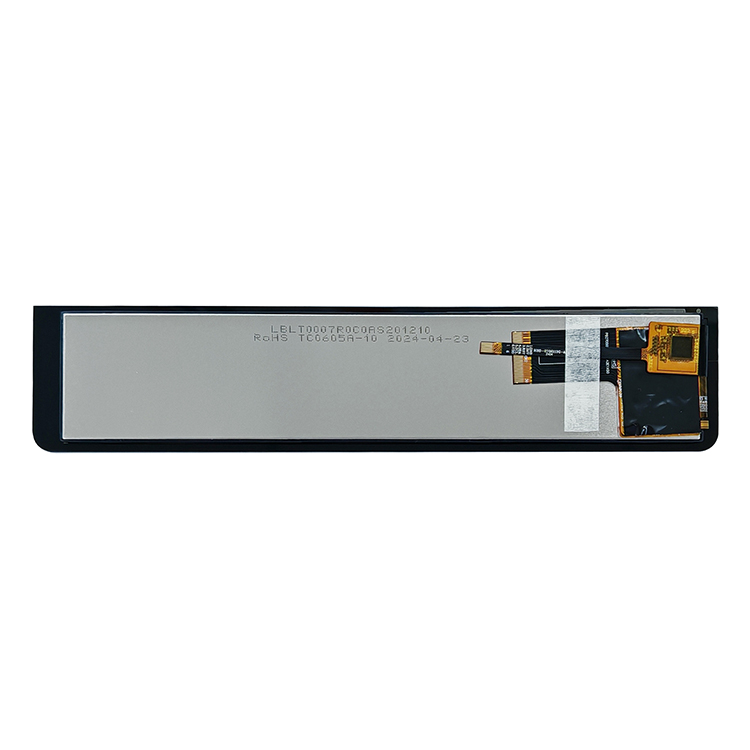

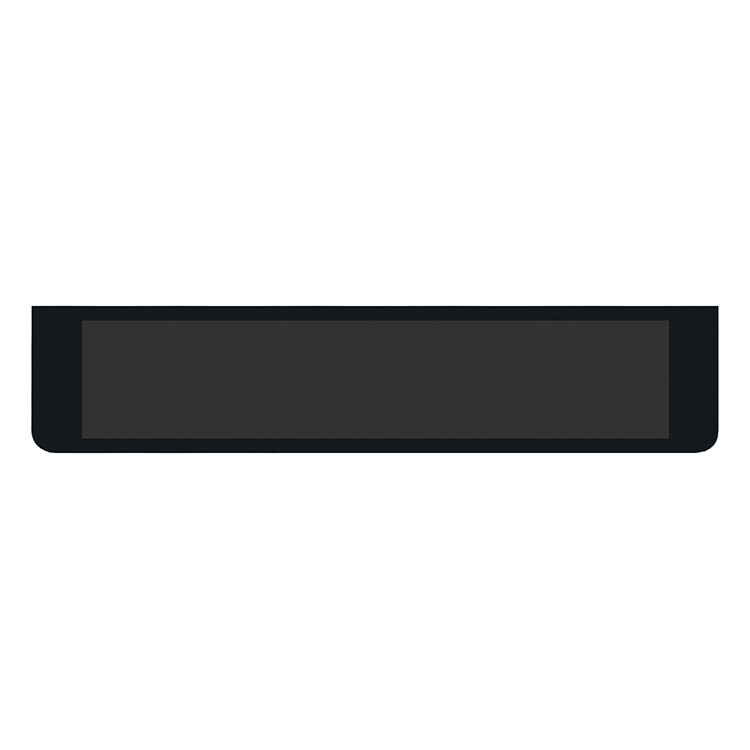

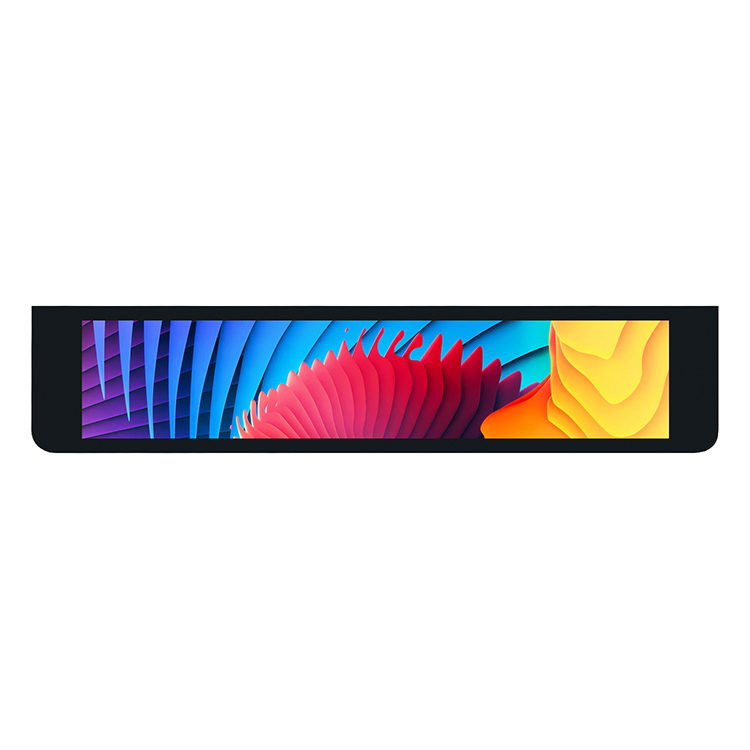

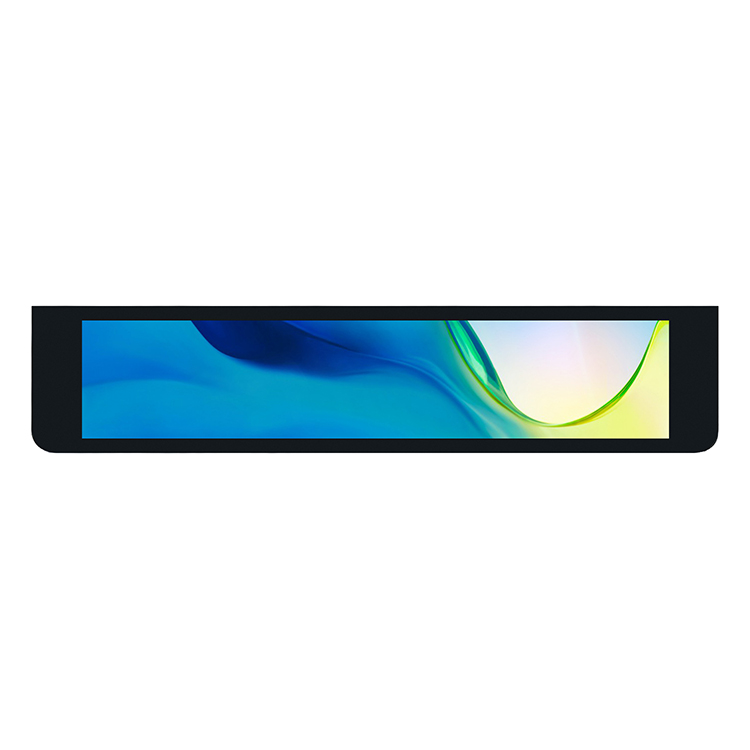

7-inch 280x1424 High-Brightness Bar Type IPS TFT-LCD Display

  • Size: 7 inch
  • Resolution:280 x RGBx1424
  • Driver IC:OTA7290N-C
  • Interface: 4-Lanes MIPI
  • Product description: 7-inch 280x1424 High-Brightness Bar Type IPS TFT-LCD Display
  • INQUIRY

7-inch 280x1424 High-Brightness Bar Type IPS TFT-LCD Display



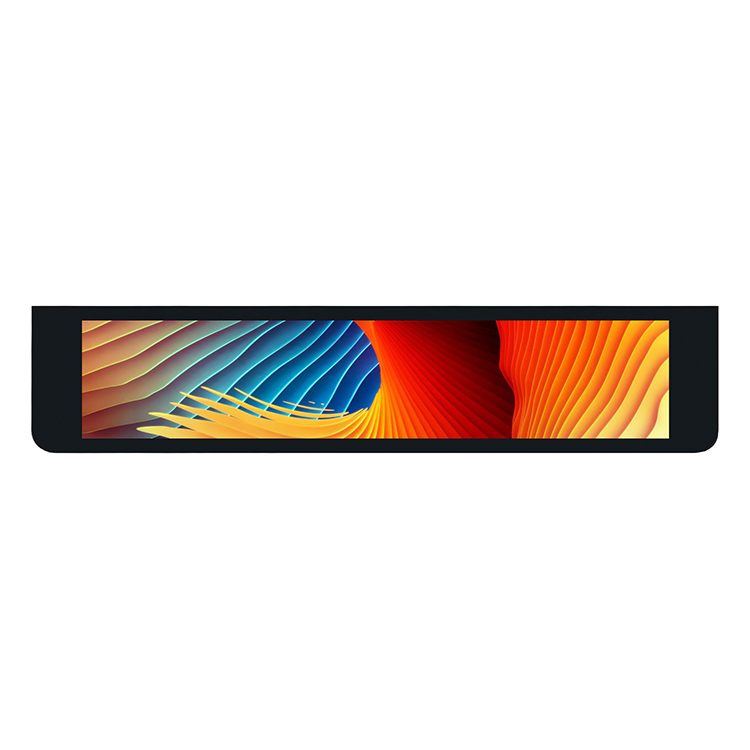

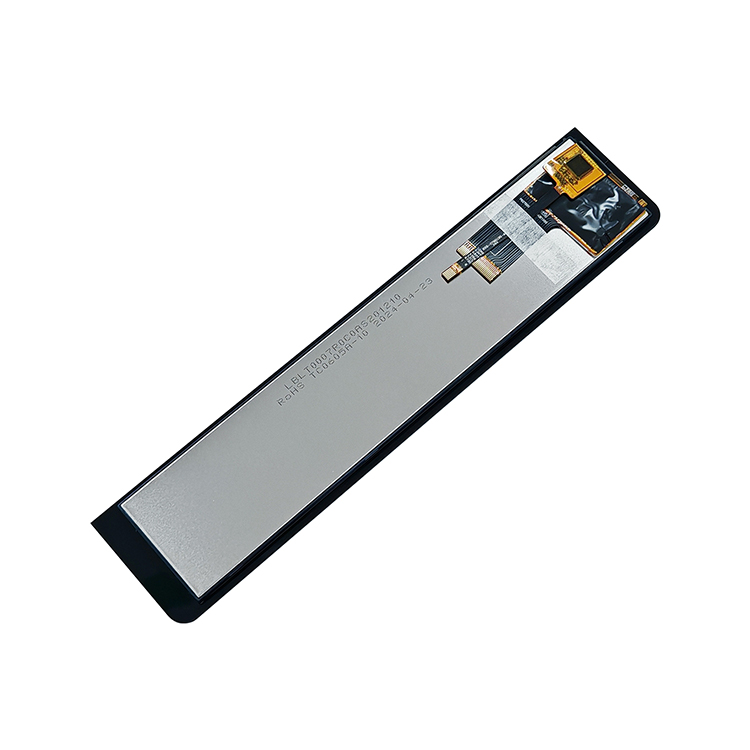

DESCRIPTION

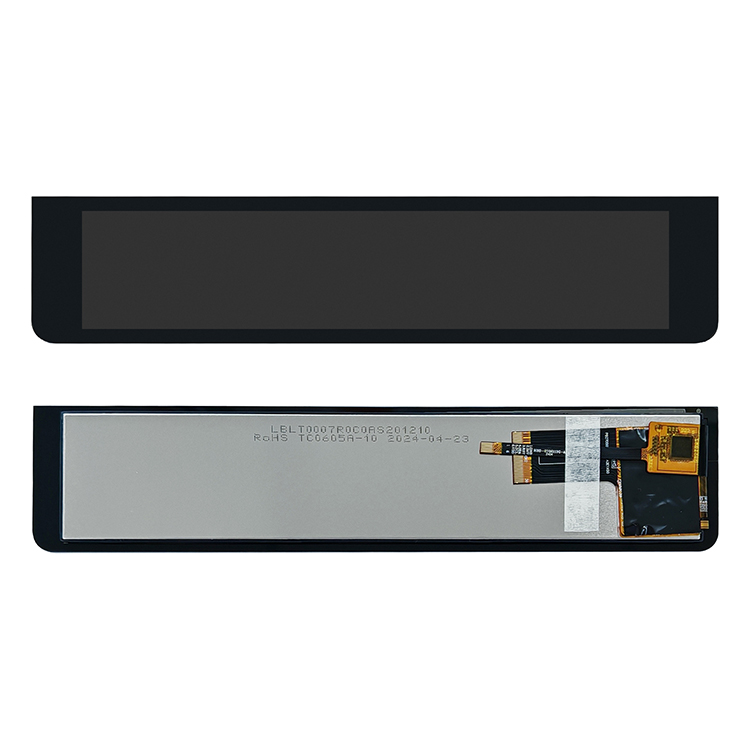

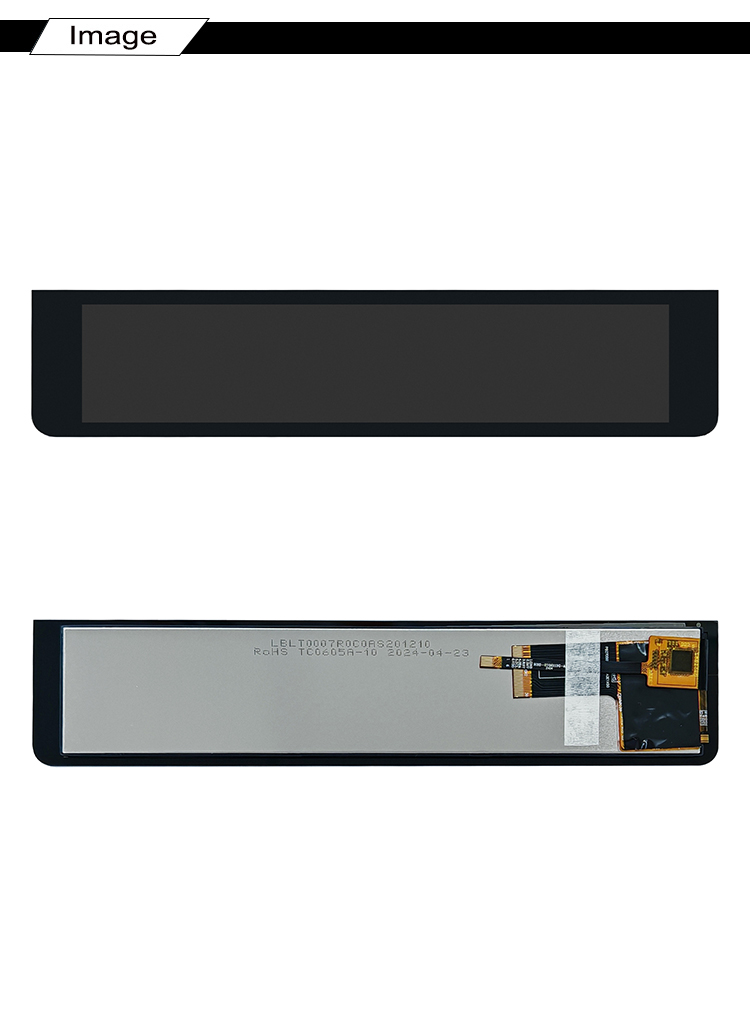

The 7-inch 280x1424 high-brightness Bar Type IPS TFT-LCD Display (Model No: HTRFB4700C9-AYH-MNC1) is a specialized module designed to deliver clarity and durability in demanding environments. With a passive matrix structure, wide viewing angles, and robust construction, this display integrates advanced optical and electronic technologies to ensure precise image reproduction and stable performance. Its combination of a 4-lane MIPI interface, projected capacitive touch functionality, and efficient LED backlight system makes it an optimal solution for modern embedded applications.



Core Display Characteristics

Display Technology and Optical Features

The display adopts an IPS (In-Plane Switching) structure, which ensures consistent brightness and color fidelity even at wide viewing angles. Its normally black mode enhances contrast by maintaining deep black backgrounds, essential for modern infotainment, industrial interfaces, and advanced instrumentation.

The active area of 292.032 × 109.512 mm with a fine dot pitch of 152.1 μm enables accurate pixel definition, while the RGB stripe arrangement ensures vivid color rendering. Surface treatments, including hard coating (HC) on the polarizer and anti-glare/anti-reflection/anti-fingerprint (AG/AR/AF) on the cover glass, contribute to improved durability and visibility under diverse environments.

Electrical and Mechanical Integration

The module operates with a 70-pin LVDS interface, facilitating efficient data transmission. With a maximum power consumption of 16.3 W, it achieves a balance between performance and energy efficiency. It is engineered for robust applications, maintaining functionality across a broad operating temperature range of -20°C to +70°C and storage range of -30°C to +80°C.


Parameter                                                                                Specification
Model No. HTRFB4700C9-AYH-MNC1
Display Size 7 inch
Resolution 280 × RGB × 1424 (TFT) dots
Aspect Ratio 1:5 Ultra-Wide
Display Type Passive Matrix, TFT, Normally Black, Transmissive
Viewing Direction 80/80/80/80 (IPS)
Driver IC OTA7290N-C
Interface 4-Lane MIPI
Touch Panel Type Projected Capacitive (PCAP)
Touch Controller GT911 (I²C, FW v71)
Touch Resolution X:1424, Y:280
Backlight LED, Normally White
Surface Finish Glare
Outline Dimension 43.3 × 201.0 × 5.76 mm
Active Area 33.60 × 170.88 mm
Pixel Size / Pitch 0.23 × 0.23 mm / 0.12 × 0.12 mm
Operating Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃



Key Features and Specifications

This display module is engineered with a slender yet durable form factor, ensuring compatibility with space-limited designs such as automotive dashboards, industrial control terminals, and high-end instrumentation. It balances compact structure with high reliability, providing both visual excellence and operational robustness.

Display Characteristics

Display Size: 7 inch

Resolution: 280 x RGB x 1424 (TFT) dots

Display Type: Passive Matrix, Normally Black, Transmissive

Aspect Ratio: 1:5 Ultra-Wide

Viewing Direction: 80/80/80/80 (IPS full viewing angles)

Driver IC: OTA7290N-C



Touch Panel Integration

The module incorporates a Projected Capacitive Touch Panel (PCAP) controlled by the GT911 driver IC. With its I²C interface and firmware version 71, the touch panel provides high accuracy and multi-point touch response. Its resolution of X:1424, Y:280 ensures smooth and precise interaction, suitable for both consumer and industrial applications.

Mechanical and Optical Details

Outline Dimension: 43.3(H) × 201.0(V) × 5.76(D) mm

Active Area: 33.60(H) × 170.88(V) mm



Pixel Size: 0.23 × 0.23 mm

Pixel Pitch: 0.12(H) × 0.12(V) mm

Surface: Glare finish

Backlight: LED, Normally White



Reliability and Environmental Adaptability

This display module is designed to withstand operating temperatures between -20℃ and +70℃ and storage conditions from -30℃ to +80℃. Such specifications ensure reliable operation across diverse environmental conditions, making it suitable for both indoor and outdoor applications.



Application Potential

Industrial and Automotive Use

The elongated 1:5 aspect ratio makes this module highly effective for instrument clusters, industrial dashboards, and navigation systems. Its high brightness and IPS viewing angles ensure visibility under direct sunlight, which is critical for outdoor use.

Consumer Electronics

For smart appliances, point-of-sale systems, and handheld terminals, the slim structure and high responsiveness of the touch panel enhance usability and aesthetic appeal.

Specialized Displays

The unique form factor and robustness of the display also support applications in transport information systems, vending machines, and ticketing kiosks, where continuous operation and high reliability are essential.

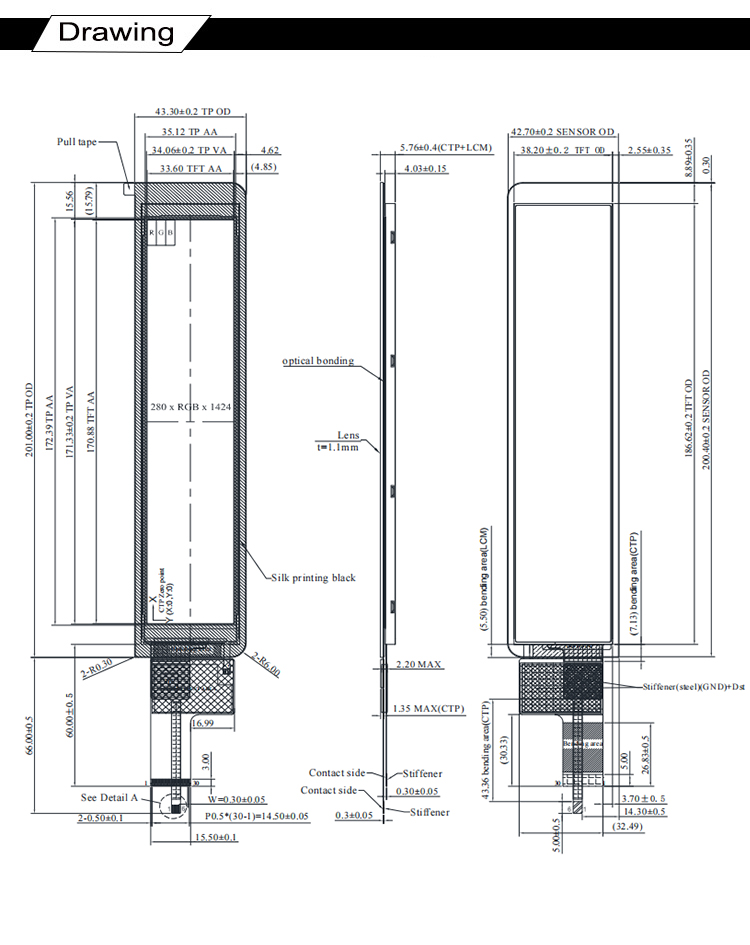

DRAWING

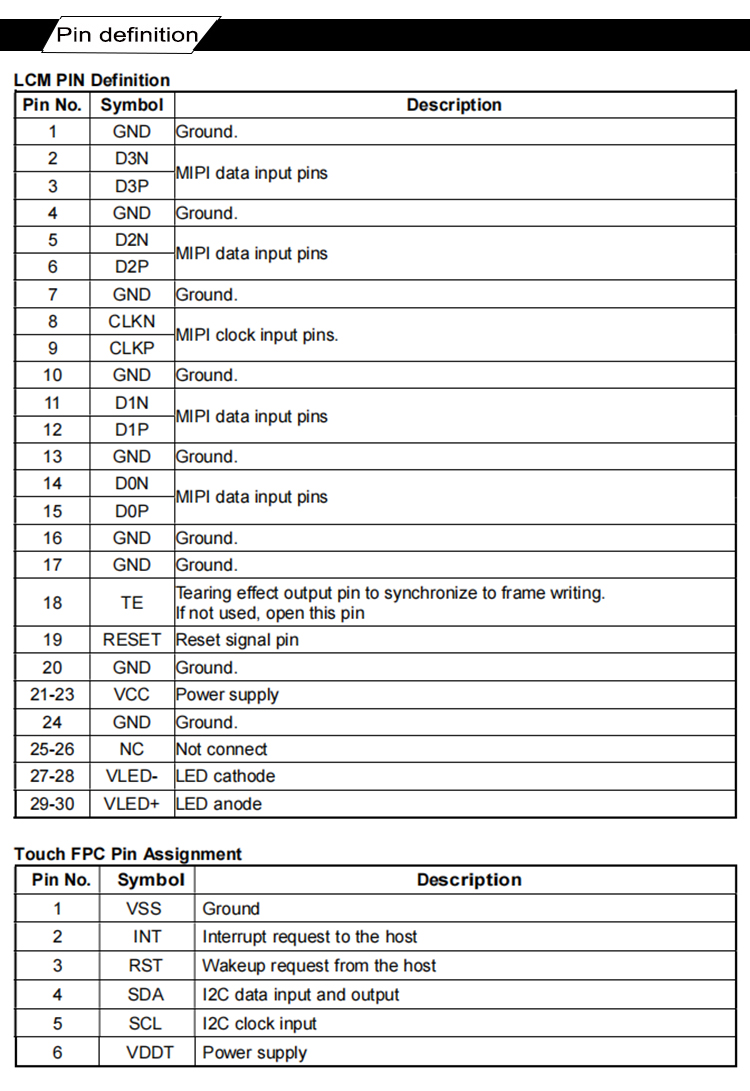

Interface Pin Function







Conclusion

The 7-inch 280x1424 Bar Type IPS TFT-LCD Display combines ultra-wide resolution, high brightness, and advanced touch capability within a compact and durable form factor. Its balanced integration of optical clarity, mechanical resilience, and versatile interface options makes it a highly adaptable solution for industries seeking both performance and design flexibility.
