Microoled 0.71 inch 1080P Micro OLED Screen 1920x1080

Microoled 0.71 inch 1080P Micro OLED Screen 1920x1080

Display Size:0.71
Resolution:1920 (RGB)×1080
Interface: RGB

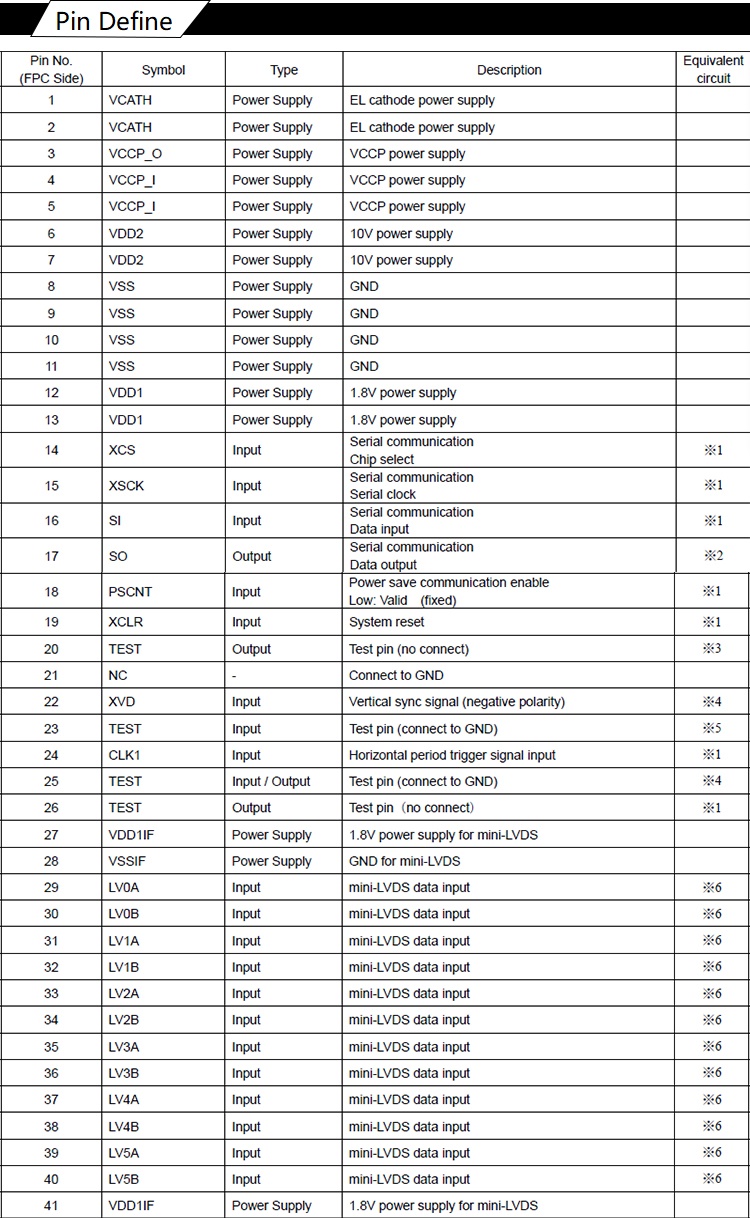

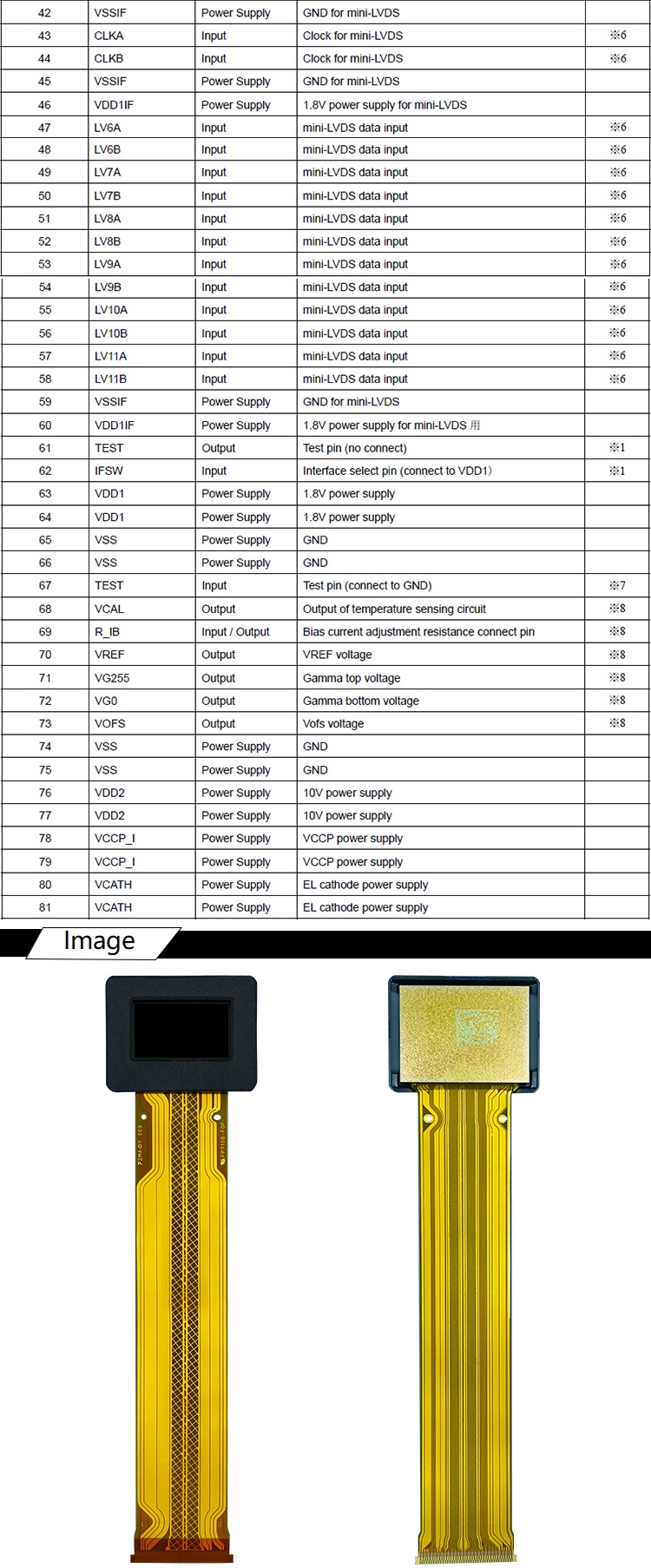

Pin:81Pins
Product description: Micro AR displays are transforming the landscape of augmented reality applications, offering miniature yet powerful screens that deliver exceptional clarity and brightness. A standout example is the O
INQUIRY

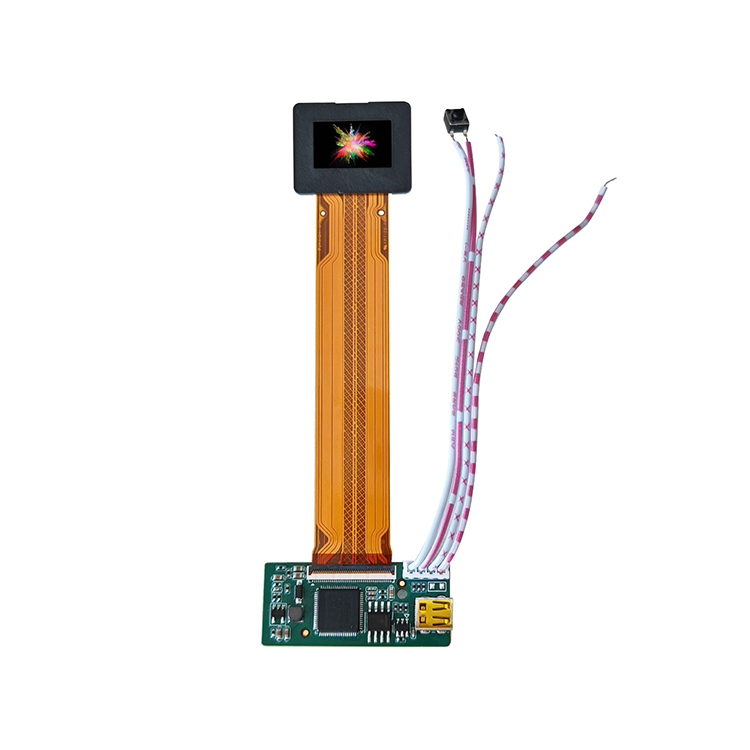

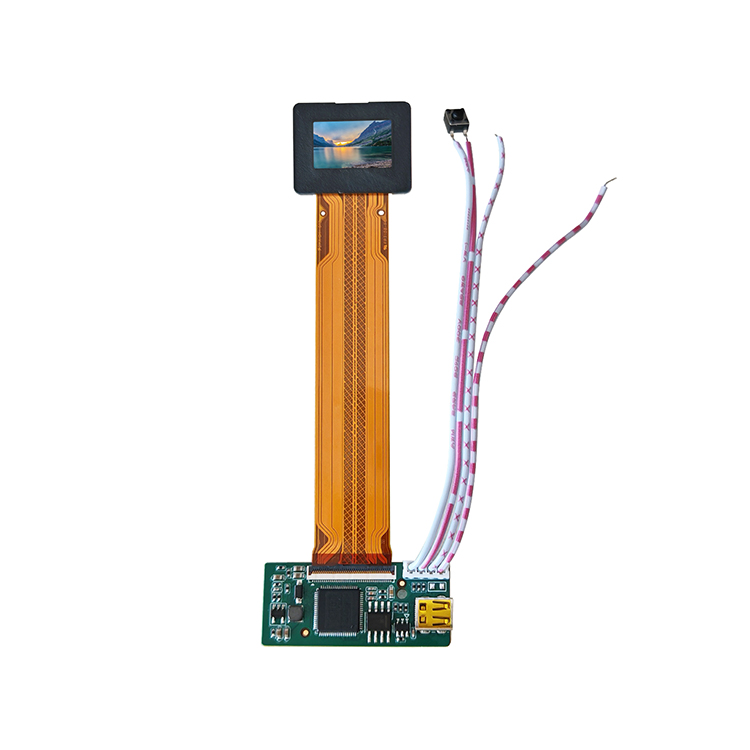

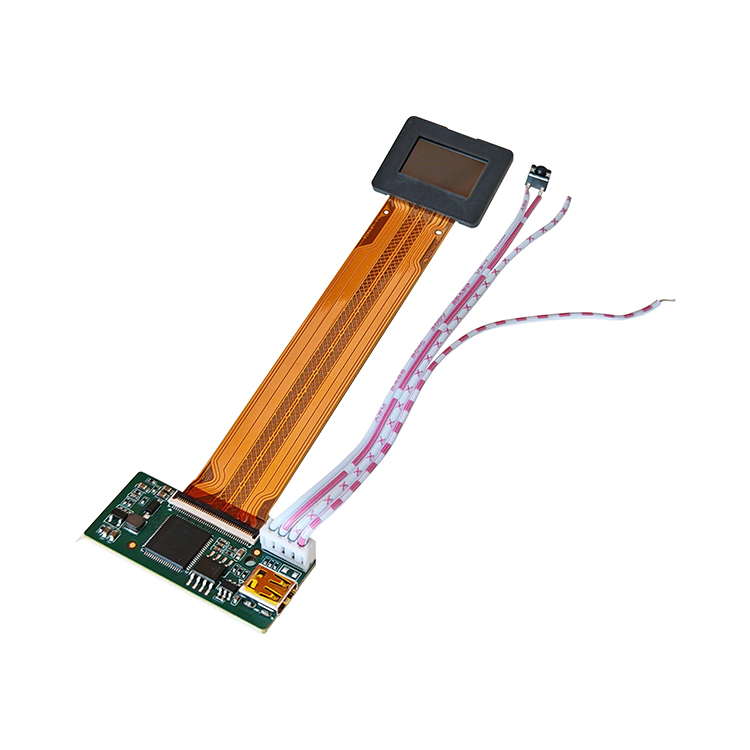

1080P Micro OLED Display 0.71 inch 1920x1080 OLED Microdisplay 500nits

The OL71AF Micro OLED display is engineered to meet the demands of modern augmented reality (AR) systems. With a compact 0.71-inch size and an impressive 1920x1080 resolution, this display delivers vivid, sharp imagery suitable for a wide range of applications, from wearable AR devices to advanced industrial tools. Operating with an AMOLED display mode, the OL71AF supports an ultra-high contrast ratio of 100,000:1 and a peak brightness of 500 nits, ensuring vibrant visuals even in varying light conditions. This model is engineered with a robust driving frequency of 60Hz, offering smooth and fluid display performance for both dynamic and static content.

Key Features and Specifications

Feature	Specification
Model Number	OL71AF
Display Size	0.71 inches
Resolution	1920 x 1080 RGB
Outline Dimensions	25.24 x 19.40 x 1.925 mm
Active Area	15.8 x 8.99 mm (0.7" Diagonal)
Display Technology	AMOLED
Brightness	500 nits (Maximum)
Contrast Ratio	100,000:1
Driving Frequency	60 Hz
Interface	Sub-LVDS
Power Consumption	0.4 to 550 mW
Operating Temperature	0°C to 70°C
Storage Temperature	-30°C to 80°C

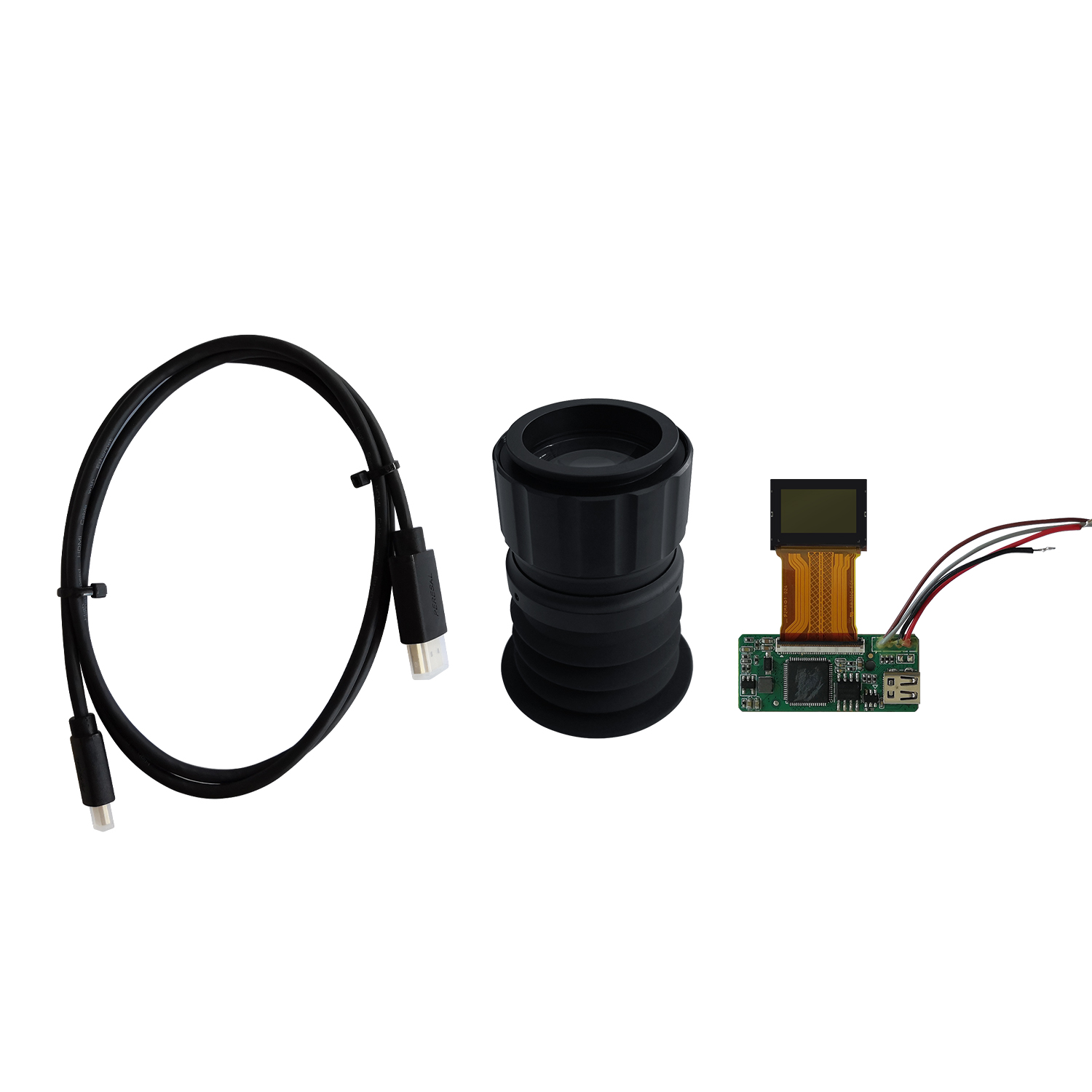

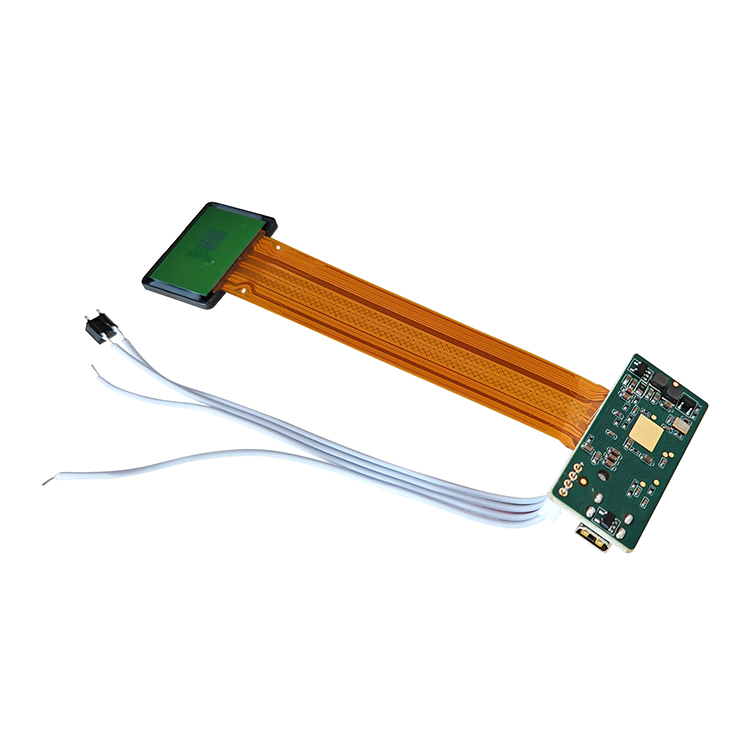

Driver Board	HD-MI Board Included

Display Technology: AMOLED

The AMOLED technology employed in the OL71AF enables it to display true black levels, vivid colors, and higher contrast ratios compared to traditional LCD screens. This is achieved by turning off individual pixels when displaying black, rather than using a backlight. This results in deeper blacks, enhanced energy efficiency, and an overall improved viewing experience. Furthermore, with its high resolution of 1920x1080 pixels, the display is able to provide razor-sharp detail, making it an ideal choice for immersive AR and mixed-reality applications.

Performance Characteristics

Brightness and Contrast

The OL71AF boasts a maximum brightness of 500 nits, making it highly visible in various lighting environments. Whether used indoors or in outdoor AR scenarios, this brightness ensures that the display remains clear and legible, even under direct sunlight. Coupled with a contrast ratio of 100,000:1, the display can deliver exceptional levels of detail, particularly in darker environments or when displaying high-contrast content.

Power Efficiency

Power consumption is a critical aspect of any AR display. The OL71AF is designed with efficiency in mind, consuming between 0.4 and 550 mW, depending on the operating conditions. This wide range of power consumption allows the display to adapt to various system configurations, balancing performance with battery life in wearable and mobile AR devices.

Applications of the OL71AF Micro OLED Display

The versatility of the OL71AF Micro OLED display positions it as a key component in several advanced applications. Here are some notable areas where it excels:

Wearable AR Devices

Due to its small form factor and high resolution, the OL71AF is an ideal candidate for wearable AR systems such as smart glasses and heads-up displays. The compact size ensures it can be comfortably integrated into lightweight devices, while the sharp visuals deliver an immersive experience for users.

Industrial Applications

In industries where precise, high-quality visual data is required, the OL71AF’s 1920x1080 resolution and high contrast ratio make it well-suited for augmented reality in industrial settings. Workers can rely on clear, crisp visuals for overlaying critical information during complex operations or troubleshooting tasks.

Medical Equipment

The high resolution and compact size also make the OL71AF ideal for medical AR applications. Whether in surgical settings or diagnostic equipment, the display can provide doctors and technicians with essential information in a hands-free, immersive format, reducing the need for external monitors and increasing operational efficiency.

Operating Conditions and Durability

The OL71AF is designed to operate in a broad range of temperatures, from 0°C to 70°C, making it suitable for both indoor and outdoor applications. The storage temperature range of -30°C to 80°C ensures that the display remains functional even under extreme environmental conditions. This durability makes the display an excellent choice for harsh or unpredictable operating environments.

Conclusion

The OL71AF Micro OLED display represents a significant advancement in AR display technology. With its compact size, high resolution, and outstanding brightness and contrast capabilities, it is poised to play a pivotal role in the evolution of augmented reality applications. Whether used in wearables, industrial tools, or medical devices, the OL71AF’s versatility, power efficiency, and durability make it an essential component for future AR innovations.

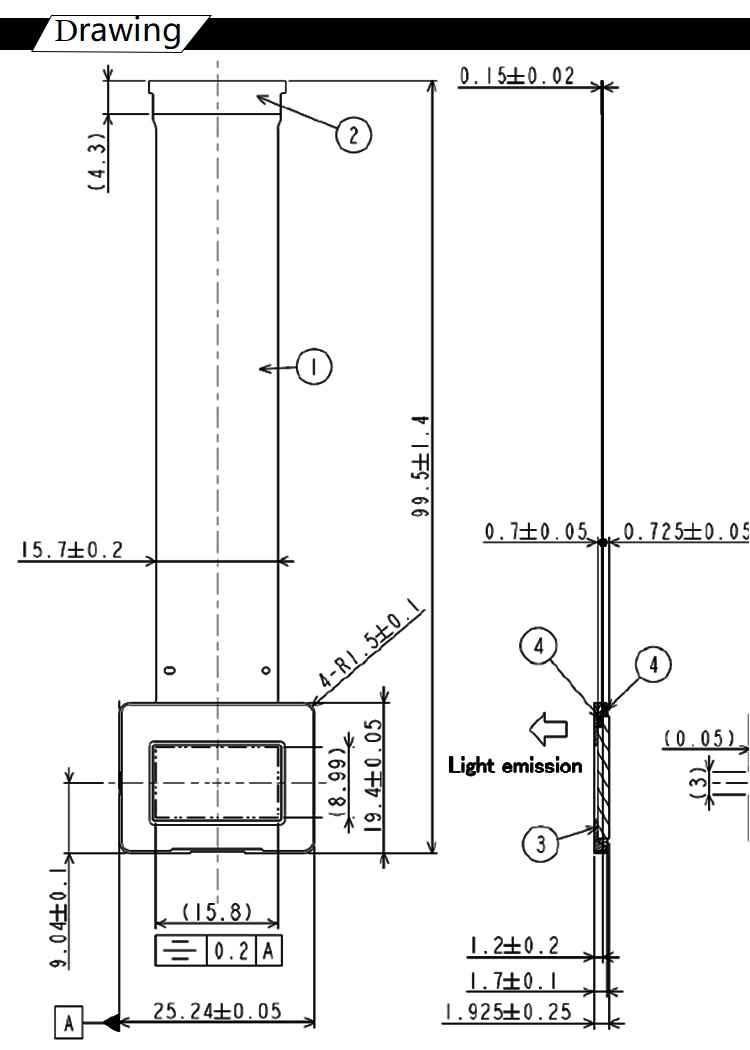

DRAWING
