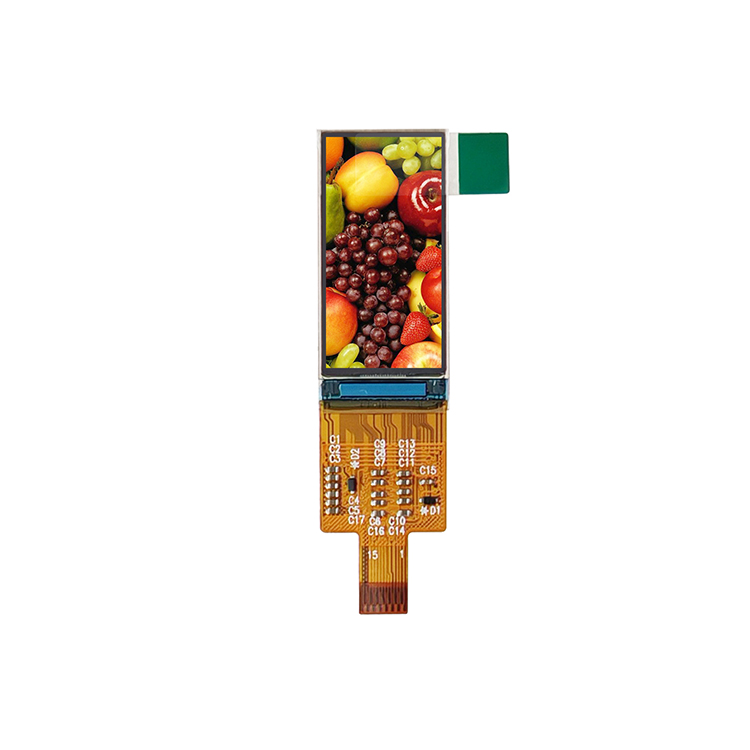

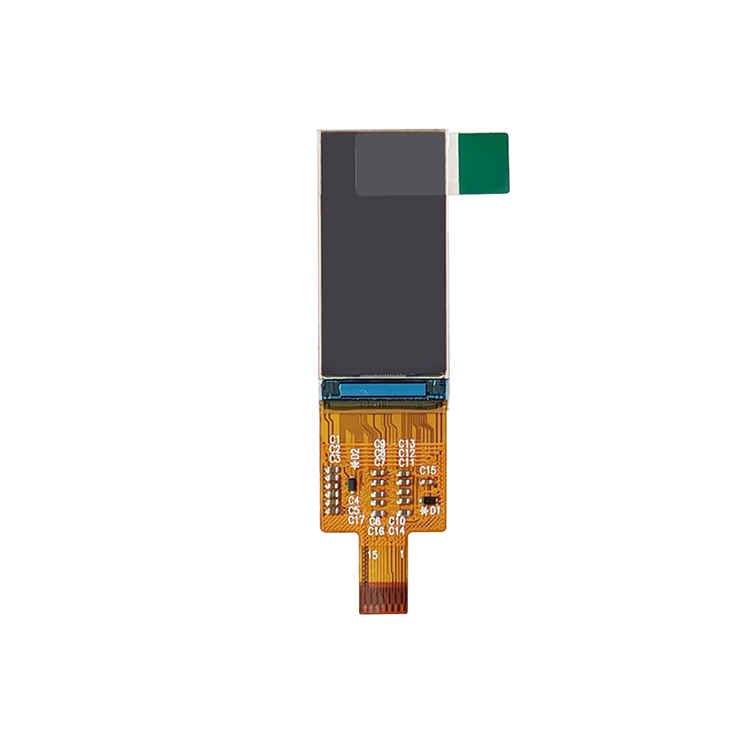

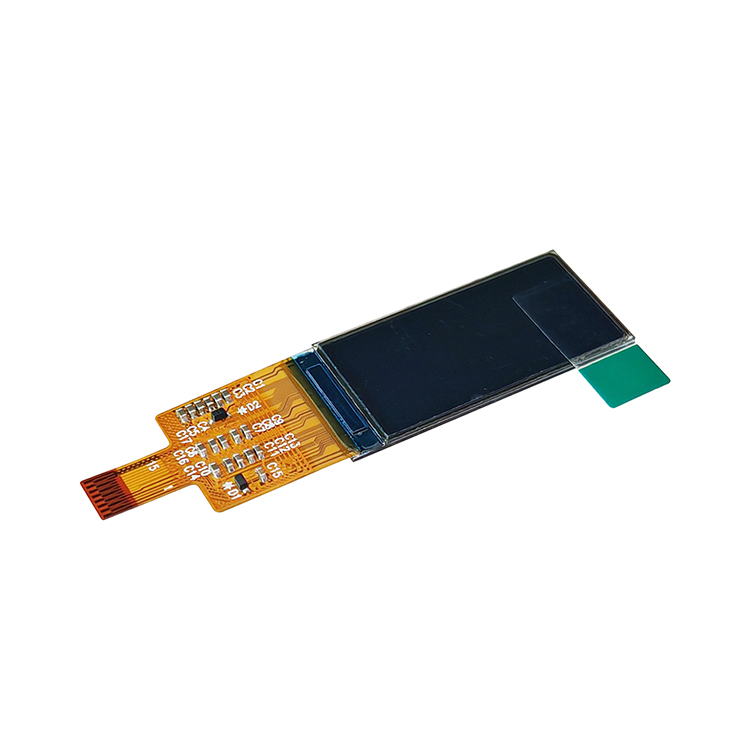

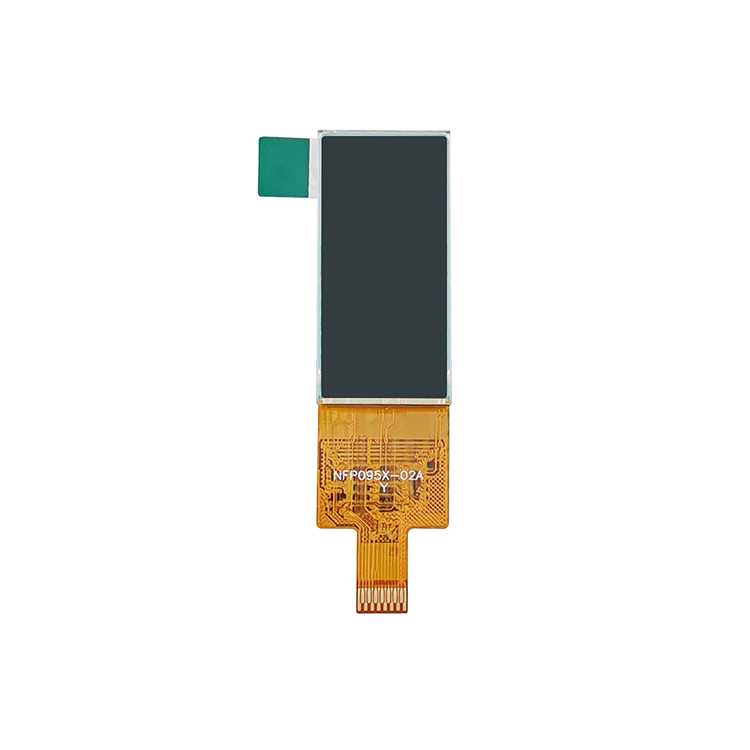

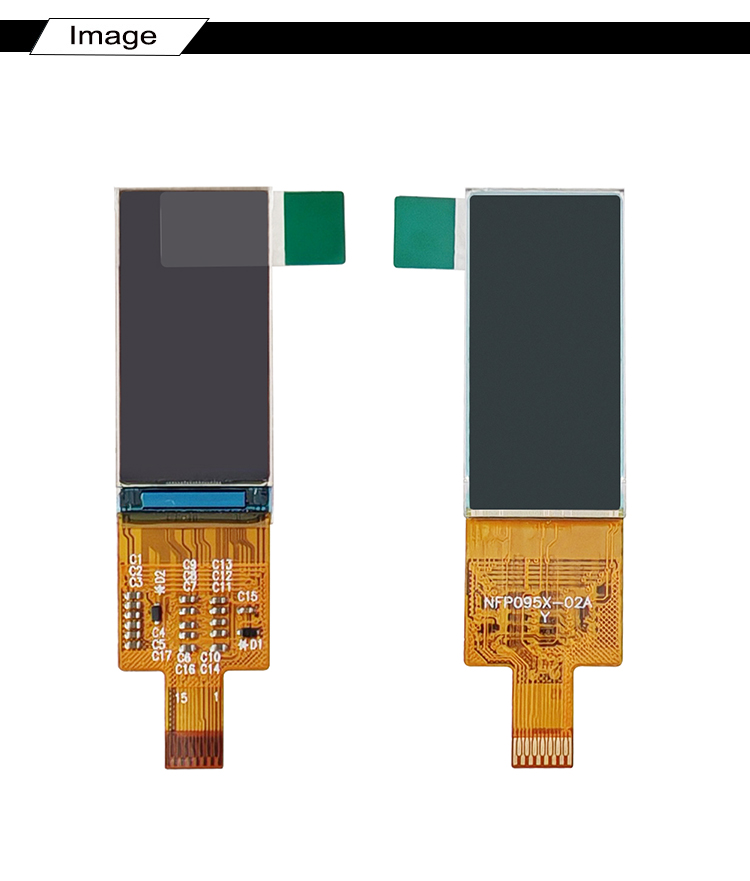

0.95 inch 120X240 resolution AMOLED display

The 0.95-inch SPI AMOLED Display (model: 095-2424AM002-C15) offers high-quality performance with a resolution of 120 x 240 pixels. This small yet powerful display module is designed to meet the demanding requirements of various applications in the tech industry, ranging from wearables to compact devices. It boasts vibrant color reproduction with 16.7 million colors (24-bit color depth), driven by a highly efficient SH8501G driver IC. The display features AMOLED technology, providing exceptional contrast ratios of 30000:1, making it ideal for applications where both visual clarity and energy efficiency are key considerations.

Key Specifications

Display Features

Display Technology: AMOLED

The AMOLED (Active Matrix Organic Light Emitting Diode) technology behind this 0.95-inch display provides superior contrast ratios and vivid colors compared to traditional LCD screens. The active matrix system allows for faster response times, making it ideal for dynamic visual content. The 30000:1 contrast ratio ensures deeper blacks and enhanced color saturation, which is especially beneficial for applications like high-definition graphics and digital displays.

Color Reproduction and Resolution

With a pixel resolution of 120 x 240 RGB dots, the display delivers 16.7 million colors (24-bit color depth), resulting in a broad and rich color spectrum. The 90 x 90 µm pixel pitch ensures that images are sharp, even on such a compact screen size. This makes the display highly effective in delivering clear, readable information in devices like smartwatches, fitness trackers, and portable electronics, where space is limited, but high performance is still crucial.

Key Operational Characteristics

Interface and Integration

This AMOLED display utilizes a 4-wire SPI interface, offering simple integration with a variety of microcontrollers and processors. The SPI interface is widely used for low-speed data transfer and is particularly suited for compact displays in embedded systems. This ensures that the display can easily be incorporated into different types of consumer electronics and industrial devices without the need for complex hardware setups.

Durability and Temperature Range

Operating within a temperature range of -20 to 70°C, this module is capable of withstanding challenging environmental conditions. This makes it well-suited for applications where devices are exposed to both high and low temperatures. Additionally, the display’s storage temperature range of -30 to 80°C allows it to maintain performance even in extreme conditions.

Applications of the 0.95-inch SPI AMOLED Display

Wearables and Personal Devices

Given its compact size and high visual quality, this display module is perfect for wearable devices such as smartwatches, fitness trackers, and health monitoring gadgets. The vivid colors and sharp text ensure that users can easily read notifications, track fitness metrics, and view data in real-time.

Industrial and Automotive Electronics

The robust temperature range and excellent contrast ratio make this AMOLED display an attractive option for industrial gauges, instrument panels, and automotive displays. In environments where durability and clear readability are vital, this display can reliably operate under varying conditions.

Conclusion

The 0.95-inch SPI AMOLED display module exemplifies high performance and efficiency in a compact form factor. Its exceptional contrast, color depth, and temperature resilience position it as an ideal solution for a wide array of applications, ranging from consumer wearables to more demanding industrial systems. As demand for smaller, more powerful displays continues to rise, this module offers an advanced solution without compromising on quality or reliability.

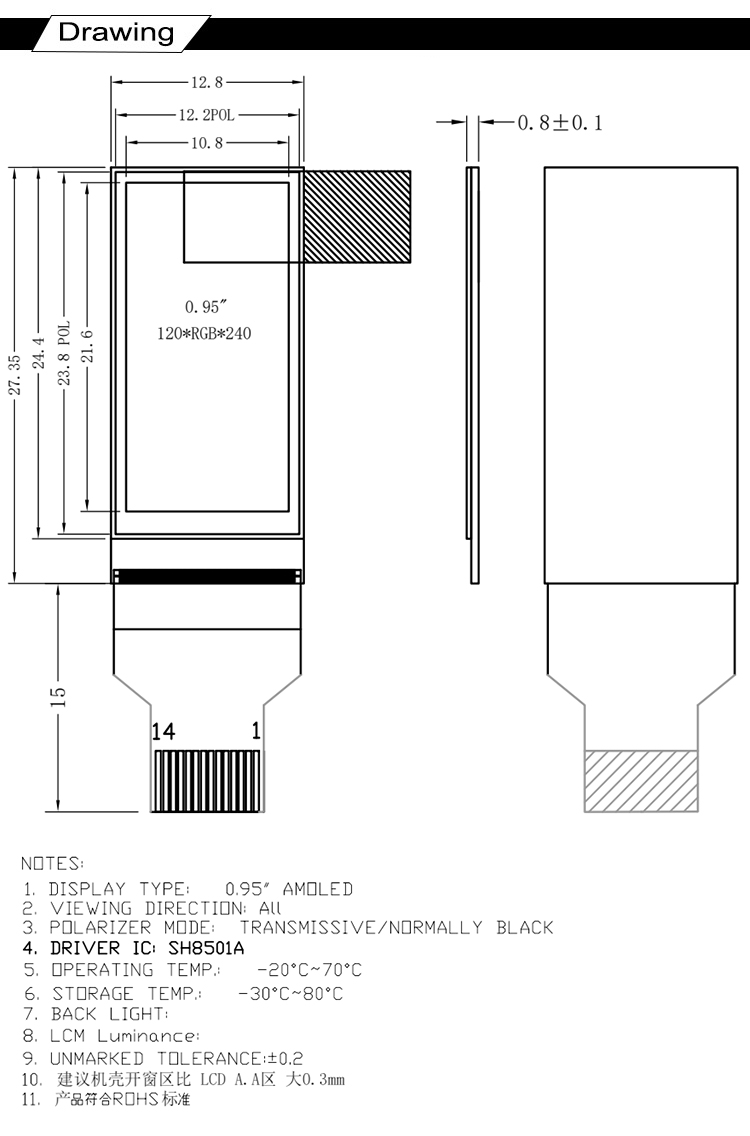

Drawing

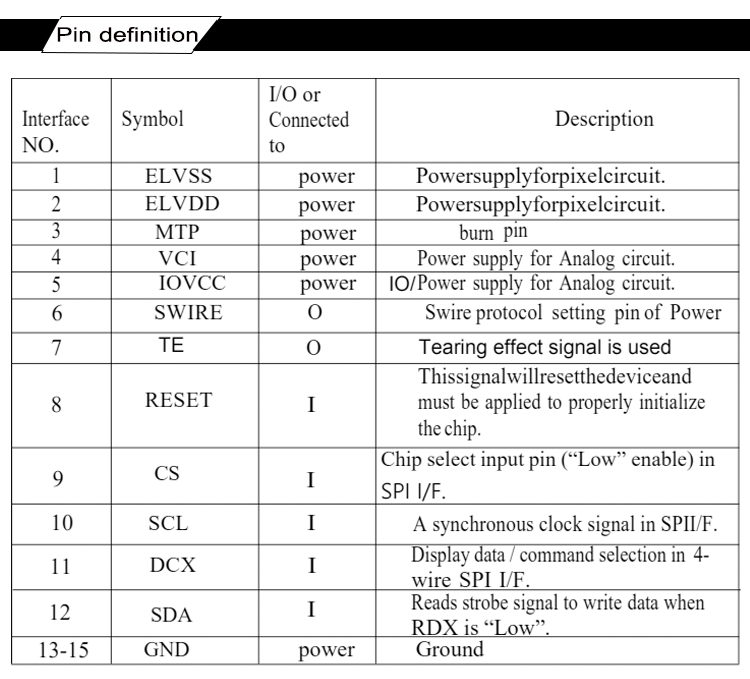

Pin Definition
