7.0"

TFT LCD Display 7.0 inch,1024(RGB)x600

TFT LCD Display 7.0 inch,1024(RGB)x600

TFT LCD Display 7.0 inch,1024(RGB)x600

TFT LCD Display 7.0 inch,1024(RGB)x600

TFT LCD Display 7.0 inch,1024(RGB)x600

TFT LCD Display 7.0 inch,1024(RGB)x600

TFT LCD Display 7.0 inch,1024(RGB)x600

Size: 7.0 TFT
Controller IC: TBD
Resolution:1024(RGB)x600
Power input: USB 5V DC 5V-2A

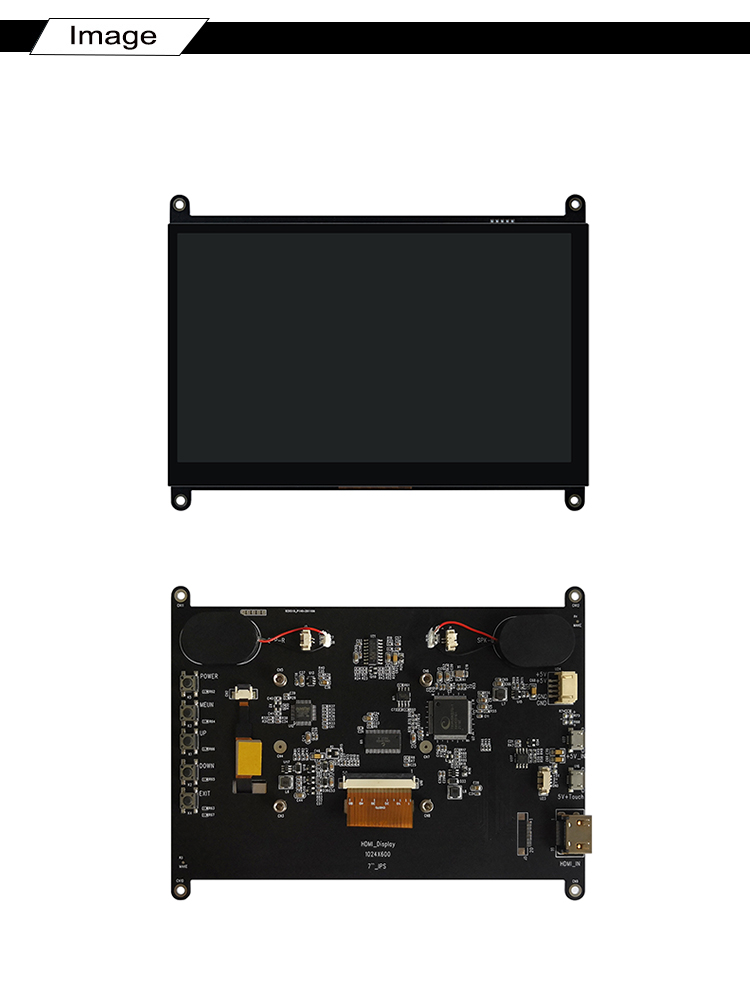

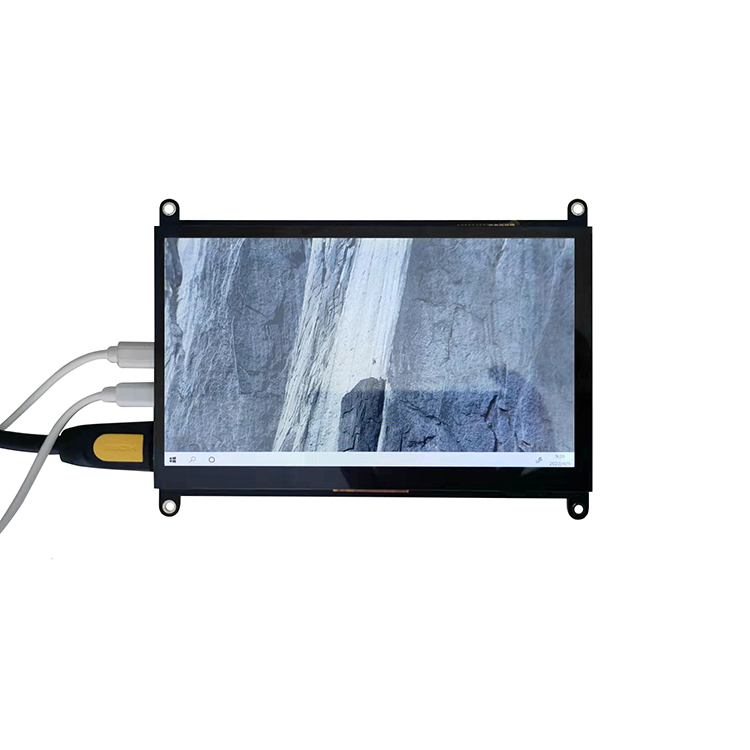

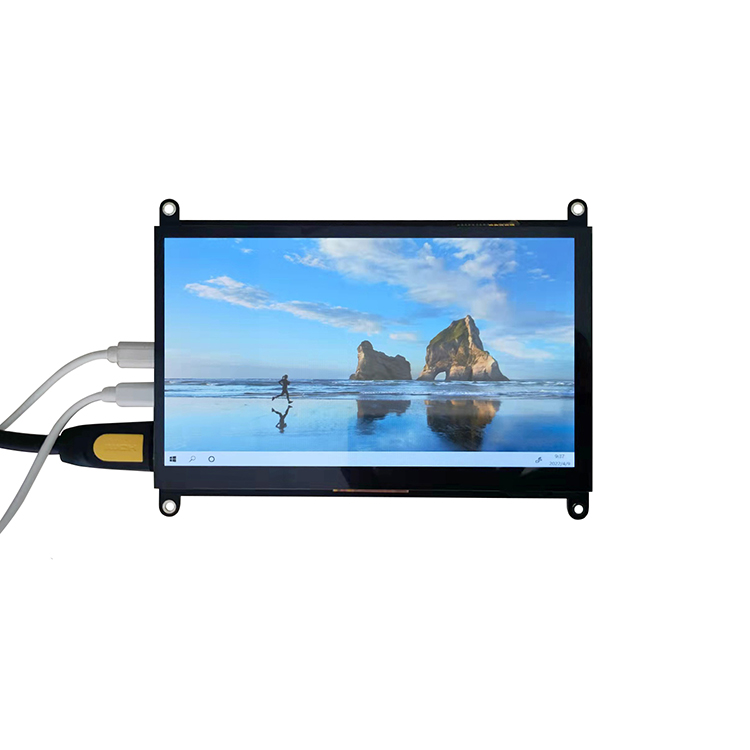

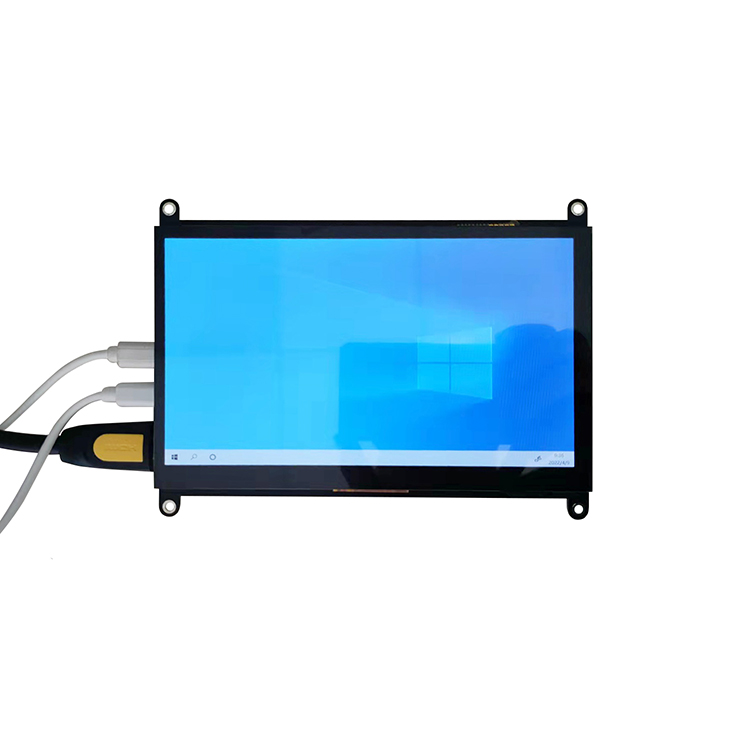

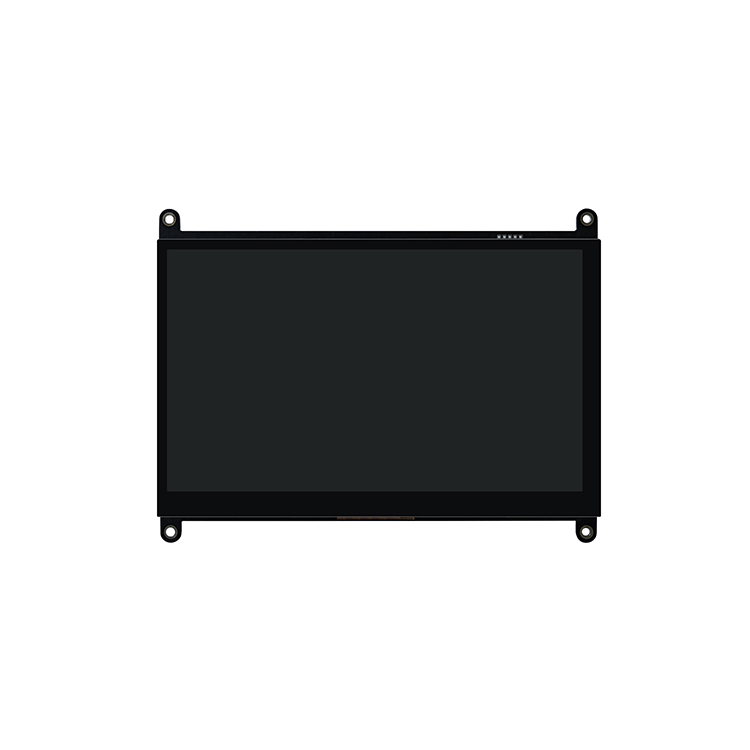

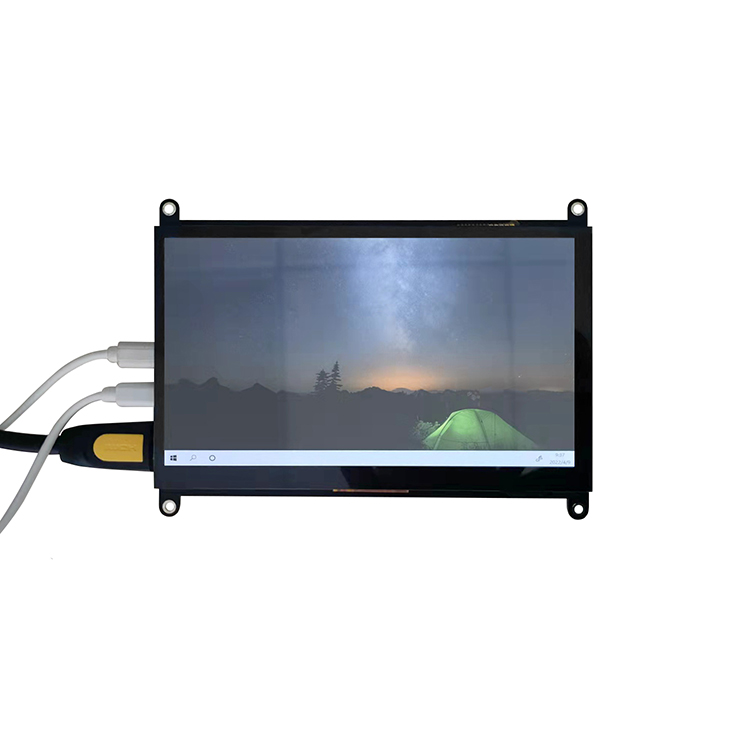

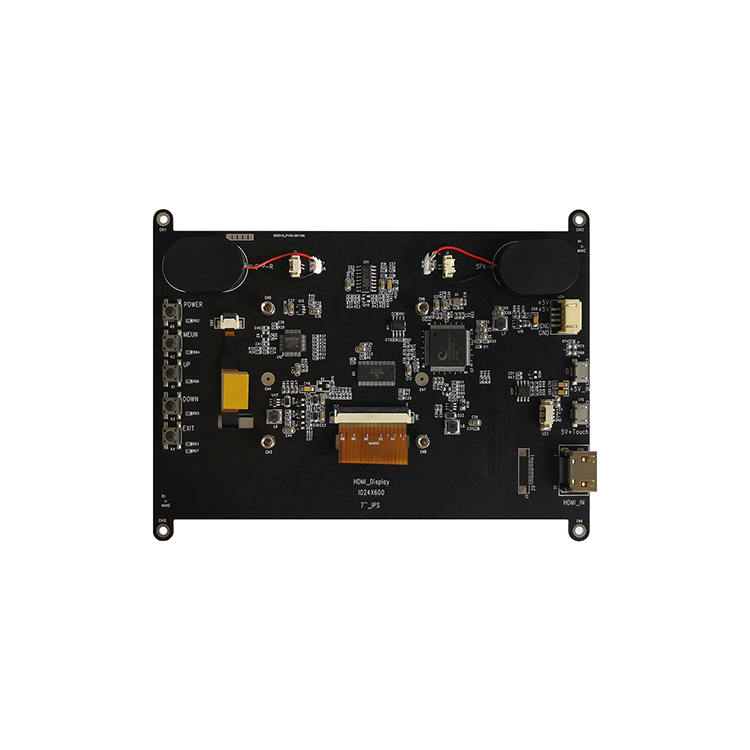

Product description: TFT LCD Display 7.0 inch,1024(RGB)x600 touchscreen with hdmi board
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA TFT is standard applies to the inspection of 50PIN LCD module driver boards

produced by Hicenda Technology Co., Limitd. for BOE070IPS-A500. Scope of application: liquid crystal display

GENERAL SPECIFICATION

Display Type:	TFT display
Display Mode:	Passive Matrix
Model Number:	BOE070IPS-A500
Diagonal Screen size:	7.0 inch
Signal input standard:	HDMI: 480i, 480p, 576i, 576p, 720p, 1080i,1080p
Backlight:	4 Chip White LED
Number of Pixels:	1024(RGB)x600
Panel Size:	76.9(W) x 63.9(H) x 3.3(D) (mm)
Driver IC:	TBD
Operating temperature:	-10℃～+60℃
Display Mode:	Normally white/Transmissive
Working humidity:	90%RH(No condensation ）
Weight:	TBD
Storage temperature:	-20℃～+70℃（24小时）

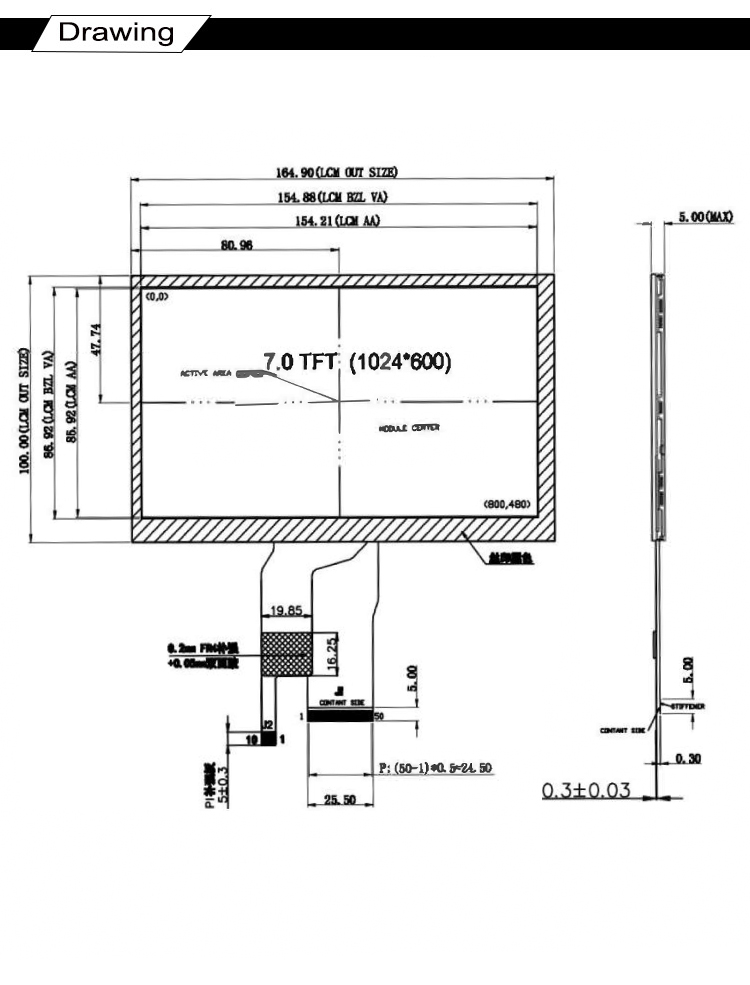

DRAWING

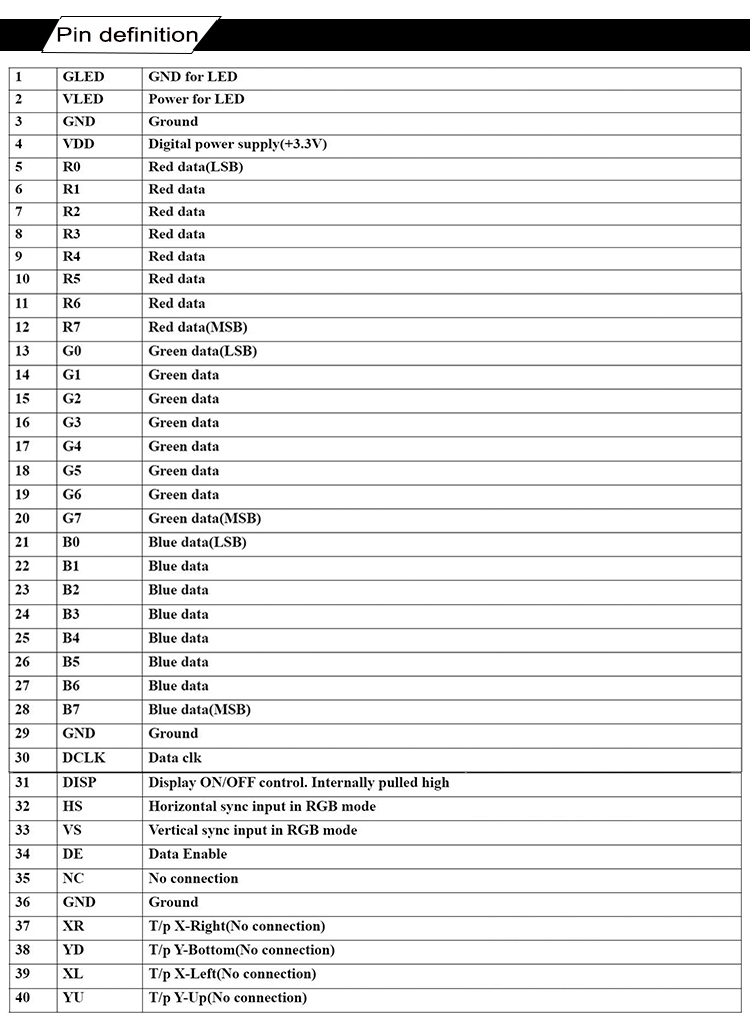

INTERFACE PIN FUNCTION
