DESCRIPTION

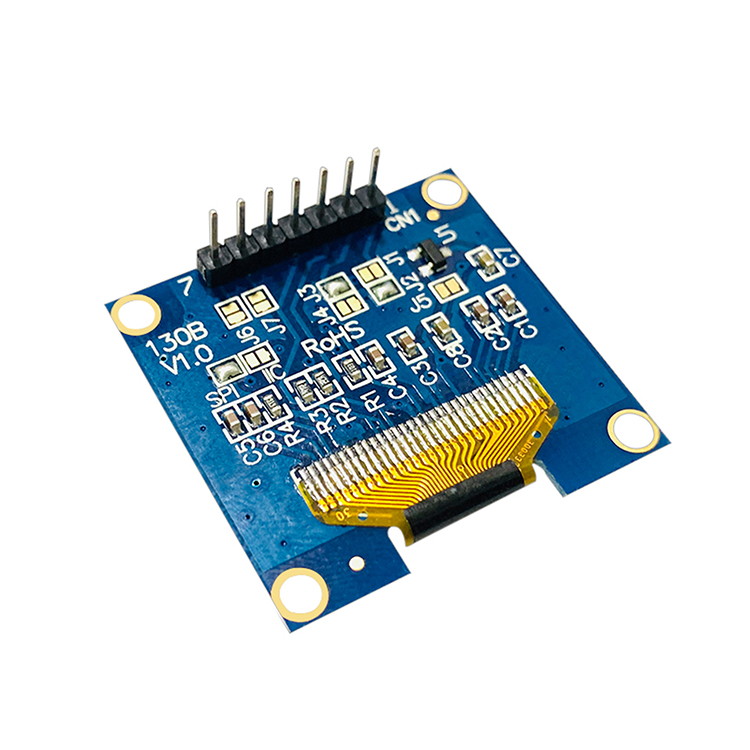

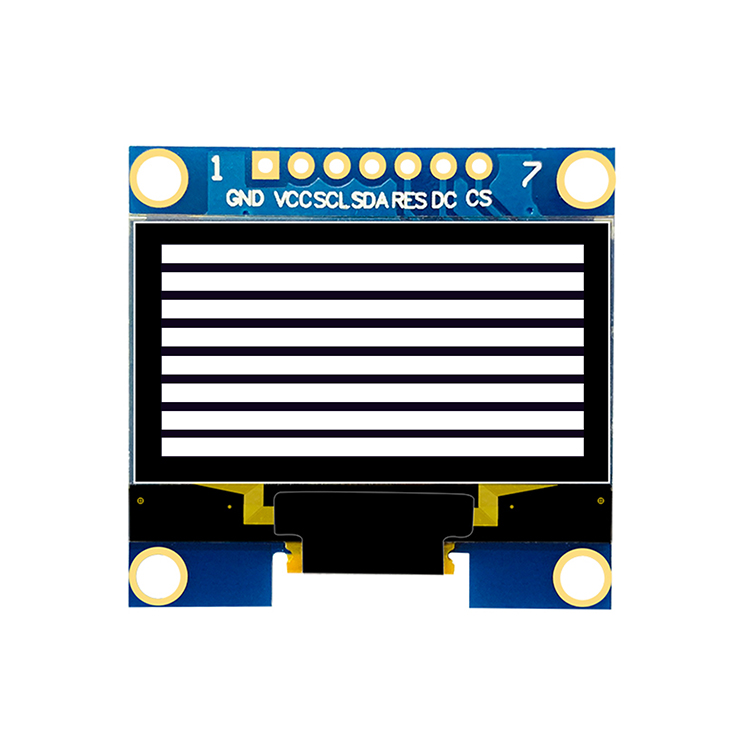

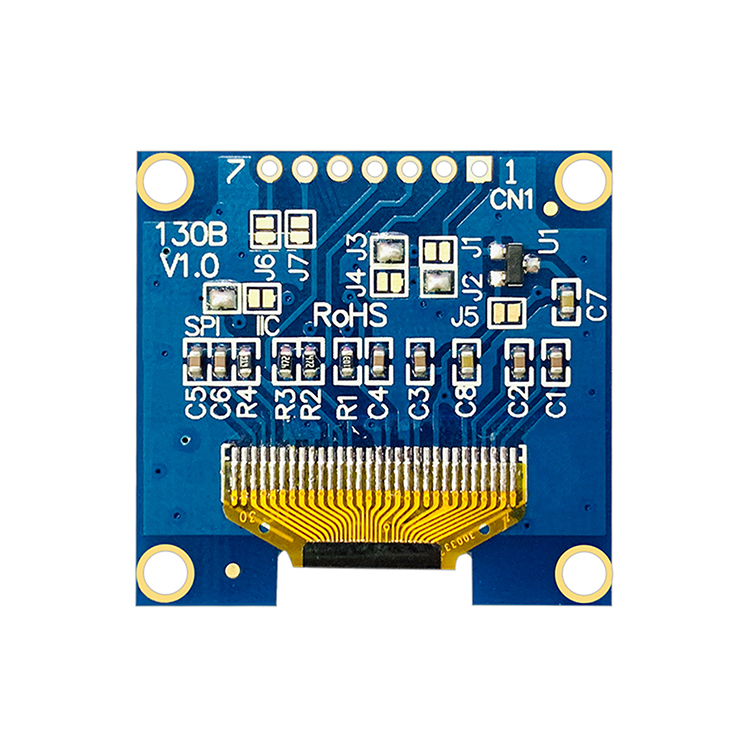

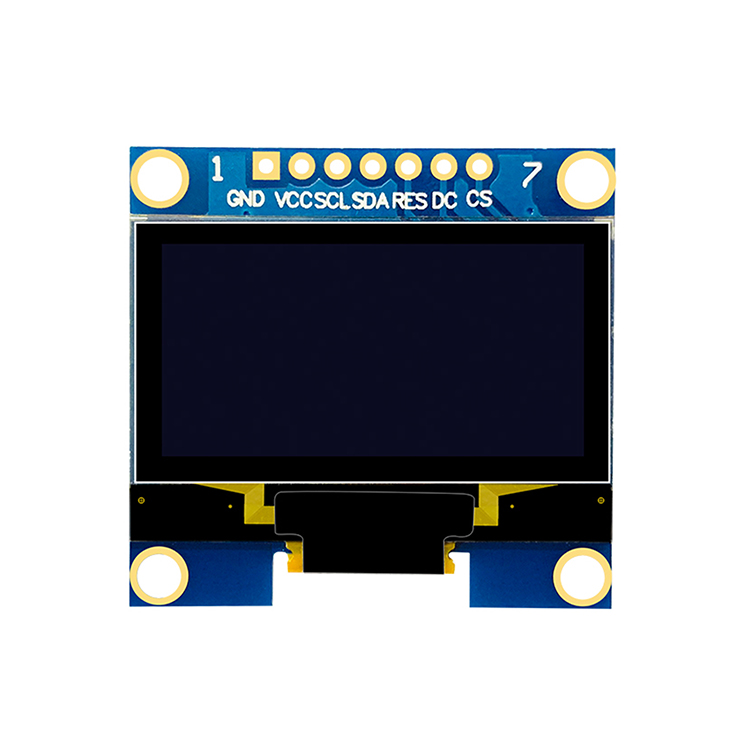

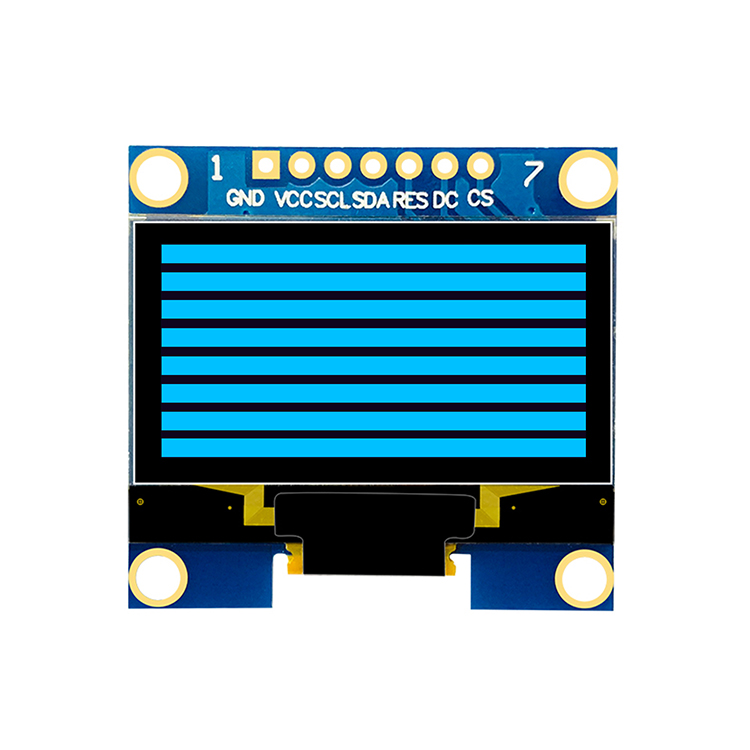

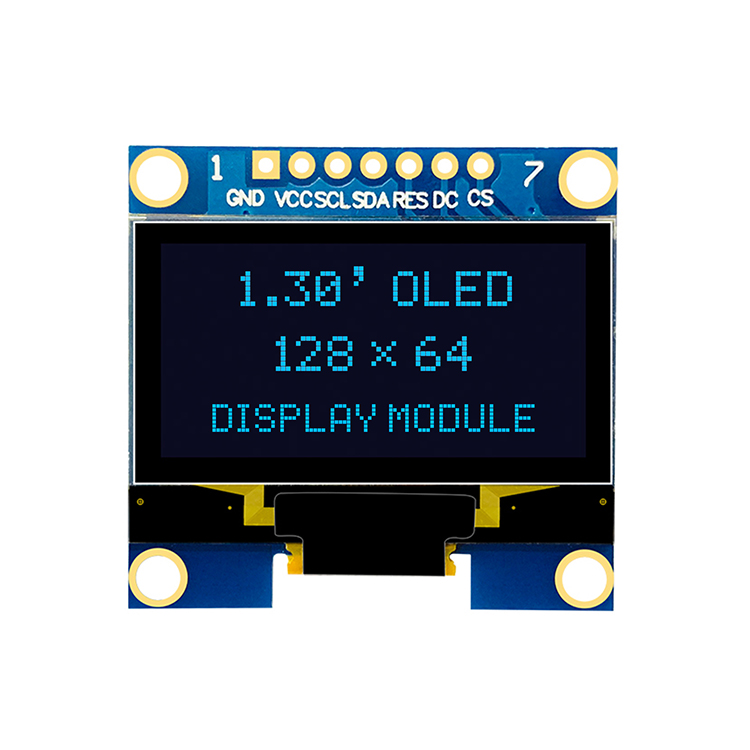

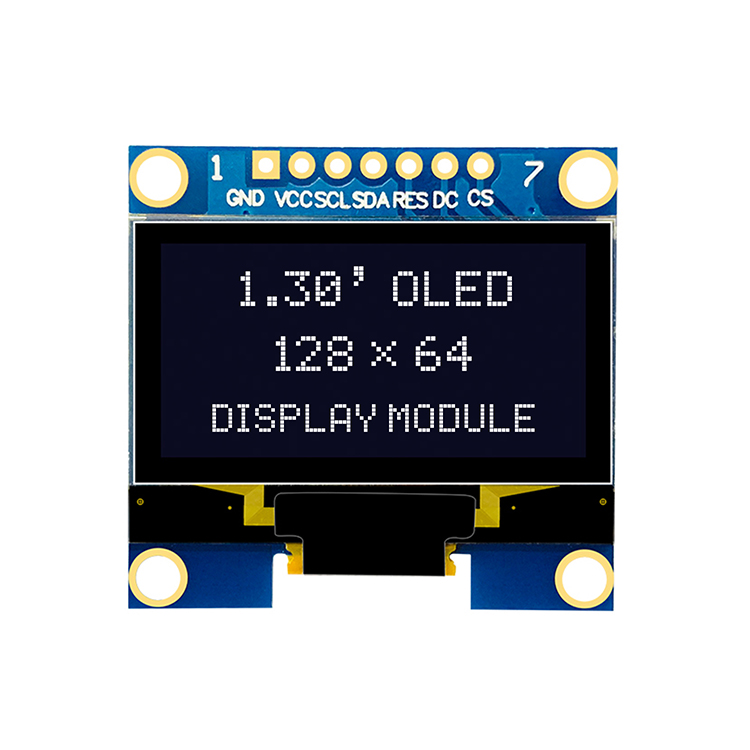

HICENDA 1.3-inch OLED display module (Model: HT130BWH30PG01S7V10) is a high-definition passive matrix display featuring a resolution of 128×64 dots. Built with the SSD1306/SH1106 driver IC, it offers excellent image sharpness, monochrome output in white or blue, and versatile performance across a wide temperature range. Its compact form factor, combined with a 4-SPI interface, makes it ideal for portable electronics, instrumentation, and embedded systems where clarity, responsiveness, and low power consumption are critical.

.

GENERAL SPECIFICATION

Display Technology

Passive Matrix OLED Architecture

The module employs passive matrix OLED technology, where each pixel is addressed sequentially via row and column electrodes. This structure reduces complexity, minimizes component count, and enables a thin, lightweight display module with exceptional contrast ratios.

High Pixel Density and Clarity

With 128×64 dots distributed over a 1.3-inch active area, the display achieves fine pixel pitch (0.21 mm) for crisp text and graphics. This makes it well-suited for both static information panels and dynamic UI elements.

Interface and Driver IC

4-SPI High-Speed Communication

The 4-SPI interface ensures rapid data transfer between the display and the host controller. This reduces latency, enabling smooth animations and responsive feedback in interactive applications.

SSD1306 / SH1106 Driver ICs

Both driver IC options offer integrated display RAM, charge pump control, and programmable contrast settings. This versatility allows developers to tailor display brightness and refresh behavior according to specific environmental and power constraints.

Environmental Adaptability

Wide Operating Temperature

Designed for industrial and portable applications, the module operates reliably from -20°C to +70°C and can be stored at temperatures down to -30°C and up to +80°C without performance degradation.

Robust Mechanical Design

Its slim profile (2.9 mm maximum thickness) allows easy integration into compact enclosures, while the solid PCB and FPC interface design support durability under repeated handling.

Applications

Embedded Systems

Ideal for compact devices such as handheld meters, data loggers, and medical instruments, where high visibility and low power consumption are critical.

Wearable Technology

Thanks to its small size and lightweight structure, the module is well-suited for wearable electronics, smart accessories, and IoT devices.

Industrial Panels

In industrial environments, its high contrast and wide viewing angles make it effective for displaying operational parameters, alerts, and menu navigation.

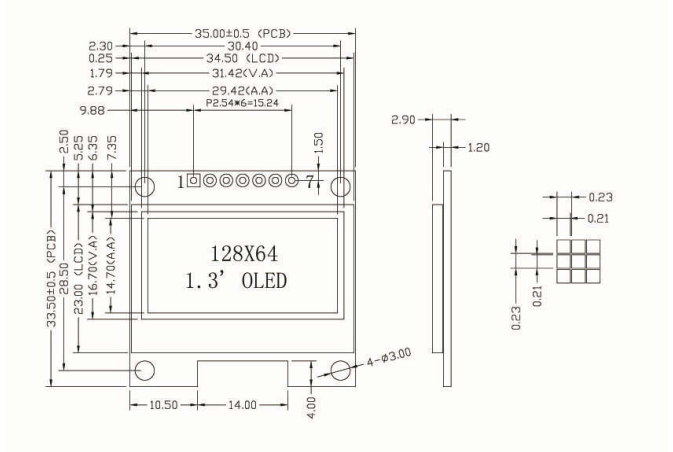

DRAWING

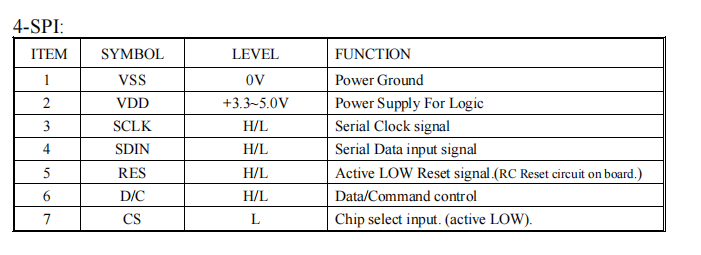

INTERFACE PIN FUNCTION

Conclusion

The 1.3-inch OLED display module with SSD1306/SH1106 driver IC and 4-SPI interface offers a precise balance of clarity, responsiveness, and adaptability. From consumer electronics to rugged industrial tools, it delivers consistent performance while maintaining a compact and power-efficient design—making it a reliable visual solution for modern embedded applications.
