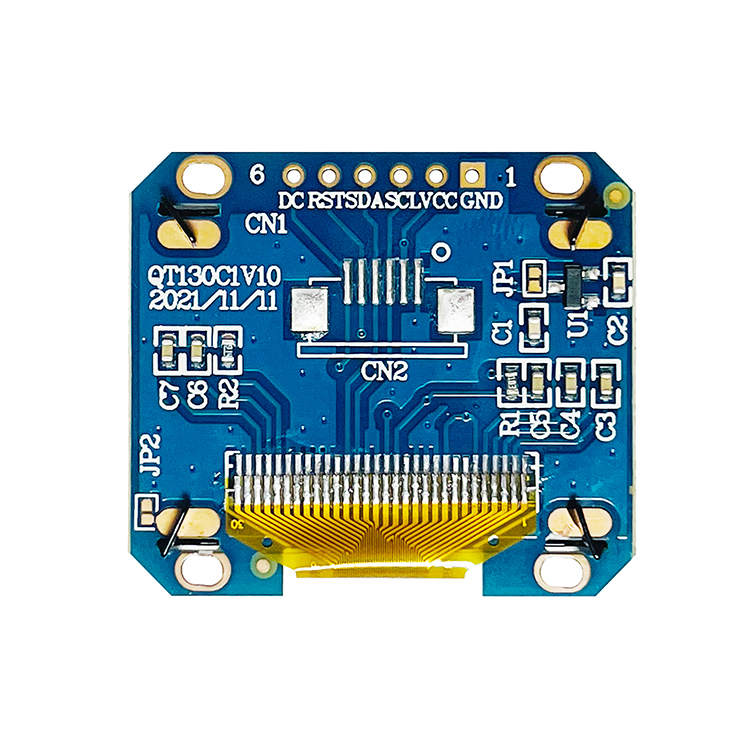

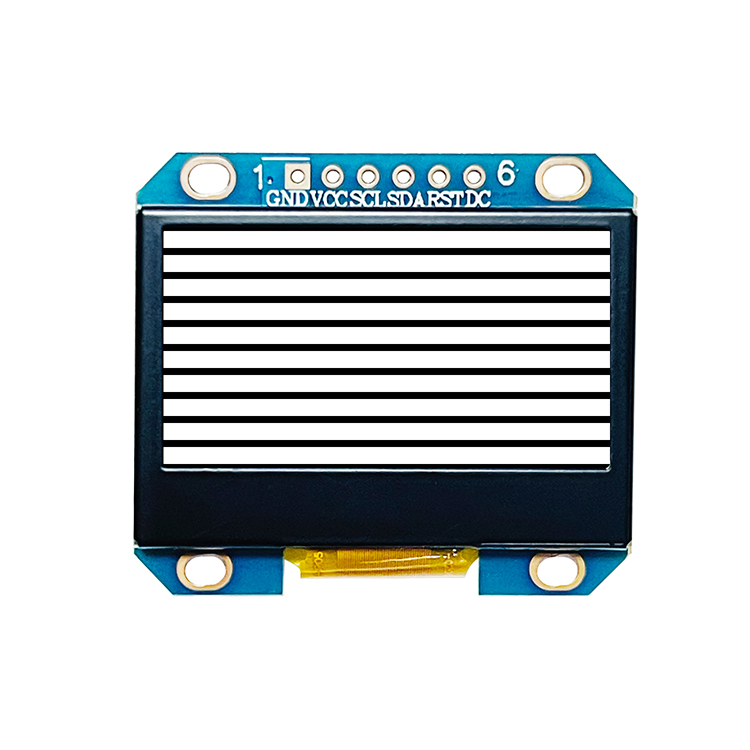

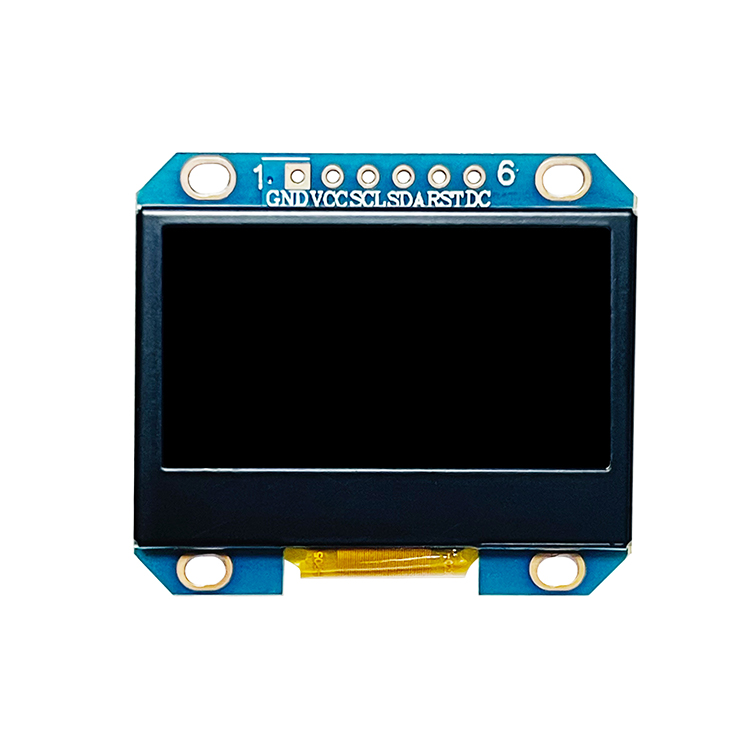

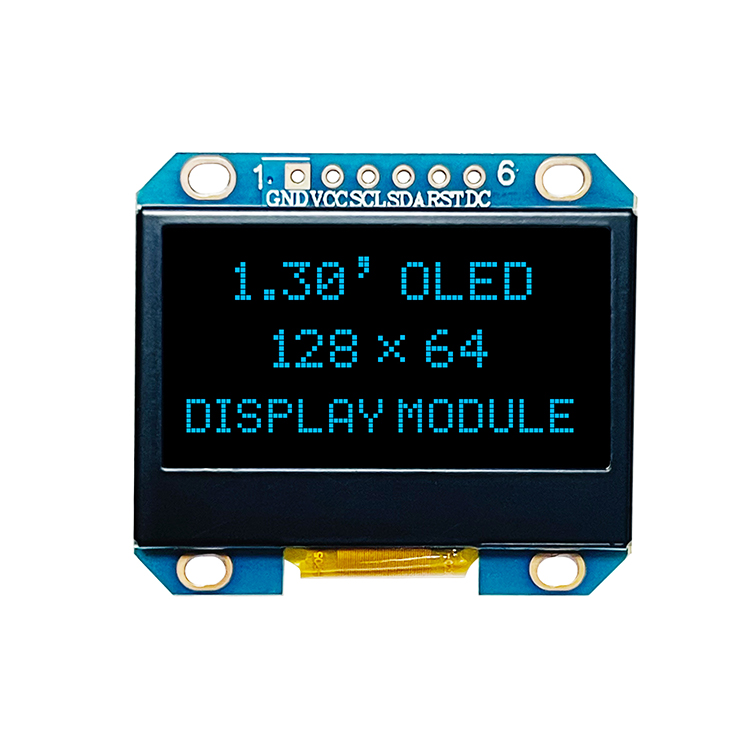

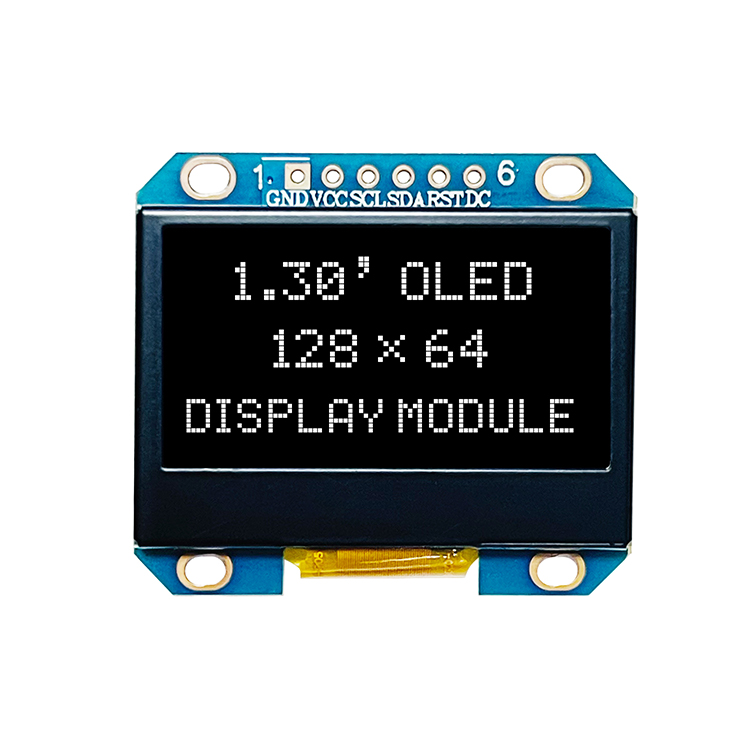

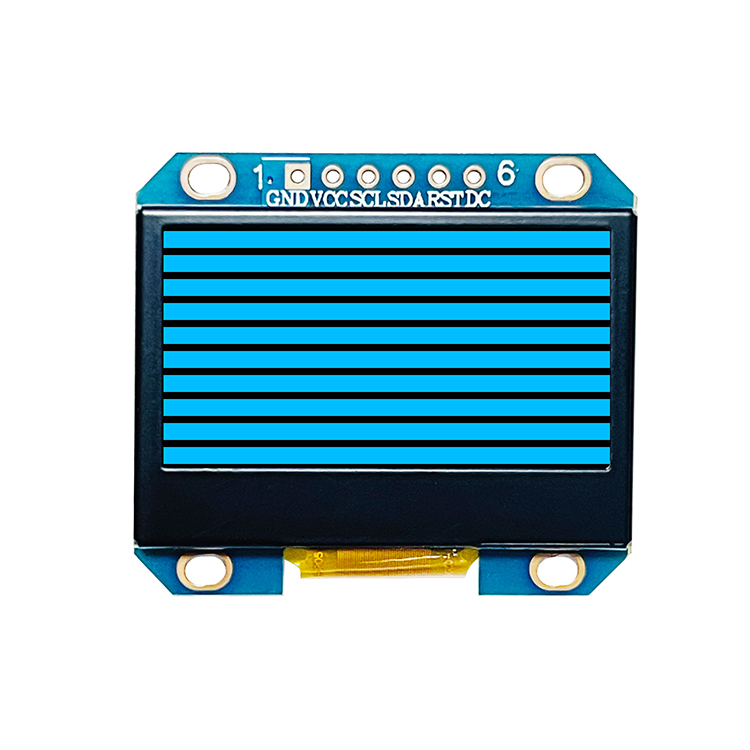

  • Size: 1.3 inch OLED
  • Controller IC:SSD1306/SH1106
  • Resolution: 128*64
  • Interface:4SPI
  • Product description: 1.3 Inch OLED Display Module 128x64 SPI SSD1306/SH1106 Driver ic
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION


HICENDA the 1.3-inch OLED display module, model HT13CWH30PG01S6V10, is an advanced micro-display component designed for high-contrast, energy-efficient visual output. Featuring a 128×64 dot resolution, this module utilizes a passive matrix driving method and is powered by the renowned SSD1306 or SH1106 driver ICs. With its 4-wire SPI interface, it offers fast data transfer rates, making it ideal for applications in compact embedded systems, portable devices, and instrumentation. Its wide operating temperature range and robust design ensure reliable performance in both consumer and industrial environments.

.



GENERAL SPECIFICATION


Parameter                                           Specification
Model No. HT13CWH30PG01S6V10
Display Size 1.3 inch
Resolution 128×64 dots
Display Type Passive Matrix
Viewing Direction IPS
Outline Dimension 36.0 (L) × 31.6 (W) × 3.7 (MAX) mm
Active Area 29.42 (H) × 14.7 (V) mm
Pixel Size 0.21 × 0.21 mm
Pixel Pitch 0.23 × 0.23 mm
Pin Count 6 pins
Driver IC SSD1306 / SH1106
Display Color Monochrome (White / Blue)
Drive Duty 1/64 duty
Interface 4-wire SPI
Operating Temp. -20℃ ~ +70℃
Storage Temp. -30℃ ~ +80℃



Structural and Optical Characteristics

Compact and Efficient Design

The module’s 36.0 × 31.6 mm compact outline allows for integration into devices where space efficiency is critical. The active area of 29.42 × 14.7 mm ensures sharp image rendering, while the finely tuned pixel pitch of 0.23 mm supports crisp and uniform visuals.

IPS Viewing Advantage

With an IPS viewing direction, the display maintains consistent color and clarity across wide angles, ensuring accurate data visualization from different perspectives — a key advantage for wearable devices, industrial meters, and handheld electronics.




Electronic Performance and Interface

SSD1306/SH1106 Driver IC

The SSD1306 and SH1106 are highly efficient OLED controllers, delivering smooth refresh rates and low power consumption. Their compatibility with SPI communication protocols ensures fast and stable data transmission.

4-Wire SPI Communication

The 4SPI interface simplifies wiring while enabling high-speed serial data exchange, making the display an excellent choice for microcontroller-based projects where responsiveness and reduced pin usage are priorities.




Application Fields

Consumer Electronics

Smartwatches and wearable devices

Portable measurement tools

Audio equipment displays

Industrial and Instrumentation

Control panel readouts

Data loggers

Test equipment interfaces




Reliability and Environmental Resistance

The module operates reliably in a -20℃ to +70℃ range and can be stored at -30℃ to +80℃ without degradation. This durability allows it to function effectively in environments with fluctuating temperatures and humidity levels.

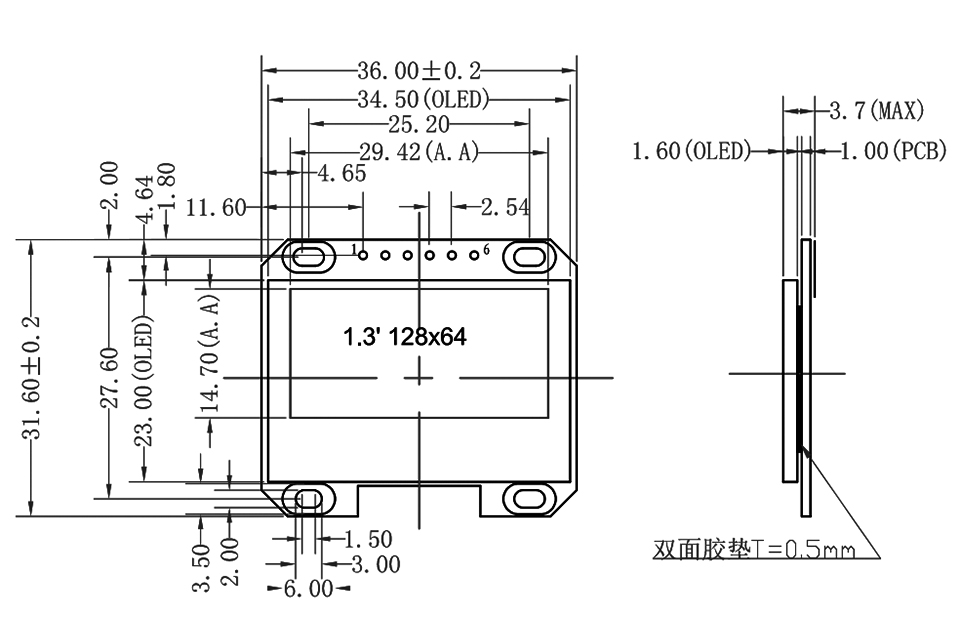

DRAWING

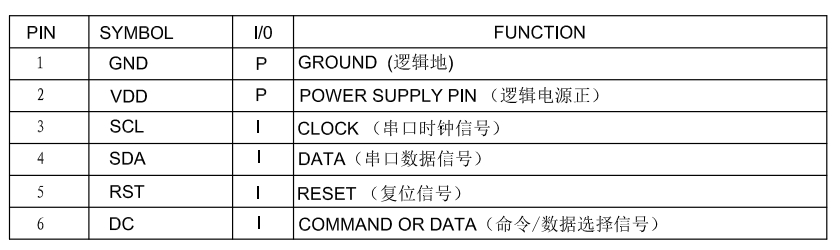

INTERFACE PIN FUNCTION





Conclusion

The 1.3-inch OLED display module (HT13CWH30PG01S6V10) stands out as a high-performance, space-efficient solution for both consumer and industrial display needs. By combining SSD1306/SH1106 driver IC technology with a 4-wire SPI interface, it achieves a balance of speed, visual clarity, and reliability — ensuring consistent performance across a diverse range of applications.
