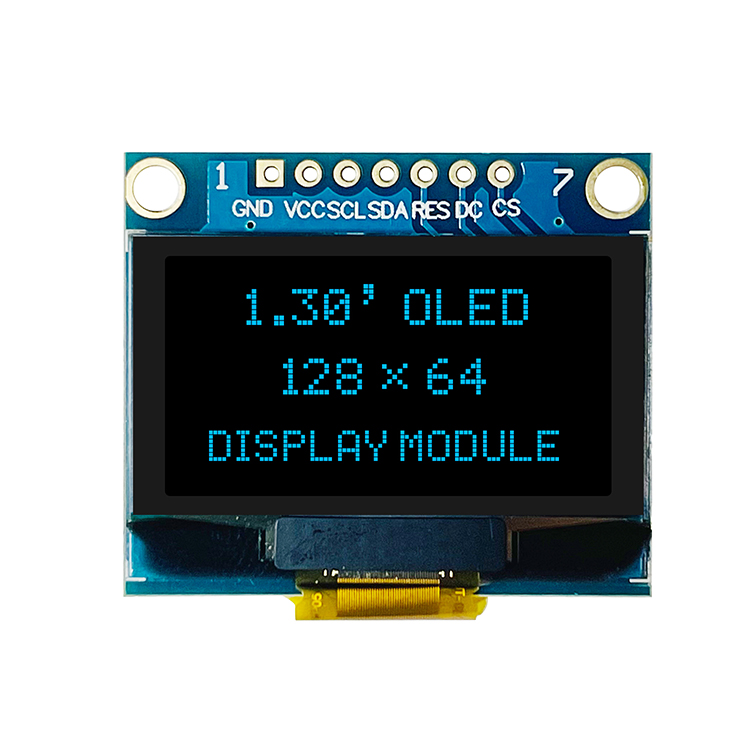

1.3-inch OLED Display Module – 128×64 Dots with SSD1306/SH1106

1.3-inch OLED Display Module – 128×64 Dots with SSD1306/SH1106

Size: 1.3 inch OLED
Controller IC:SSD1306/SH1106
Resolution: 128*64
Interface: 4-SPI
Product description: 1.3-inch OLED Display Module – 128×64 Dots with SSD1306/SH1106
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA 1.3-inch OLED display module (Model:The HT130DWH30PG01S7V10 is a high-performance 1.3-inch OLED display module, engineered for compact applications requiring crisp monochrome graphics and reliable performance. Featuring a 128×64 dot resolution, it employs a Passive Matrix driving method and supports IIC and 4-SPI communication interfaces, ensuring broad compatibility with various embedded systems. With an IPS viewing direction, wide operating temperature range, and dual driver IC compatibility (SSD1306/SH1106), this module is suitable for industrial, consumer, and portable electronics where clarity, efficiency, and durability are paramount.

.

GENERAL SPECIFICATION

Parameter	Specification
Model No.	HT130DWH30PG01S7V10
Display Size	1.3 inch
Resolution	128 × 64 dots
Display Type	Passive Matrix
Viewing Direction	IPS

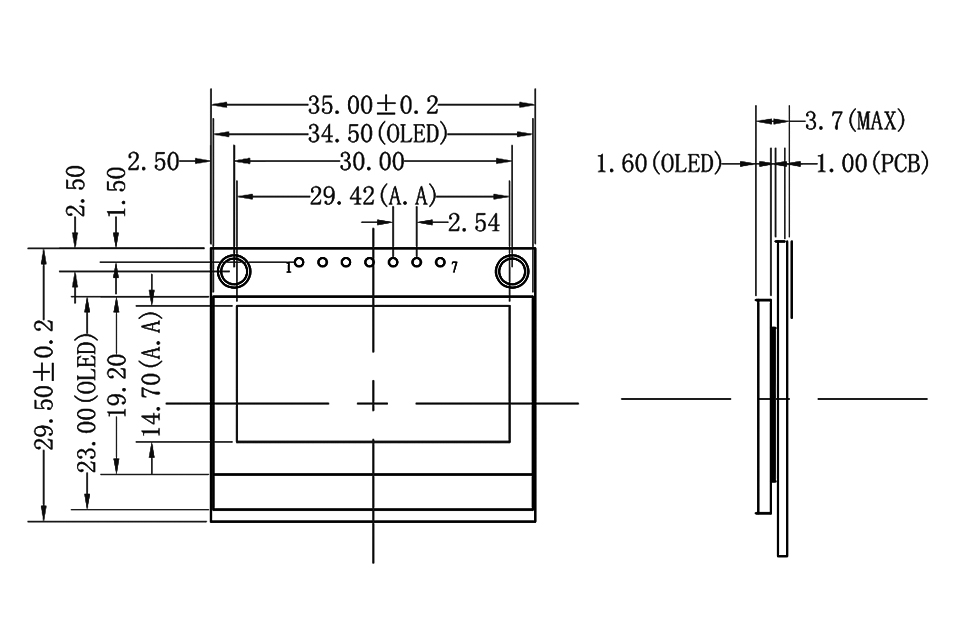

Outline Dimension	35.5 (L) × 33.5 (W) × 3.7 (MAX) mm
Active Area	29.42 (H) × 14.7 (V) mm
Effective Area	29.42 × 14.7 mm
Pixel Size	0.23 × 0.23 mm
Pixel Pitch	0.21 × 0.21 mm
Driver IC	SSD1306 / SH1106
Display Color	Monochrome (White / Blue)
Drive Duty	1/64 Duty
Interface	IIC / 4-SPI
Operating Temp.	-20℃ to +70℃
Storage Temp.	-30℃ to +80℃

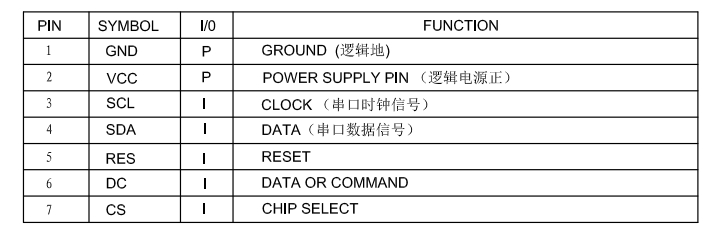

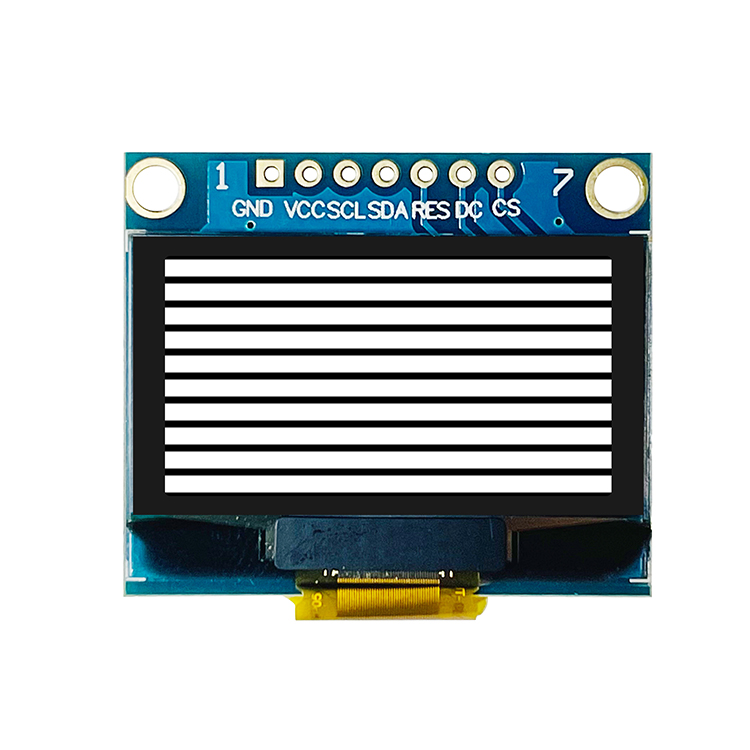

Pin Count	7 pins

Display Characteristics and Performance

The 1.3-inch OLED module leverages Passive Matrix OLED technology, which offers high contrast, deep blacks, and vivid brightness without requiring a backlight. The IPS viewing direction ensures consistent image quality from multiple angles, making it ideal for user interfaces where viewing flexibility is essential.

The SSD1306 and SH1106 driver ICs are industry-standard controllers, providing stable data processing, smooth rendering of text and graphics, and low power consumption. The module’s 128×64 pixel matrix allows for clear iconography, structured menus, and graphical patterns, even in compact layouts.

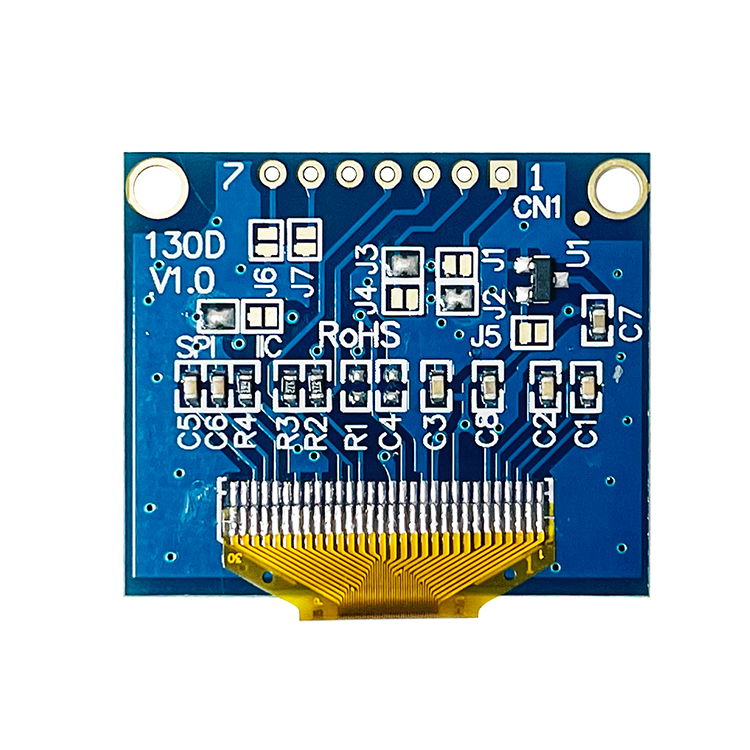

Interface and Integration Options

IIC Interface

The IIC (Inter-Integrated Circuit) interface offers simple wiring and efficient data transfer with only two data lines, making it a preferred choice for microcontroller-based applications where pin availability is limited.

4-SPI Interface

The 4-SPI (4-wire Serial Peripheral Interface) connection provides higher-speed communication, allowing faster display updates. It is suitable for applications requiring rapid screen refreshes, such as dynamic graphics or animated UI elements.
