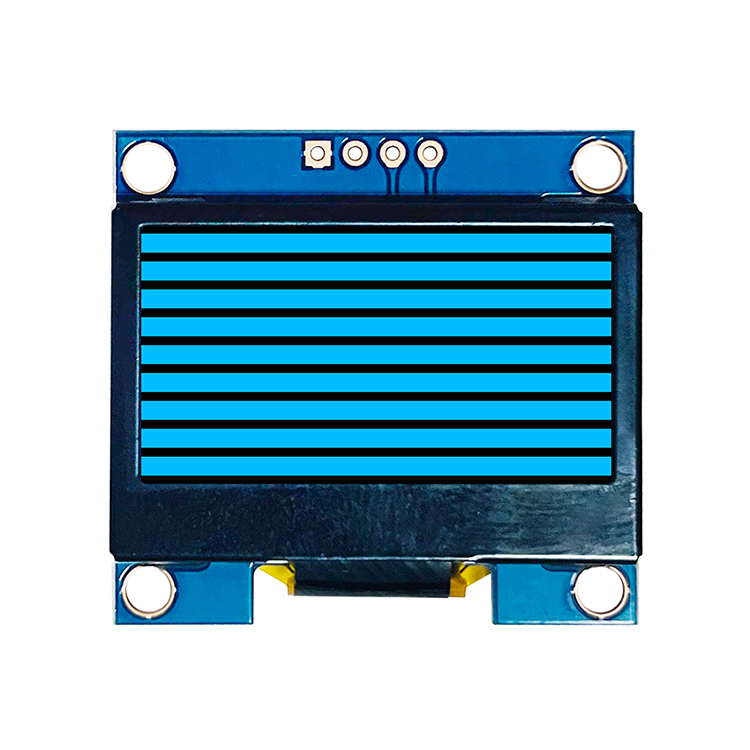

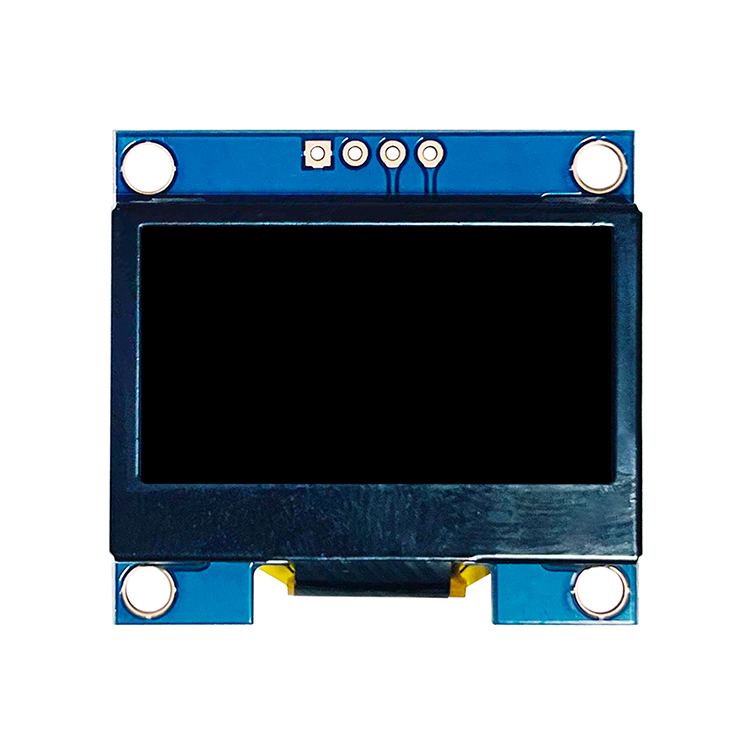

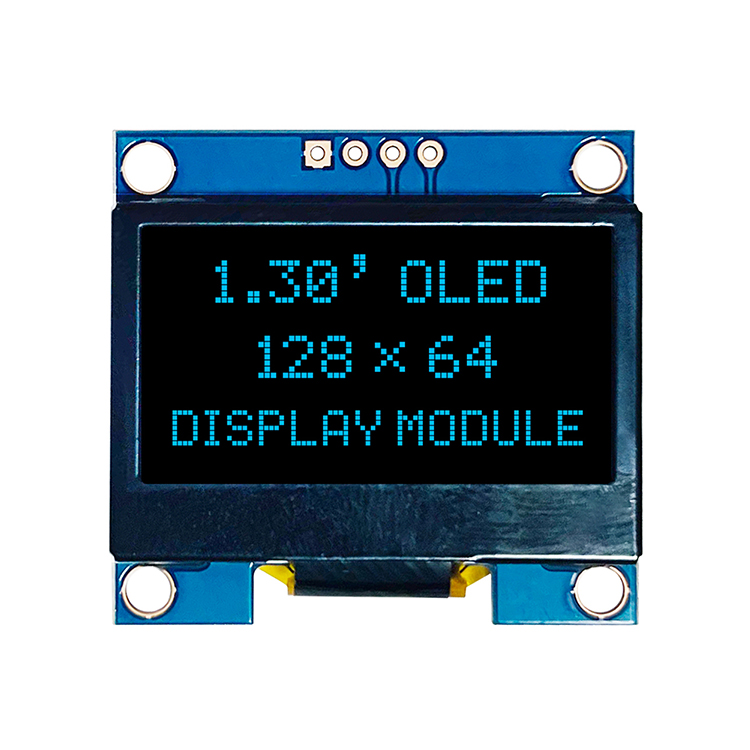

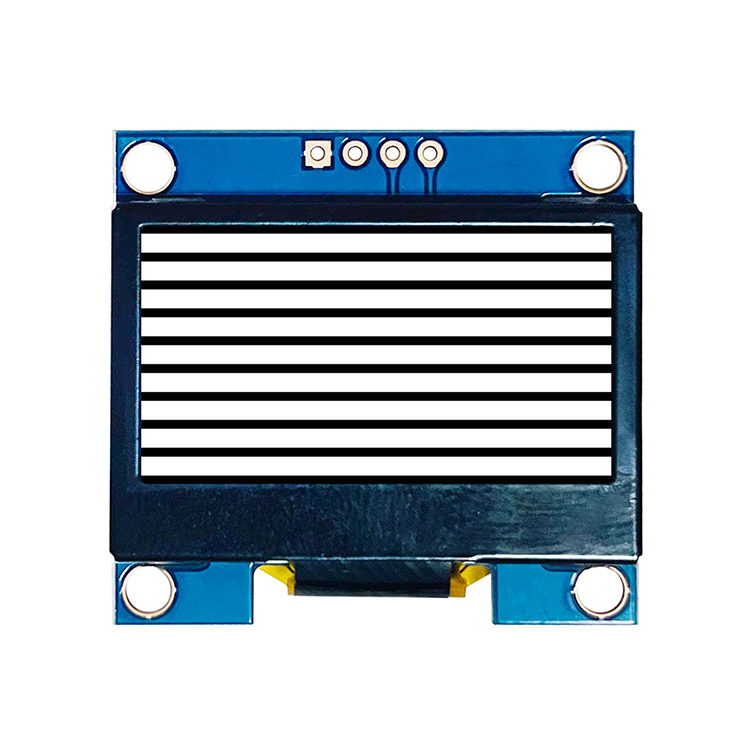

  • Size: 1.3 inch OLED
  • Controller IC:SSD1306/SH1106
  • Resolution: 128*64
  • Interface: I2C 4P
  • Product description: 1.3-Inch OLED Display Module with SSD1306/SH1106 Driver and I²C Interface
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION


HICENDA The 1.3-inch OLED Display Module (Model No: HT130LIWH30PG01I4V10) represents a compact yet high-performance solution for visual interface design in embedded systems. With a resolution of 128×64 pixels and powered by either the SSD1306 or SH1106 driver IC, this module employs a 4-pin I²C interface and operates with Passive Matrix OLED technology. It offers a crisp monochrome output in either white or blue, making it suitable for a range of industrial and consumer-grade applications where clarity, size efficiency, and low power consumption are critical.

.



GENERAL SPECIFICATION

Parameter                                                                 Value
Model Number HT130LIWH30PG01I4V10
Display Size 1.3 inch
Resolution 128×64 dots
Display Type Passive Matrix OLED
Driver IC SSD1306 / SH1106
Interface I²C (12C, 4-pin)
Display Colors Monochrome (White/Blue)
Viewing Direction IPS-Like Viewing Angle
Outline Dimension 35.5 mm (L) × 33.5 mm (W) × 6.3 mm (Max)
Active Area 29.42 mm × 14.7 mm
Pixel Size 0.21 mm × 0.21 mm
Pixel Pitch 0.21 mm × 0.21 mm
Drive Duty 1/64
Operating Temperature -20°C ~ +70°C
Storage Temperature -30°C ~ +80°C




Technological Profile and Functional Design

This OLED module features a 1.3-inch display diagonal and supports 128×64 pixel resolution, optimizing it for graphical data display in constrained hardware environments such as handheld devices, wearables, medical instruments, and control panels. The implementation of a Passive Matrix architecture ensures reduced complexity and cost, while still delivering high contrast and fast response times inherent to OLED technology.



Driver IC and Interface Integration

At the core of the module lies the SSD1306 or SH1106 driver IC, both widely adopted in the field for their robust I²C communication protocol and efficient handling of OLED pixel data. The 12C interface configuration (interpreted as I²C with 4-pin setup) simplifies interconnectivity with microcontrollers such as those from the STM32, Arduino, or ESP32 series. These driver ICs support multiple addressing schemes and flexible power modes, allowing developers to fine-tune display performance according to system requirements.




Display Characteristics and Build Specifications

From an optical and mechanical standpoint, the HT130LIWH30PG01I4V10 is engineered for durability and precision. The IPS-like viewing characteristics ensure consistent luminance across angles, while the 1/64 duty drive contributes to enhanced brightness stability and longevity. The pixel matrix is tightly packed with a pitch and pixel size of 0.21 mm², enabling detailed iconography and legible text even on such a compact form factor.



Mechanical Outline and Environmental Tolerance

The physical build of the module, measuring 35.5 mm by 33.5 mm with a maximum depth of 6.3 mm, allows for straightforward mechanical integration into compact housings. Its active area of 29.42 mm × 14.7 mm maximizes usage of the display footprint. Engineered to operate between -20°C to +70°C and with storage tolerances extending to -30°C to +80°C, this module is ready for deployment in a variety of environmental conditions.




Applications and Use Case Scenarios

Thanks to its I²C interface, low power consumption, and high contrast, this display is ideal for battery-operated devices, portable medical monitors, electronic measuring instruments, and user interfaces in smart appliances. The availability of both SSD1306 and SH1106 drivers provides flexibility in sourcing and legacy compatibility for existing systems.



DRAWING

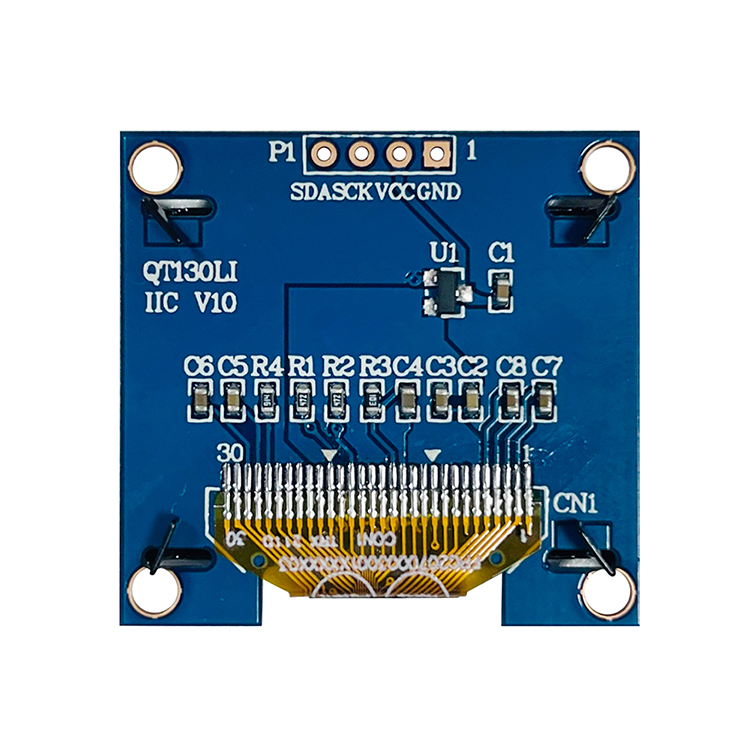

INTERFACE PIN FUNCTION






Conclusion

The 1.3-inch 128×64 OLED module equipped with SSD1306/SH1106 driver and I²C interface stands as a reliable, high-efficiency display option for developers seeking compact visualization solutions. With superior readability, robust interfacing capabilities, and excellent environmental resilience, it meets the demands of both prototyping and commercial-grade product design.
