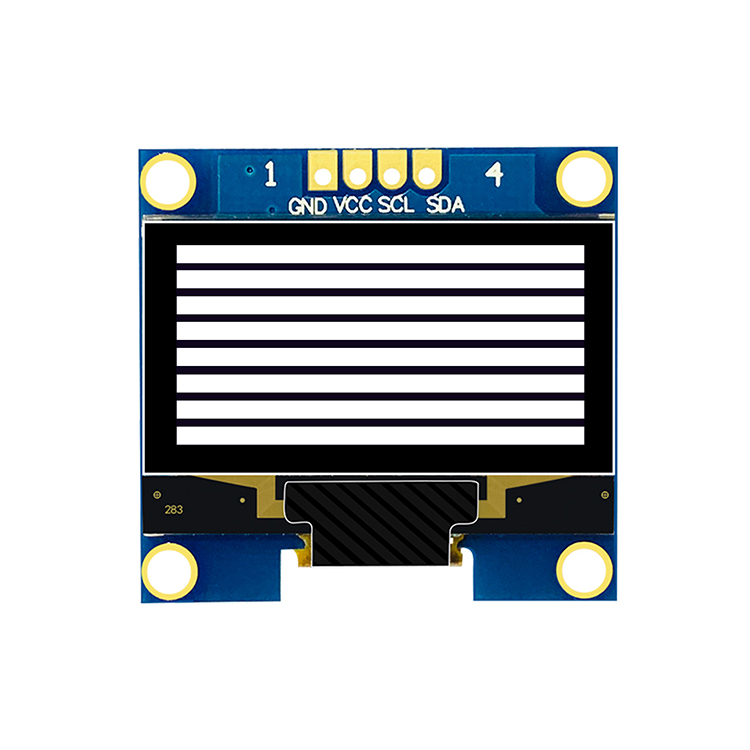

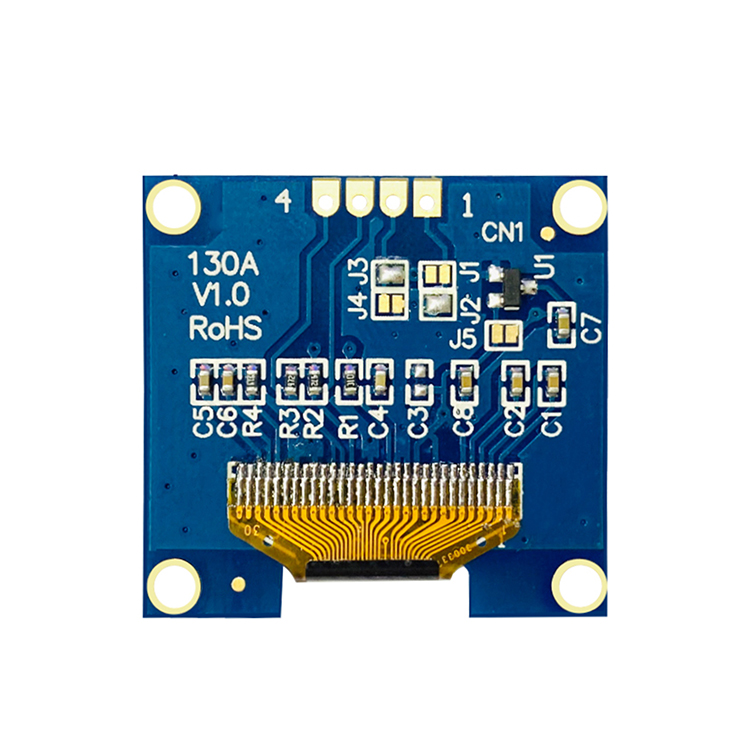

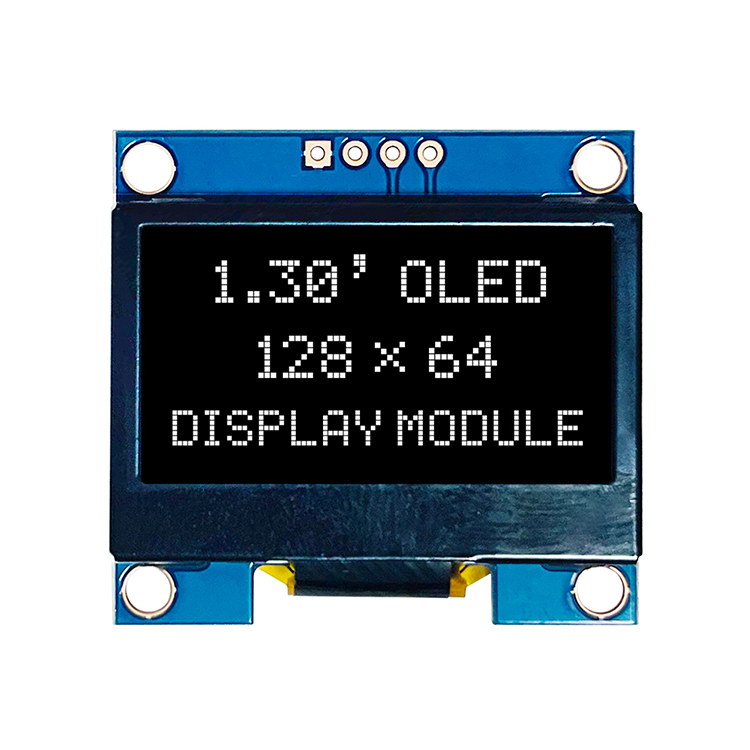

  • Size: 1.3 inch OLED
  • Controller IC:SSD1306/SH1106
  • Resolution: 128*64
  • Interface: I2C 4P
  • Product description: 1.3 Inch OLED Display Module 128x64 IIC SSD1306/SH1106 Driver ic
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION


HICENDA 1.3 inch OLED display module, identified by model number HT130AWH30PG01I4V10, integrates a 128×64 pixel resolution screen with a SSD1306 or SH1106 driver IC, employing a 4-pin I²C (12C) interface for communication. With its compact dimensions, efficient power performance, and clear monochromatic output in white or blue, it serves as a versatile solution for modern embedded applications ranging from handheld instruments to IoT display panels. Below is a summary of its essential specifications:
.



GENERAL SPECIFICATION


Parameter Specification
Model No.                                                                      HT130AWH30PG01I4V10
Display Size 1.3 inch
Resolution 128 × 64 dots
Display Type Passive Matrix
Viewing Direction IPS
Active Area 29.42(H) × 14.7(V) mm
Pixel Size 0.21 × 0.21 mm
Pixel Pitch 0.23 × 0.23 mm
Driver IC SSD1306 / SH1106
Interface I²C (4-Pin)
Display Color Monochrome (White / Blue)
Drive Duty 1/64 Duty
Display Mode Passive Matrix
Operating Temp. -20℃ ~ +70℃
Storage Temp. -30℃ ~ +80℃
Outline Dimensions 35.5(L) × 33.5(W) × 3.7(H max) mm



Core Features and Functional Advantages

High-Resolution Visual Output in a Compact Format

Despite its small footprint, the 1.3 inch OLED module delivers a sharp 128×64 dot resolution, providing crisp text and icon rendering suitable for professional-grade instruments, wearables, and compact interfaces.


Passive Matrix OLED Technology

The module adopts a Passive Matrix structure, optimized for low-power applications while maintaining sufficient contrast and response time. Its 1/64 drive duty ensures uniform brightness across the display surface.


Versatile Driver IC Compatibility

Users can opt between SSD1306 or SH1106 driver ICs, both well-established in the embedded system community for their robust I²C protocol support, easy command handling, and reliable frame management.


Mechanical and Electrical Characteristics

IPS Viewing Direction

The IPS-type viewing direction ensures consistent legibility from multiple angles, enhancing usability in dynamic or mobile environments.


Industrial Temperature Tolerance

Rated for -20°C to +70°C operating temperatures and storage conditions down to -30°C, the module is engineered for durability and performance across a wide range of deployment scenarios.



Application Scenarios and Integration Flexibility

Seamless Embedded System Integration

With its 4-pin I²C interface, the module minimizes wiring complexity, enabling rapid integration into a wide range of microcontroller-based systems including Arduino, STM32, ESP32, and Raspberry Pi platforms.

Ideal Use Cases

The display is highly suitable for:

Portable monitoring instruments

Smart appliances

Health monitoring devices

Industrial control panels

IoT dashboards





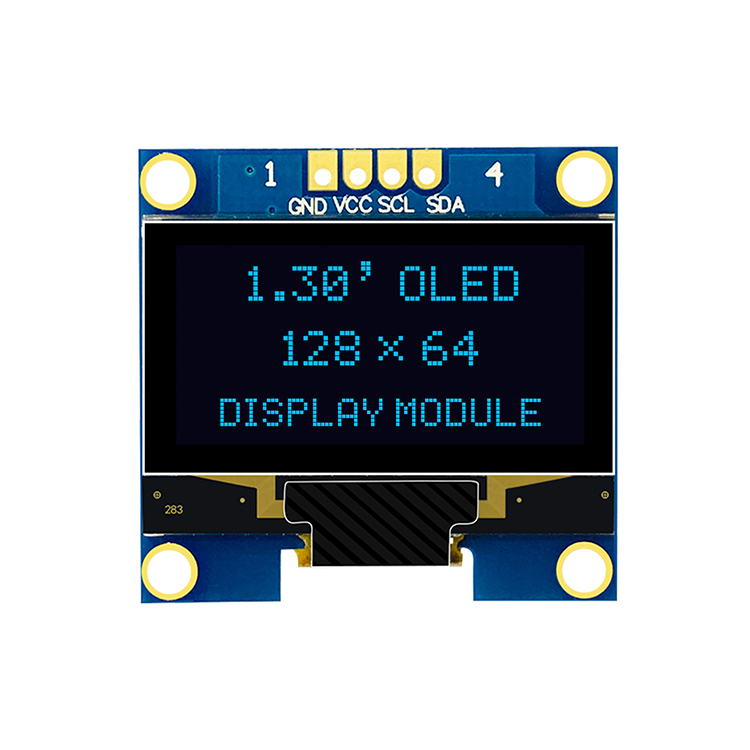

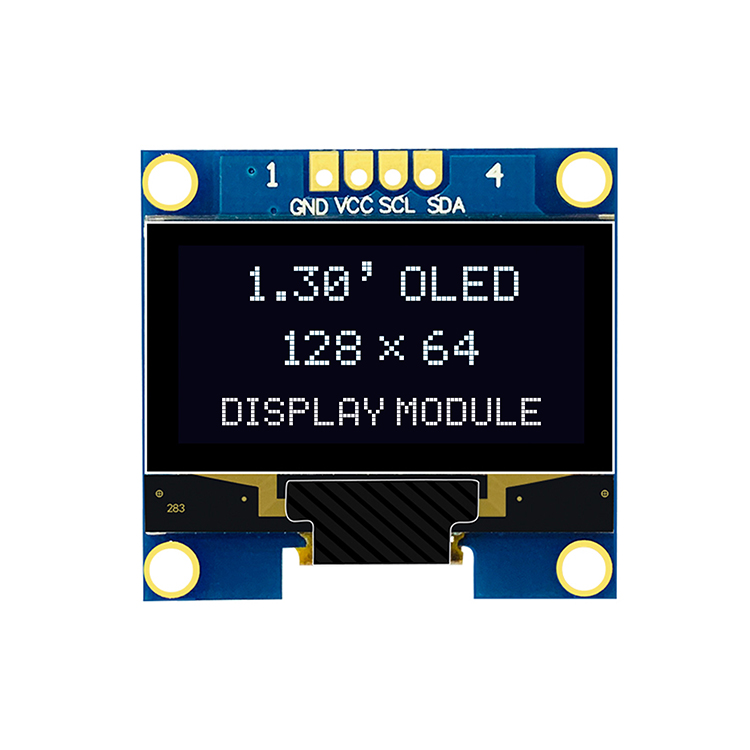

Display Performance and Color Options

The module provides monochrome output, available in white or blue variants, ensuring visual clarity with high contrast ratios. Its OLED structure eliminates the need for a backlight, improving power efficiency and thickness.

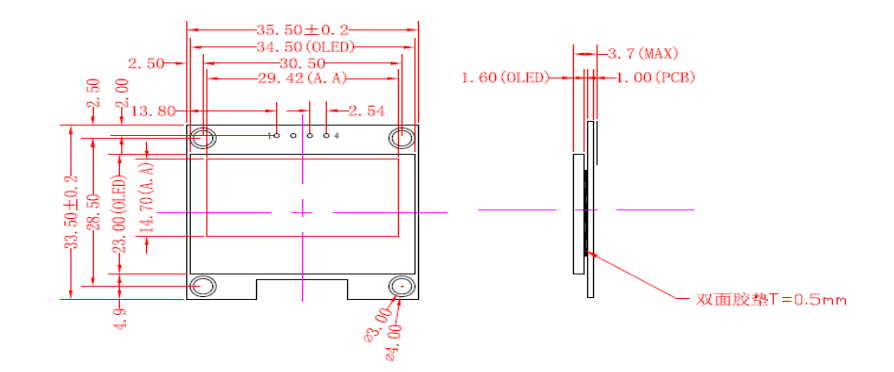

DRAWING

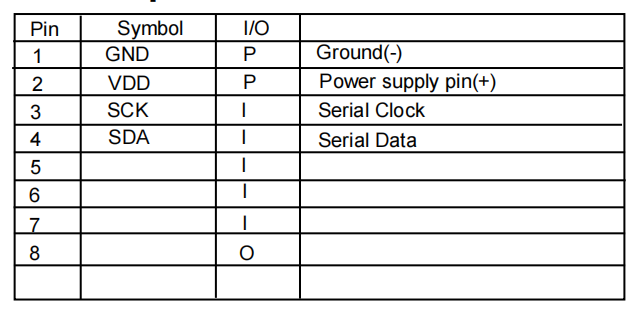

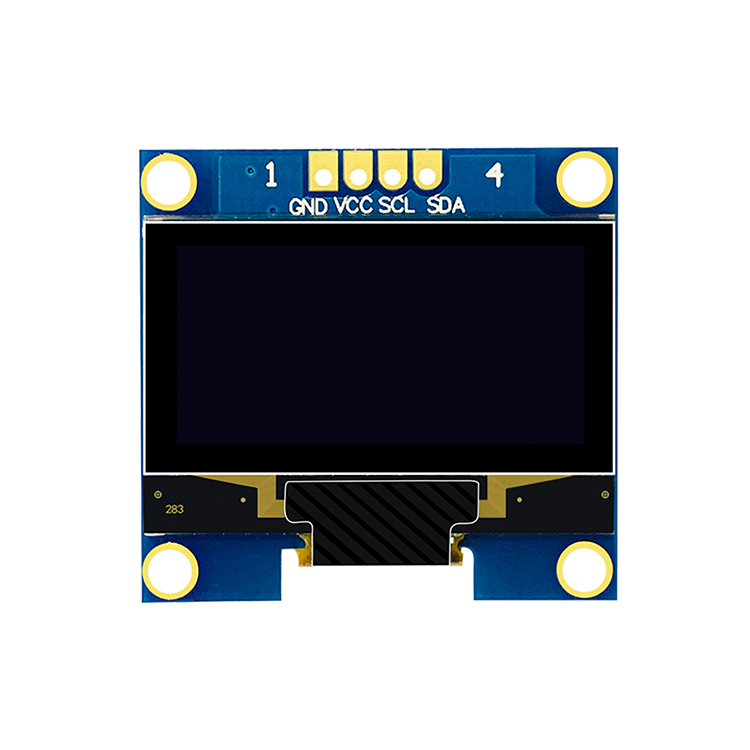

INTERFACE PIN FUNCTION




Conclusion

The 1.3 inch OLED display module—compact yet fully featured—is an ideal component for developers requiring clarity, low power consumption, and robust integration into both prototyping and final product environments. With support for two well-known driver ICs and a reliable I²C interface, it brings together simplicity and performance in one elegant solution.
