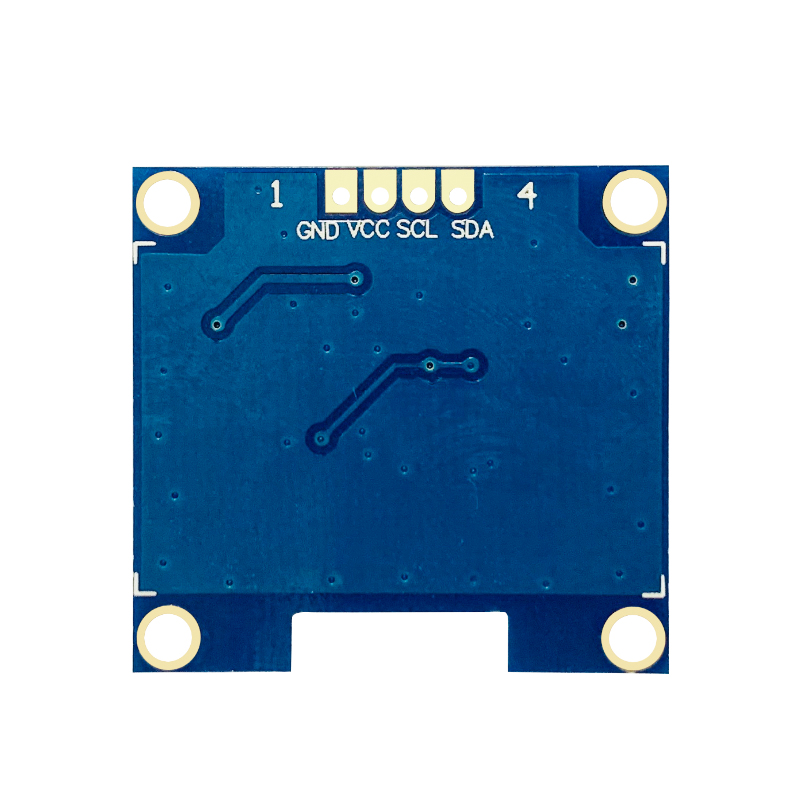

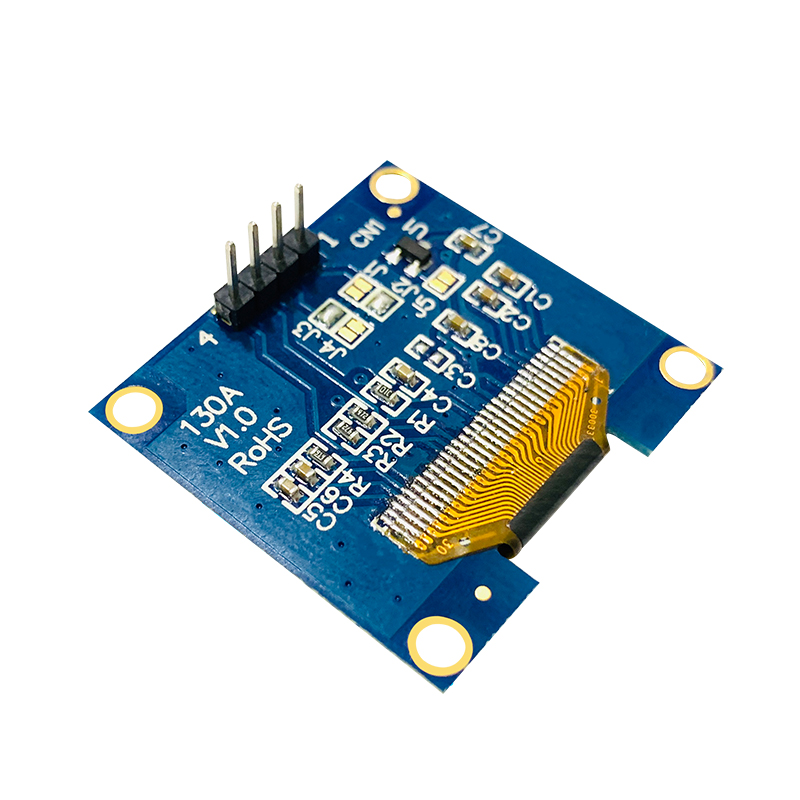

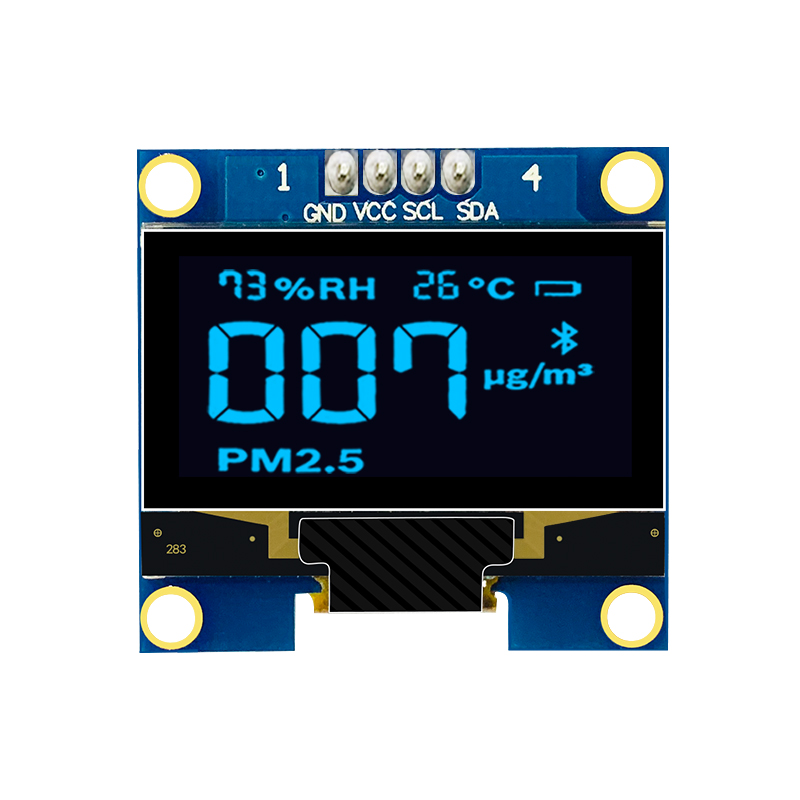

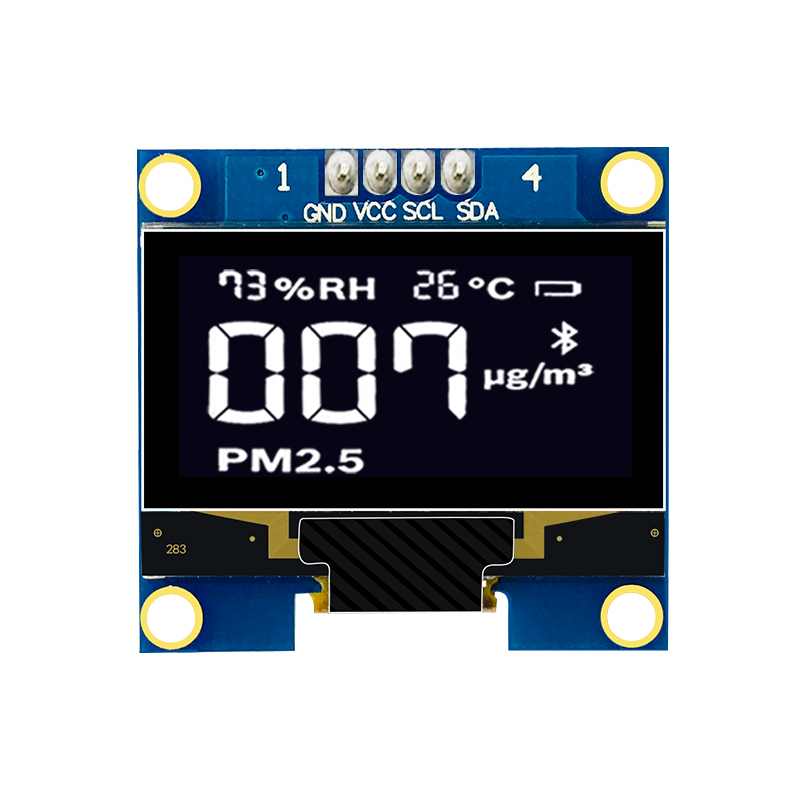

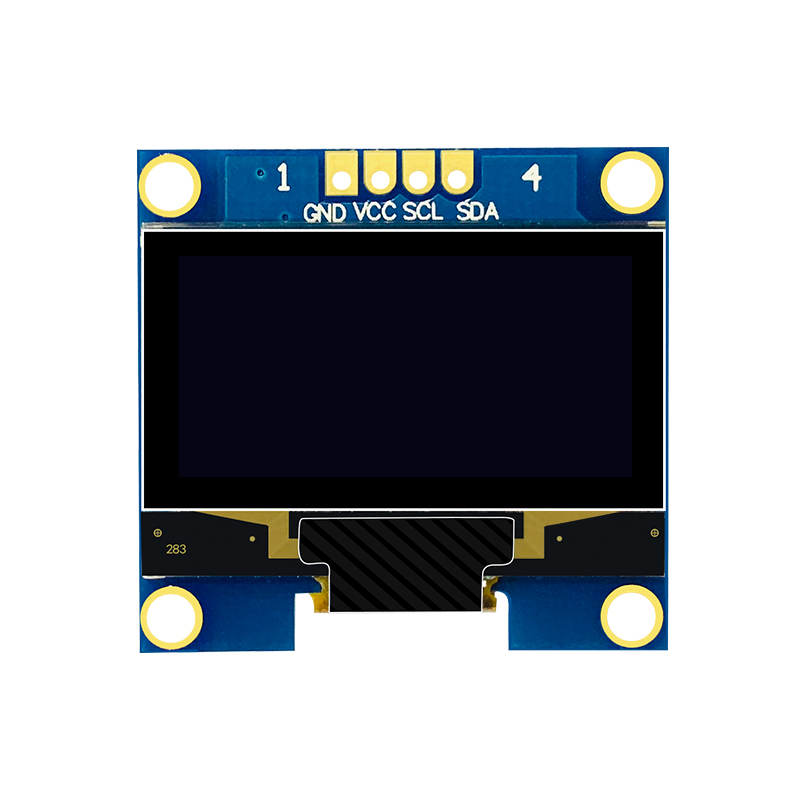

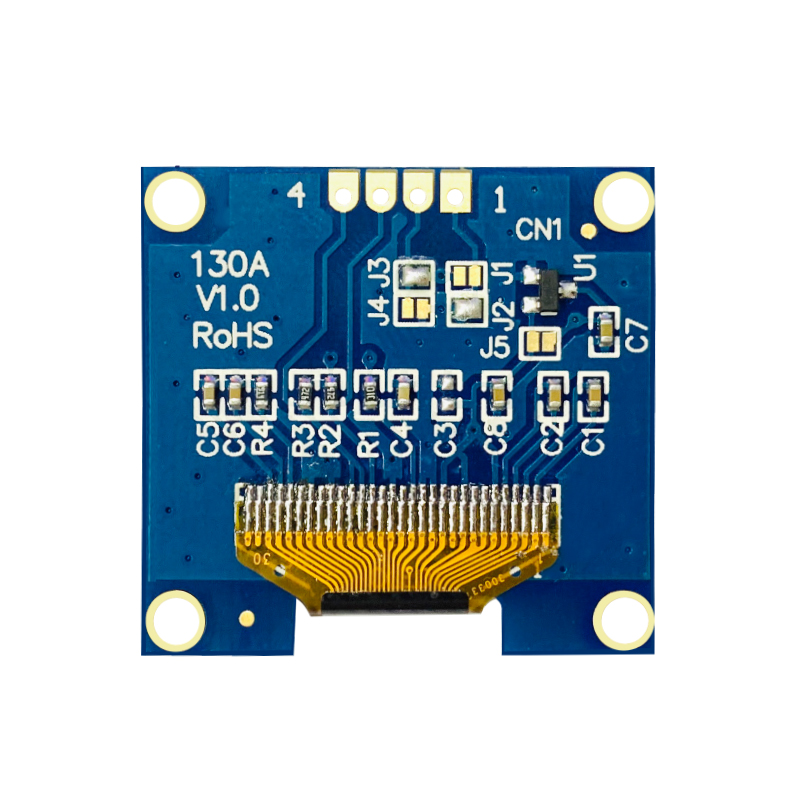

1.3 inch 128*64 OLED Display Module 4 pin I2C interface SH1106 Driver Chip

1.3 inch 128*64 OLED Display Module 4 pin I2C interface SH1106 Driver Chip

1.3 inch 128*64 OLED Display Module 4 pin I2C interface SH1106 Driver Chip

1.3 inch 128*64 OLED Display Module 4 pin I2C interface SH1106 Driver Chip

1.3 inch 128*64 OLED Display Module 4 pin I2C interface SH1106 Driver Chip

1.3 inch 128*64 OLED Display Module 4 pin I2C interface SH1106 Driver Chip

1.3 inch 128*64 OLED Display Module 4 pin I2C interface SH1106 Driver Chip

Price: $3.59-$4.59
Size:1.3
Resolution: 128*64
Interface: I2C
Product description: Hicenda Technology Co., Ltd can supply 1.3 inch oled display module white or blue color with 4 pin I2C interface for medical or industrial device.
INQUIRY

1. Display Specifications

LCD Size: 1.3 inches
Dot Matrix Size: 128*64
LCD Color: White/Blue
Hardware Interface: SPI interface
Driver IC: SH1106
Operating Temperature: -30 - 80
Working Power Supply: 3.3V
PIN NO: 7Pin
Viewing Direction: Full viewing angle

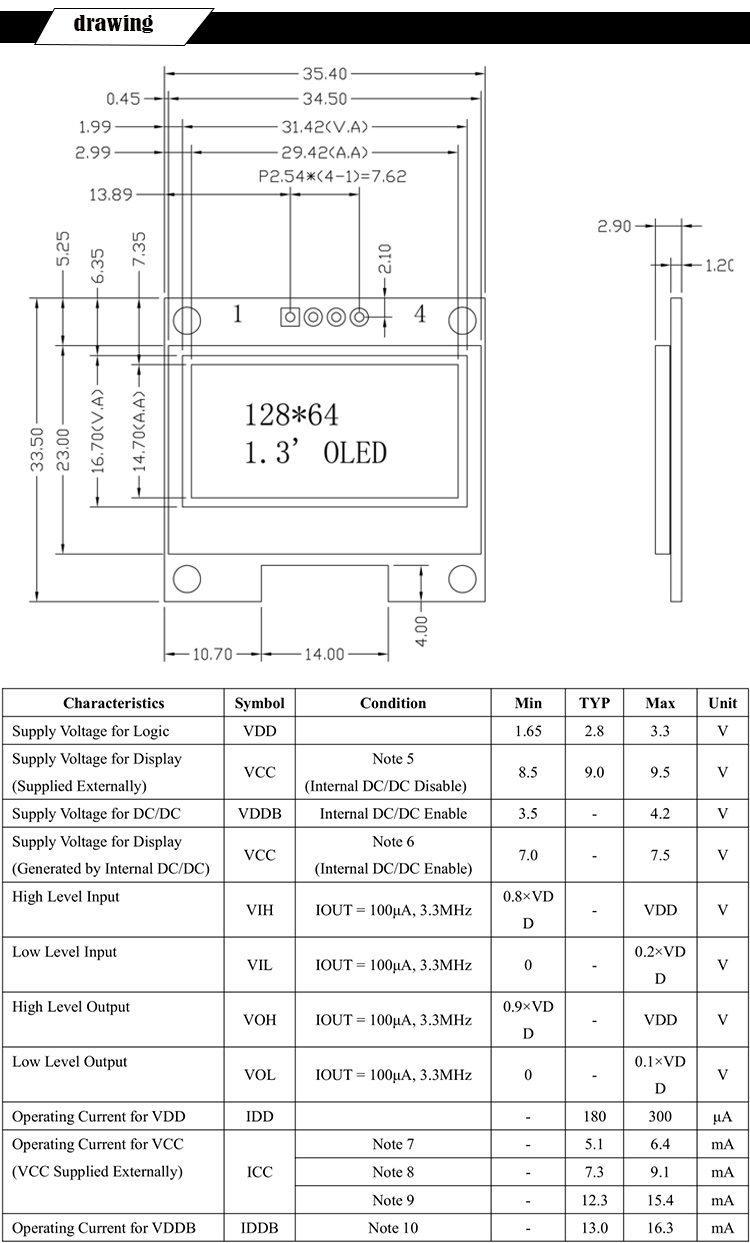

2. Mechanical Specifications

Dot Matrix:	128X64
Dots Size:	0.21 (W) x 0.21 (H) mm
Dots Pitch:	0.23 (W) x 0.23 (H) mm
Aperture Rate:	83.3%
Active Area:	29.42 (W) x 14.7 (H) mm
Display:	LED(WHITE)
IC:	SH1106
Panel Size:	34.5 (W) x 23 (H) mm
Module Size:	34.5 (W) x 35.4 (H) x 2.9 (D) mm
