Please kindly contact us for full data sheet of the display.

DESCRIPTION

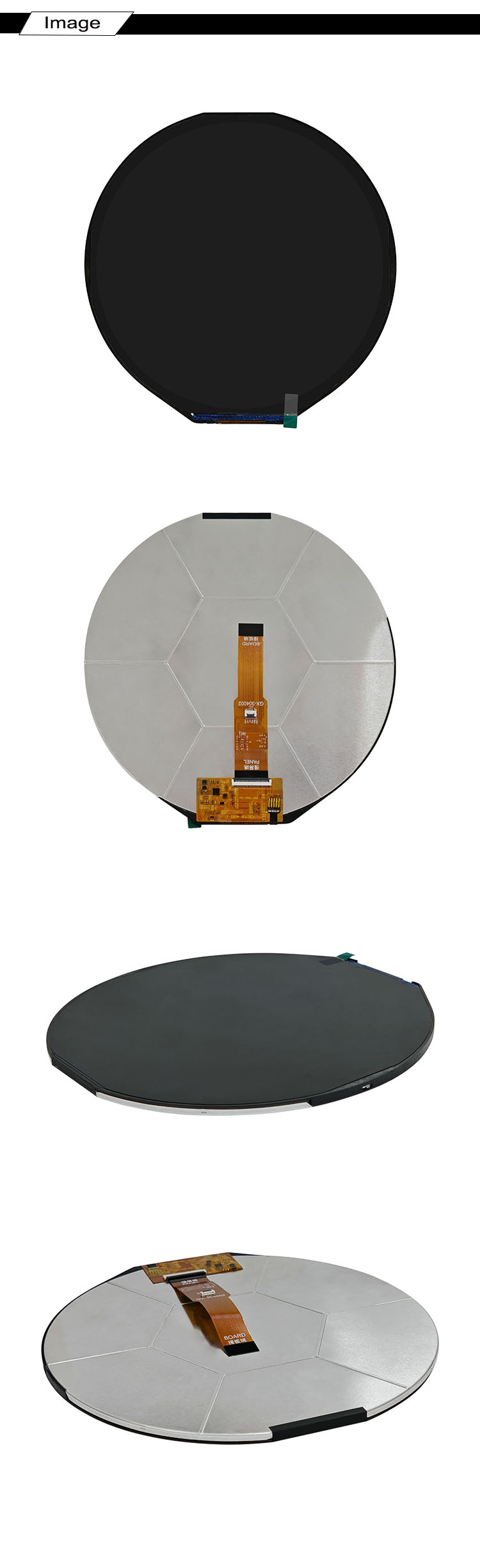

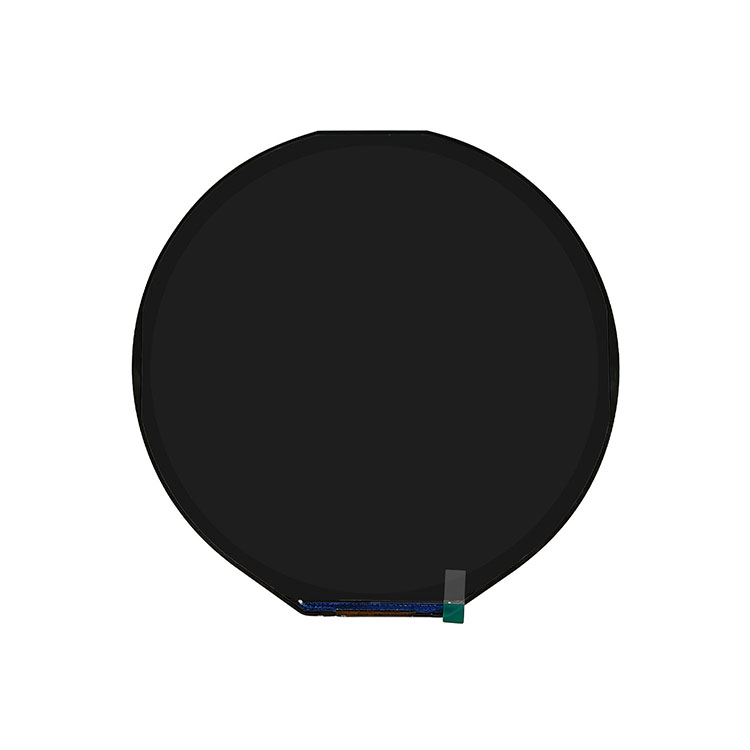

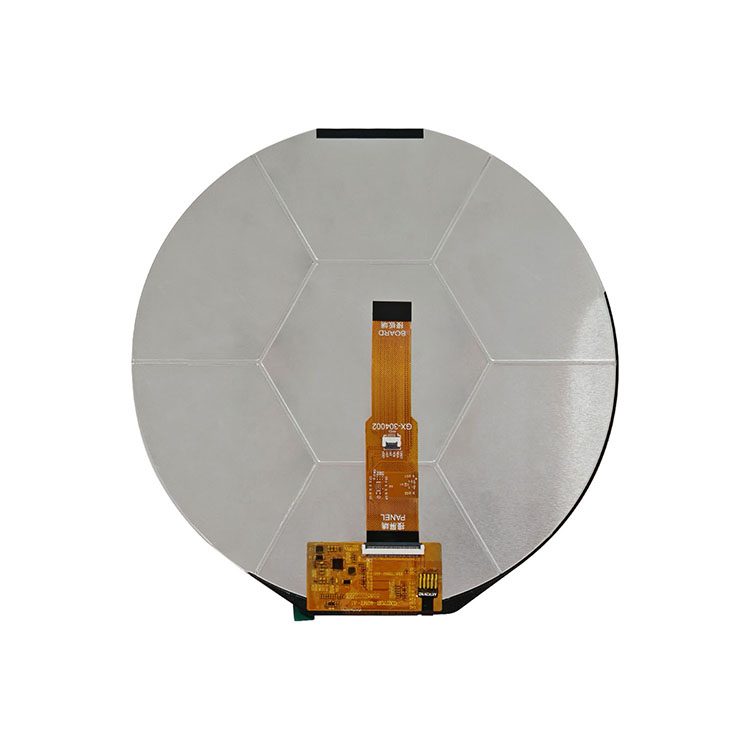

HICENDA  HT070R-40MT-A1 is a 7.0-inch round TFT LCD display with an advanced MIPI interface, designed for a wide range of applications requiring high-quality, full-color displays. With its 1080x1080 resolution, the display delivers crisp and clear visuals. Built on a transmissive TFT technology platform, it offers a superior viewing experience, especially with its In-Plane Switching (IPS) feature. This article will delve into the specifications, features, and advantages of the HT070R-40MT-A1 display, presenting it as a cutting-edge solution for modern display technologies.

Key Specifications and Features

The HT070R-40MT-A1 display offers an impressive array of technical features that make it ideal for various applications, from consumer electronics to industrial control systems. Below is a summary of the primary technical specifications:

GENERAL SPECIFICATION

Display Technology and Performance

The HT070R-40MT-A1 display leverages a-Si (Amorphous Silicon) technology, a widely used platform in TFT (Thin-Film Transistor) displays, offering an efficient and reliable means of light transmission. The use of In-Plane Switching (IPS) technology ensures that the display delivers superior color accuracy and consistency, even at wide viewing angles. This feature is essential in applications where clarity and consistency across various perspectives are paramount, such as in high-end portable devices, medical equipment, and automotive displays.

Full-Color and High Resolution

With a resolution of 1080x1080 pixels, the HT070R-40MT-A1 ensures high pixel density, making it suitable for applications requiring fine details and clarity. The display can produce 16.7 million colors, providing an exceptional visual experience. The full-color capability is especially beneficial for graphic-rich interfaces, ensuring vibrant and sharp imagery.

MIPI Interface and Connectivity

The HT070R-40MT-A1 is equipped with an MIPI (Mobile Industry Processor Interface) interface, a standard designed to offer high-speed communication between display modules and processors. The MIPI interface allows for faster data transmission rates and greater flexibility in connectivity, enabling the display to work seamlessly with a variety of modern devices. This is a critical feature for applications that demand real-time data processing and high responsiveness.

Durability and Temperature Range

The display is designed to withstand a wide range of environmental conditions. It operates within a temperature range of -20°C to +70°C, making it suitable for use in diverse industrial and outdoor environments. Additionally, the storage temperature range of -30°C to +80°C provides protection against extreme conditions, ensuring the longevity of the module.

Enhanced Touch Functionality with Touch Panel

Incorporating a touch screen panel (TSP) into the design adds a layer of interactivity, enabling users to engage directly with the display. This feature is widely sought after in applications such as kiosks, mobile devices, and control panels, where tactile feedback enhances the user experience. The TSP further improves the module’s versatility, allowing for intuitive and efficient operation.

Design and Build

The HT070R-40MT-A1 boasts an outline dimension of 192.75mm (H) x 191.58mm (V) x 4.75mm (D), making it compact and well-suited for devices where space efficiency is important. The active area of 177.55mm x 177.55mm provides a sizable display area, enabling users to enjoy large, detailed visuals despite the compact overall size.

Backlight and Power Efficiency

The display features a white LED backlight, known for its energy efficiency and long operational life. LED backlighting is commonly chosen for its ability to maintain consistent brightness levels while consuming less power than traditional light sources. This makes the HT070R-40MT-A1 suitable for battery-powered applications, where power consumption is a critical factor.

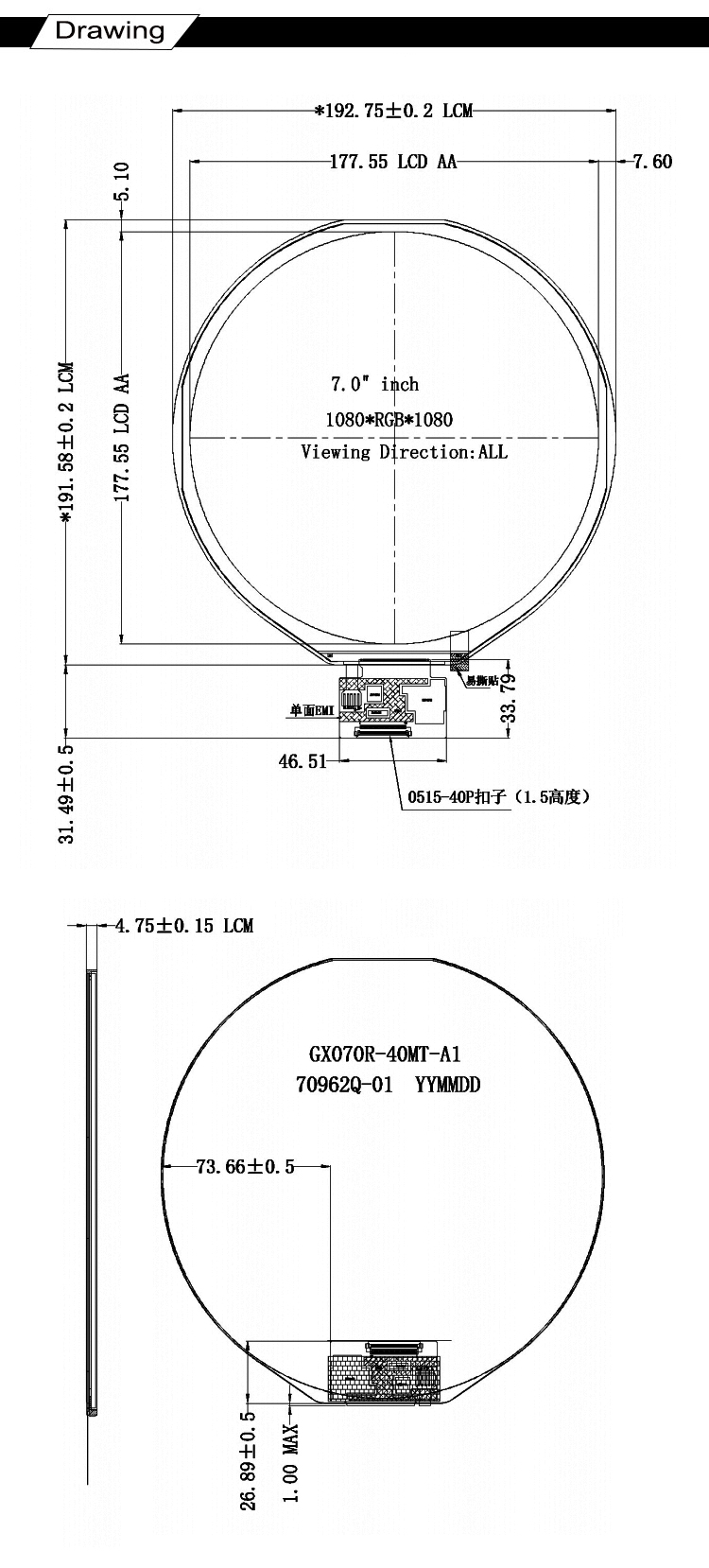

DRAWING

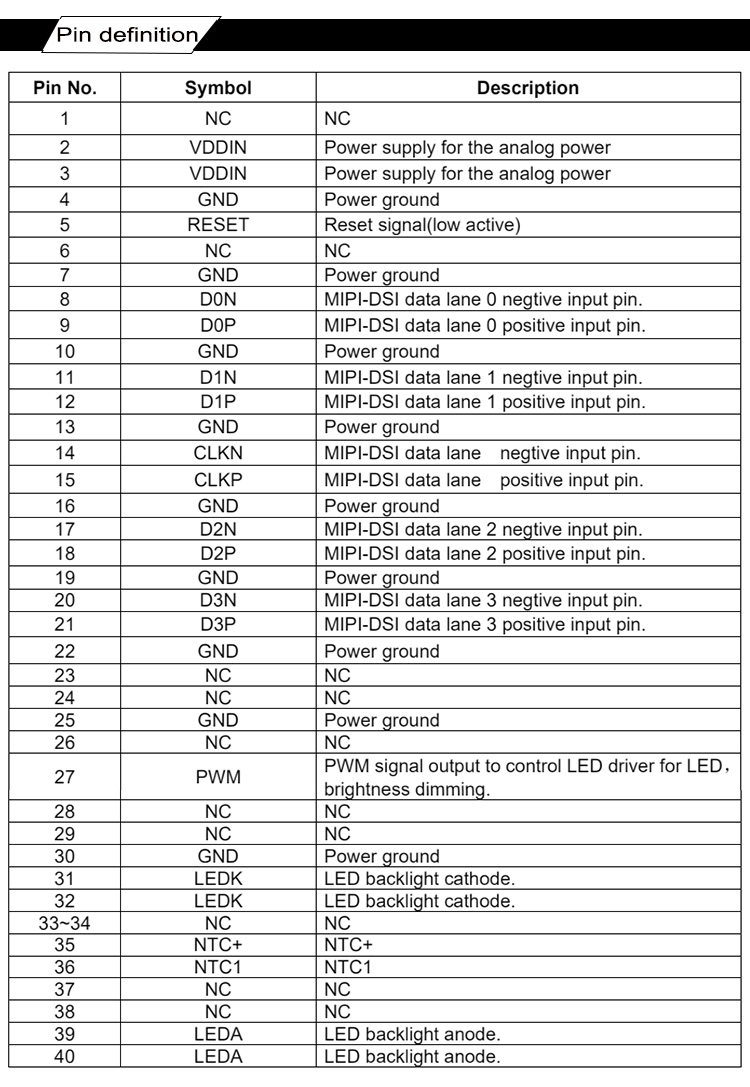

INTERFACE PIN FUNCTION

Conclusion

The HT070R-40MT-A1 round TFT LCD display with MIPI interface represents the pinnacle of modern display technology. With a robust set of features, including a high resolution, IPS technology, a MIPI interface, and a durable design, this display module is a versatile solution for a wide range of applications, from consumer electronics to industrial systems. Its compact size, full-color capability, and touch panel integration further enhance its appeal, making it an excellent choice for developers seeking high-performance, reliable display modules.
