Square dispaly 7.6 inch tft lcd display 1200x1200 Without TSP MIPI Interface

Square dispaly 7.6 inch tft lcd display 1200x1200 Without TSP MIPI Interface

Size: 7.6 TFT
Viewing Direction:IPS
Resolution:1200 (RGB) ×1200
Interface: MIPI

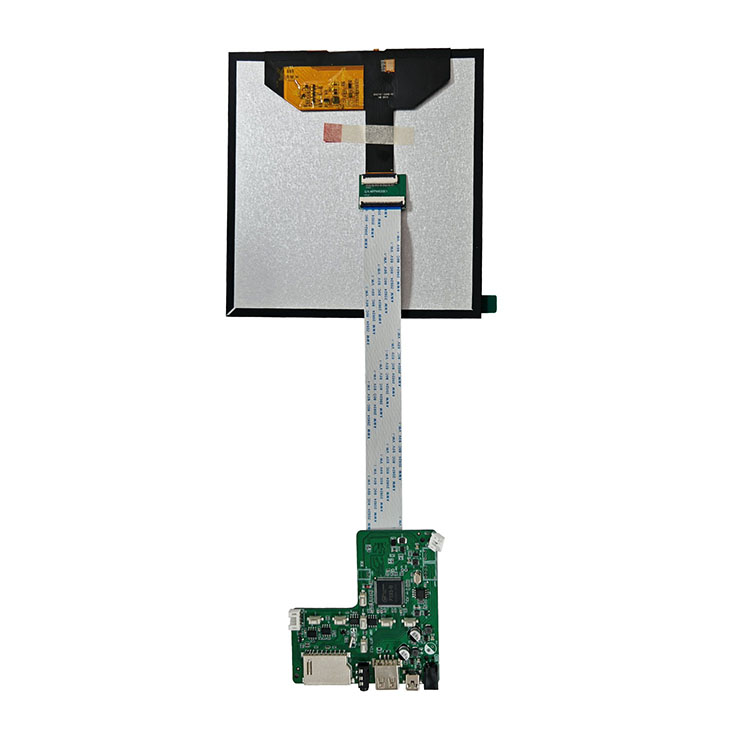

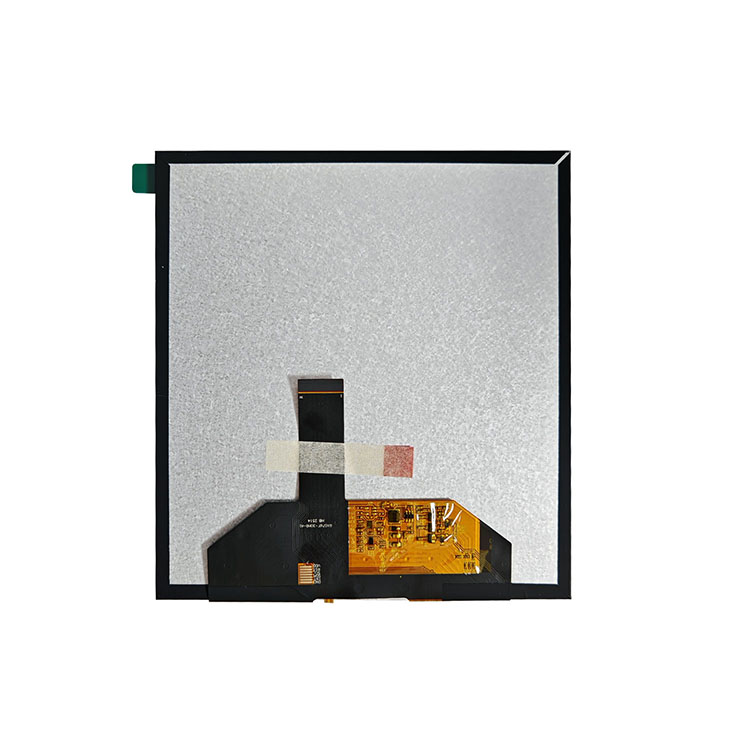

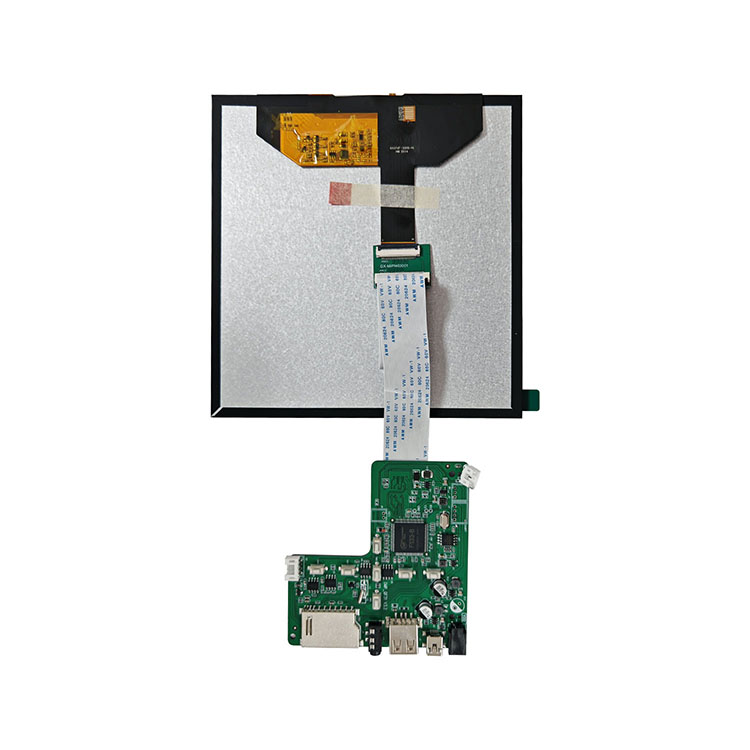

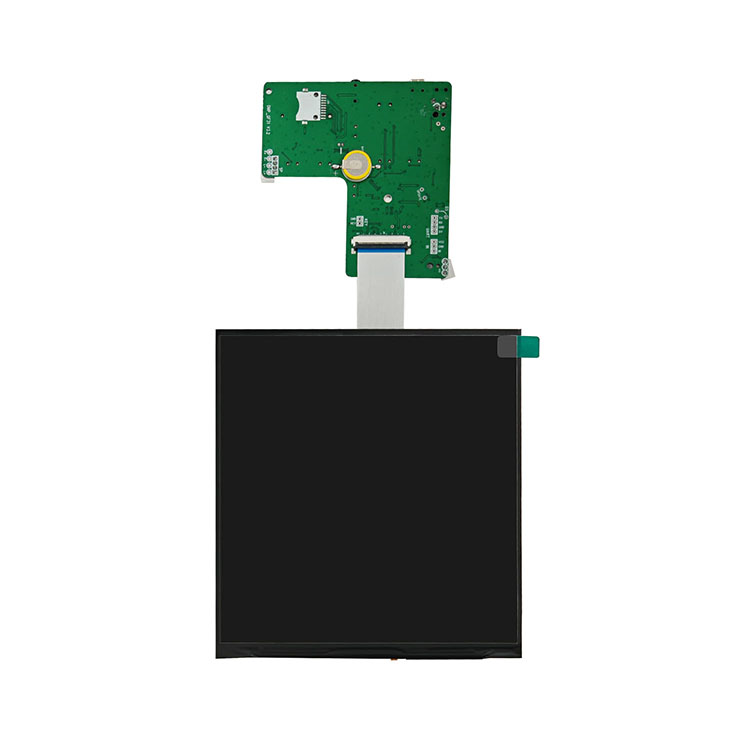

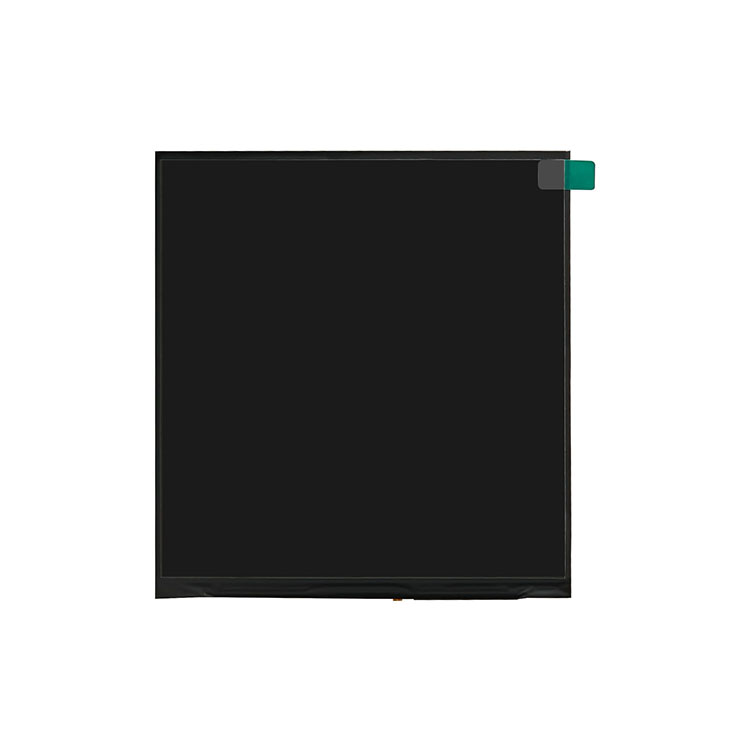

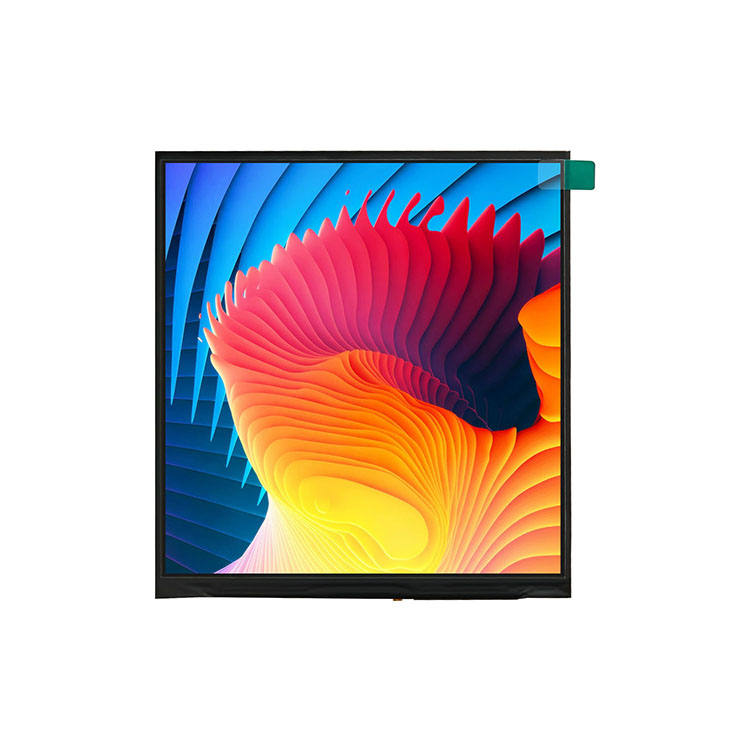

Product description: Square dispaly 7.6 inch tft lcd display 1200x1200 Without TSP MIPI Interface
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA HT076F-30MB-A1 is a 7.6-inch square TFT LCD display that offers a high resolution of 1200 x 1200 pixels without a touch screen panel (TSP). Designed for applications that require a high-quality visual output, it uses a-Si (Amorphous Silicon) technology and delivers full-color visuals with a 16.7 million color depth. The display operates with an MIPI interface and provides vibrant images via its normally white transmissive TFT technology. With a wide operational temperature range of -20°C to +70°C, this display is robust and versatile for various environments.

Key Specifications of HT076F-30MB-A1

The HT076F-30MB-A1 model offers impressive performance features tailored to meet the needs of modern display applications. Below is a detailed specification table summarizing the important attributes of this TFT LCD display:

GENERAL SPECIFICATION

Feature	Specification
Model No.	HT076F-30MB-A1
Display Size	7.6 inches
Resolution	1200 x 1200 (RGB)
Technology Type	a-Si (Amorphous Silicon)
Display Type	Transmissive TFT
Viewing Direction	IPS (In-Plane Switching)
Outline Dimensions	142.56 x 148.14 x 5.1 mm
Pin Number	30 pins
Active Area	135.36 x 135.36 mm
Color Depth	16.7M (Full Color)
Pixel Configuration	R.G.B. Vertical Stripe
Driver IC	HX8279
Display Mode	Normally White
Connector Type	Connector
Touch Screen Panel	Without TSP
Surface Treatment	HC (Hard Coating)
LED Numbers	25 LEDs
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C

Display Characteristics and Technology

TFT LCD and a-Si Technology

The HT076F-30MB-A1 features transmissive TFT technology, ensuring that light passes through the display to enhance visibility under different lighting conditions. This is ideal for applications that need to maintain excellent visual clarity even in bright environments. The use of a-Si (Amorphous Silicon) technology as the base for the active layer in the display further contributes to the high-quality performance of this model.

Full-Color Visuals with 16.7 Million Colors

With a color depth of 16.7 million, the display delivers rich, vibrant, and highly detailed images. This makes the HT076F-30MB-A1 ideal for applications where accurate color representation is crucial, such as medical displays, high-end consumer electronics, or interactive kiosk systems.

High Resolution and Pixel Density

At a resolution of 1200 x 1200 pixels, this TFT LCD display offers high pixel density, making it perfect for high-precision visual tasks. The RGB vertical stripe pixel configuration ensures that the display renders sharp images with minimal blurring and pixelation, providing excellent clarity for any content shown.

Design and Construction

Compact and Durable Build

The HT076F-30MB-A1 has an outline dimension of 142.56 x 148.14 x 5.1 mm, making it a compact display solution suitable for integration into a wide range of devices. The 30-pin connector allows for easy integration into different systems, while the surface treatment of HC (Hard Coating) ensures that the display is durable and resistant to scratches, ensuring longevity in demanding applications.

Wide Viewing Angles with IPS

Thanks to its IPS (In-Plane Switching) technology, the HT076F-30MB-A1 offers wide viewing angles, making it suitable for environments where the display needs to be visible from various positions or angles. Whether the display is used in a consumer product, medical equipment, or industrial control panel, the IPS technology ensures a consistent viewing experience without color shifting or distortion.

Operational and Environmental Performance

Temperature Range

The HT076F-30MB-A1 is designed to function reliably in a wide range of temperatures. With an operating temperature of -20°C to +70°C and a storage temperature of -30°C to +80°C, this display is well-suited for use in outdoor or industrial environments where temperature fluctuations are common.

Low Power Consumption

The display operates with 25 LEDs, providing efficient backlighting. This ensures that the display remains bright and clear without consuming excessive power, which is crucial for battery-operated devices or energy-efficient systems.

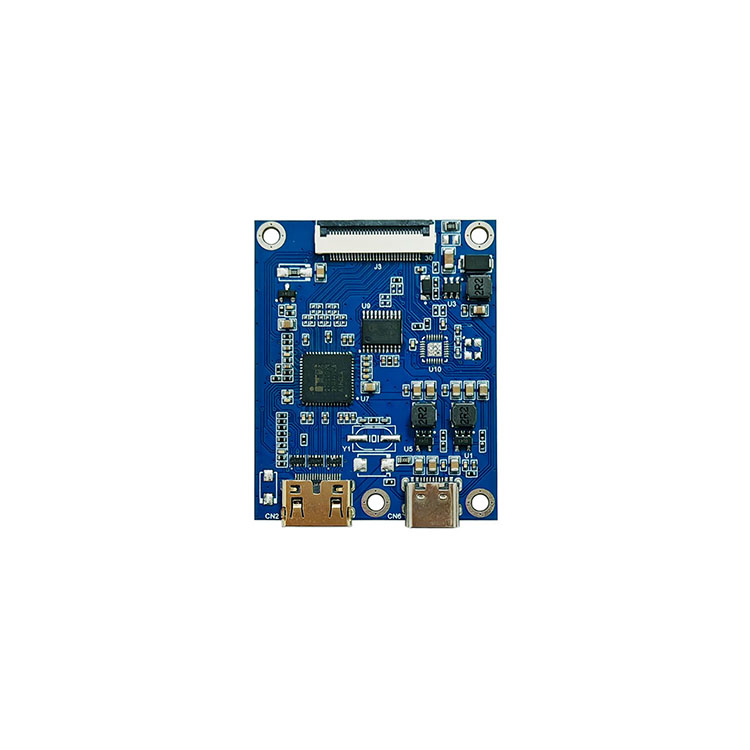

Interface and Integration

The HT076F-30MB-A1 uses the MIPI (Mobile Industry Processor Interface), a high-speed interface commonly used in mobile devices and displays. This interface ensures smooth data transmission between the driver IC (HX8279) and the display, making it ideal for systems that require fast, reliable, and efficient communication.

Easy Integration and Connector Type

The display employs a connector type for integration, which simplifies the connection process and allows the display to be easily swapped or replaced if necessary. The 30-pin configuration supports standard connections for various applications, ensuring compatibility with a wide range of devices and systems.

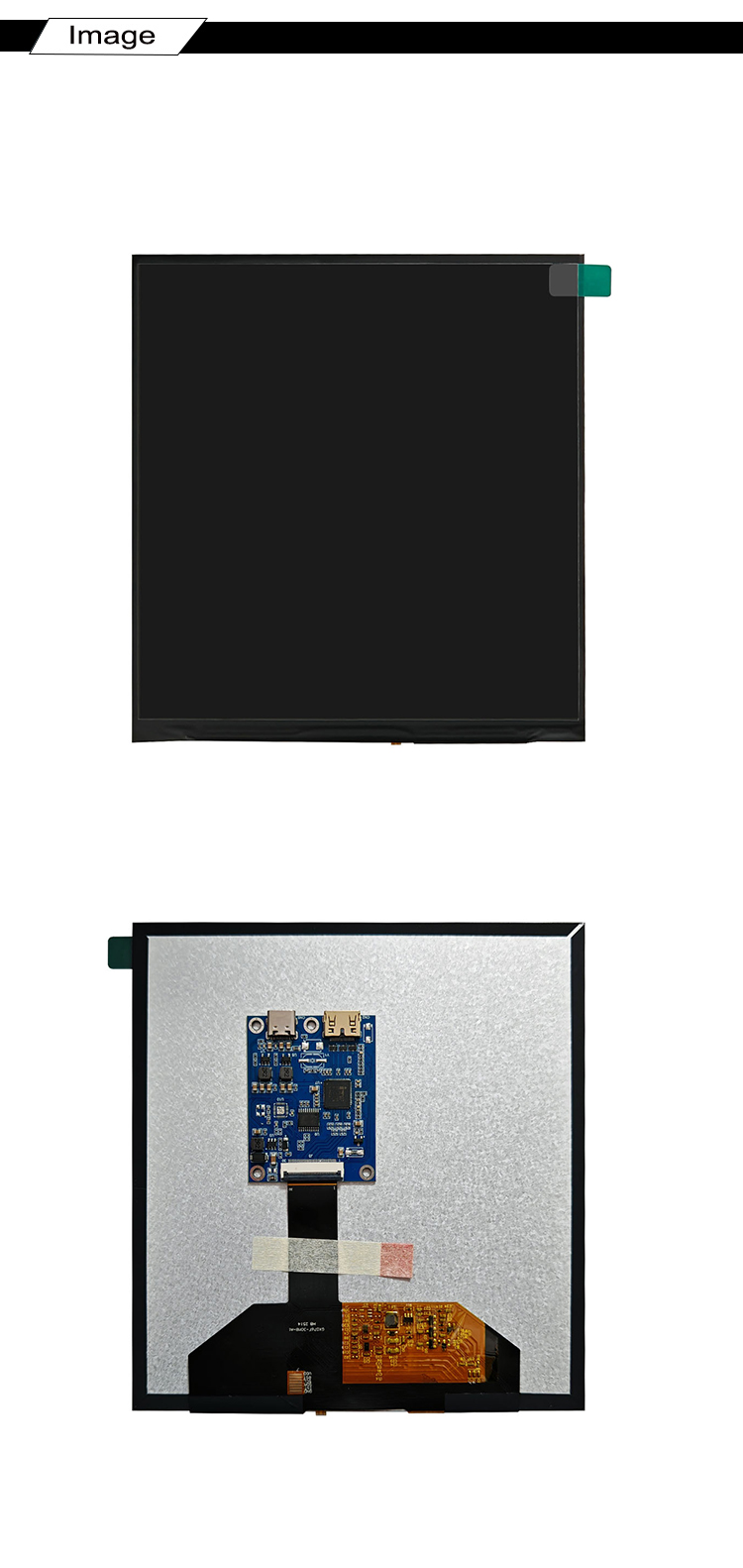

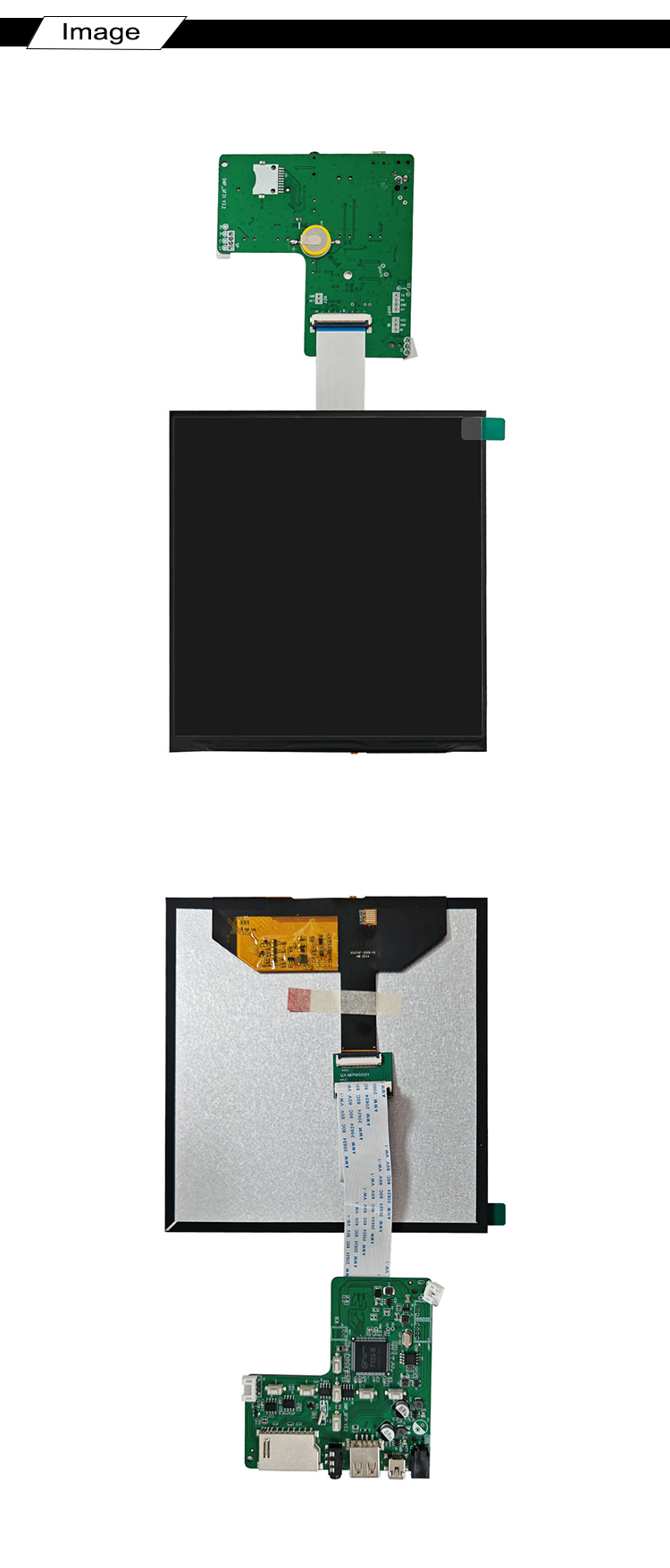

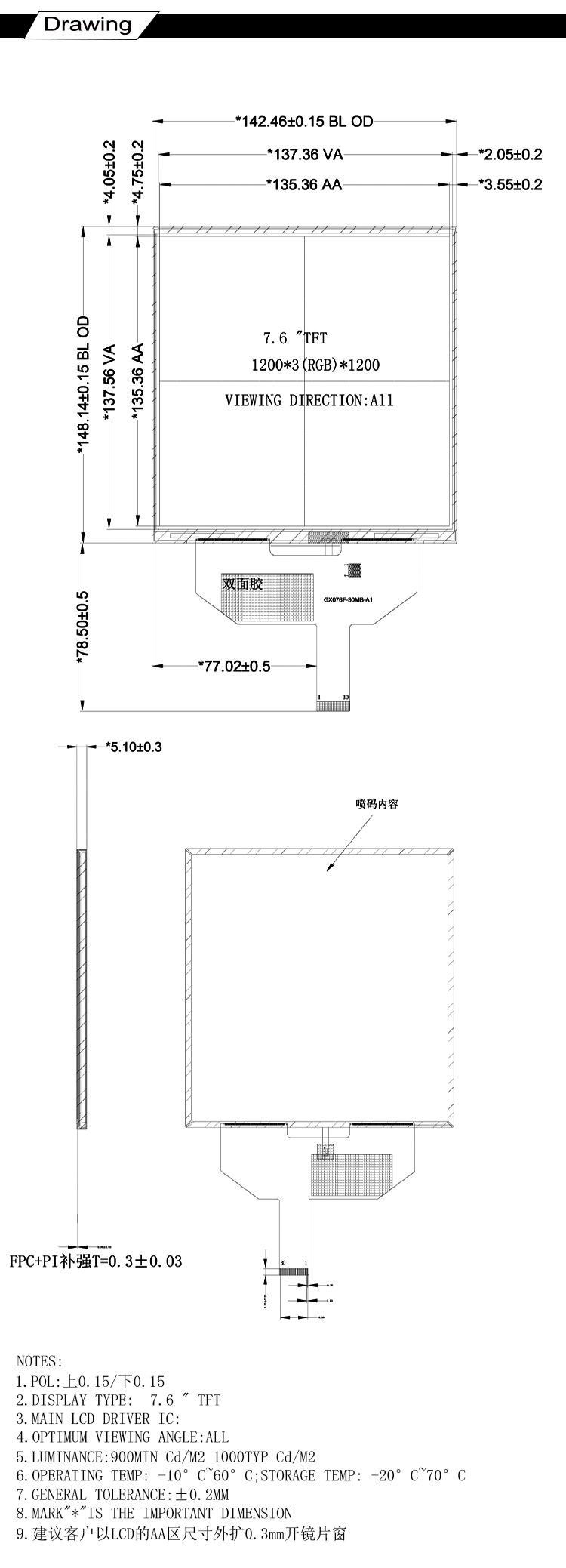

DRAWING

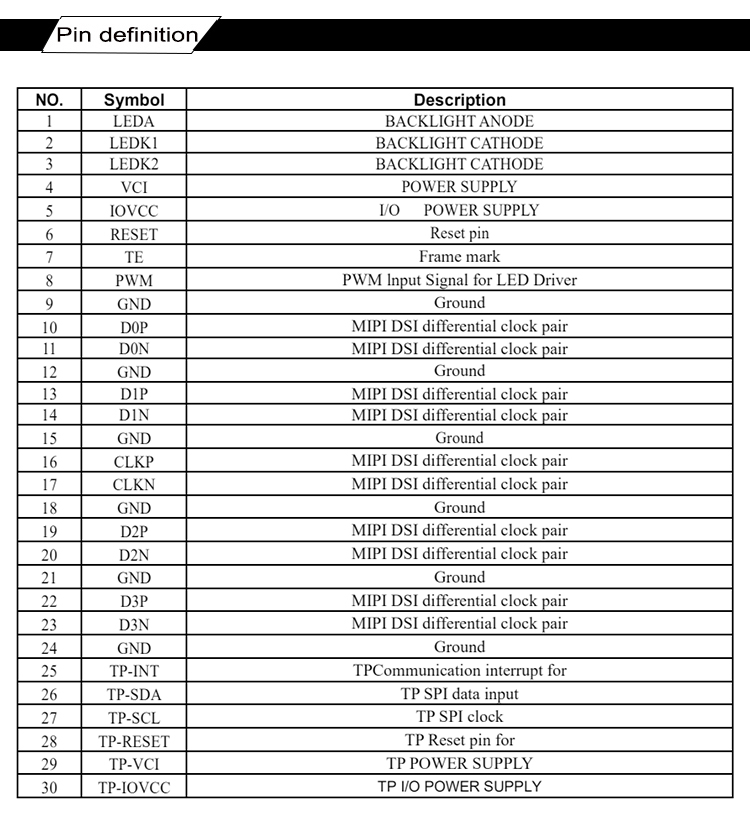

INTERFACE PIN FUNCTION

Conclusion

The HT076F-30MB-A1 7.6-inch TFT LCD display is a versatile, high-performance solution for demanding applications. Its high resolution, full-color display, and robust environmental specifications make it ideal for industries such as consumer electronics, medical devices, and industrial control systems. The MIPI interface ensures high-speed data transfer, while the IPS technology guarantees a wide viewing angle, and its hard-coated surface ensures durability. Whether used in outdoor or industrial settings, this display provides a perfect balance of clarity, durability, and power efficiency.
