Please kindly contact us for full data sheet of the display.
DESCRIPTION
HICENDA 5.5” FHD1080 is a color active matrix AMOLED module using Low Temperature Poly-silicon Thin Film Transistors as active switching devices. This module has a 5.5inch diagonally measured active area with FHD resolutions (1080horizontal by 1920vertical pixel arrays). Each pixel is divided into RED and GREEN dots, orBLUE and GREEN dots, and two pixels share RED or BLUE dots which are arranged in vertical stripe and thismodule can display 16.7M colors.
GENERAL SPECIFICATION
| Display Type: | amoled display |
| Display Mode: | COLOR AMOLED |
| Model Number: |
HG-BB055FHM-T00-6P01
|
| Diagonal Screen size: | 5.5 inch |
| Interface: |
MIPI 4-lane
|
|
Driver Duty:
|
-
|
| Number of Pixels: | 1080(RGB)*1920 |
| Panel Size |
70.71(W) × 128.44(H) × 0.50(T) (mm)
|
| Driver IC: |
WD5EA5F01
|
| Active Area: |
68.31(W) × 121.44(H)
|
| Pixel Pitch: |
63.25(W) × 63.25(H)(um)
|
|
Display Colors:
|
16.7M
|
|
Weight: |
TBD |
|
Operating Temperature: |
-40~85° |

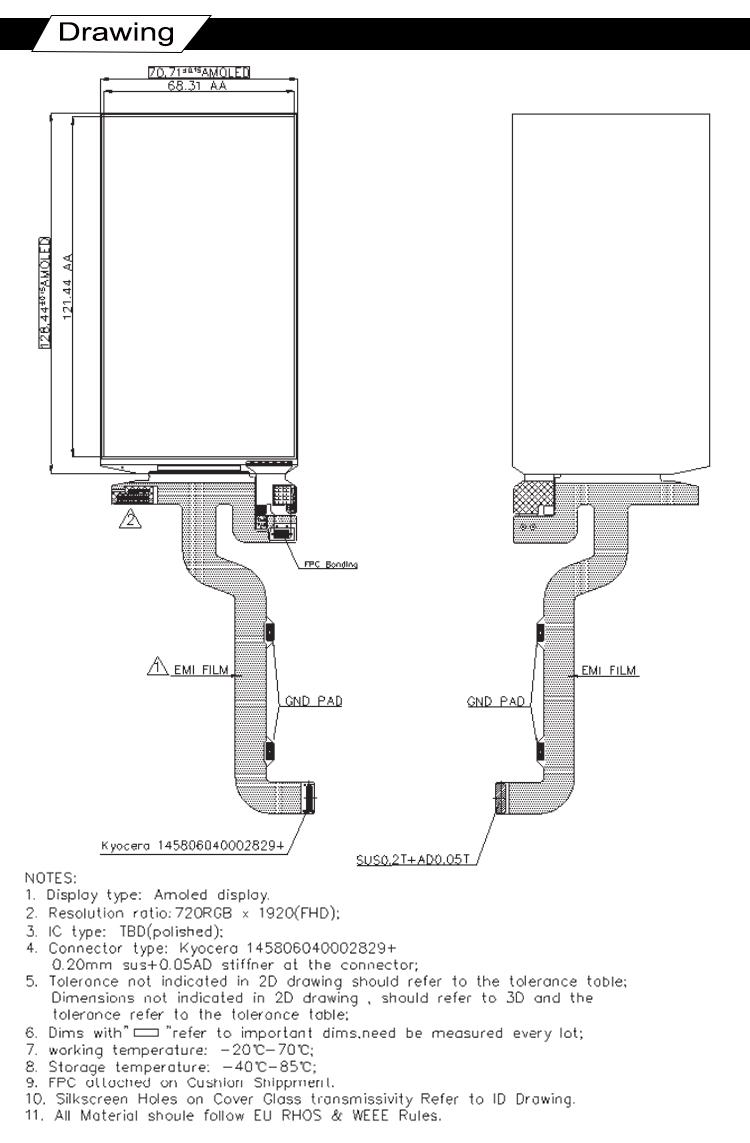

DRAWING

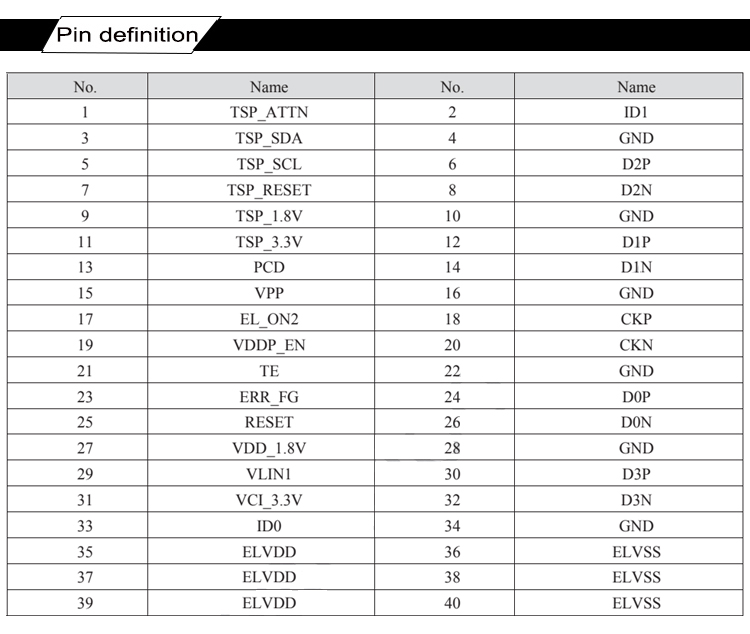

INTERFACE PIN FUNCTION
