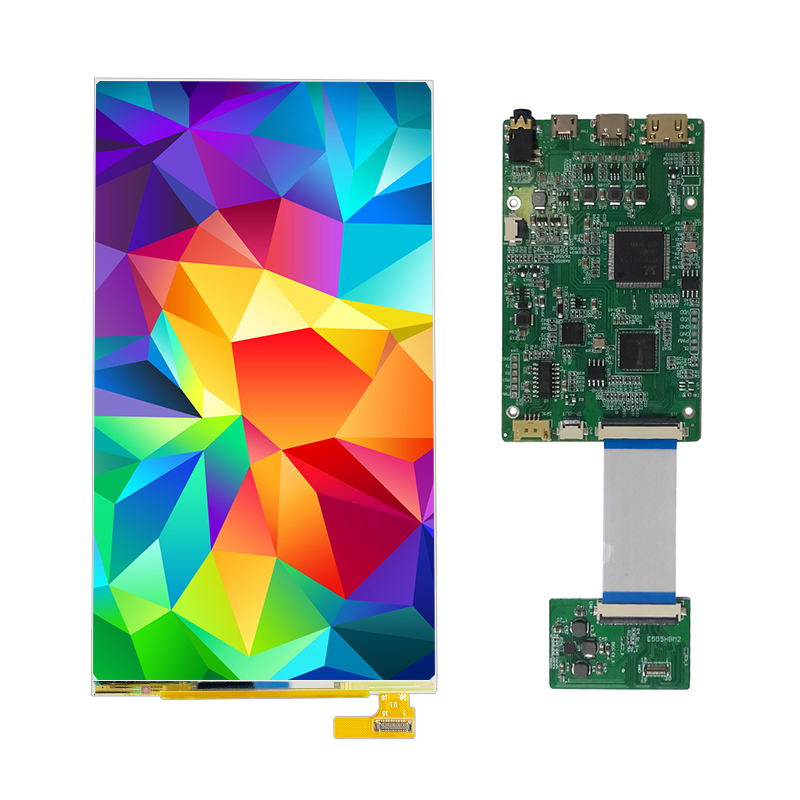

720P 5.55 inch AMOLED Display 1280x720 touch screen with HDMI Board
DESCRIPTION
5.55 inch OLED is 720x1280 pixels AM-OLED display with SH1386 driver ic communicates via MIPI parallel interface,MIPI interface is an exceptional display solution for applications that require sharp and vivid visuals,With its advanced AMOLED technology, this display offers excellent contrast and color accuracy, making it perfect for applications like virtual and augmented reality devices. Its compact size and high resolution make it an excellent choice for products with limited space, and the MIPI interface ensures seamless and reliable connectivity with your system.
GENERAL SPECIFICATION
| Display Type: | amoled display |
| Display Mode: | Initiative Matrix |
| Model Number: |
HG5.55AMOL |
| Diagonal Screen size: | 5.55 inch |
| Interface: |
MIPI |
| Storage Temperature |
-40℃~+80℃ |
| Number of Pixels: |
|
| Panel Size: |
|
| Driver IC: |
|
| Active Area: |
64.80 (H) x*72.0 (V) |
| Pixel Pitch: |
|
| Operating Voltage |
2.8V~3.2V |
|
Weight: |
1.54 (g) |
|
Operating Temperature: |
-20℃~+70℃ |
DRAWING

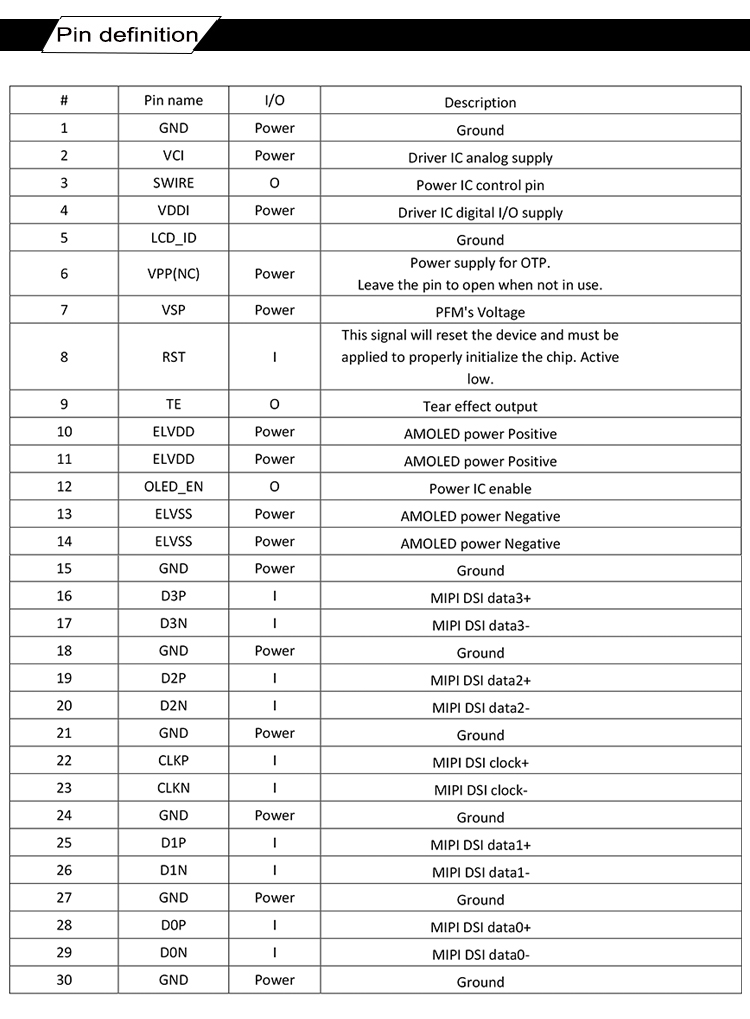

Pin Definition
