Flexible Display 8 inch 2480x1860 curved AMOLED display touch panel

DESCRIPTION

The flexibale AMOLED display is a Color Active Matrix Organic Light Emitting Diode Display (OLED). The matrix employsLow Temperature Poly Si Transistor as the active element. It is a top emission display type. It is with 8.01 inch diagonally measured active display area with 2480X1860 high resolution. Each pixel is divided into Red, Green and Blue sub-pixels.. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than 16.7M colors. The bendable display has been designed to apply the interface method that enables high speed,low EMI, MIPI interface. The curved screen is intended to support applications where thin thickness,high contrast ratio, high color gamut. The bendable amoled display characteristics provide an excellent foldable display forPortable or Monitor mode such as tablet or notebook PC.

SPECIFICATIONS

General Specification

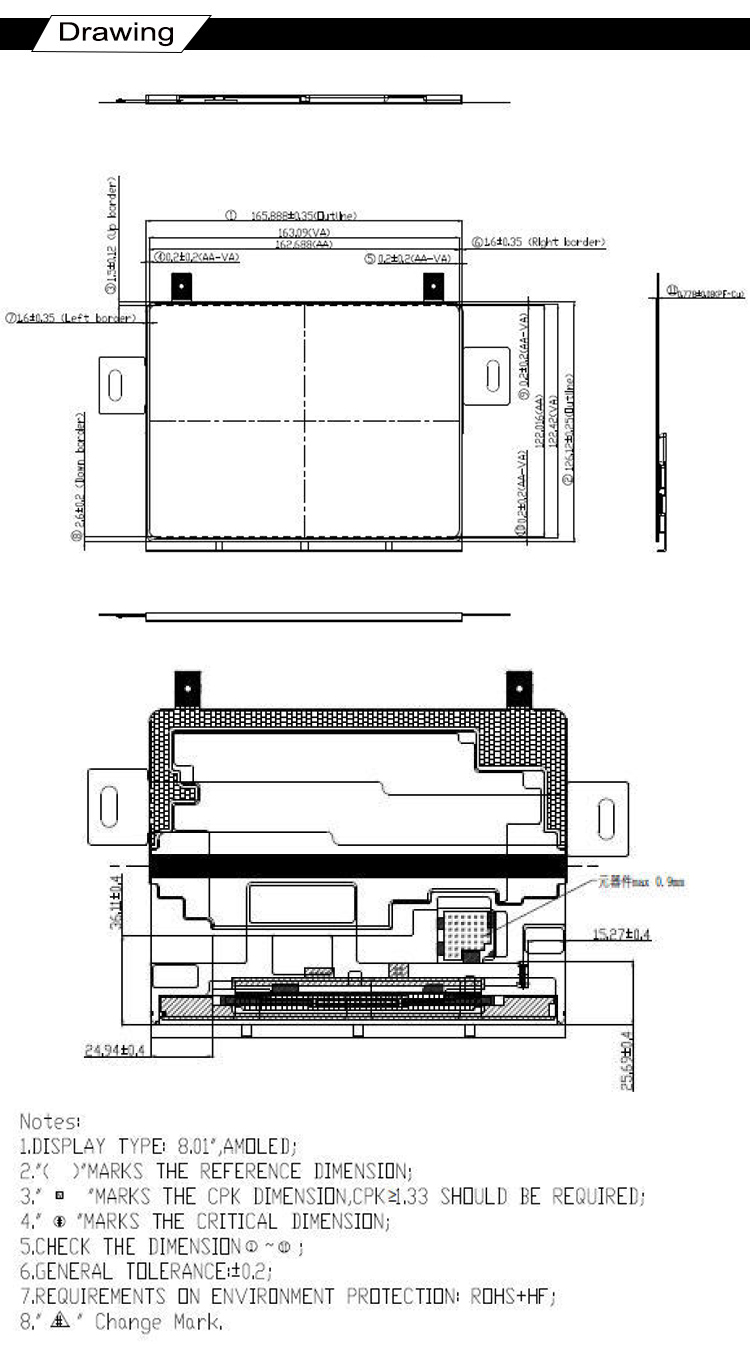

Drawing

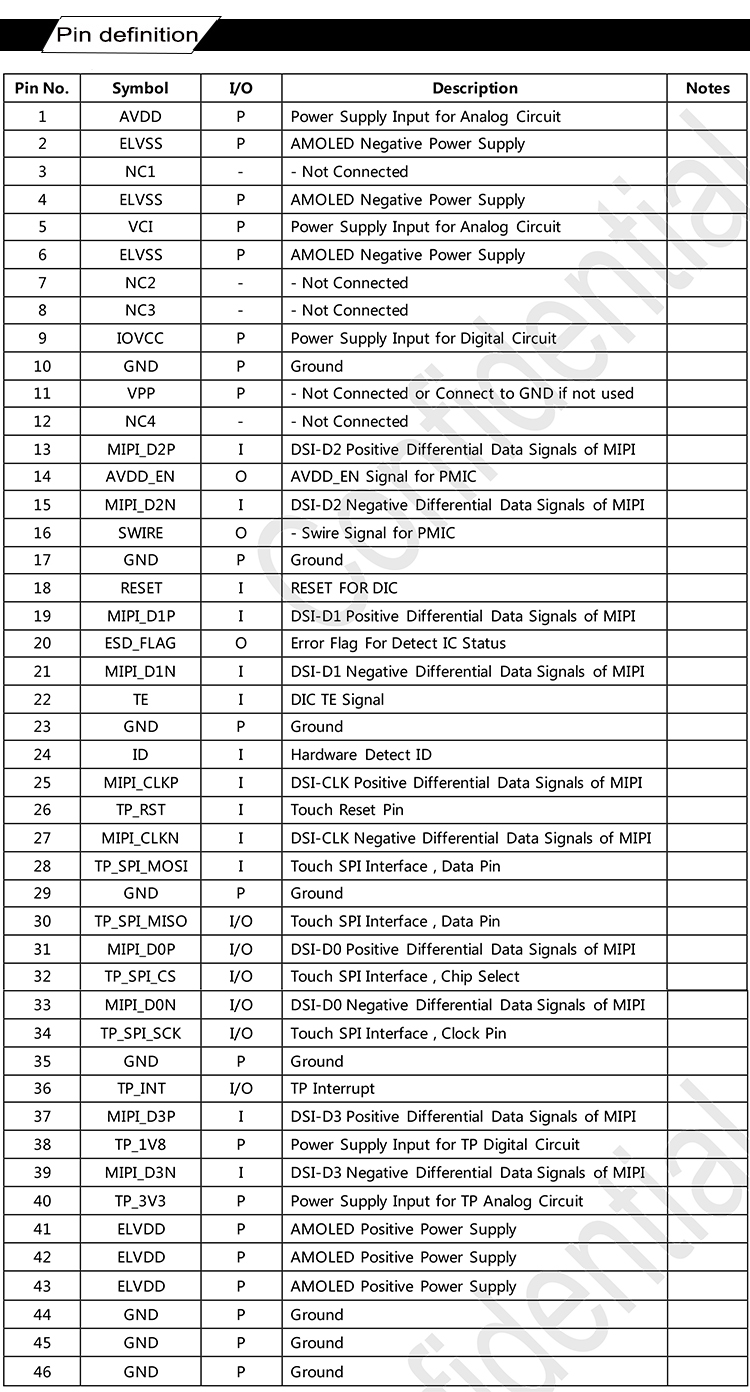

PIN Definition:
