5.5 Inch Color oled amoled Display customized 1080*1920 dots amoled screen for Intelligent electronic equipment

5.5 Inch Color oled amoled Display customized 1080*1920 dots amoled screen for Intelligent electronic equipment

5.5 Inch Color oled amoled Display customized 1080*1920 dots amoled screen for Intelligent electronic equipment

5.5 Inch Color oled amoled Display customized 1080*1920 dots amoled screen for Intelligent electronic equipment

Display Mode:Amoled
Screen Size:5.5
Driver IC:RM67198
Number of pin:40PIN
Product description: Hicenda Technology Co., Ltd can supply 5.5 inch amoled display, HD amoled display 5.5'' high resolution 1920*1080 for cellphone,5.5 inch amoled display of discounting Plug 40pin,5.5 inch amoled oled
INQUIRY

1. Display Specifications

1) Screen Size: 5.5''
2) Interface Type: MIPI
3) Resolution:1920*1080

4) Drive IC: RM67198

5) Active Area: 68.256(W)*121.344 (H)

6) Operating Temper:-30~+60℃

7) Display Color (M):16.7M

8)Warranty:12 Months

9)Color Configuration:R, G, B

10)Operating Voltage:1.65V~3.3V

11)Storage Temperature:-40℃~+70℃

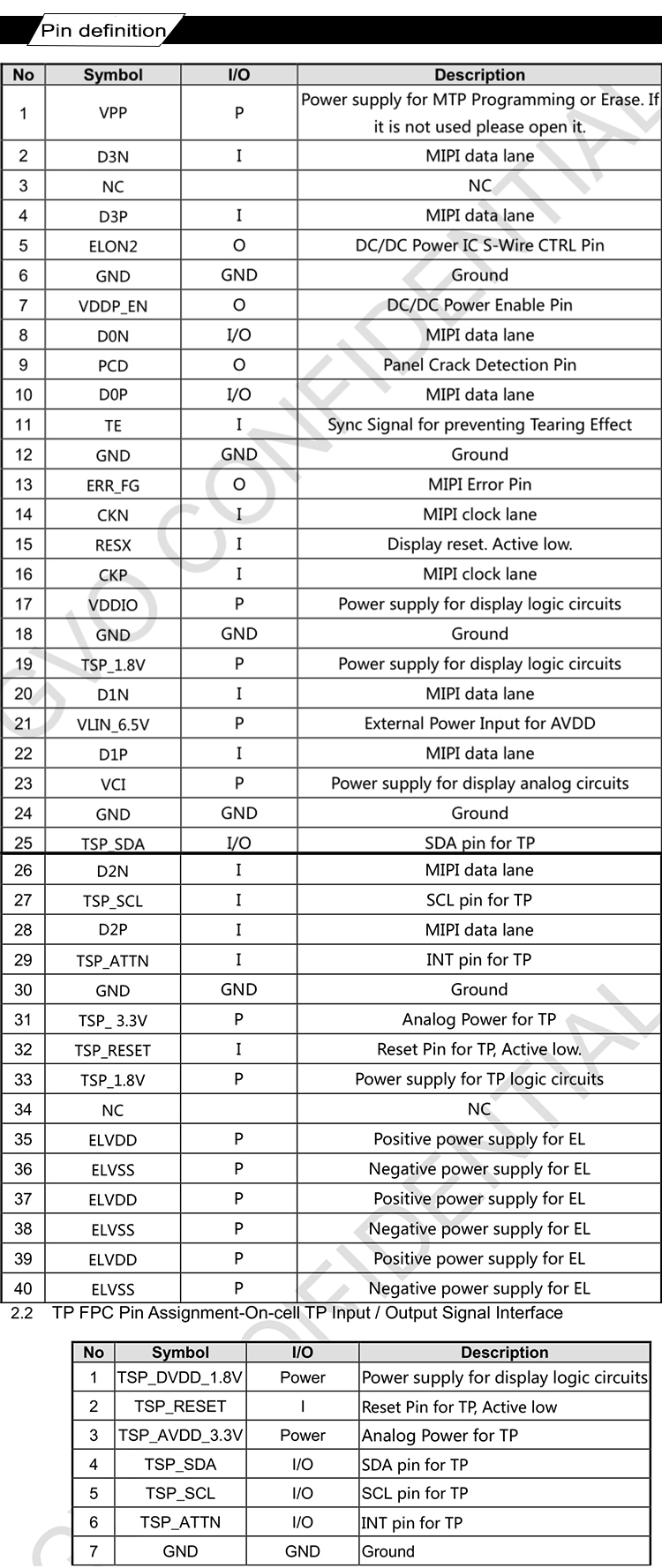

12)The number of pin:plug 40pin

13)Outline dimension:73.56 (W)*148.86(H)*1.92(D)
