Please kindly contact us for full data sheet of the display.

DESCRIPTION

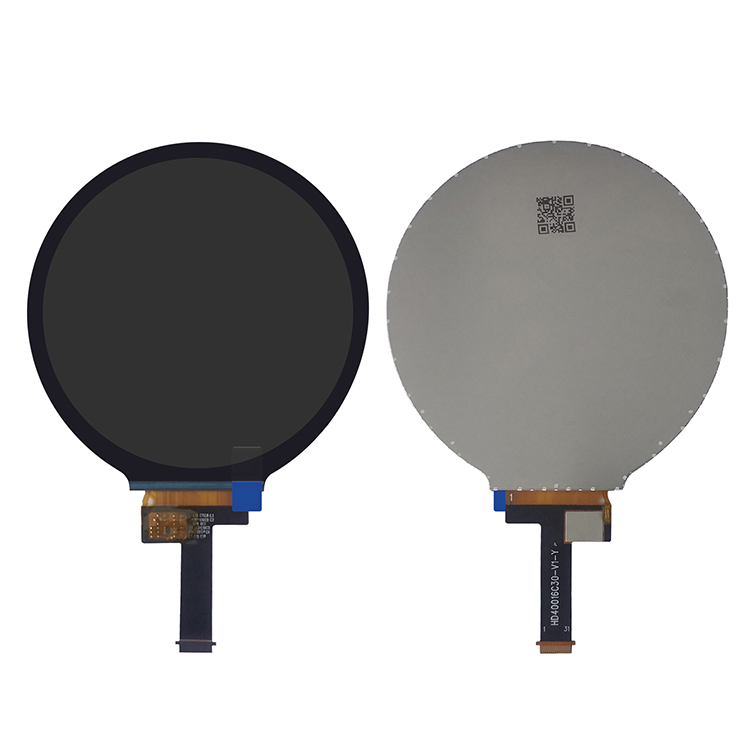

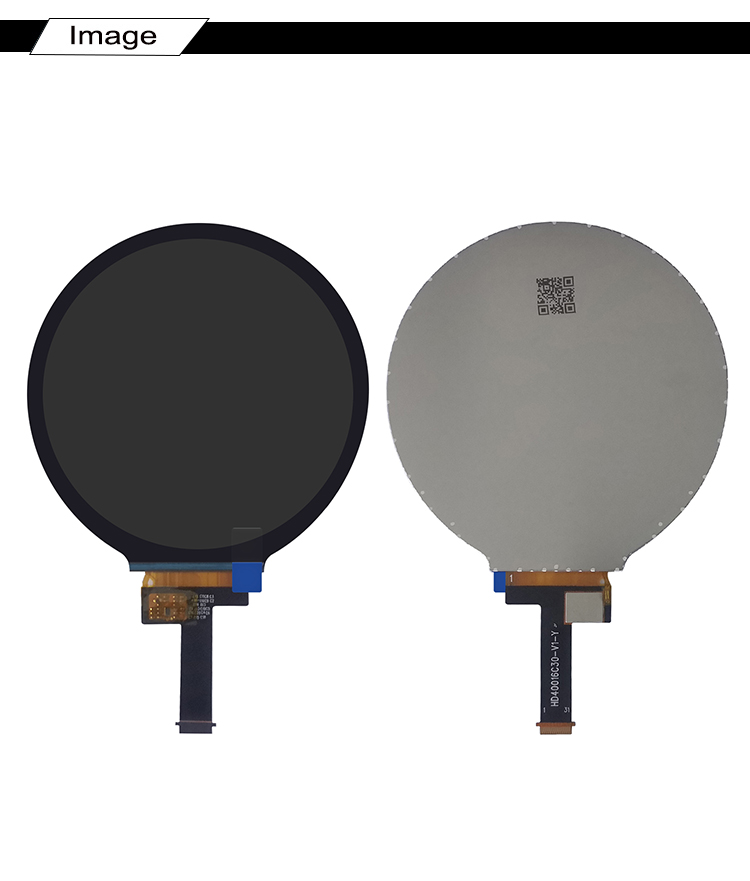

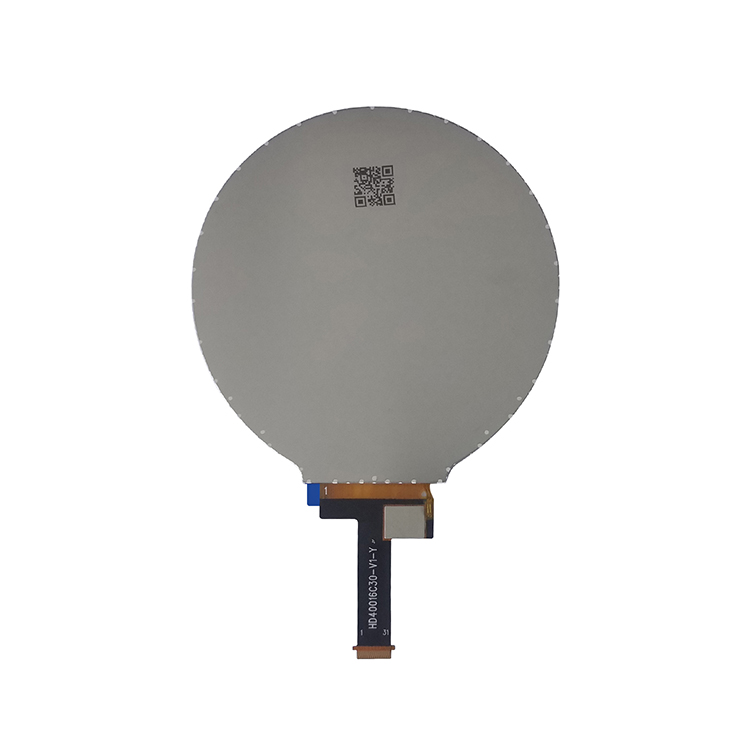

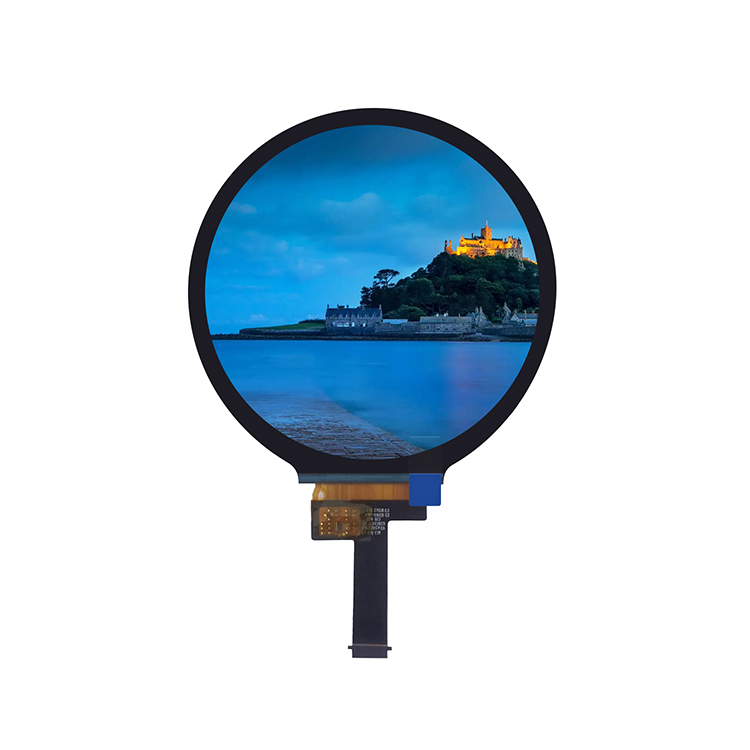

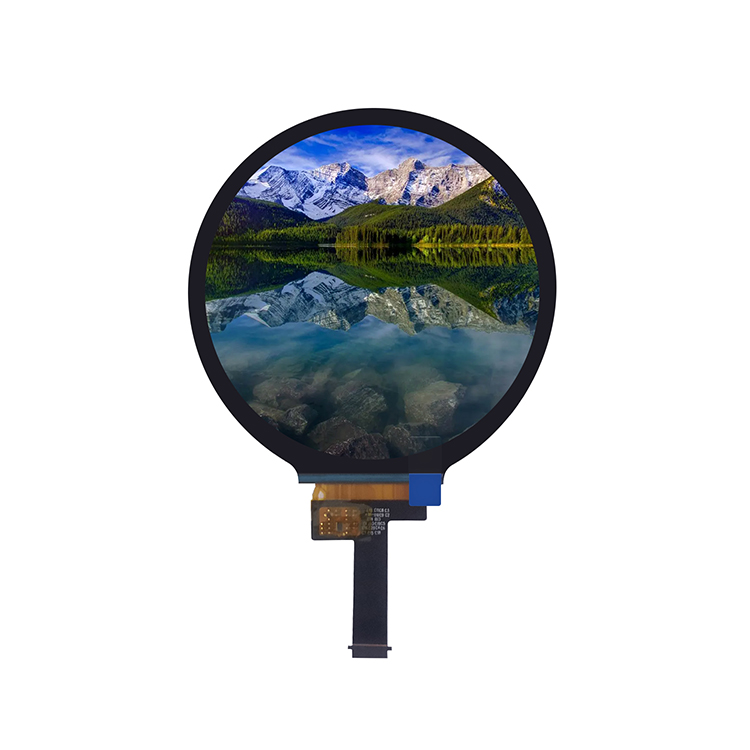

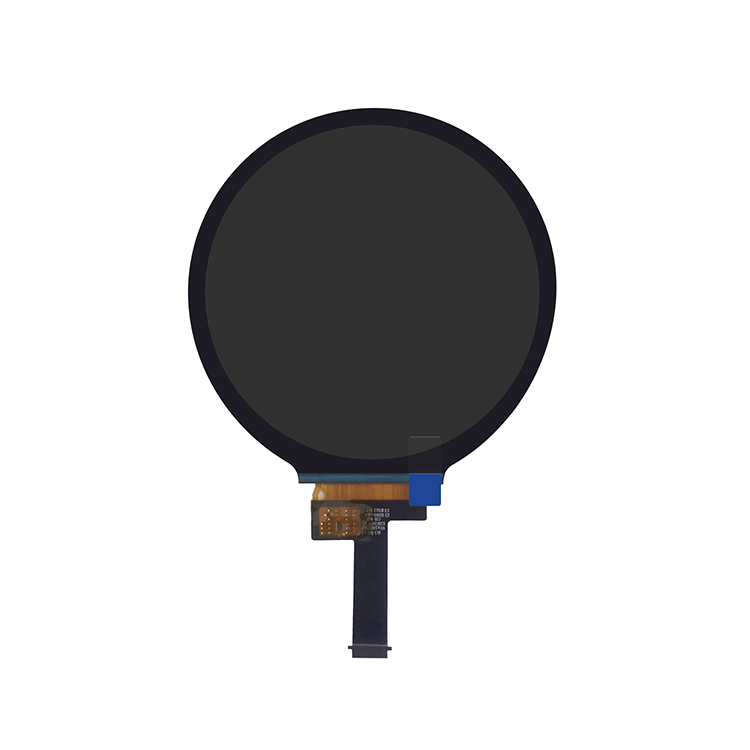

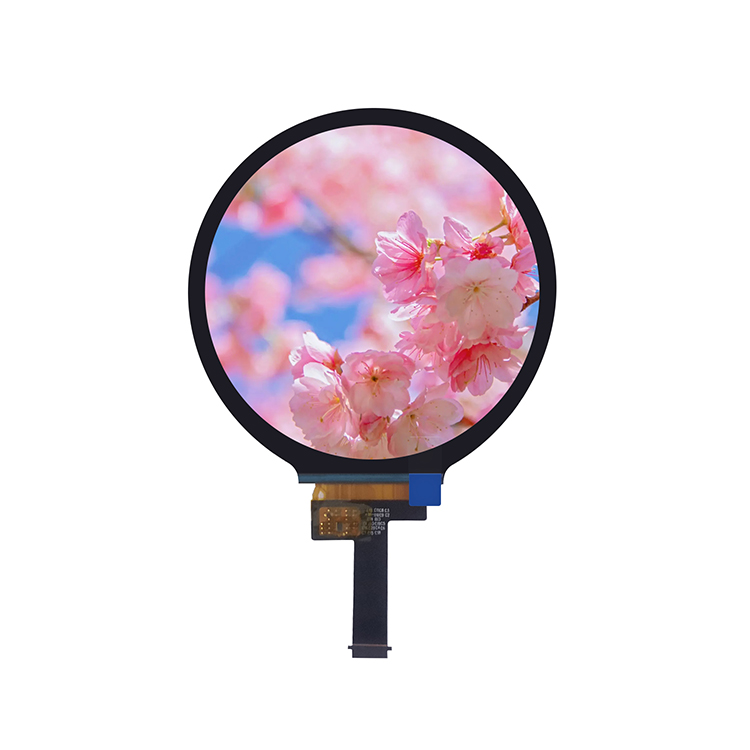

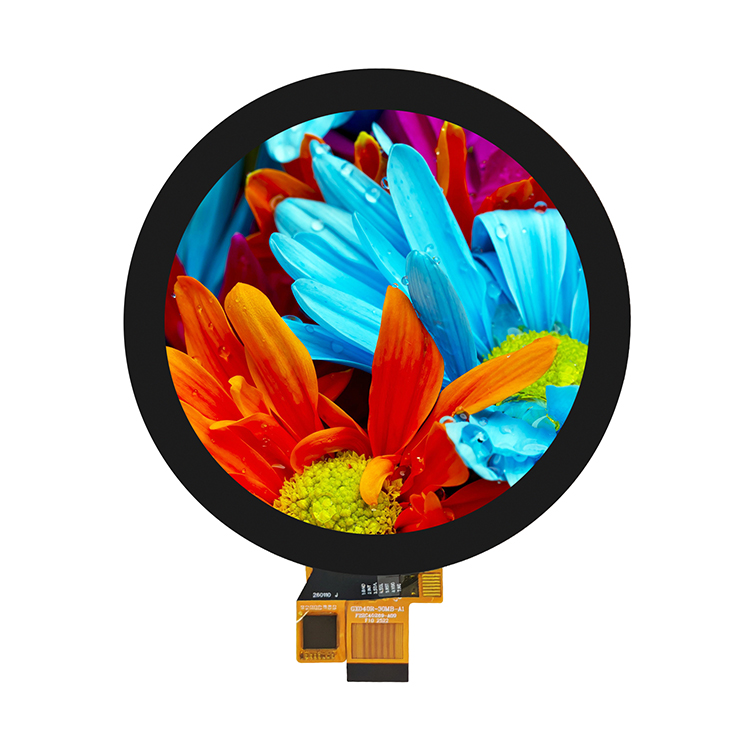

HICENDA TFTHD40016C31-V1-Y is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. Theresolution of 6.9" contains 720 RGB X720 pixels and can display up to 16.7m colors.

GENERAL SPECIFICATION

Display Type:	TFT display
Display Mode:	color active matrix
Model Number:	HD40016C31-V1-Y
Diagonal Screen size:	4 inch
Interface:	MIPI
Number of color:	16.7m color
Number of Pixels:	720(RGB)×720
Panel Size:	105.6(H) x 109.87 (V)mm
Driver IC:	JD9365DA-H3
Active Area:	101.52 (H) x 101.52 (V)mm
Pixel Pitch:	0.047(H)x0.141(V)um
Viewing Direction:	All View
Weight:	TBD
Operating Temperature:	-20~70°

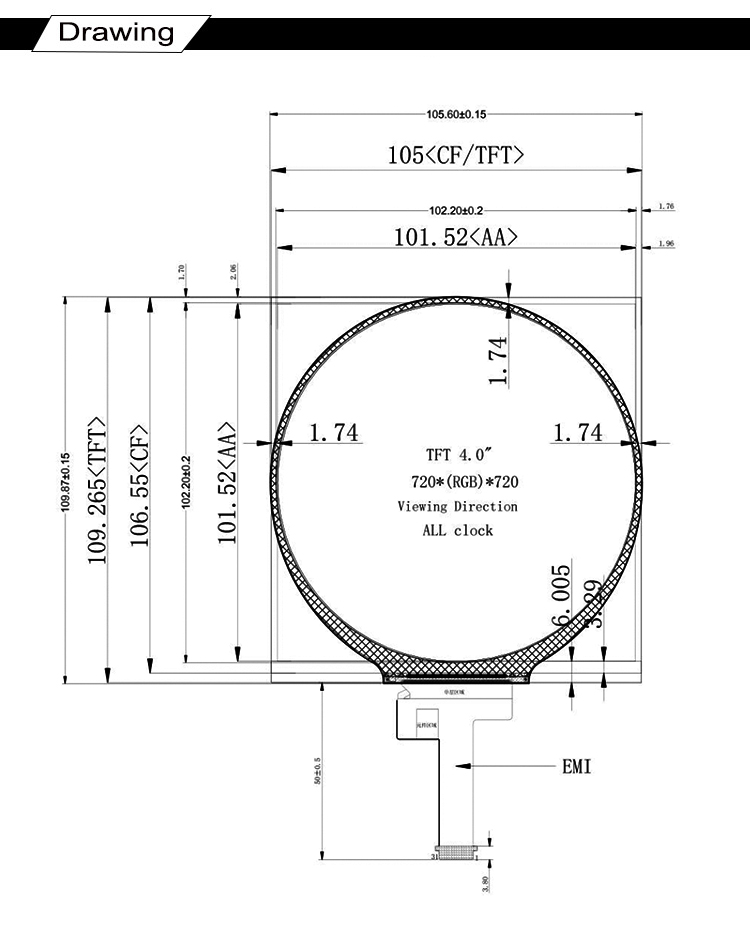

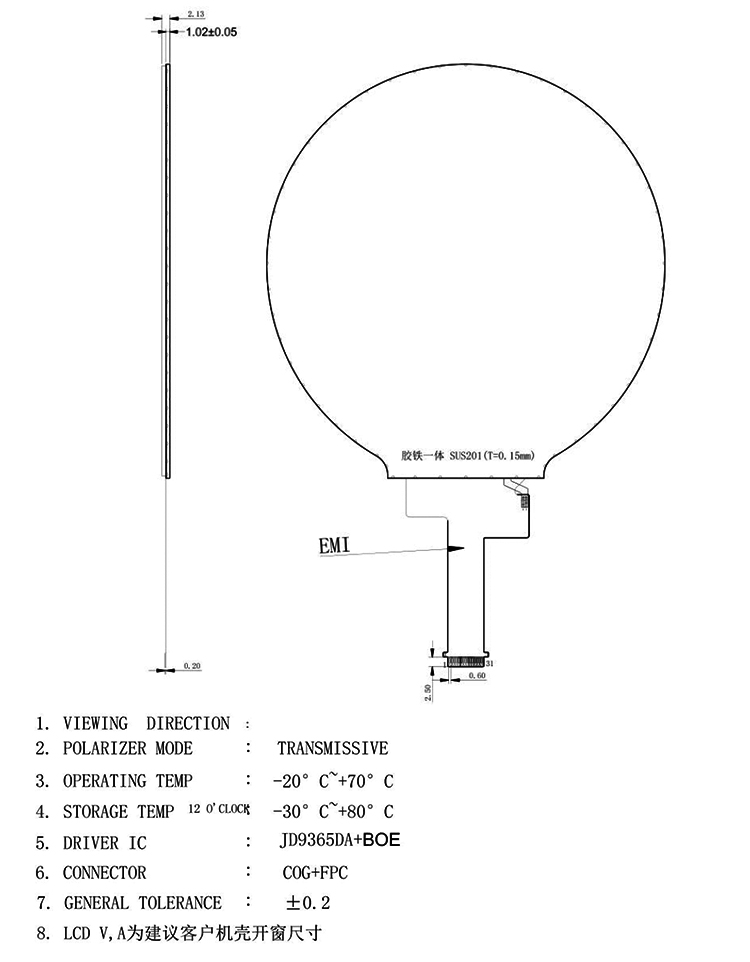

DRAWING

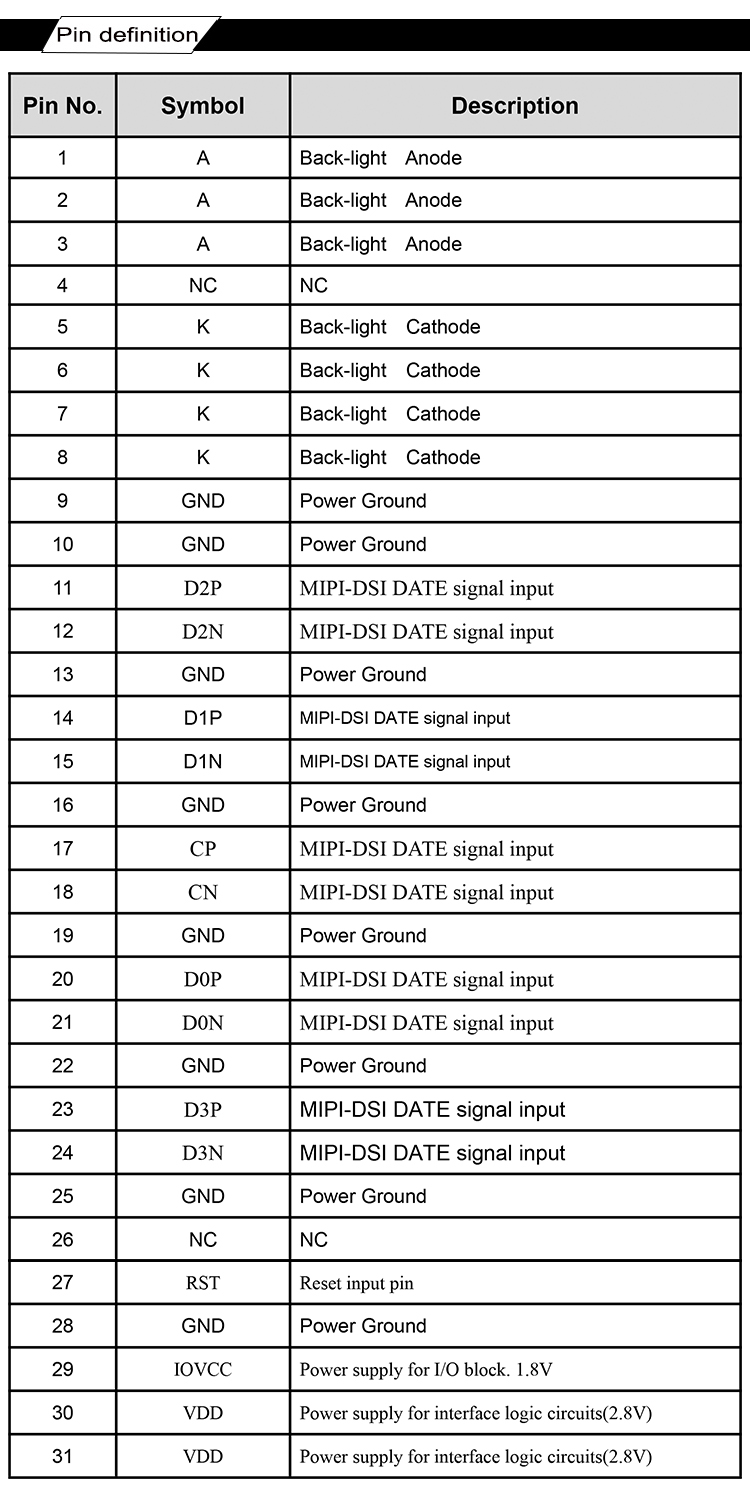

INTERFACE PIN FUNCTION
