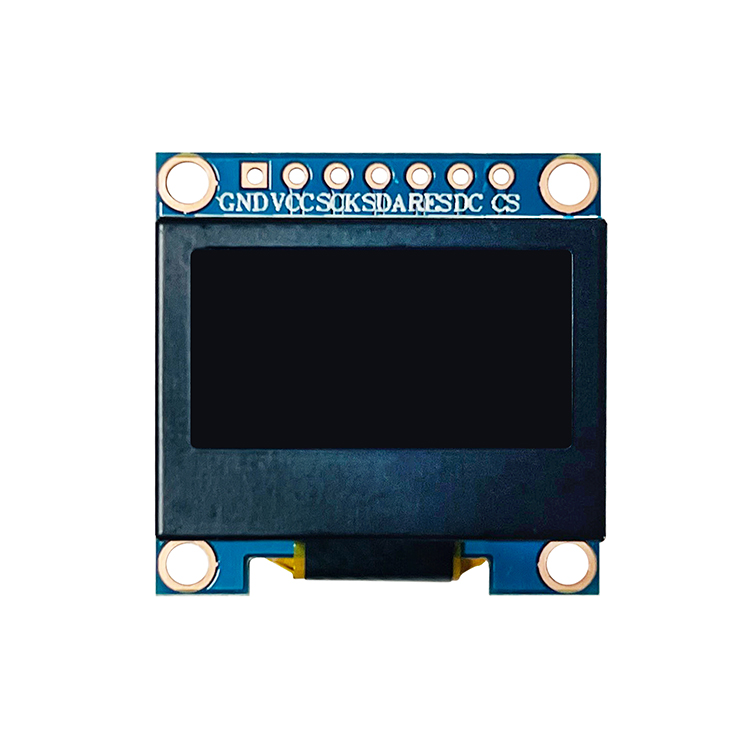

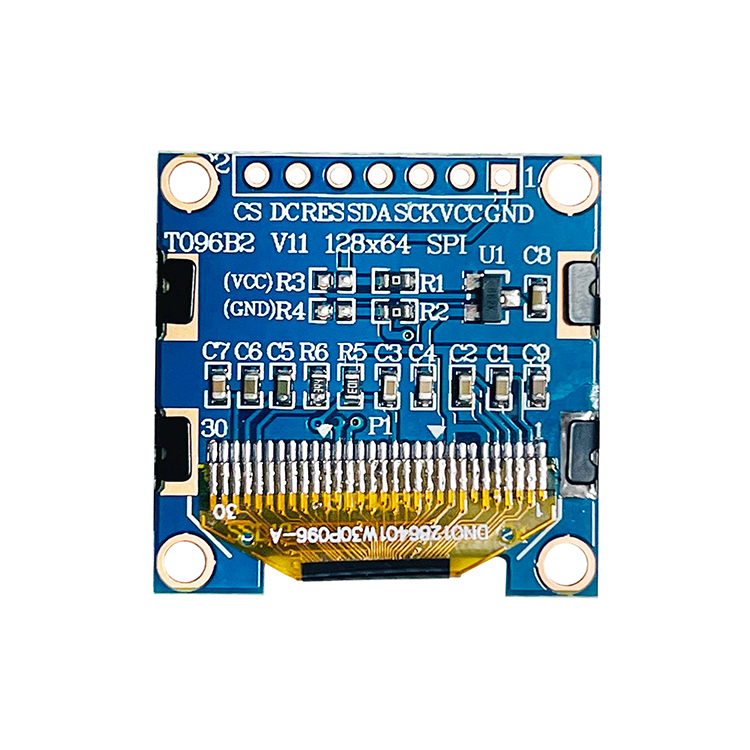

0.96-Inch OLED Display Module with SSD1306/SH1106 Driver IC and 4-SPI Interface

  • Driver IC:SSD1306 /SH1106
  • Size: 0.96 inch
  • Resolution: 128*64
  • Interface: 4-SPI /I2 C
  • Product description: 0.96-Inch OLED Display Module with SSD1306/SH1106 Driver IC and 4-SPI Interface
  • INQUIRY


Description


The HT096B2WH30PG01S7V11 model is a 0.96-inch OLED display module configured with a 128×64 dot resolution and driven by either the SSD1306 or SH1106 driver IC. Designed with a 4-SPI interface, this module supports Passive Matrix display technology and is available in monochrome color options (white, blue, or yellow-blue). With an active area of 23.74×13.204mm, the display offers an efficient viewing experience across a wide range of operating temperatures. This compact and robust solution is suitable for embedded systems, handheld instruments, and other portable electronic applications requiring minimal power and high visual clarity.



Technical Specifications Table

Parameter                                                Specification
Model No. HT096B2WH30PG01S7V11
Display Size 0.96 inch
Resolution 128×64 dots
Display Type Passive Matrix
Viewing Direction IPS
Outline Dimension 27.3(L) × 27.3(W) × 3.5(H) mm (Max)
Pin Count 7 pins
Active Area 23.74 × 13.204 mm
Effective Area 21.74 × 11.004 mm
Pixel Size 0.15 × 0.15 mm
Pixel Pitch 0.17 × 0.17 mm
Driver IC SSD1306 / SH1106

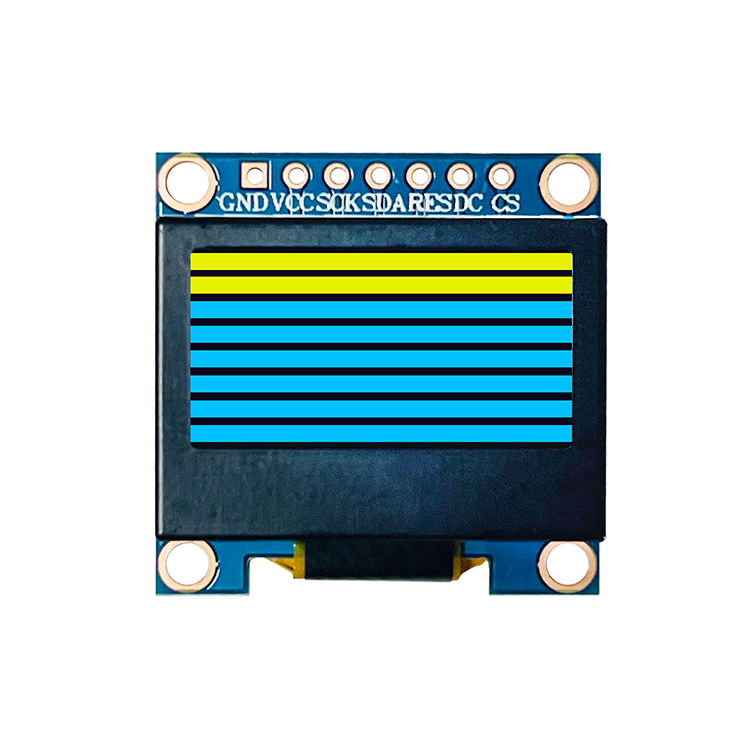

Display Color Monochrome (White / Blue / Yellow-Blue)
Drive Duty 1/64 Duty
Interface 4-SPI / I²C
Display Mode Passive Matrix
Operating Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃



Display Performance and Driving Technology

High Efficiency Passive Matrix Operation

At the heart of the module’s performance lies Passive Matrix OLED (PMOLED) technology. This display structure allows for rapid pixel switching with low power consumption, making it ideal for battery-powered systems. The 1/64 driving duty ensures crisp contrast and sufficient brightness for most indoor and moderate outdoor environments.


Dual Driver IC Compatibility

The HT096B2WH30PG01S7V11 is uniquely designed to support either the SSD1306 or SH1106 driver ICs, both of which are industry-proven controllers for small OLED panels. This flexibility allows system integrators to choose the driver that best suits their hardware platform or firmware ecosystem.



Interface and Integration Features

SPI and I²C Compatibility

Equipped with a 4-SPI interface (and optional I²C), the module simplifies connection with a broad range of microcontrollers, FPGAs, and SoCs. SPI offers faster refresh rates suitable for dynamic visual outputs, while I²C provides minimal wiring complexity for compact layouts.



Compact Mechanical Design

The square-form outline of 27.3mm by 27.3mm with a 3.5mm maximum thickness allows seamless integration into tight mechanical enclosures. The 7-pin interface header provides a straightforward hardware connection pathway, streamlining product development cycles.



Application Domains

This module is widely adopted in applications where compactness, readability, and reliability are essential. Representative use cases include:



Wearable electronics

Test and measurement equipment

DIY electronics and maker boards

Industrial control panels

Smart home devices

Portable health monitoring instruments





Reliability Under Harsh Conditions

With a broad operating temperature range from -20℃ to +70℃ and storage endurance from -30℃ to +80℃, this OLED module ensures long-term stability and operational consistency even in demanding environmental conditions.

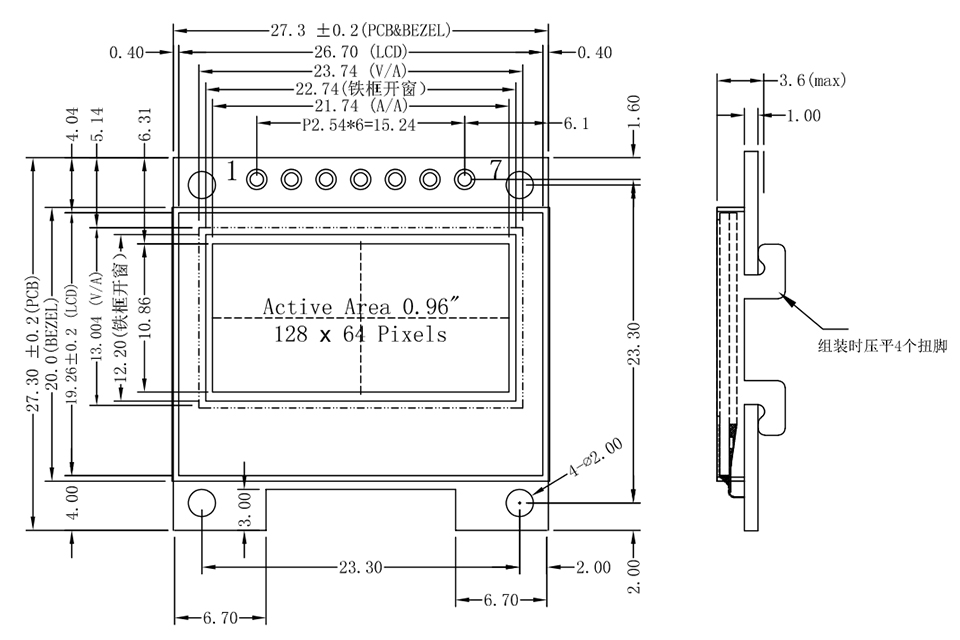

Drawing:

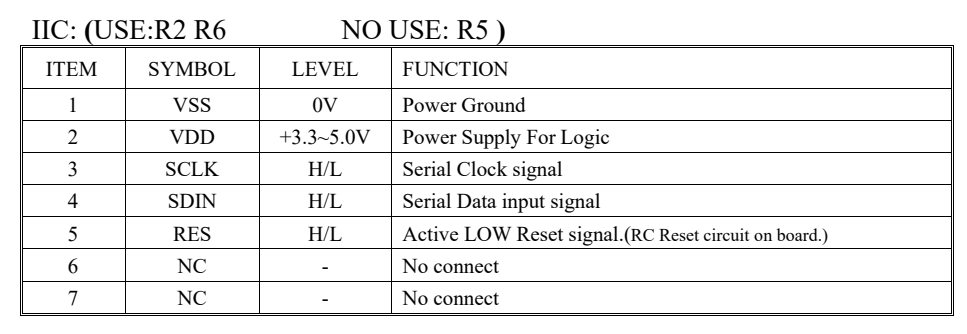

Pin Definition:


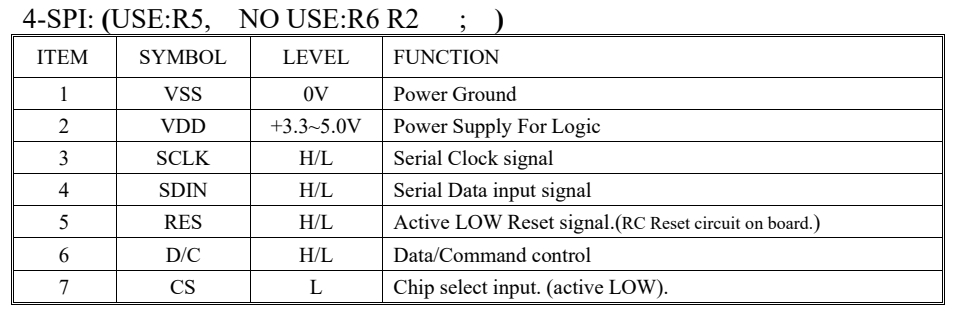

Conclusion

The HT096AWH30PG01I4V10 OLED display module combines a high-resolution passive matrix panel with a powerful SSD1315 driver and a space-efficient IIC interface. Its rugged design, precise display output, and simple interfacing make it a go-to choice for developers seeking robust performance in a minimal form factor. Whether in prototyping labs or deployed environments, this module meets the expectations of modern embedded systems with style and reliability.
