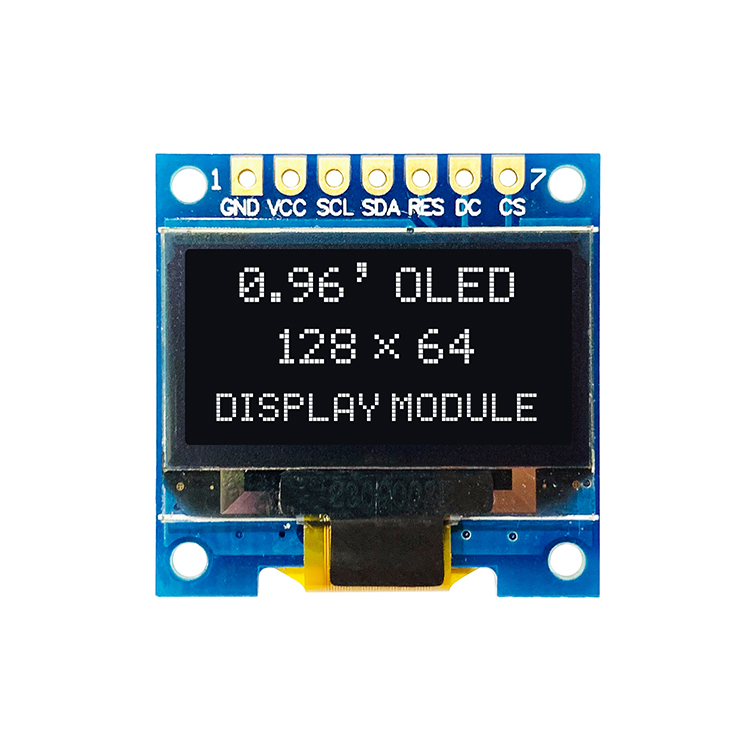

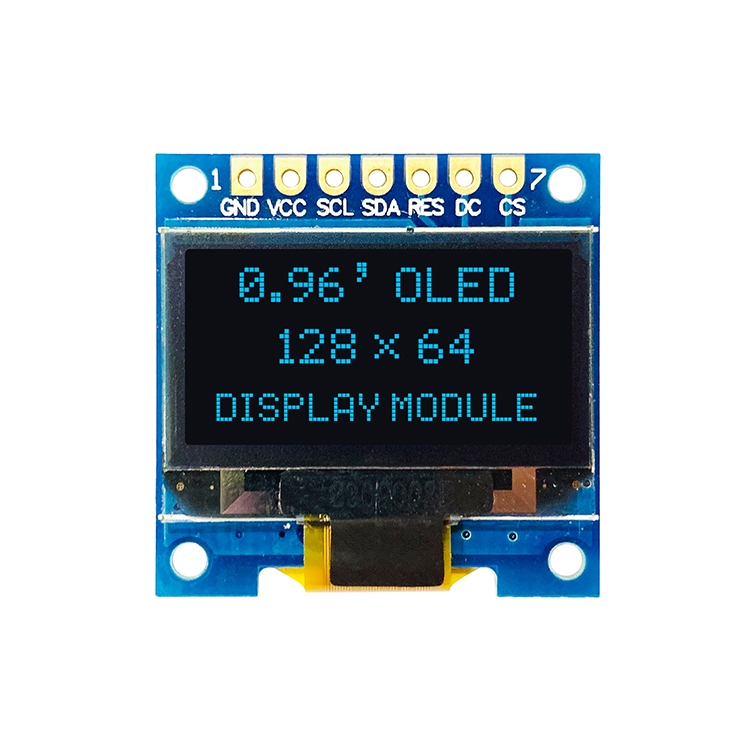

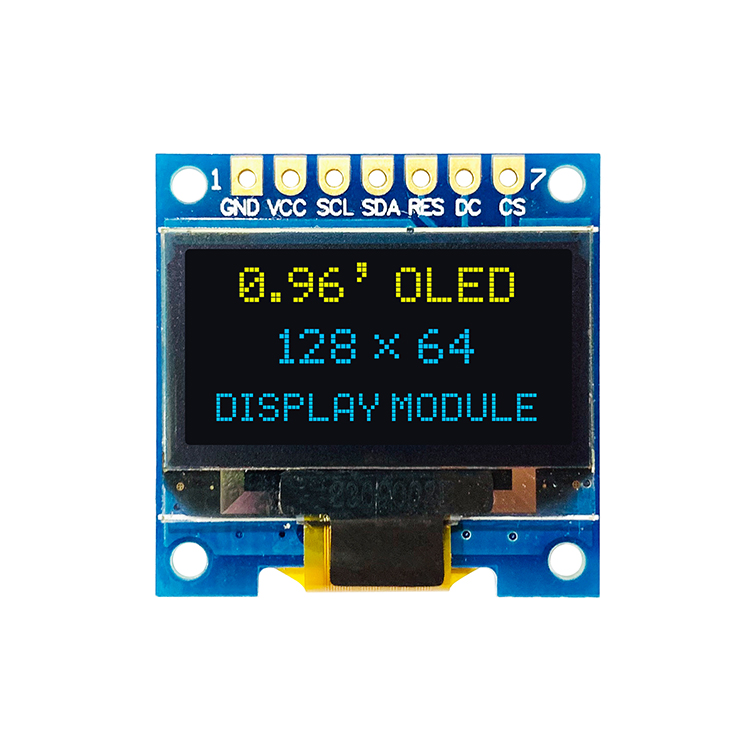

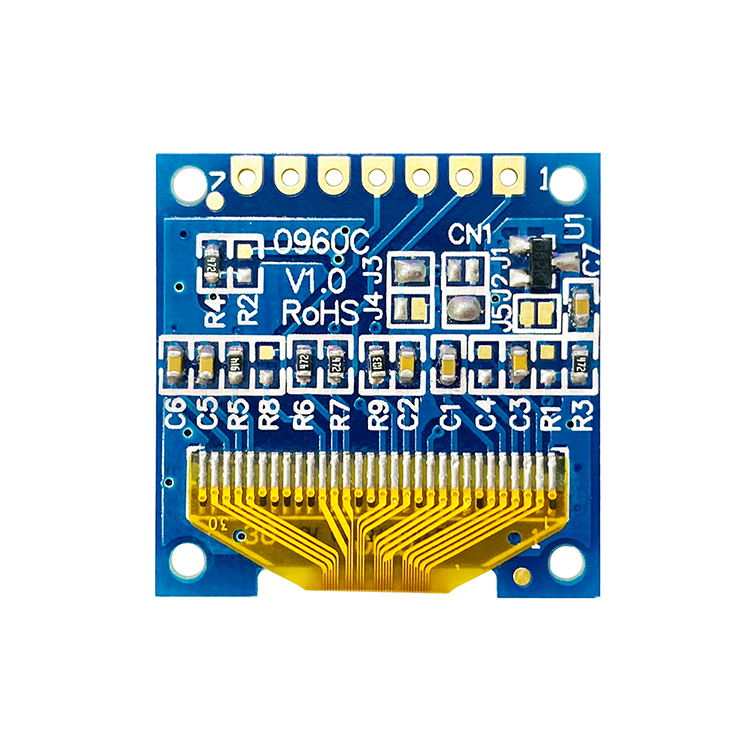

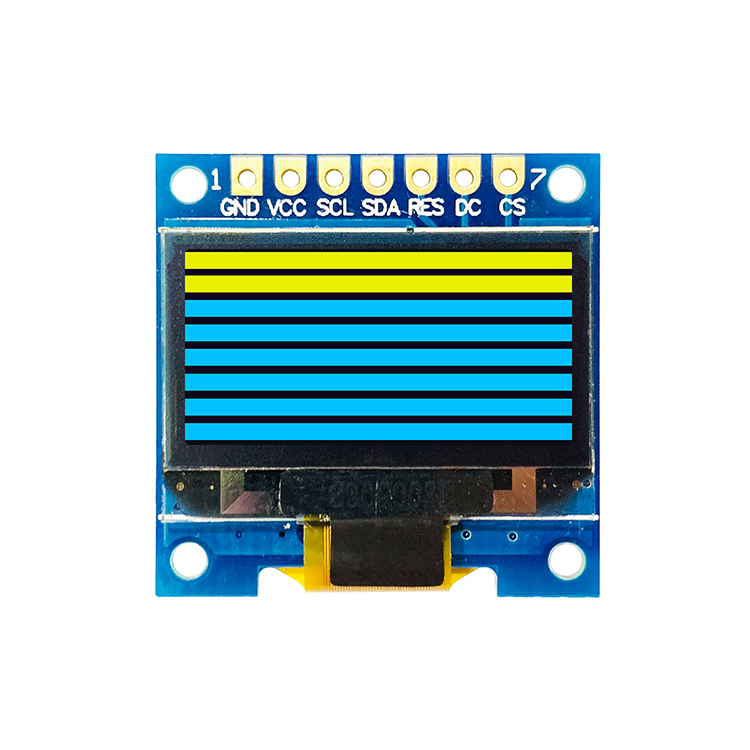

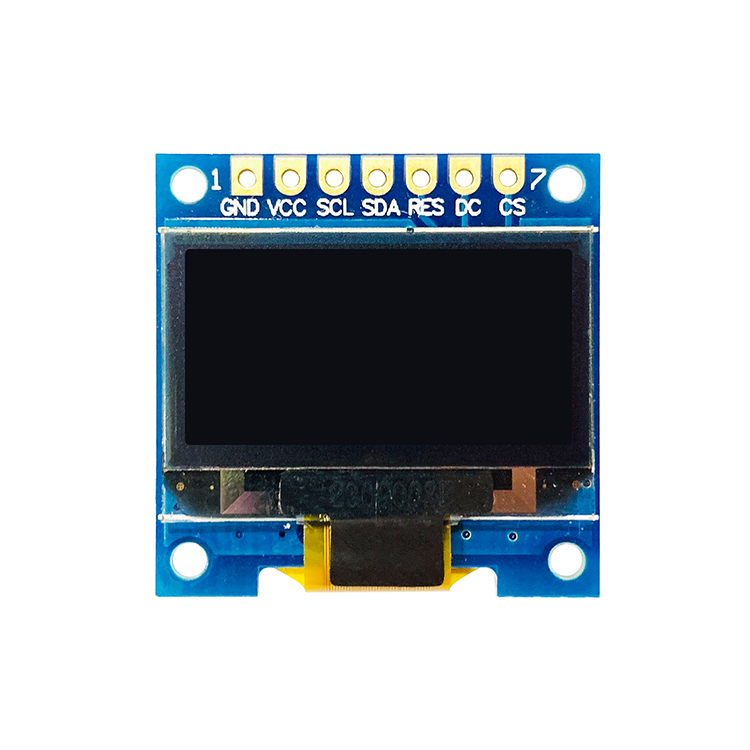

The IPS OLED Module 0.96 inch OLED display is a high-precision miniature screen solution, featuring a 128×64 pixel resolution, a passive matrix structure, and a SSD1306 or SH1106 driver IC. Designed with a compact outline (26.0 × 26.0 × 3.5 mm max), this module delivers outstanding image clarity within a small footprint. It operates via a 4-SPI interface and supports multiple monochrome color options (white, blue, yellow-blue). With a wide operating temperature range from -20℃ to +70℃, this display is ideal for embedded systems, portable instruments, and industrial applications requiring reliable, low-power visual interfaces.

Technical Characteristics and Functional Design

The 0.96-inch OLED display module embodies an efficient design, blending crisp pixel density with robust driver integration. Whether powered by the SSD1306 or SH1106 IC, it maintains smooth rendering and high contrast, essential for clear data presentation even in compact form factors.

Pixel Architecture and Display Matrix

At the core of the display lies a 128×64 passive matrix OLED array. The fine pixel pitch of 0.17 × 0.17 mm allows for uniform light emission and accurate graphical rendering. The active area measures 22.74 × 11.86 mm, with a usable effective area of 21.74 × 10.86 mm, balancing visibility and physical efficiency.

Driving Scheme and Interface

The 1/64 duty cycle offers stable refresh without flicker, suited for dynamic or static content. Connectivity is streamlined through a 4-SPI interface, ensuring fast communication and easy integration into microcontroller-based systems.

Technical Specifications

Practical Applications and Use Cases

Wearable Devices and IoT Modules

Given its ultra-compact size and low power consumption, this module is particularly well-suited for wearables, IoT nodes, sensor displays, and battery-powered handheld devices. The SPI interface simplifies integration into Arduino, ESP32, STM32, and similar platforms.

Industrial Controls and Instrumentation

The display’s wide temperature tolerance and durable construction make it a dependable choice for factory automation panels, measurement devices, and process control terminals requiring stable monochrome feedback in compact environments.

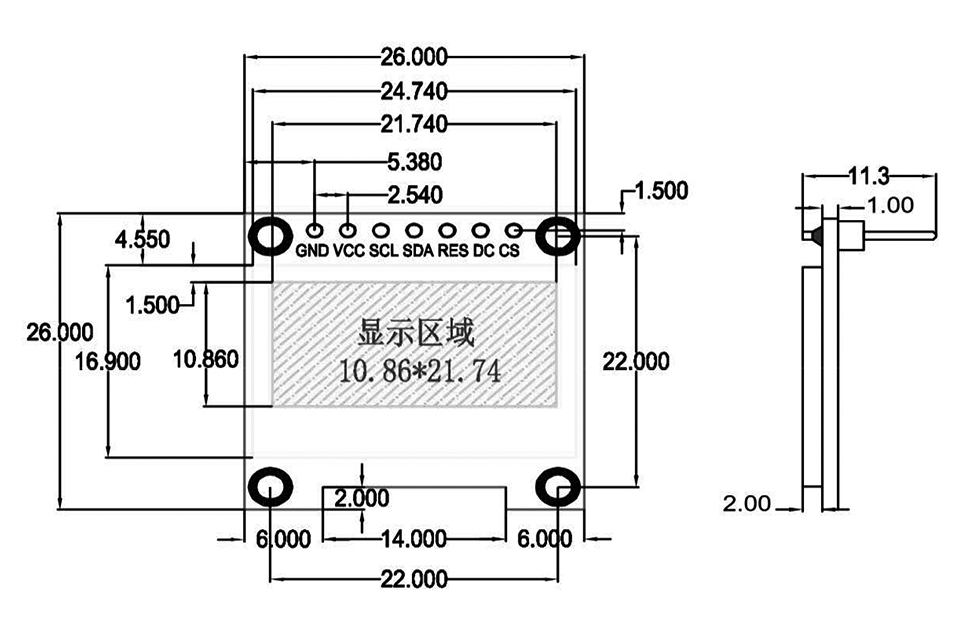

Drawing:

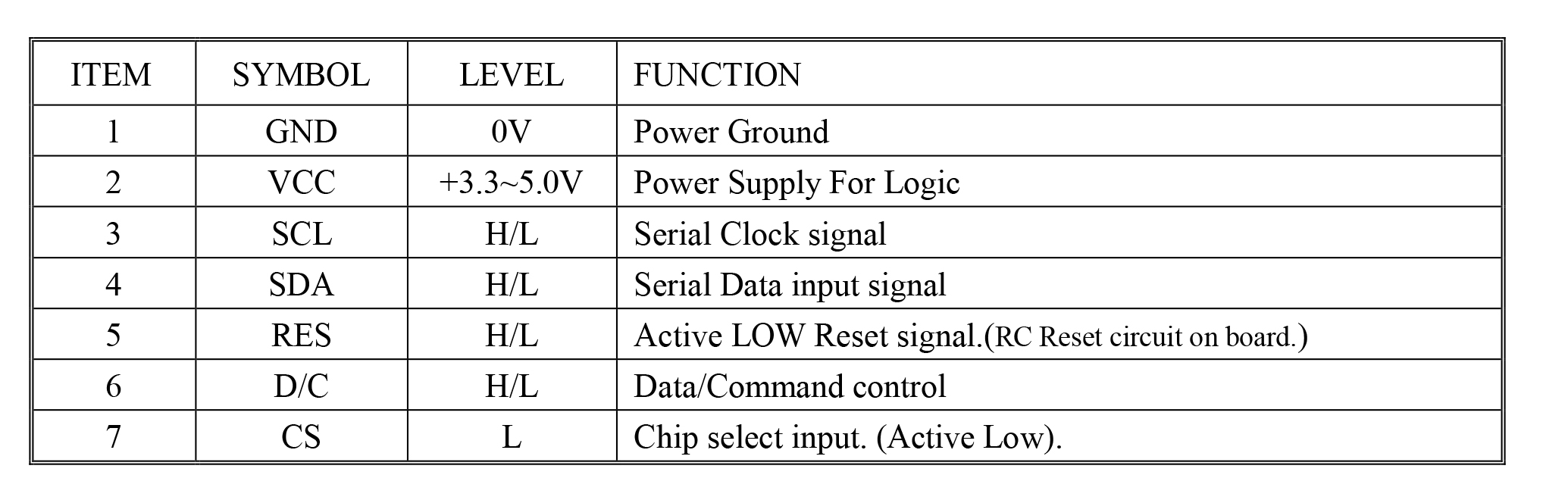

Pin Definition:

Conclusion

The 0.96-inch OLED display module equipped with SSD1306 or SH1106 driver IC and a 4-SPI interface is a refined, efficient solution for modern embedded systems. Its harmonious balance of clarity, reliability, and compact design ensures high adaptability across applications—from consumer electronics to professional instrumentation.

Let this small yet capable module bring sharp visibility to your next project.
