0.96"

0.96 inch 128*64 OLED Display Module I2C SPI 4 pin interface SSD1306 Driver Chip for Arduino DIY Kit

0.96 inch 128*64 OLED Display Module I2C SPI 4 pin interface SSD1306 Driver Chip for Arduino DIY Kit

0.96 inch 128*64 OLED Display Module I2C SPI 4 pin interface SSD1306 Driver Chip for Arduino DIY Kit

0.96 inch 128*64 OLED Display Module I2C SPI 4 pin interface SSD1306 Driver Chip for Arduino DIY Kit

0.96 inch 128*64 OLED Display Module I2C SPI 4 pin interface SSD1306 Driver Chip for Arduino DIY Kit

0.96 inch 128*64 OLED Display Module I2C SPI 4 pin interface SSD1306 Driver Chip for Arduino DIY Kit

0.96 inch 128*64 OLED Display Module I2C SPI 4 pin interface SSD1306 Driver Chip for Arduino DIY Kit

0.96 inch 128*64 OLED Display Module I2C SPI 4 pin interface SSD1306 Driver Chip for Arduino DIY Kit

Price: $2.59-$3.59
Size: 0.96
Resolution: 128*64
Interface: I2C SPI
Product description: Hicenda Technology Co., Ltd can supply high quality 0.96 inch small oled display module for medical or industrial device
INQUIRY

1. Display Specifications

LCD Size: 0.96 inches
Dot Matrix Size: 128*64
LCD Color: White/Blue
Hardware Interface: SPI interface
Driver IC: SSD1306
Operating Temperature: -30 - 80
Working Power Supply: 3.3V
PIN NO: 4 Pin
Display Area: 23.74*13.204mm
Size: 27.5*27.8*3.0mm
Viewing Direction: Full viewing angle

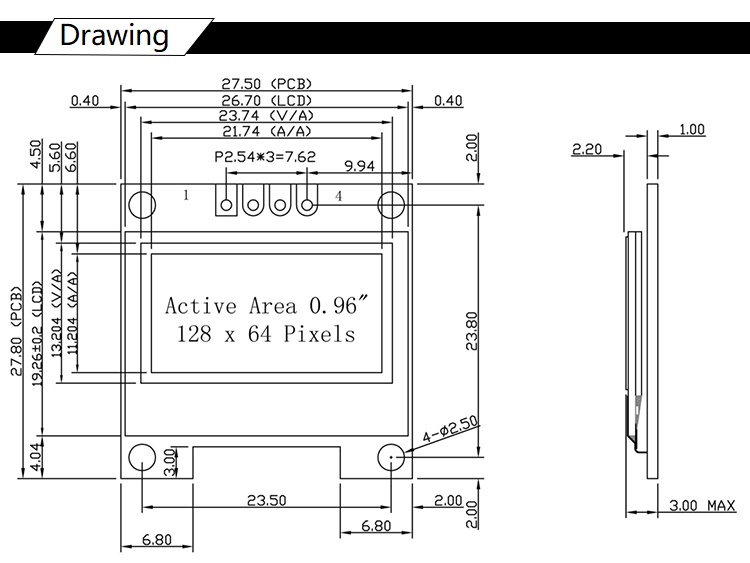

2. Mechanical Specifications

Product Name	0.96 Inch OLED Display Module with PCB
Display Type	OLED Module
Resolution	128x64
Controller Chip	SSD1306
Pins	4 (GND, VCC, SCL, SDA)
Interface	I2C
Size	0.96 Inch
Color	Blue/White/Yellow&Blue
Outline Dimension	27.50 × 27.80 × 3.00
Active Area	23.74 ×13.204
Dot (Pixel) Size	0.154×0.154
Dot (Pixel) Pitch	0.17×0.17
Power Supply(Typ)	3.0-5.0V
