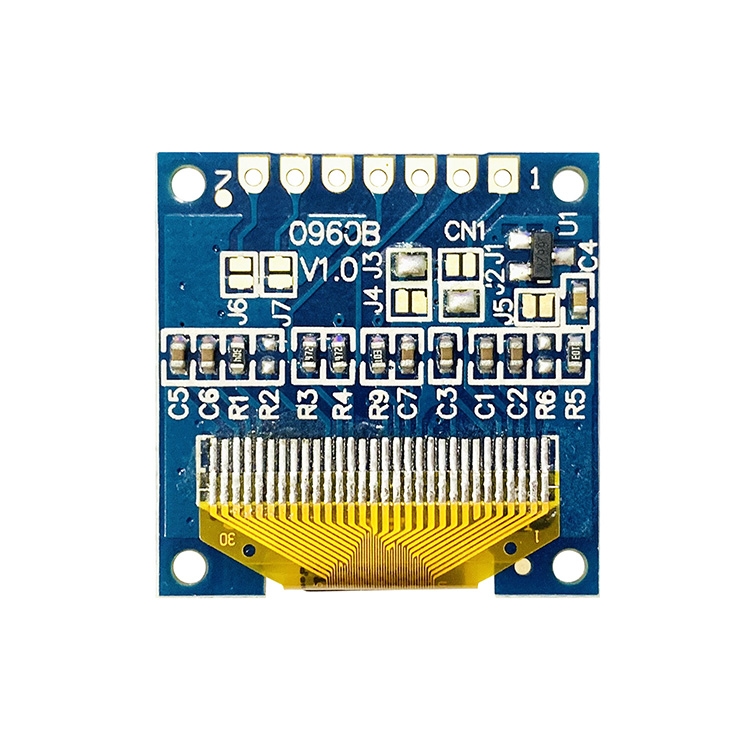

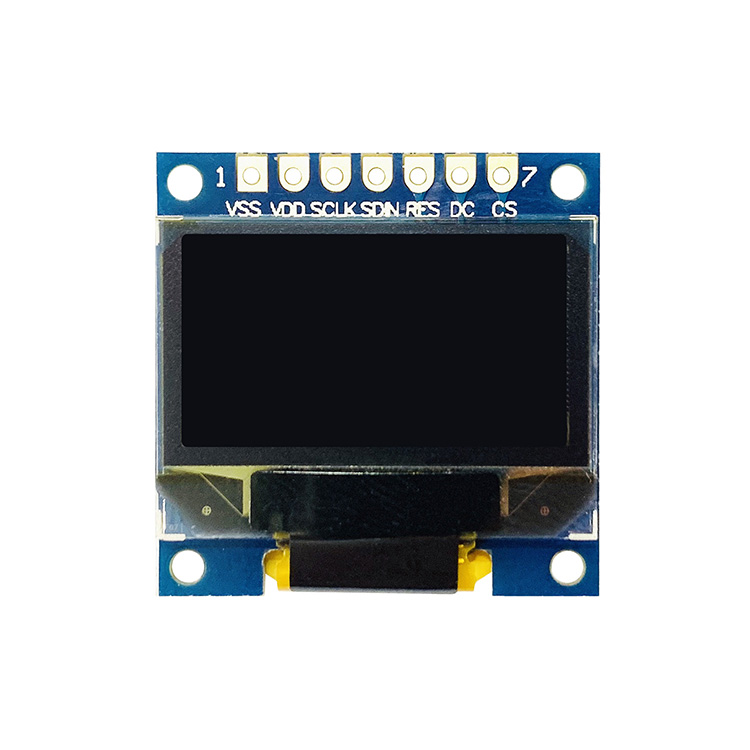

The 0.96-inch OLED display module, model HT096BWH30PG01S7V10, features a resolution of 128×64 dots and supports either the SSD1306 or SH1106 driver IC. Utilizing an IPS-like passive matrix design, it delivers sharp monochrome visuals in white, blue, or yellow-blue. Designed with a compact 7-pin interface, it offers flexibility through I²C or 4-SPI communication options. With a robust temperature tolerance and efficient 1/64 duty cycle, this display is tailored for embedded systems and compact instrumentation applications.




Technical Specifications

Parameter                                              Specification
Model No. HT096BWH30PG01S7V10
Display Size 0.96 inch
Resolution 128 × 64 dots
Display Type Passive Matrix OLED
Viewing Direction IPS-like
Outline Dimension 27.3L × 27.3W × 3.5H (MAX) mm
Active Area 23.74 × 13.204 mm
Effective Area 21.74 × 11.004 mm
Pixel Size 0.15 × 0.15 mm
Pixel Pitch 0.17 × 0.17 mm

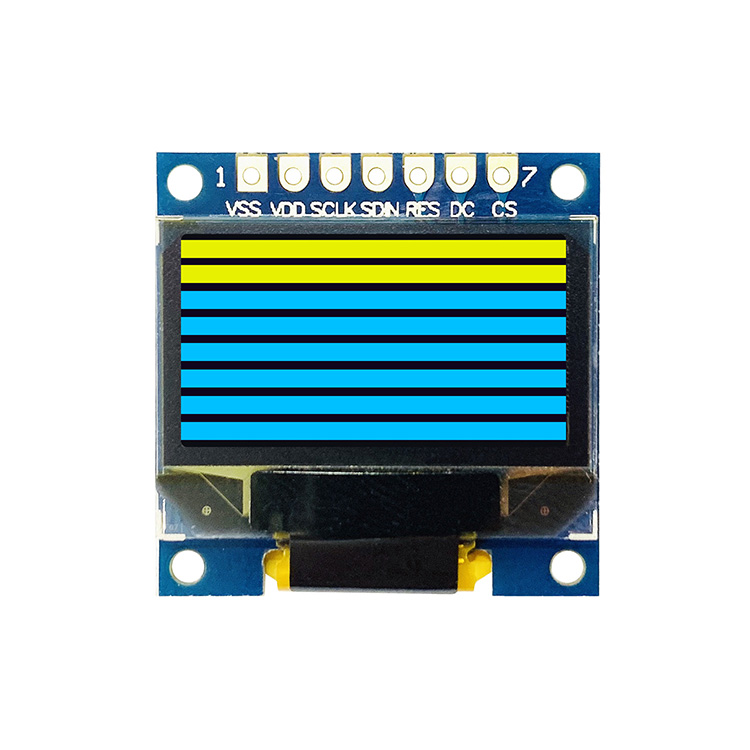

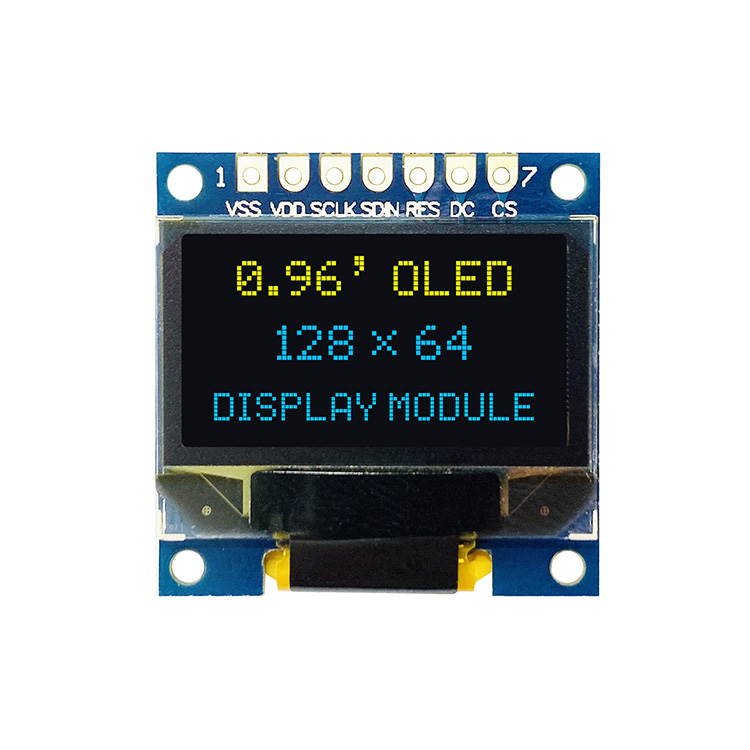

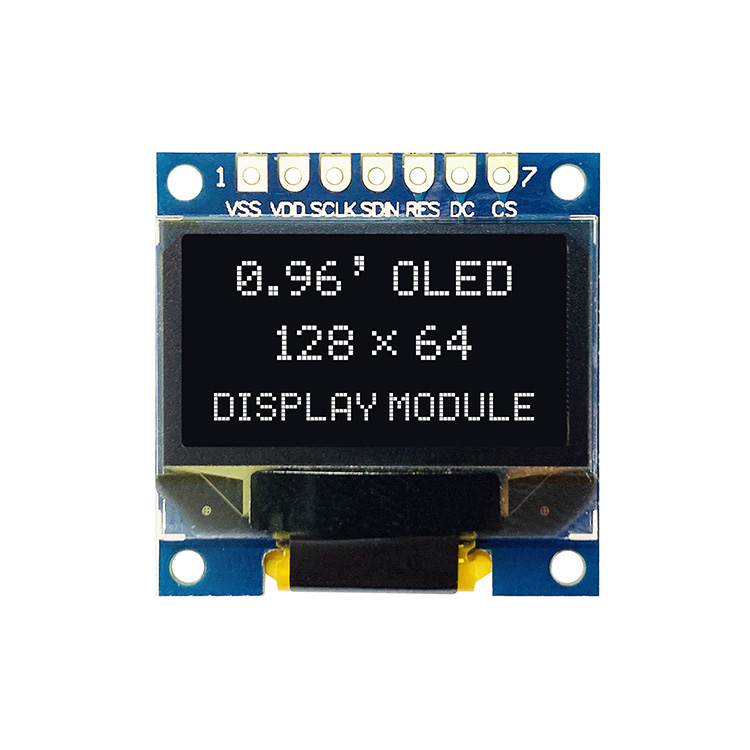

Display Color Monochrome (White / Blue / Yellow-Blue)
Drive Duty 1/64 Duty
Driver IC SSD1306 / SH1106
Interface IIC or 4-SPI
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
Number of Pins 7

Product Overview and Key Features

The HT096BWH30PG01S7V10 OLED display module is engineered for high-contrast, high-efficiency visual output in embedded electronic systems. Its compact 0.96-inch diagonal dimension, coupled with IPS-like wide viewing characteristics, makes it suitable for both handheld and stationary devices requiring crisp graphical representation.


Display Technology and Structure

At the core of this module lies a Passive Matrix OLED architecture, a proven method for maintaining energy efficiency without compromising on image clarity. The display employs either the SSD1306 or SH1106 driver IC, two widely adopted controllers in the industry, each offering reliable support for monochrome OLED panels.

SSD1306: Offers built-in charge pump and display RAM with I²C/SPI interfaces.

SH1106: Compatible with SSD1306 but provides extended memory mapping, often preferred in scrolling applications.



The pixel configuration—128×64 dots—ensures detailed graphical rendering, and the pixel pitch of 0.17×0.17 mm contributes to a fine-resolution output within the active area of 23.74×13.204 mm.


Interface and Communication Protocols

This module supports both I²C (Inter-Integrated Circuit) and 4-wire SPI (Serial Peripheral Interface) protocols, enabling seamless integration with various microcontroller platforms such as Arduino, STM32, ESP32, and Raspberry Pi.


I²C Interface

Simplified wiring (SCL/SDA)

Ideal for low-pin-count microcontrollers

Suitable for low to medium-speed data transmission



4-Wire SPI Interface

Higher speed compared to I²C

Full-duplex communication

Excellent for applications requiring fast refresh rates or frequent updates


Mechanical and Environmental Characteristics

The module boasts a compact and robust form factor, with 27.3 × 27.3 × 3.5 mm (max) overall dimensions and a 7-pin header layout for streamlined hardware integration. The display supports operating temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃, ensuring reliable operation across diverse environmental conditions.


Application Scenarios

This 0.96-inch OLED display module finds wide application in:

Portable instrumentation (e.g., multimeters, spectrum analyzers)

Smart wearable devices (e.g., fitness trackers, e-cigarettes)

Home automation panels

Industrial control systems

IoT nodes with graphical feedback



Its compact profile and versatile interface options make it highly adaptable across both consumer and industrial sectors.

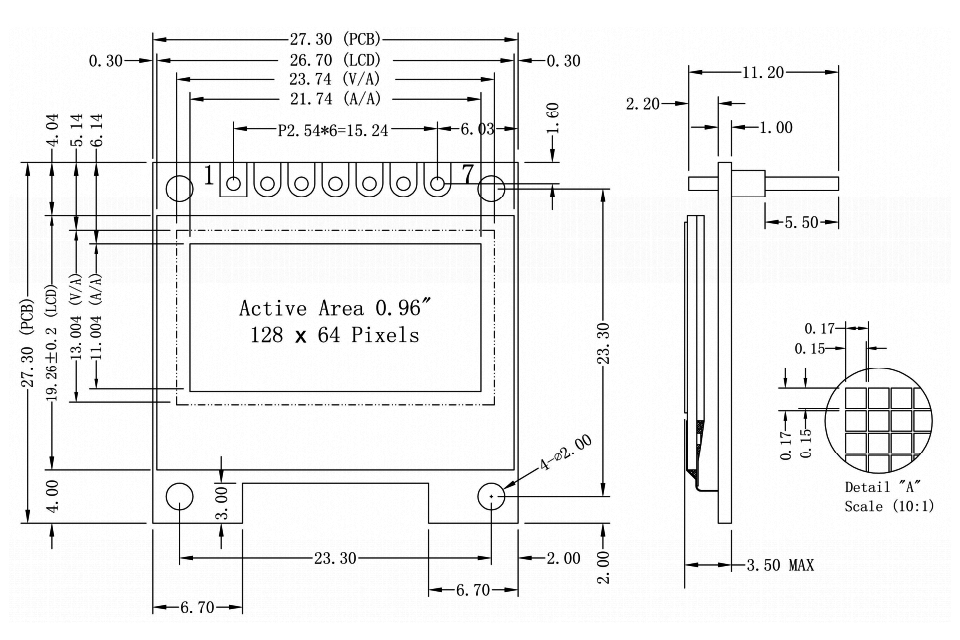

Drawing:

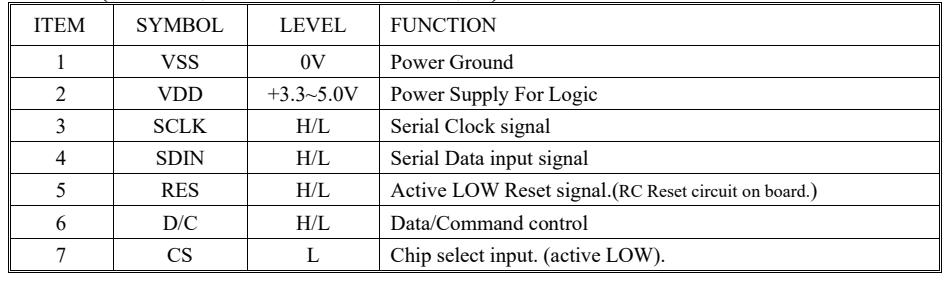

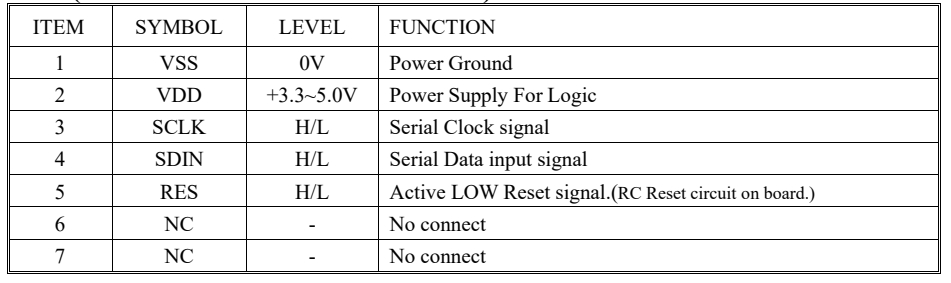

Pin Definition:



Conclusion

The HT096BWH30PG01S7V10 OLED module is a high-utility display solution optimized for modern embedded design. Its compact footprint, superior contrast, and communication flexibility make it an excellent choice for developers seeking dependable monochrome display integration. With SSD1306 or SH1106 driver IC compatibility and robust temperature resilience, it stands as a reliable component for long-term deployments in varied operating environments.
