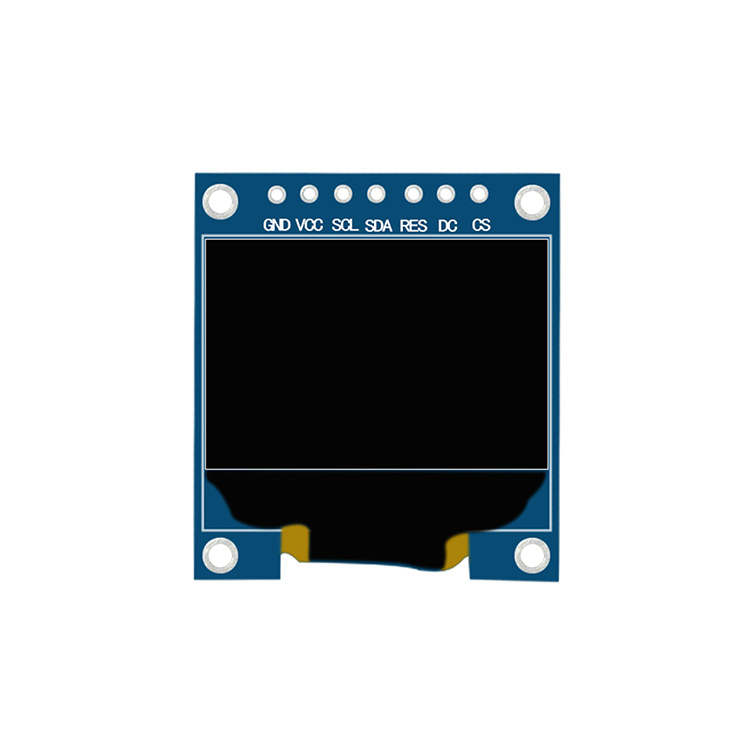

The 0.95-inch SPI Full-Color OLED Display Module is a compact, high-performance display solution designed for advanced embedded systems. Featuring a 96x64 pixel resolution, this module integrates the SSD1331 driver IC and utilizes a 4-wire SPI interface, enabling efficient data communication. With a 16.7M color depth (24-bit) and a high contrast ratio, it delivers exceptional visual performance even in demanding environments.
| Feature | Specification |
|---|---|
| Model No. | HG095ACH24PG02S7V10 |
| Display Size | 0.95 inch |
| Resolution | 96(RGB) × 64 DOTS |

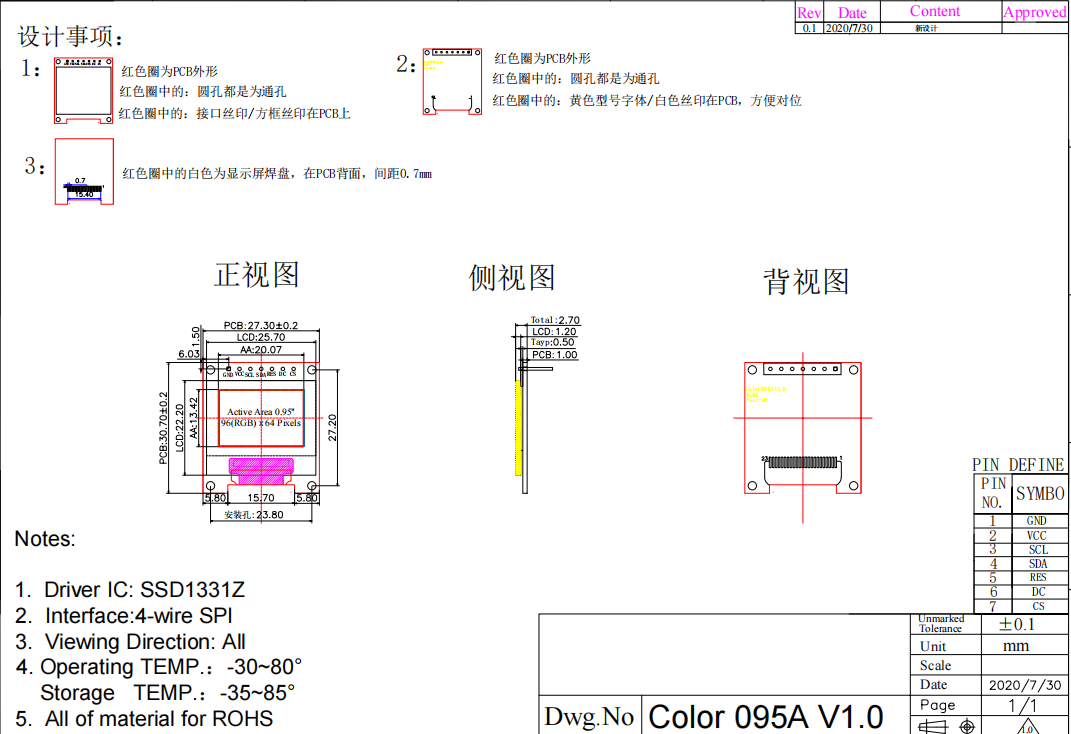

| Outline Dimension | 27.3(L) × 30.7(W) × 2.7(MAX) mm |
| Active Area | 20.07(H) × 13.42(V) mm |
| Pixel Pitch | 90 × 90 μm |
| Pixel Arrangement | 16.7M Colors (24-bit) |
| Display Color | 16.7M Colors (24-bit) |

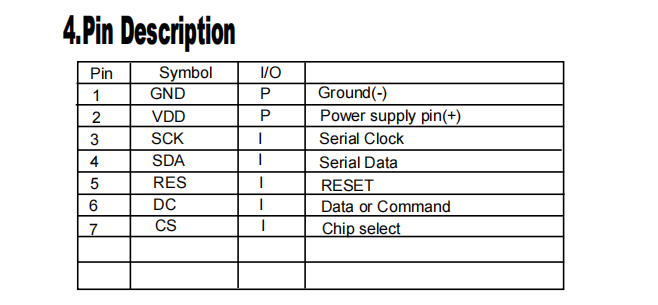

| Interface | 4-Wire SPI |
| Display Mode | Dot Matrix OLED |
| Driver IC | SSD1331 |
| Operating Temp. | -40°C to 80°C |
| Storage Temp. | -40°C to 85°C |
The 0.95-inch OLED module employs a dot matrix OLED display mode, ensuring sharp and vivid visuals with a self-emissive lighting mechanism. Unlike traditional LCDs that rely on backlighting, OLED technology allows each pixel to emit its own light, offering superior contrast and energy efficiency.

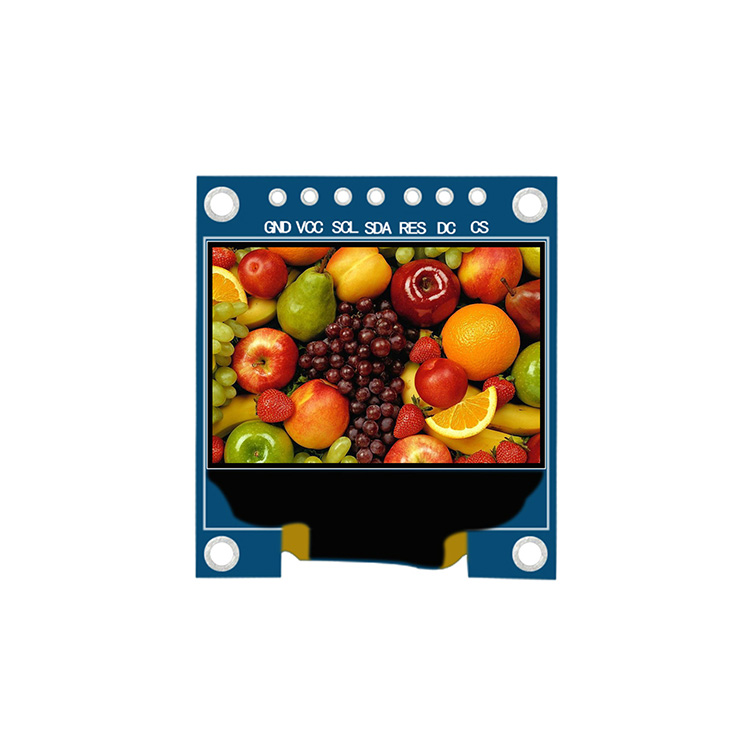

The 16.7M color depth (24-bit RGB) ensures a broad color spectrum, delivering a true-to-life visual experience. The wide viewing angles provided by OLED technology maintain consistent color accuracy, making it ideal for diverse applications ranging from wearable electronics to industrial control panels.
The 4-wire SPI interface enables seamless communication between the display module and microcontrollers, ensuring fast data transmission with minimal signal interference. This feature is particularly beneficial for real-time graphical applications, reducing system overhead while maintaining high-speed performance.
The SSD1331 driver IC is a highly integrated solution that enhances display performance through built-in graphic acceleration functions. These include:
Hardware scrolling for smooth animations.
128-step brightness control for precise luminance adjustments.
Built-in color enhancement algorithms for improved image clarity.
Designed for extreme environmental conditions, this OLED module supports an operating temperature range of -40°C to 80°C, ensuring reliable performance in both cold and high-heat applications. The storage temperature range extends to -40°C to 85°C, making it a durable choice for rugged industrial environments.
OLED displays are inherently low-power, as each pixel illuminates independently, consuming energy only when activated. This leads to extended lifespan and efficiency, particularly in battery-operated applications.
Due to its small footprint and lightweight structure, the 0.95-inch OLED module is widely utilized in:
Wearable Technology: Smartwatches, fitness trackers, and medical devices.
IoT Devices: Smart home interfaces and sensor dashboards.
Industrial Equipment: Control panels and diagnostic displays.
Consumer Electronics: Handheld devices and compact multimedia gadgets.
The 0.95-inch SPI Full-Color OLED Display Module offers high resolution, superior color reproduction, and efficient power management, making it a preferred choice for various compact display applications. With a robust SSD1331 driver IC, a 4-wire SPI interface, and an extensive temperature range, this display module stands as a reliable solution for cutting-edge embedded technologies.
