DESCRIPTION


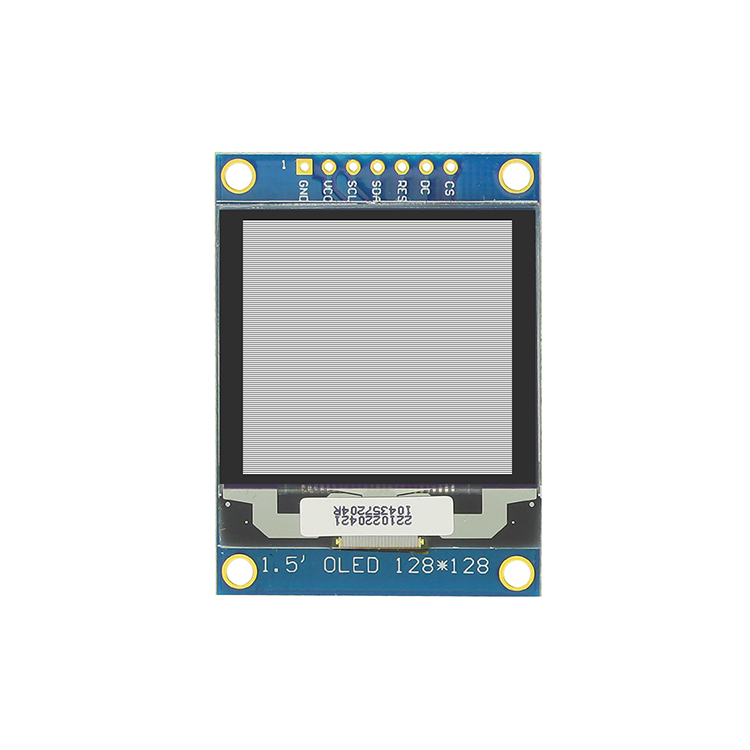

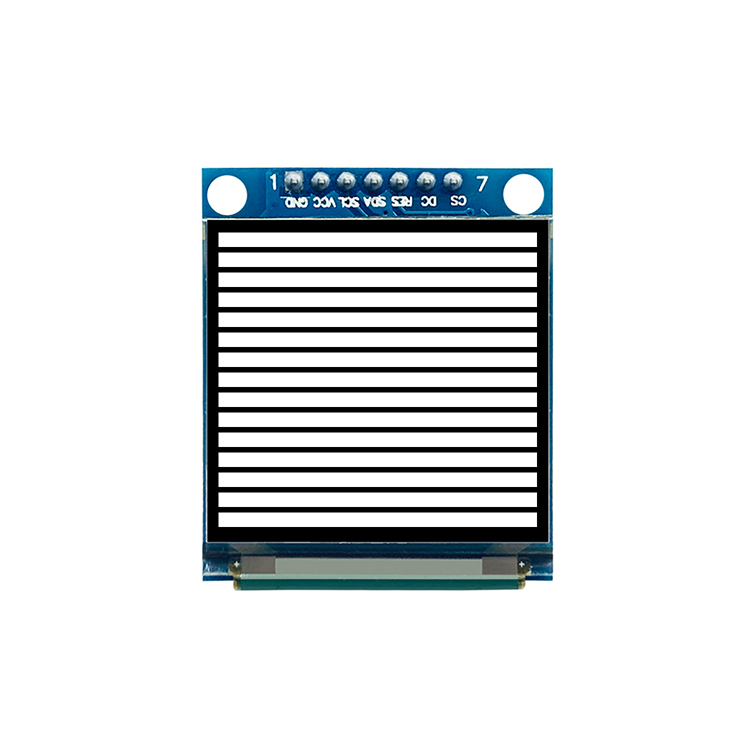

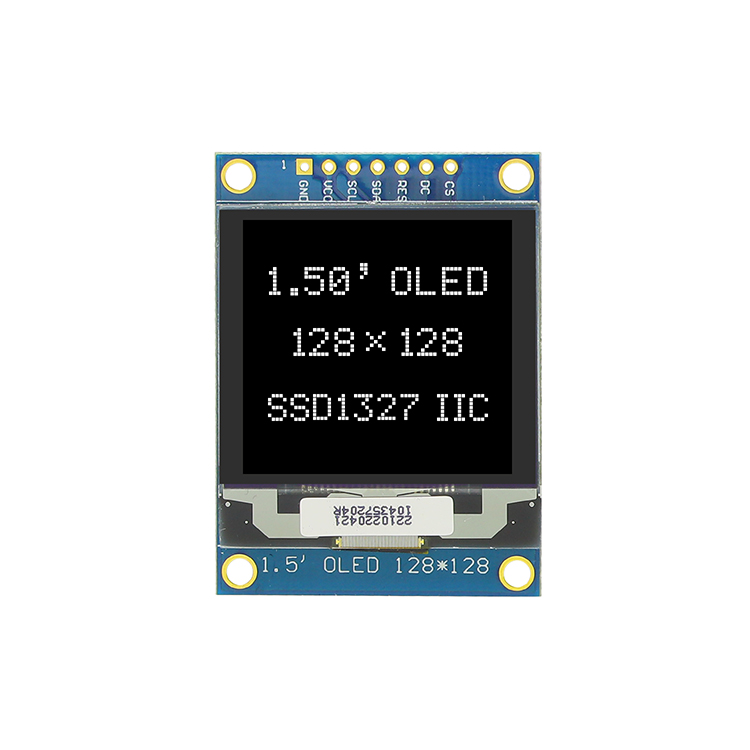

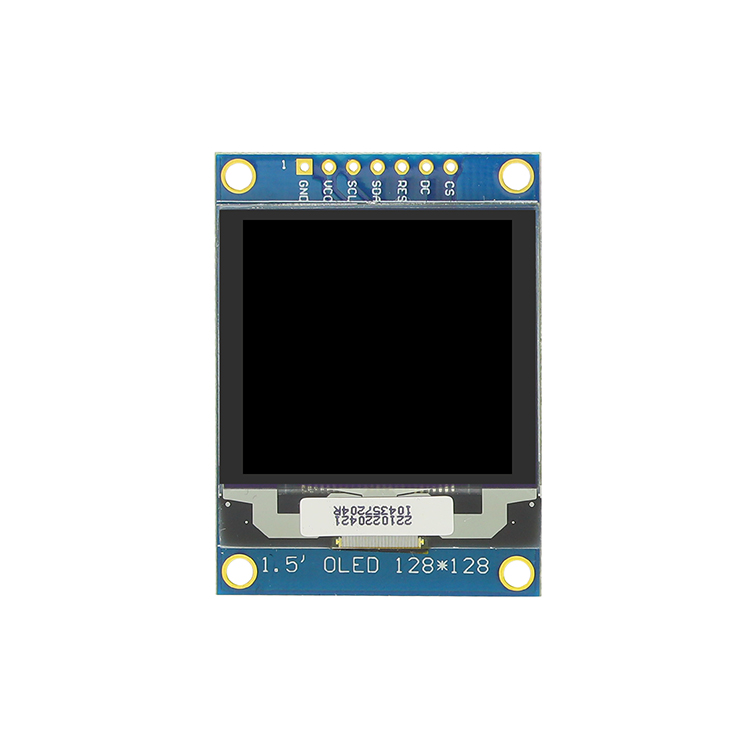

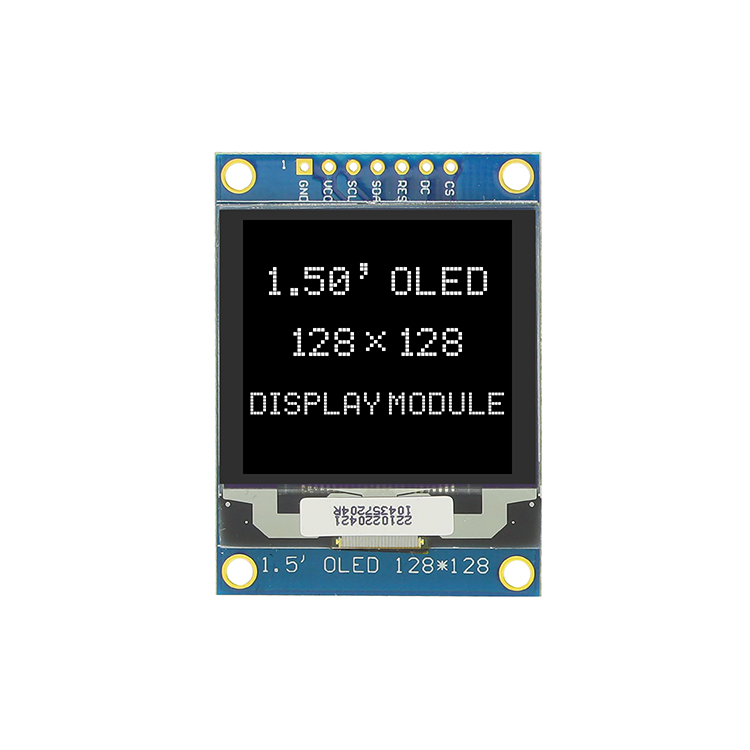

HICENDA The 1.5 inch OLED display module, model HTD150D25HS7BV11, features a 128×128 dot resolution, driven by the SSD1327 IC. Designed as a passive matrix monochrome white PM OLED, it provides sharp imaging with wide viewing angles and stable performance across a broad operating temperature range. With support for both 4-SPI and IIC interfaces, the module is adaptable for diverse embedded systems and compact electronic applications.
.



GENERAL SPECIFICATION

Key Parameters Table


Parameter                                         Specification
Model No. HTD150D25HS7BV11
Display Size 1.5 inch
Resolution 128(H) × 128(V) dots
Display Type PM OLED (Passive Matrix)
Viewing Direction IPS, wide viewing angle
Display Format Graphic 128 × 128 dot matrix
Outline Dimension 34.0L × 47.0W × 2.65H (MAX) mm
Active Area 26.86(H) × 26.86(V) mm
Pixel Size 0.19 × 0.19 mm
Pixel Pitch 0.21 × 0.21 mm
Driver IC SSD1327
Display Color Monochrome White
Drive Duty 1/64 Duty

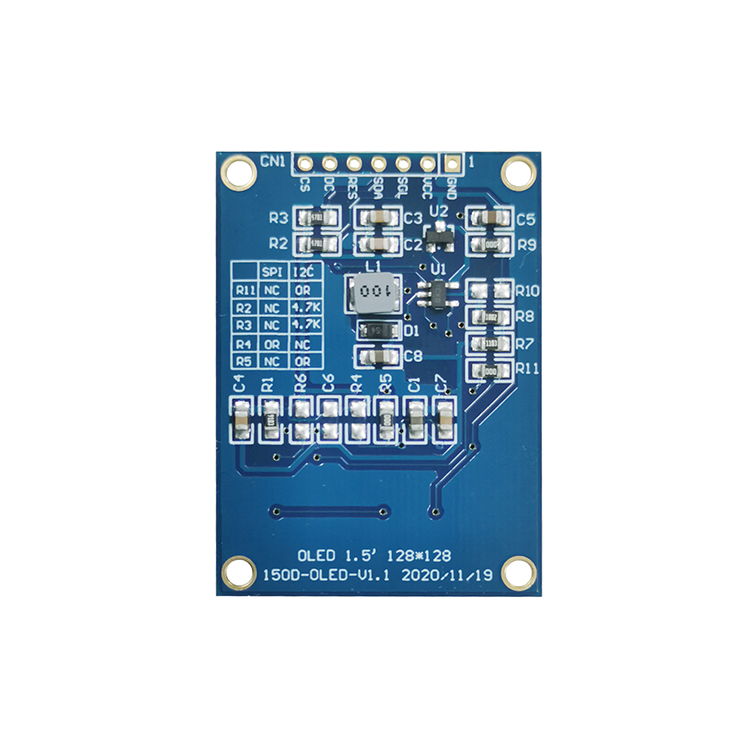

Interface 4-SPI / IIC
Pin Number 7 Pins
Operating Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃




Mechanical and Optical Parameters

OLED panels of this type are known for their lightweight structure and slim profile. With a thickness of just 2.65 mm, this module is well-suited for portable devices, handheld meters, or industrial monitoring instruments. Its wide operating temperature range (-20℃ to +70℃) provides reliability in demanding conditions, while the storage temperature tolerance (-30℃ to +80℃) further ensures durability.



Advantages of the SSD1327-based OLED Module

High Contrast and Readability

Since every pixel emits light independently, the module delivers excellent contrast, with deep blacks and vivid white pixels. This ensures readability across environments, from indoor low-light to bright outdoor conditions.

Flexible Interface Options

Support for both 4-SPI and IIC interfaces increases design flexibility, making the module suitable for a broad range of microcontrollers and embedded platforms.

Compact but Powerful

Despite its 1.5 inch size, the display provides ample resolution for icons, numerical values, and concise graphical presentations, making it ideal for wearables, compact controllers, and industrial displays.



Application Fields

The HTD150D25HS7BV11 OLED module finds use in:

Portable medical instruments

Smart wearable devices

Test and measurement equipment

Industrial handheld terminals

Consumer electronics requiring compact, high-clarity displays

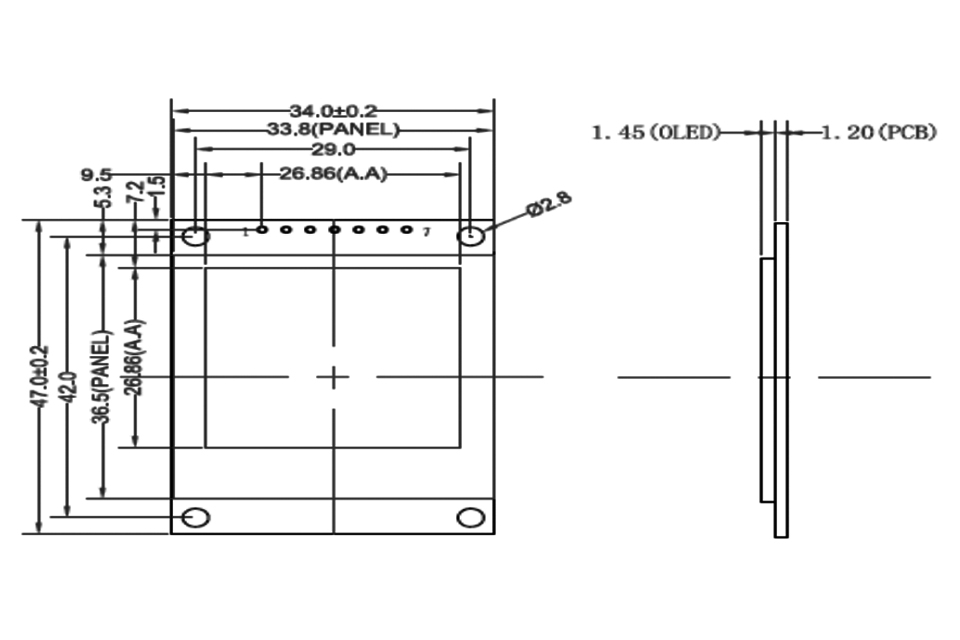

DRAWING

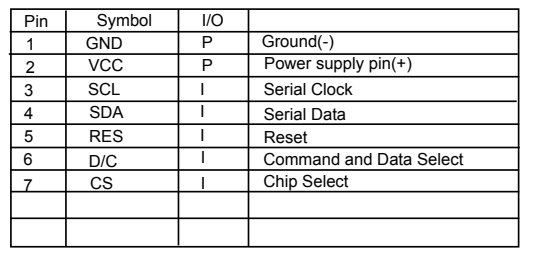

INTERFACE PIN FUNCTION






Conclusion

The 1.5 inch OLED display module (HTD150D25HS7BV11) with SSD1327 driver IC exemplifies efficiency in compact display technology. Its high-contrast self-emissive OLED characteristics, wide temperature tolerance, and versatile communication interfaces ensure it meets the requirements of modern embedded systems with both elegance and reliability.
