Size: 3.5 TFT
Controller IC: ILI9488
Resolution:320(RGB)x480
Interface: MCU 39P
Product description: TFT LCD Display 3.5 inch,320(RGB)x480
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA TFT 3.5 is High Resolution(320 RGB x 240) FW035TFT1 is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as

switching devices. This product is composed of a TFT LCD panel, driver ICs, FPC and a

backlight unit.

GENERAL SPECIFICATION

Display Type:	TFT display
Display Mode:	Passive Matrix
Model Number:	FW035TFT1
Diagonal Screen size:	3.5 inch
Interface:	MCU
Backlight:	6*1 Chip White LED
Number of Pixels:	320(RGB)x480
Panel Size:	84.71(W) x 54.48(H) x 2.76(D) (mm)
Driver IC:	ILI9488
Active Area:	73.44(H) x 48.96(V) (mm)
Display Mode:	Normally white/Transmissive
Pixel Size:	73x 219 (mm)
Weight:	TBD
Operating Temperature:	-40~85°

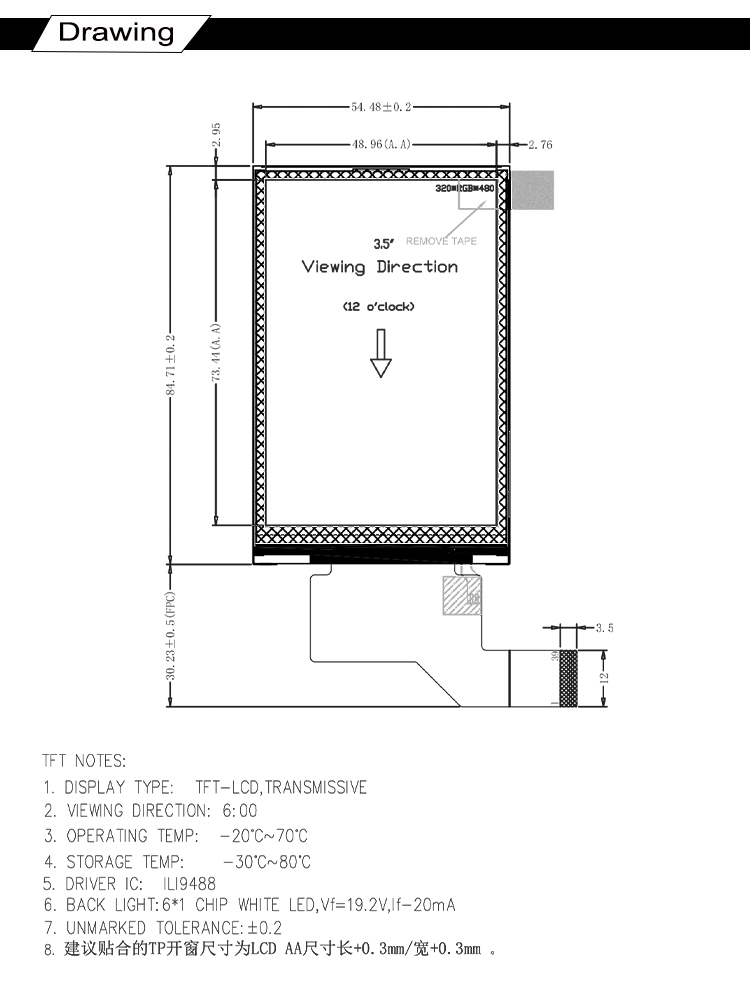

DRAWING

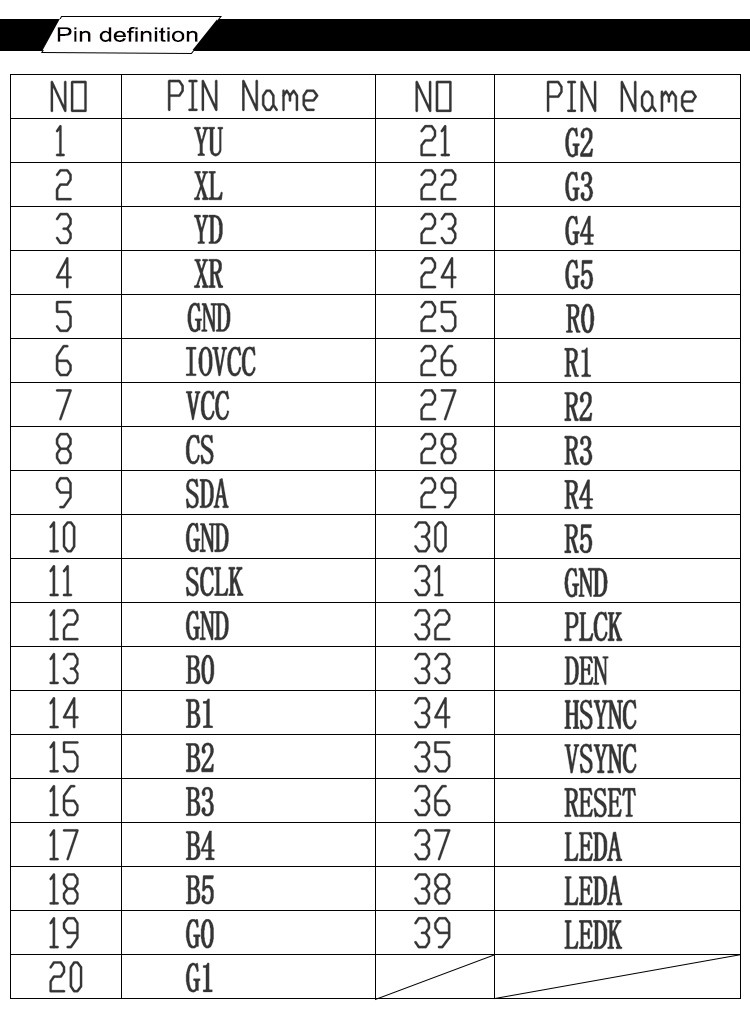

INTERFACE PIN FUNCTION
