Please kindly contact us for full data sheet of the display.

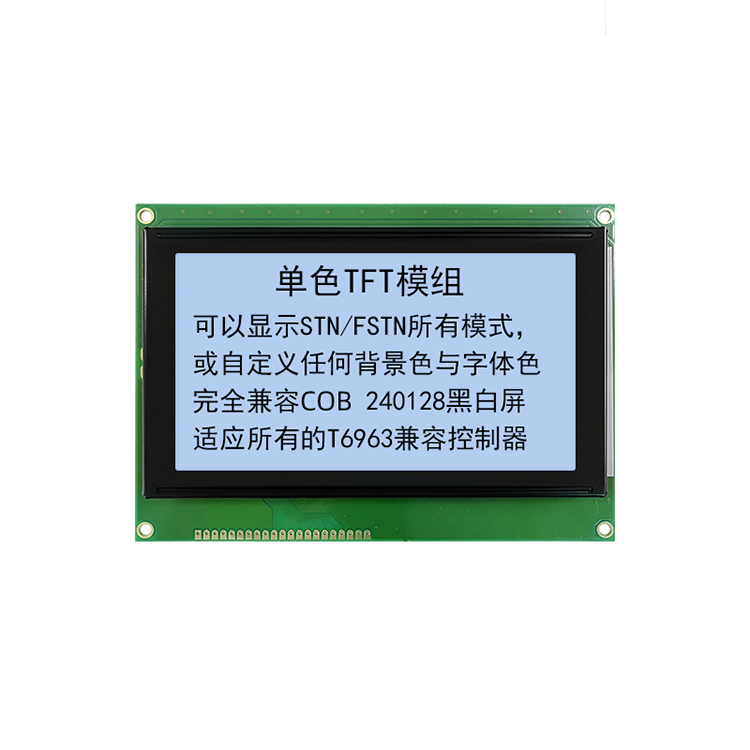

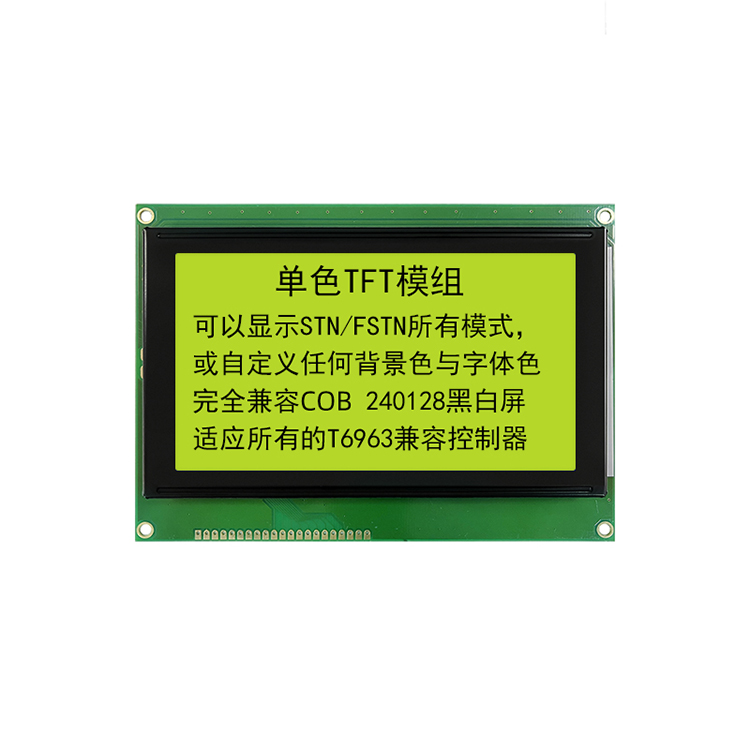

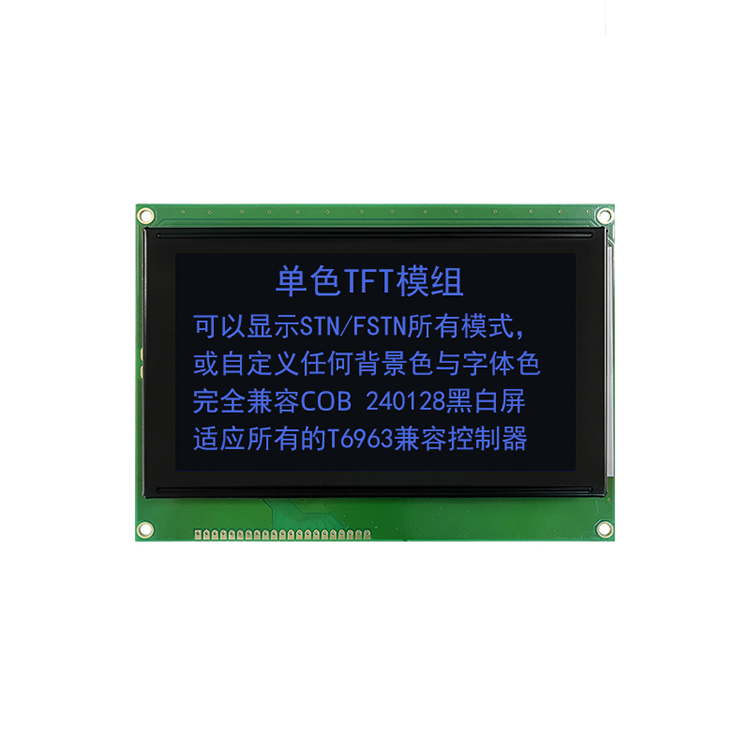

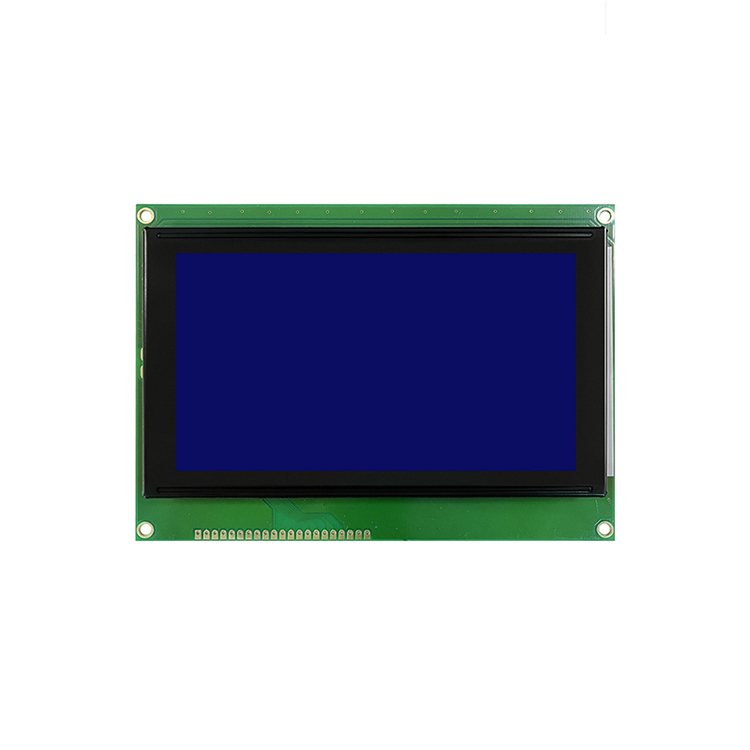

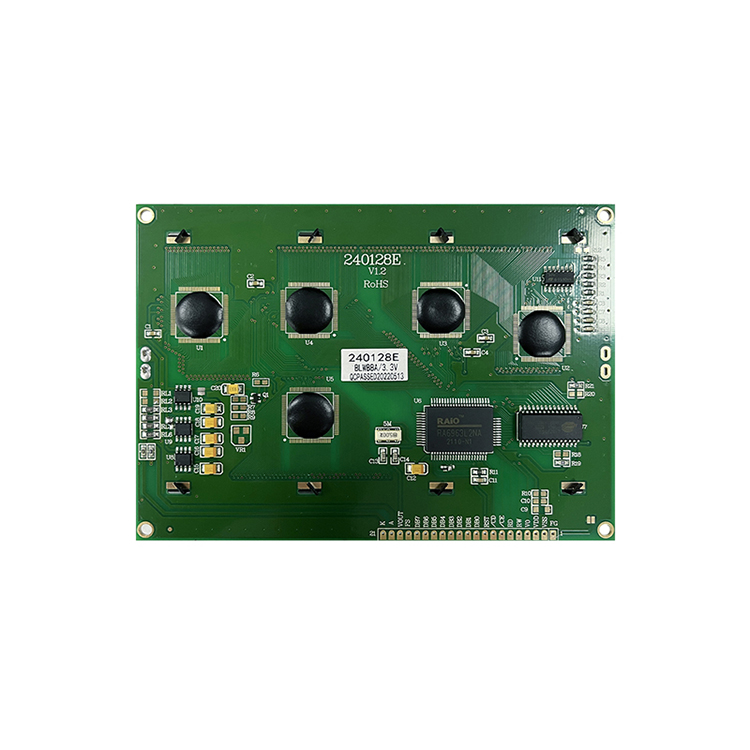

DESCRIPTION
Features
— Dot Matrix: 240×128 Dots
— LCD Mode: STN
— Controller IC: T6963C or Equivalent
一 Driving Method: 1/128 Duty; 1/12 Bias
一 Viewing Angie: 6 O’clock direction
— 8080 serial 8-Bit MPU Interface
— Backlight: LED
— Operating Temperature Range: -20 to 70℃; — Storage Temperature Range : -30 to 80℃;
Note: Color tone is slightly changed by temperature and driving volt
GENERAL SPECIFICATION
| Display Type: | STN LCD display |
| Display Mode: | Passive Matrix |
| Model Number: |
HB240128E
|
| Diagonal Screen size: | 4.3 inch |
| Interface: |
8080 serial 8-Bit MPU
|
|
Backlight:
|
LED
|
| Number of Pixels: |
240X128 DOTS |
| Panel Size: |
144.0L×104.0W×13.5（max）H (mm)
|
| Driver IC: |
T6963C or Equivalent
|
| Active Area: |
114.0×64.0 (mm)
|
|
Storage Temperature:
|
-30 to 80℃
|
| Pixel pitch: |
0.45×0.45
|
|
Weight: |
TBD |
|
Operating Temperature: |
-20~70° |

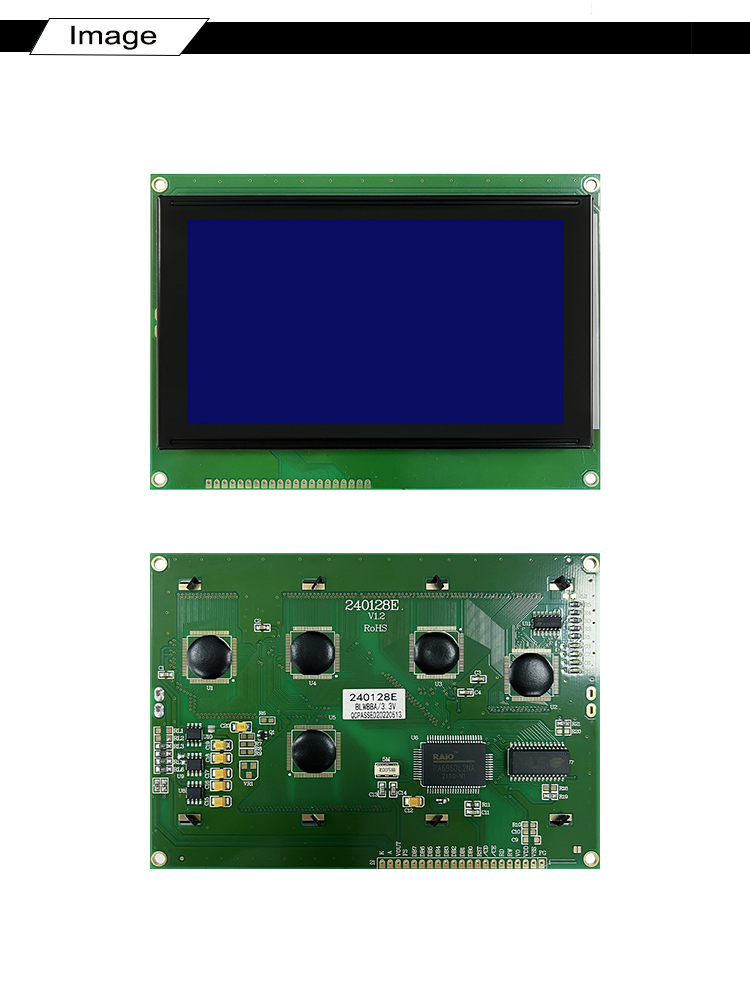

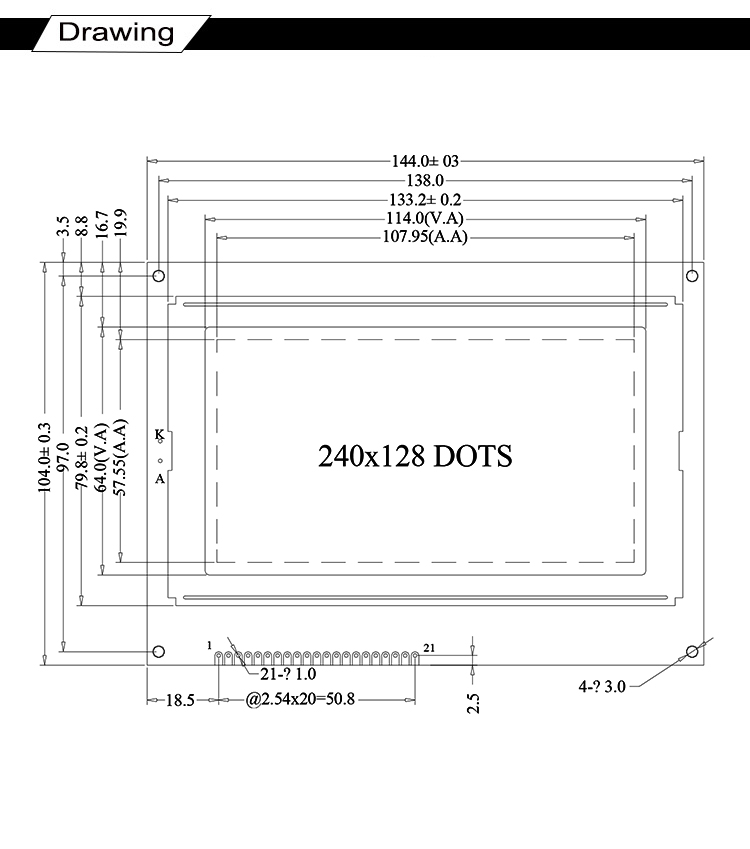

DRAWING

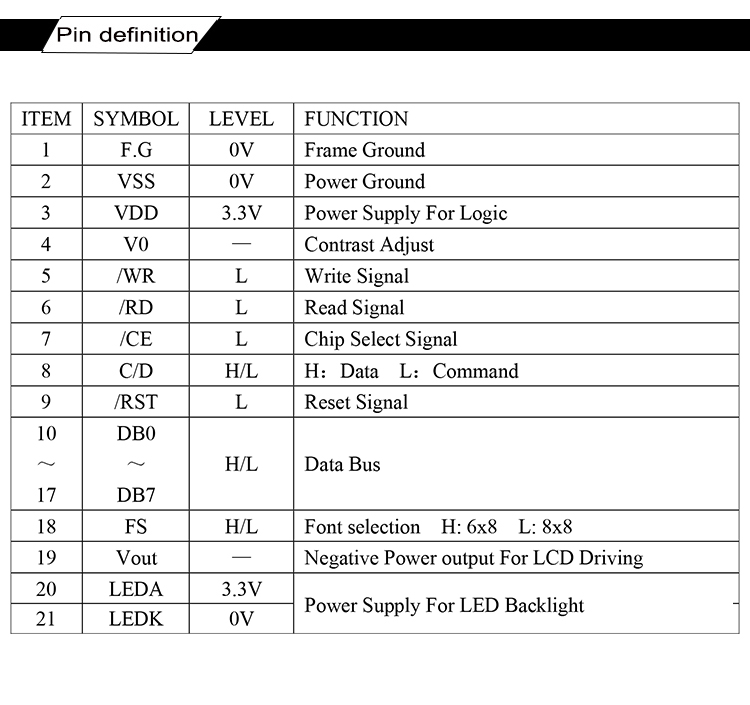

INTERFACE PIN FUNCTION
