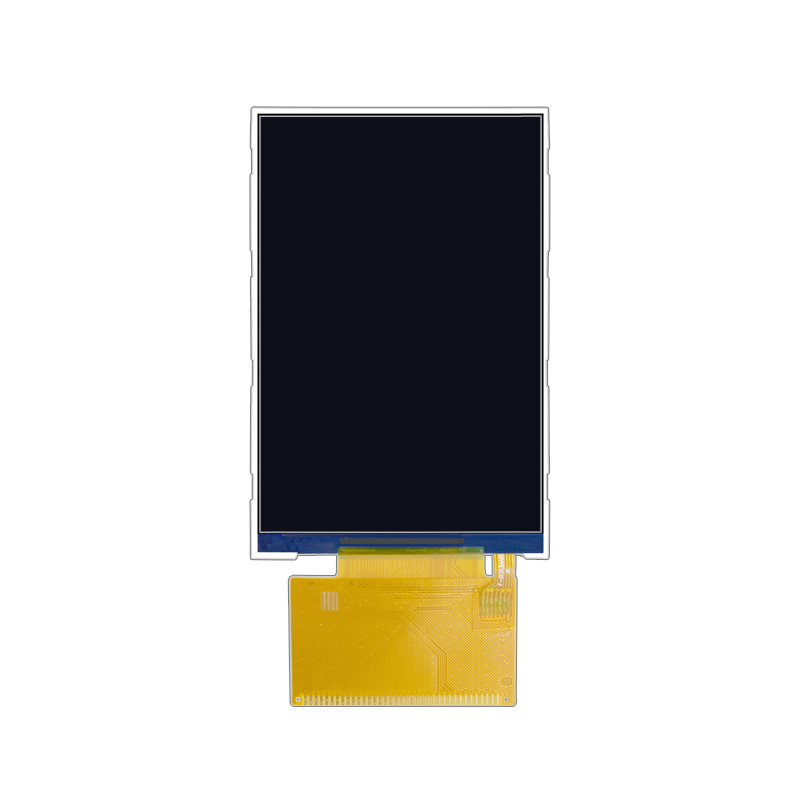

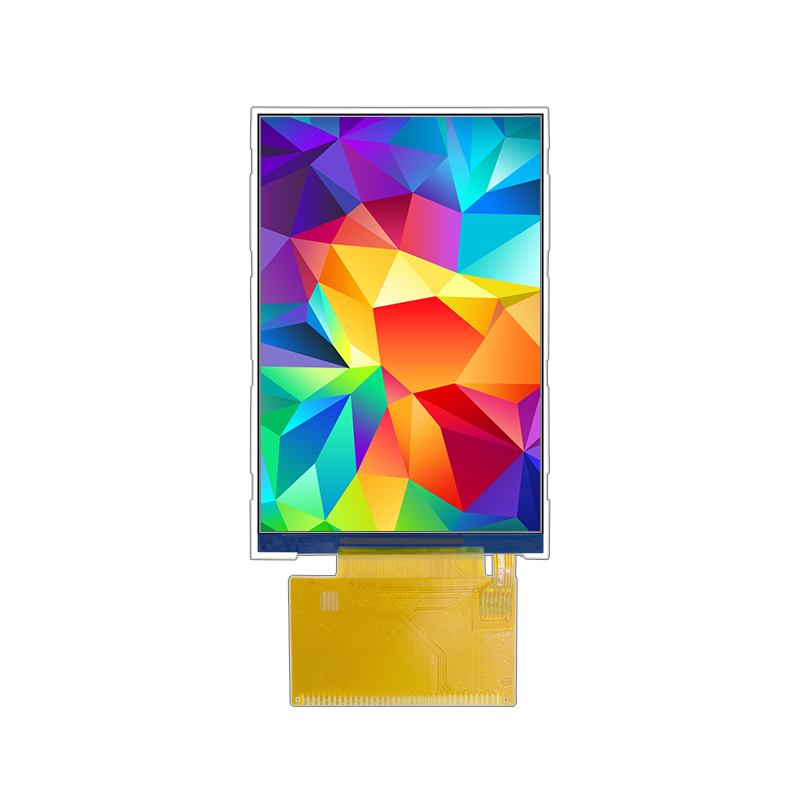

3.5 inch 320*480 IPS Small Strip TFT LCD Display with Capacitive Driver Chip ILI9488 8080 parallel

  • LCD Type :TFT transmissive, Normally white
  • Size: 3.5
  • Resolution: 320*480
  • Interface:8080 parallel
  • Product description: Hicenda Technology Co.,ltd can supply high quality 3.5 inch small tft display for medical or industrial device.2480*320 dot matrix 3.5 Inch Round Tft Lcd Display
  • INQUIRY


1. Display Specifications

  • LCD Size: 3.5 inches
  • Dot Matrix Size: 320*480
  • With /Without TSP:With CPT
  • Hardware Interface: 8080 parallel port
  • Driver IC:     ILI9488
  • Operating Temperature: -20 - 70
  • Working Power Supply: 3.0V
  • PIN NO:  melding 37Pin

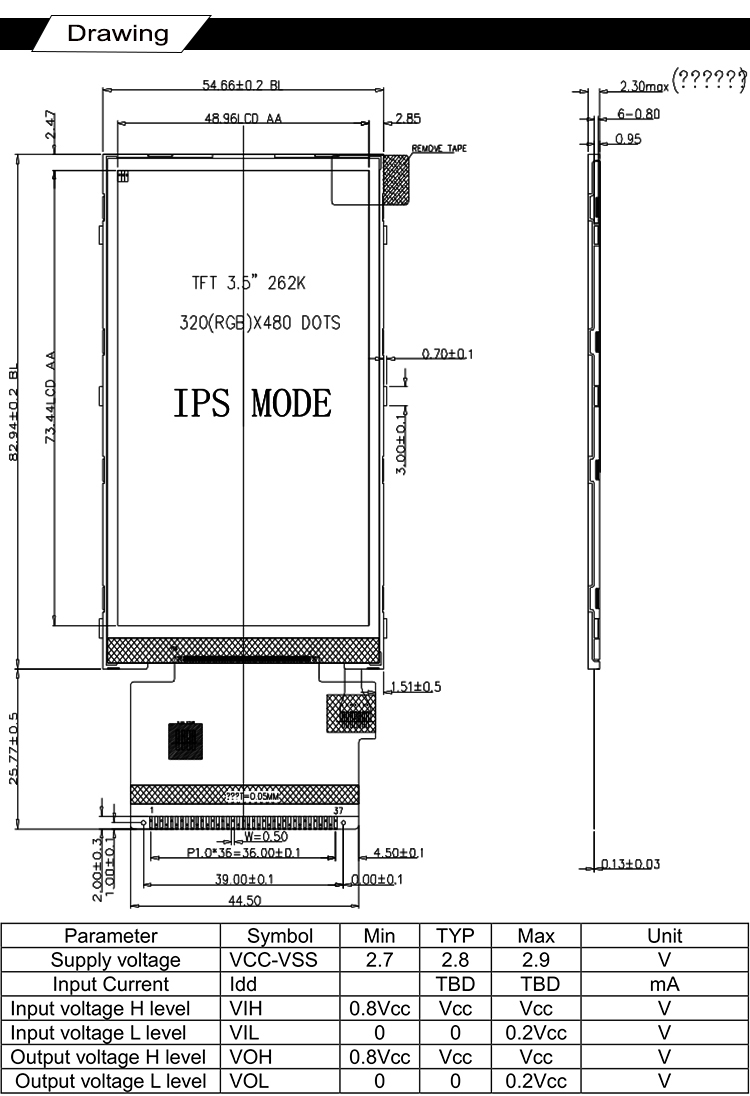

  • Display Area:48.96*73.44
  • Size: 54.66(H)x82.94(V)x2.3(D)
  • Viewing Direction: full viewing

PINo Symbol Description

Pin Define
1 GND GroundD
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
