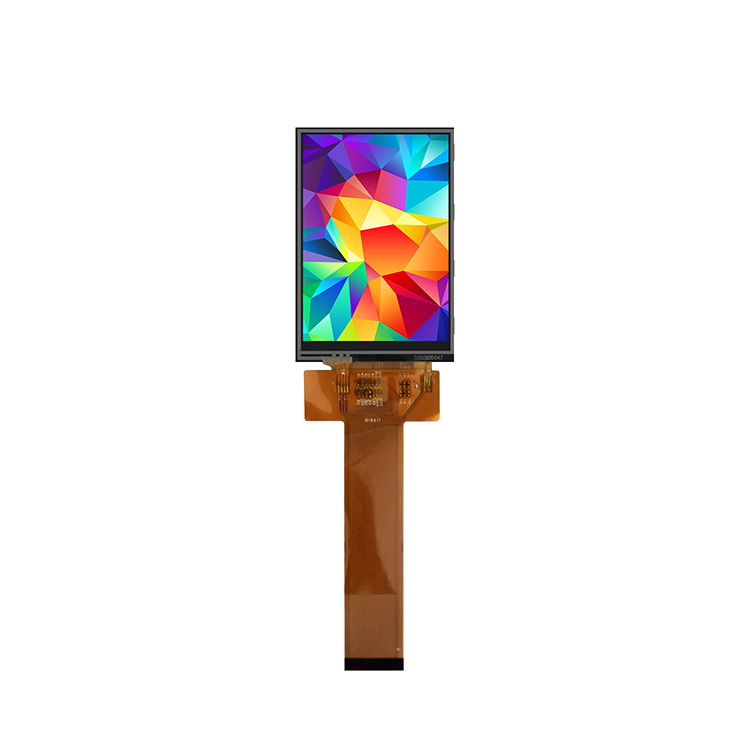

TFT LCD Display 3.5 inch,320(RGB)x480

  • Size: 3.5 TFT
  • Controller IC: ILI9488
  • Resolution:320(RGB)x480
  • Interface: 16/18bit sparallel ,RGB, or SPI interface
  • Product description: TFT LCD Display 3.5 inch,320(RGB)x480
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

HICENDA TFT 3.5 TFT is High Resolution 230,400 Dots (320 RGB x 480) HT35SD40A is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as

switching devices. This product is composed of a TFT LCD panel, driver ICs, FPC and a
backlight unit.





GENERAL SPECIFICATION

Display Type: TFT display
Display Mode: Passive Matrix
Model Number:
HT35SD40A
Diagonal Screen size: 3.5 inch
Interface:
16/18bit sparallel ,RGB, or SPI interface
Backlight:

4 Chip White LED
Number of Pixels:

320(RGB)x480

Panel Size:

83(L) ×54.5 (W) ×3.14(T) (mm)
Driver IC:

ILI9488

Active Area:

73.44(L) * 48.96(W) (mm)
Display Mode:

Normally white/Transmissive
Pixel pitch:

0.153(H) X 0.153(V) (mm)

Weight:

40 (g)

Operating Temperature:

-40~85°

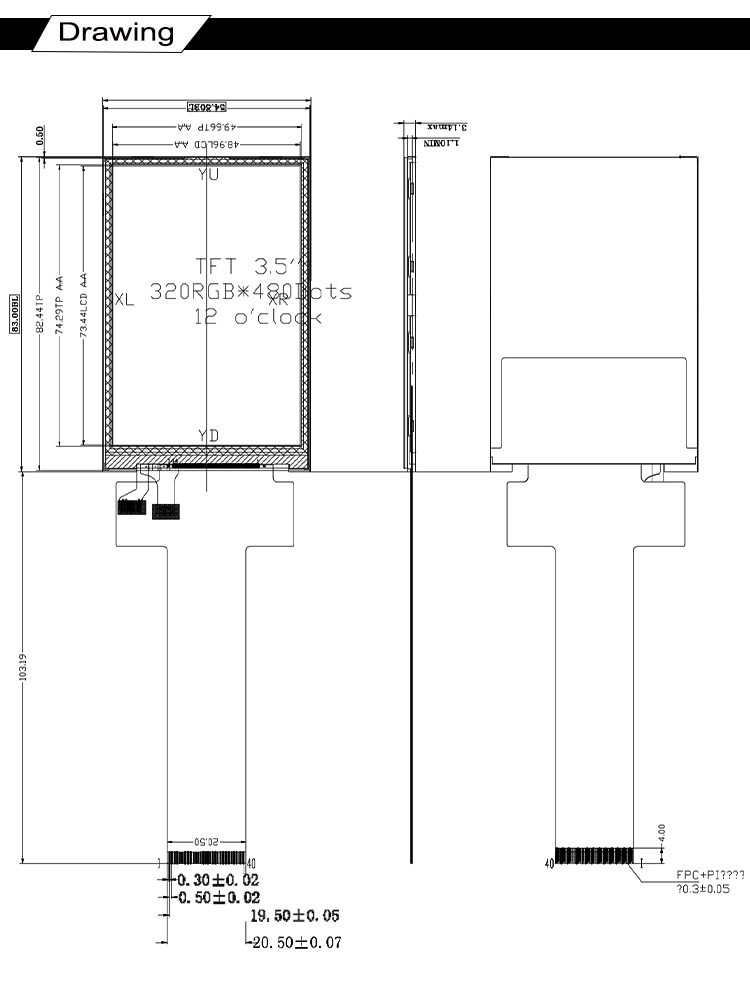

DRAWING

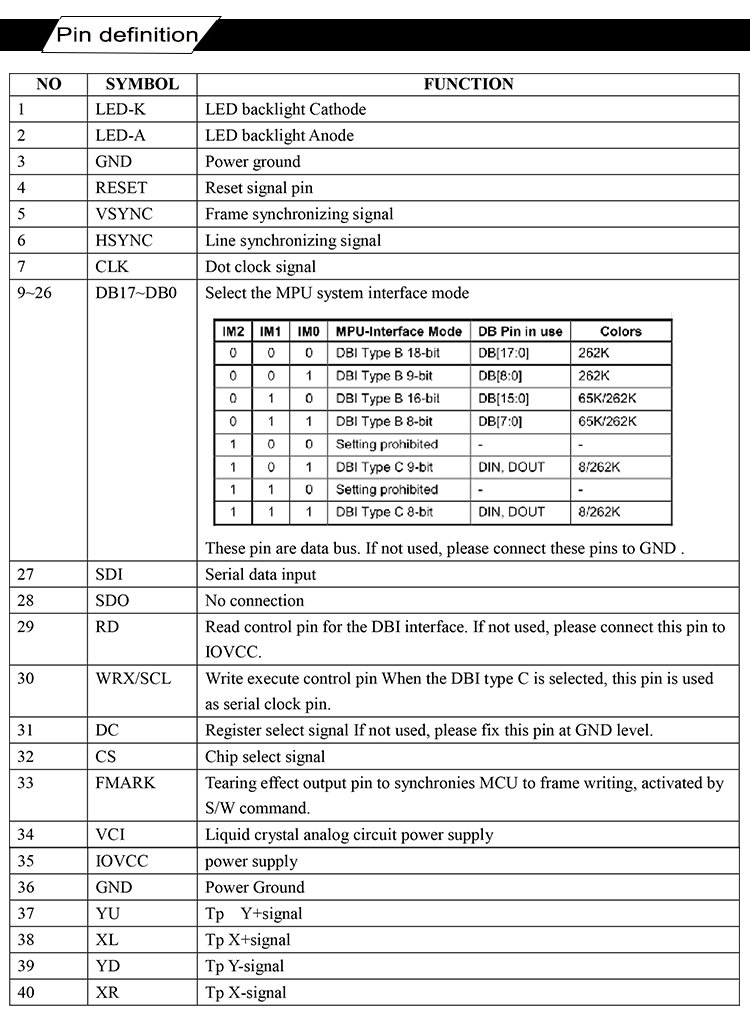

INTERFACE PIN FUNCTION
