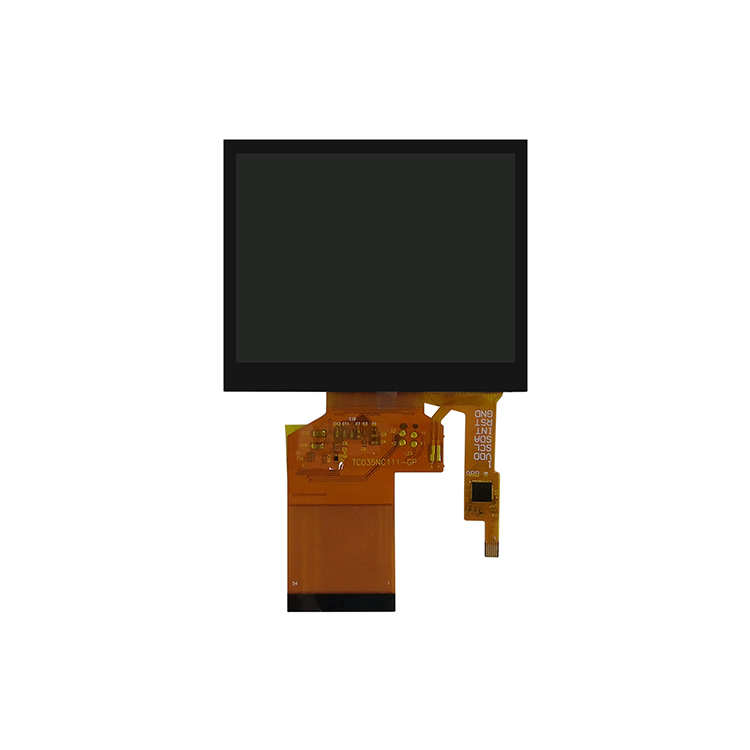

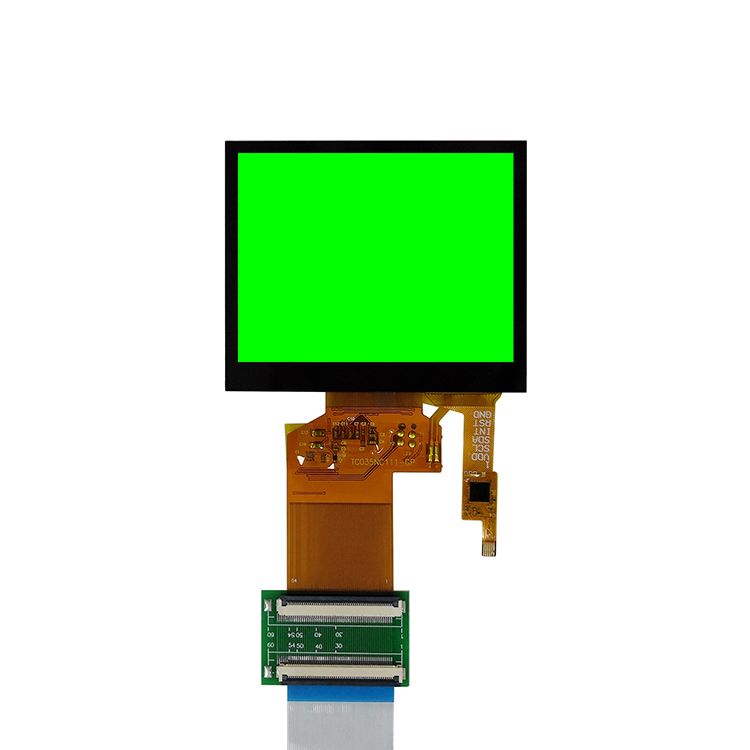

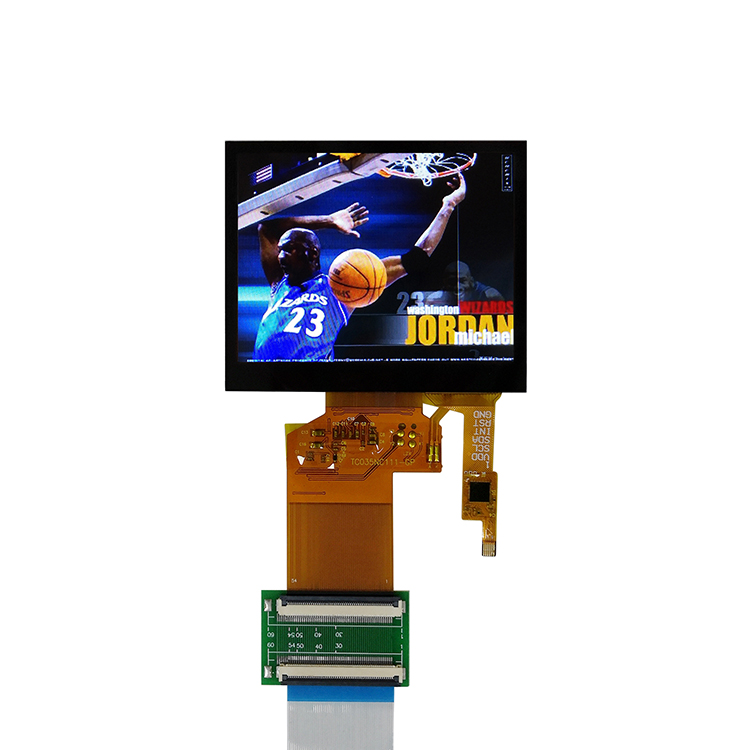

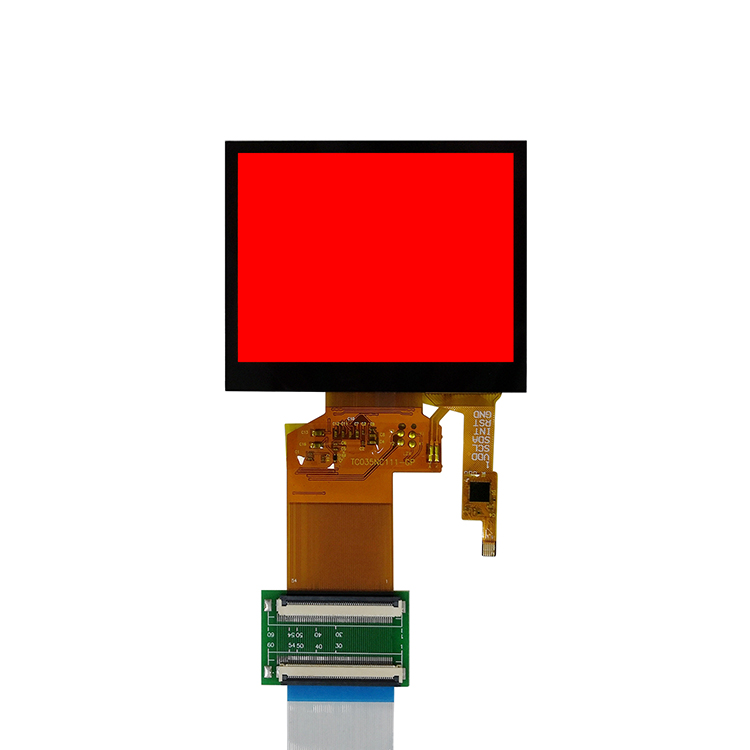

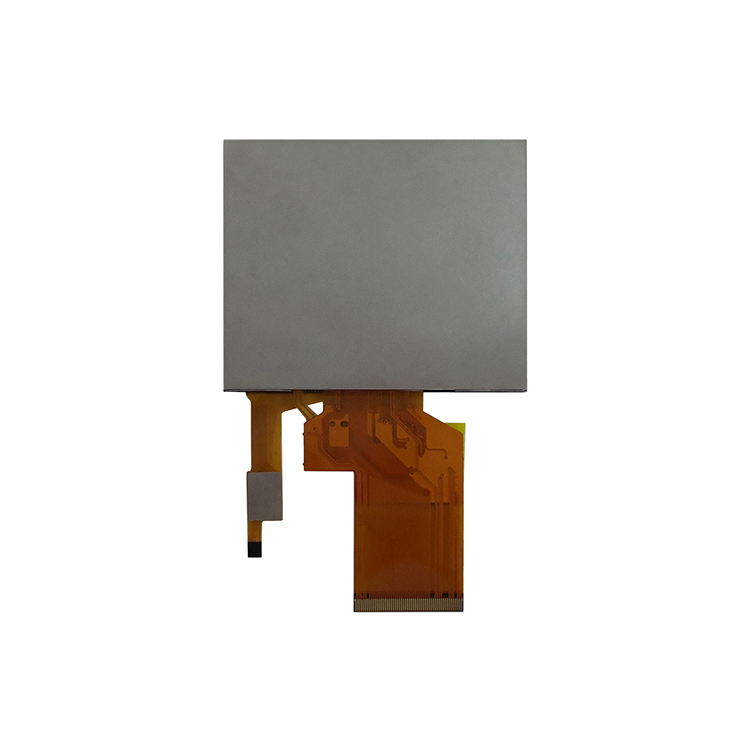

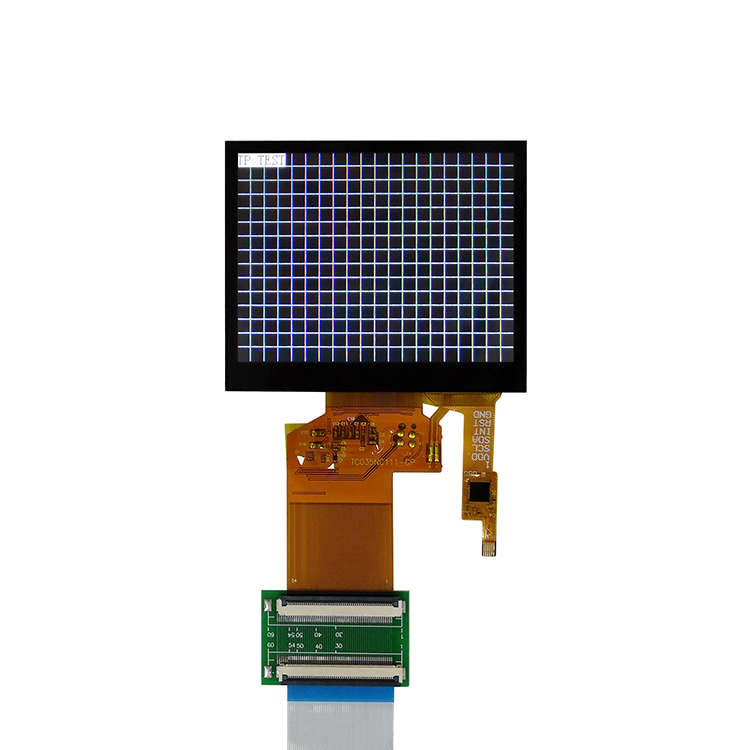

TFT LCD Display 3.5 inch,320(RGB)x240

TFT LCD Display 3.5 inch,320(RGB)x240

TFT LCD Display 3.5 inch,320(RGB)x240

TFT LCD Display 3.5 inch,320(RGB)x240

TFT LCD Display 3.5 inch,320(RGB)x240

TFT LCD Display 3.5 inch,320(RGB)x240

TFT LCD Display 3.5 inch,320(RGB)x240

Size: 3.5 TFT
Controller IC: HX8238-D
Resolution:320(RGB)x240
Interface: Digital 24-bit RGB/SERIAL RGB/CCIR656/CCIR601
Product description: TFT LCD Display 3.5 inch,320(RGB)x240, touchscreen with hdmi board
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA TFT 3.5 is High Resolution 230,400 Dots (320 RGB x 240) FW035TFT is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as

switching devices. This product is composed of a TFT LCD panel, driver ICs, FPC and a

backlight unit.

GENERAL SPECIFICATION

Display Type:	TFT display
Display Mode:	Passive Matrix
Model Number:	FW035TFT
Diagonal Screen size:	3.5 inch
Interface:	Digital 24-bit RGB/SERIAL RGB/CCIR656/CCIR601
Backlight:	4 Chip White LED
Number of Pixels:	320(RGB)x240
Panel Size:	76.9(W) x 63.9(H) x 3.3(D) (mm)
Driver IC:	HX8238-D
Active Area:	70.08(H) x 52.56(V) (mm)
Display Mode:	Normally white/Transmissive
Pixel Size:	73x 219 (mm)
Weight:	40 (g)
Operating Temperature:	-40~85°

DRAWING

INTERFACE PIN FUNCTION
