Size: 8.8 TFT
Controller IC: ILI6482B
Resolution:480(RGB)x1920
Interface: MIPI
Product description: TFT LCD Display 8.8 inch,480(RGB)x1920
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA TFT Display model HSD088IPW1-A is a color active matrix thin film transistor (TFT)

liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 8.8 (1:4) inch diagonally measured active display area with (480 horizontal by 1920 vertical pixel)

GENERAL SPECIFICATION

Display Type:	TFT display
Display Mode:	Passive Matrix
Model Number:	HSD088IPW1-A
Diagonal Screen size:	8.8 inch
Interface:	480(RGB)x1920
Backlight:	White LED
Number of Pixels:	480(RGB)x1920
Panel Size:	64.3 x 231.3 (typ)(mm)
Driver IC:	TBD
Active Area:	54.72(H) x 218.88(V)(mm)
Display Mode:	Normally white/Transmissive
Pixel pitch:	0.114(H) x 0.114(V)
Weight:	(100)g (Typ.)
NTSC:	50 (typ.)

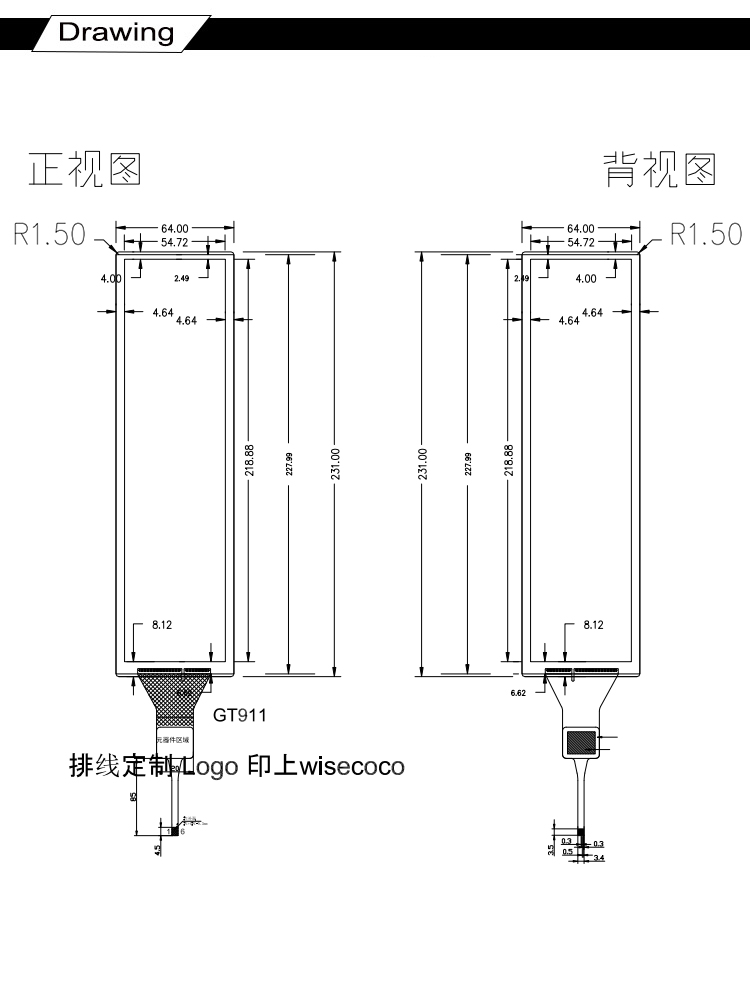

DRAWING

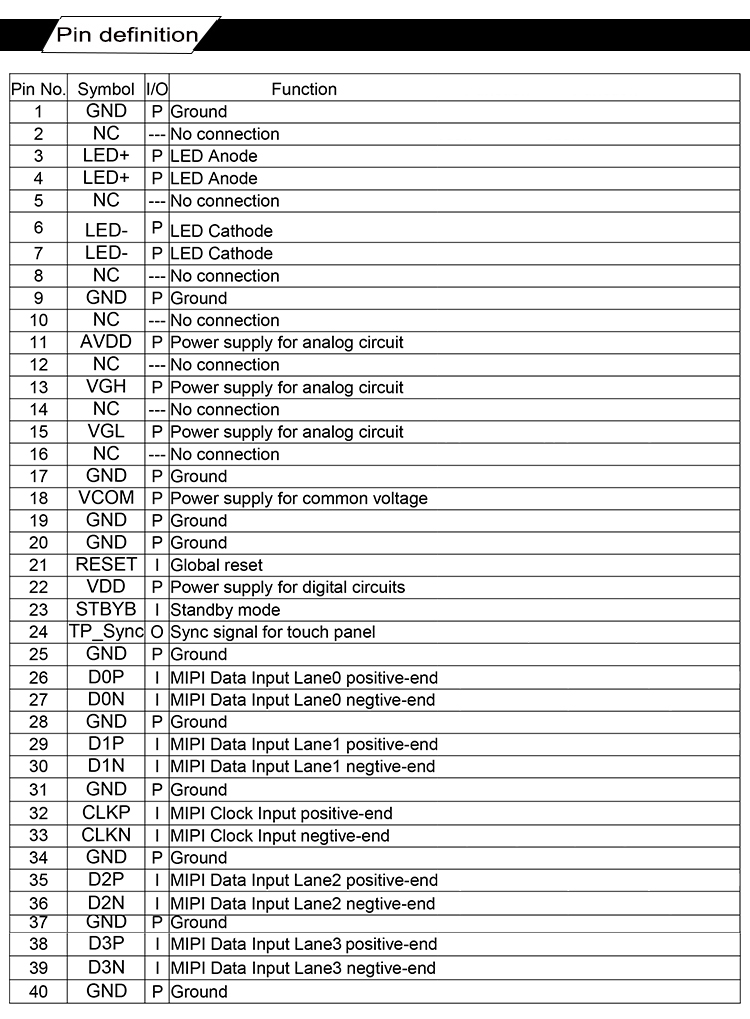

INTERFACE PIN FUNCTION
