0.23"

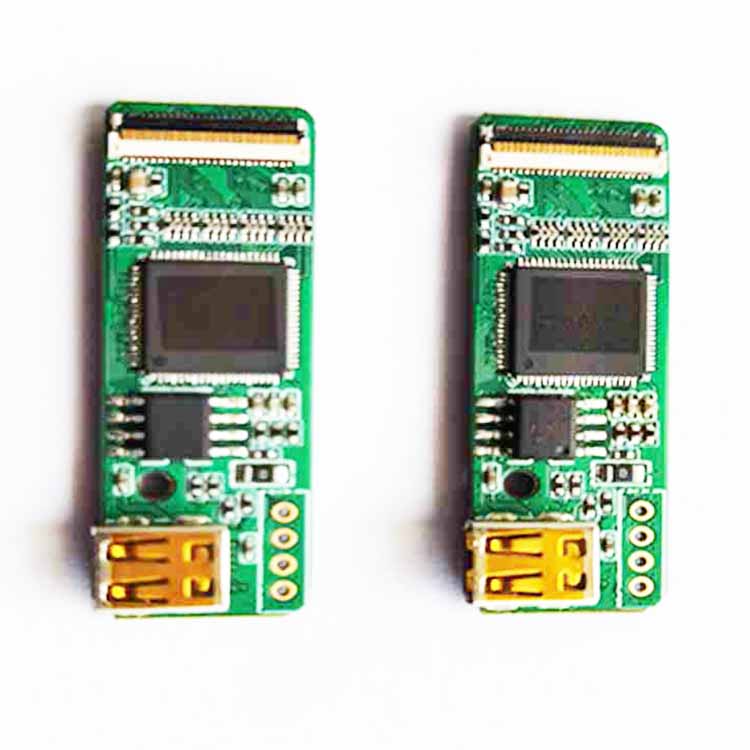

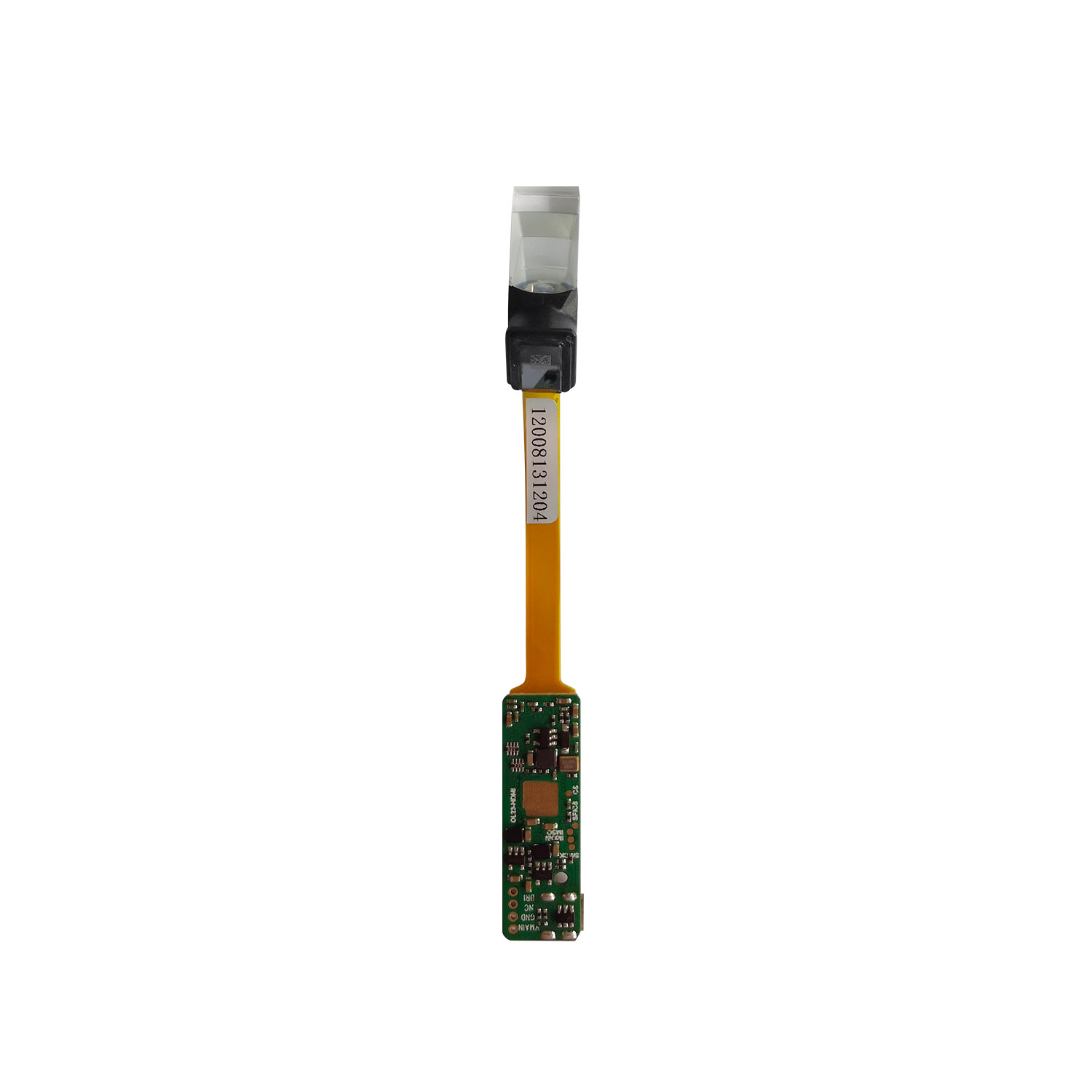

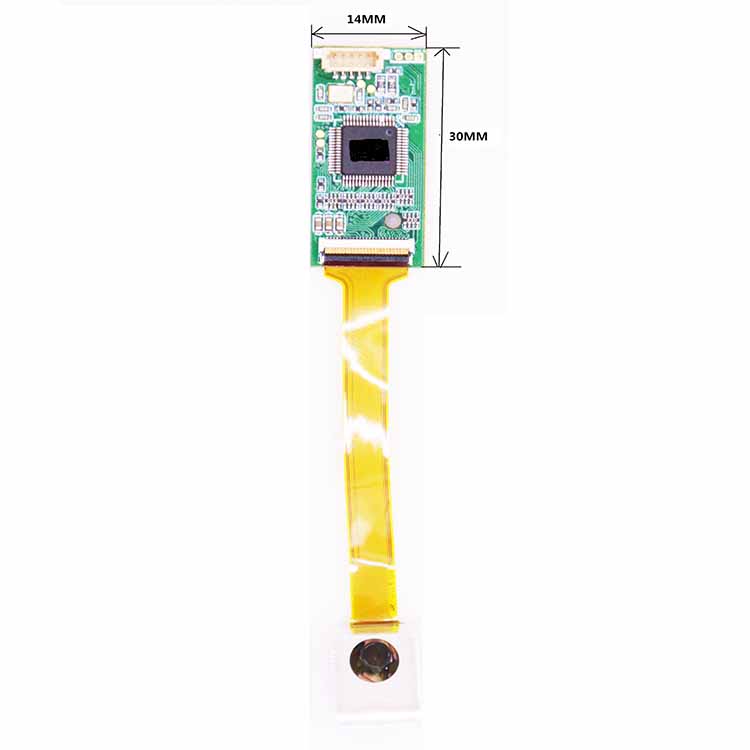

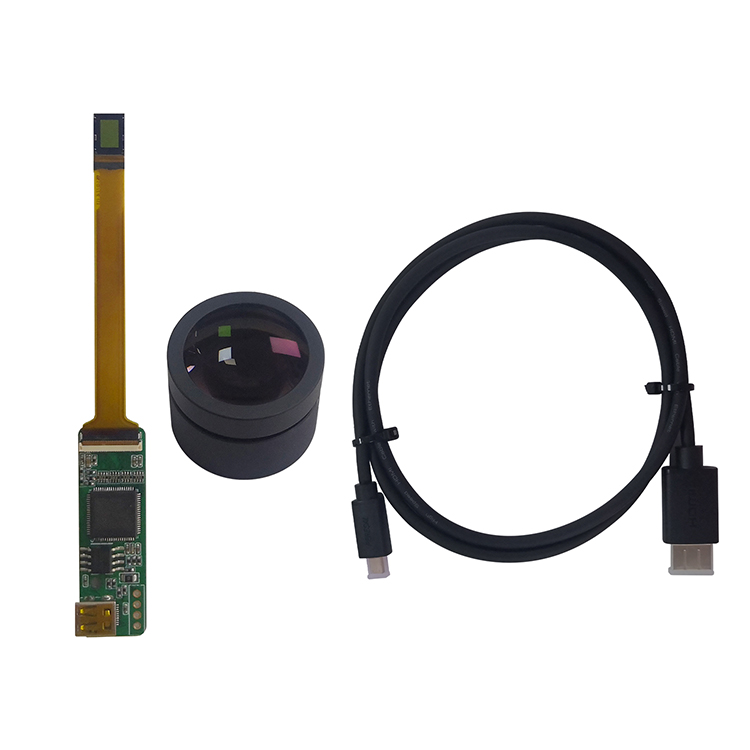

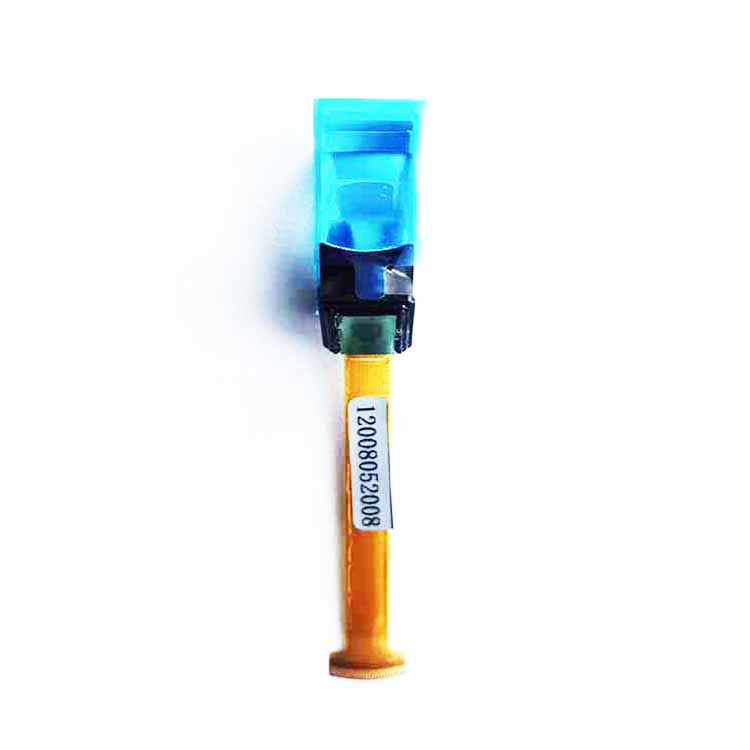

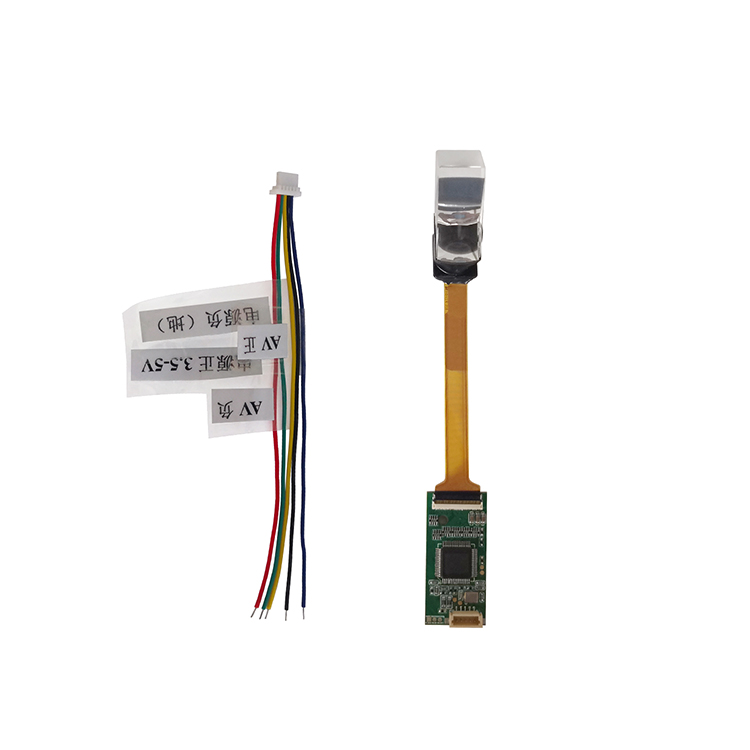

  • 0.23 inch AMOLED Microdisplay, 640(RGB)X400 with HDMI/CVBS board, for AR glasses and Smart Helmet
  • 0.23 inch AMOLED Microdisplay, 640(RGB)X400 with HDMI/CVBS board, for AR glasses and Smart Helmet
  • 0.23 inch AMOLED Microdisplay, 640(RGB)X400 with HDMI/CVBS board, for AR glasses and Smart Helmet
  • 0.23 inch AMOLED Microdisplay, 640(RGB)X400 with HDMI/CVBS board, for AR glasses and Smart Helmet
0.23 inch AMOLED Microdisplay, 640(RGB)X400 with HDMI/CVBS board, for AR glasses and Smart Helmet0.23 inch AMOLED Microdisplay, 640(RGB)X400 with HDMI/CVBS board, for AR glasses and Smart Helmet0.23 inch AMOLED Microdisplay, 640(RGB)X400 with HDMI/CVBS board, for AR glasses and Smart Helmet0.23 inch AMOLED Microdisplay, 640(RGB)X400 with HDMI/CVBS board, for AR glasses and Smart Helmet

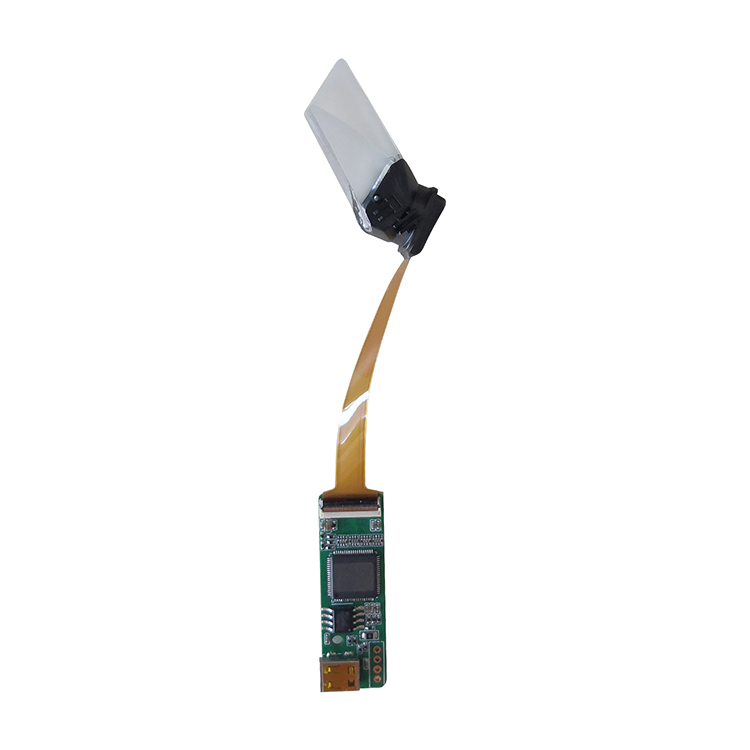

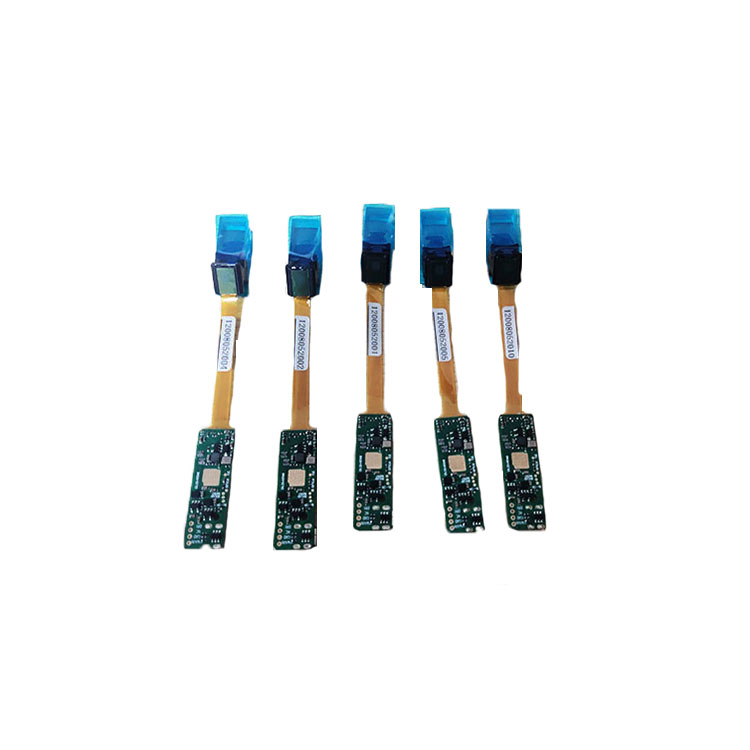

0.23 inch AMOLED Microdisplay, 640(RGB)X400 with HDMI/CVBS board, for AR glasses and Smart Helmet

  • Display Size:0.23
  • Resolution:640x400dots
  • Interface:parallel RGB 24-bit, YCbCr 24-bit and YCbCr 16-bit input
  • Pin:51P
  • Product description: The ECX336AF is a 0.6 cm (type 0.23) diagonal, 640 (RGB) × 400 dots active matrix color OLED panel module using single-crystal silicon transistors.
  • INQUIRY

0.23 inch AMOLED Microdisplay, 640(RGB)X400 with HDMI/CVBS board, for AR glasses and Smart Helmet

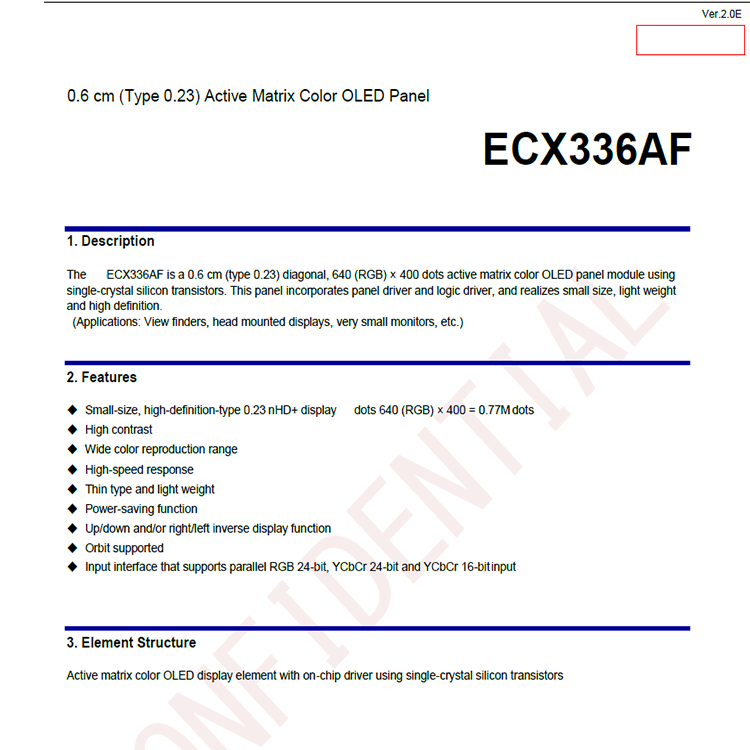

DESCRIPTION

The ECX336AF is a 0.6 cm (type 0.23) diagonal, 640 (RGB) × 400 dots active matrix color OLED panel module using
single-crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight
and high definition.
(Applications: View finders, head mounted displays, very small monitors, etc.)

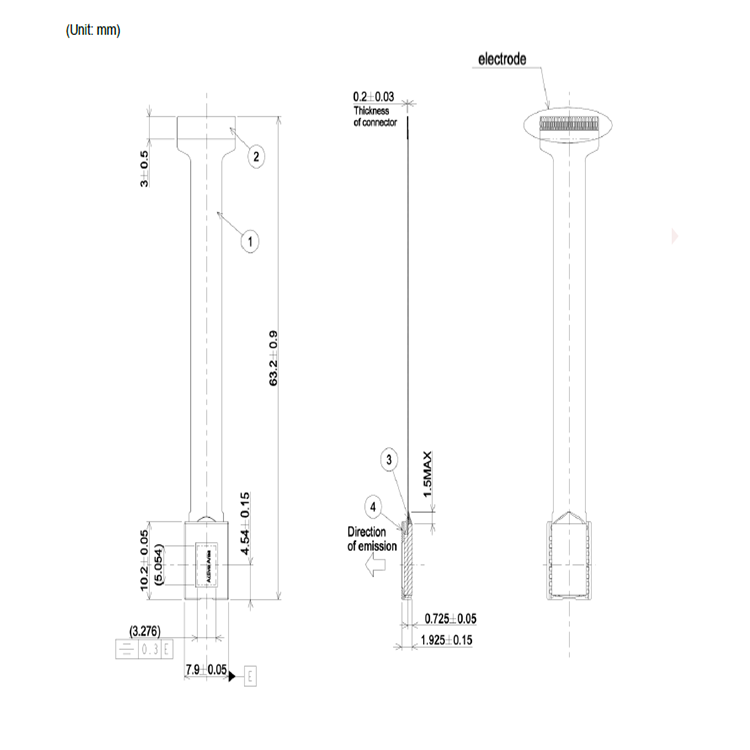

DRAWING


SPECIFICATIONS

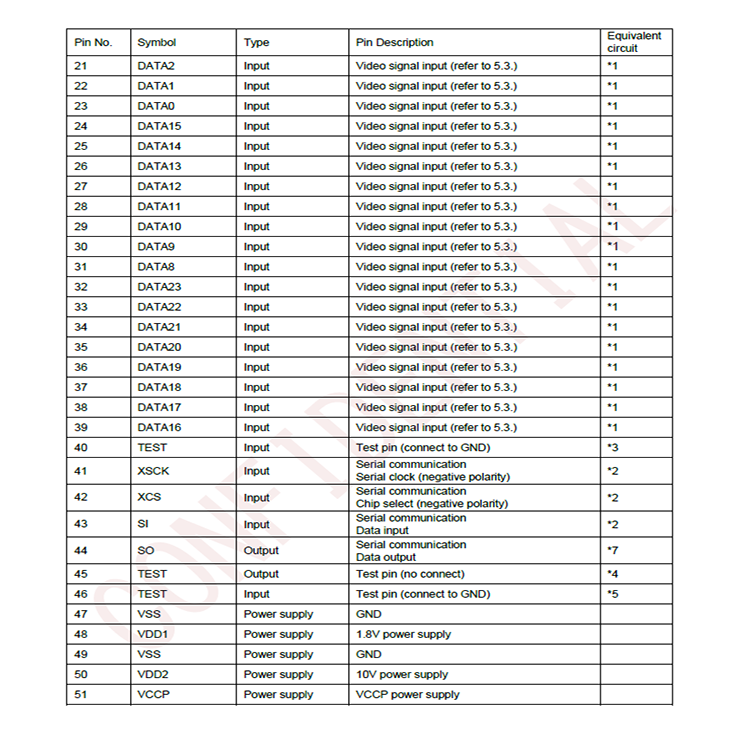

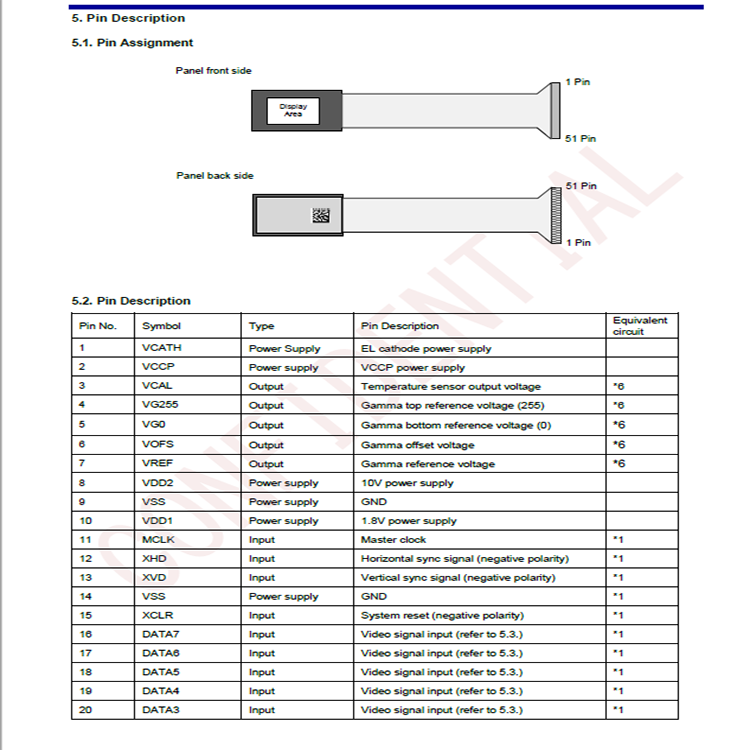

Interface Pin Function


General Specification



Display Type AM-OLED, OLED Display Brand SONY
Interface Screen Size 0.23
Orientation Landscape Display Color Full Color
Manufacturer SONY Resolution 640 (RGB)×400
Driver IC - Consumption -
Active Area(mm) -
Bezel Area(mm) -
Luminance 800 cd/m² -3000 cd/m²(Typ.) Viewing Angle -55。~55。
Color Depth 16.7M 100% Mass -
Refresh Rate - Signal Type

RGB

Voltage Supply - Operating Temp -30 ~ 70 °C
Storage Temp -40 ~ 85 °C Aspect Ratio 16:9 (H:V)
Mode Name ECX336AF Screen Type AM-OLED,OLED
Arrangement - Outline(mm) -
Treatment - Response -
Work Mode - Backlight No B/L
Used For AR Glass/Telescope/Gunsight/Thermal imager Touch Panel none
Contrast Ratio >100,000 : 1 Outdoor Visibility Sunlight readable

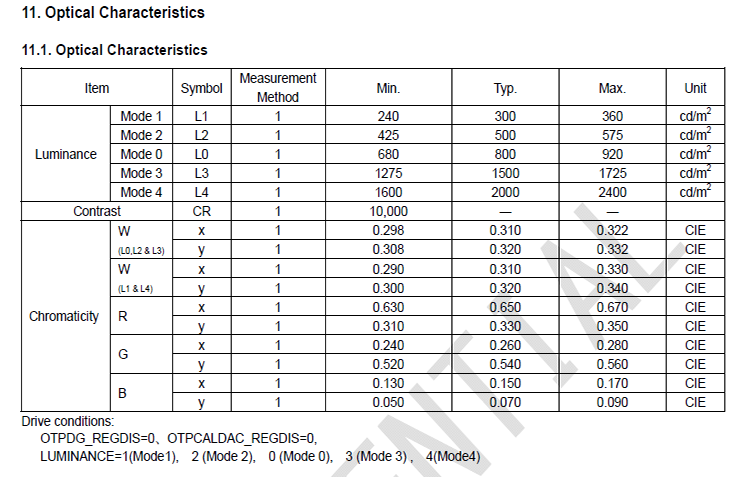

Display Features:



Electrical Characteristics
