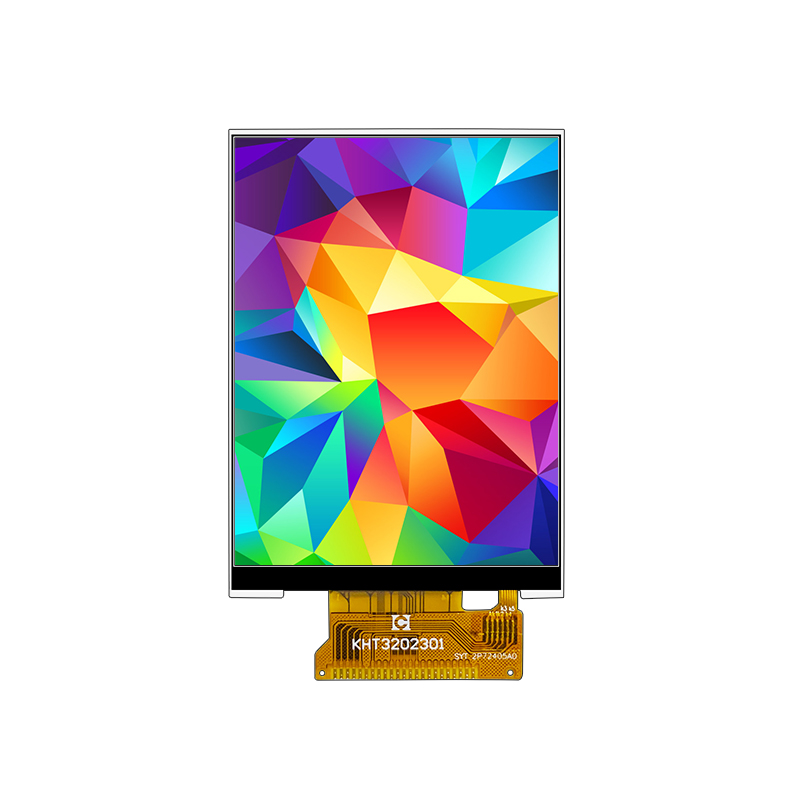

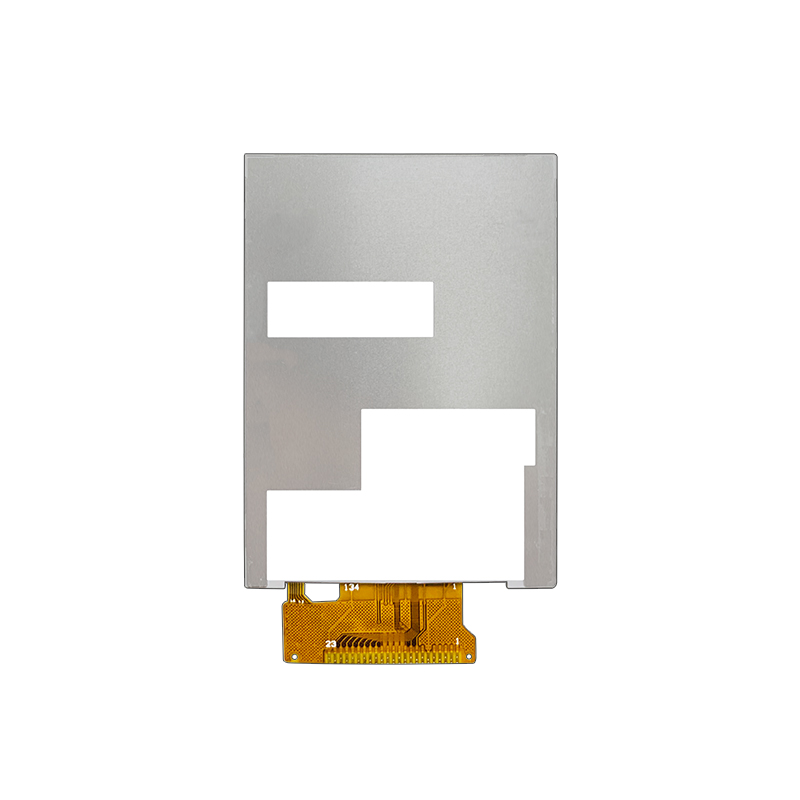

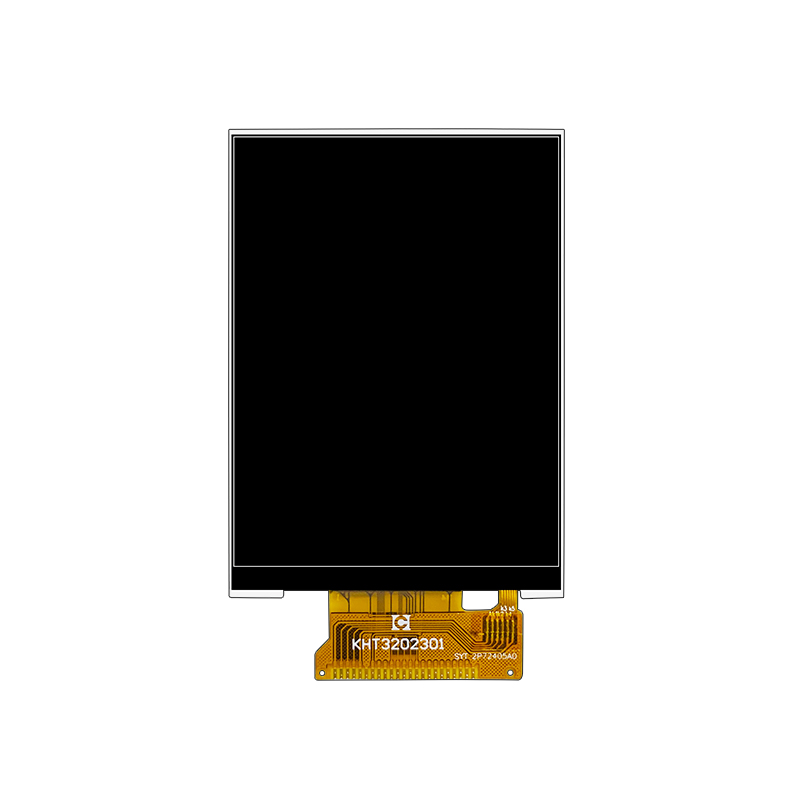

3.2 inch 320*240 IPS Small Strip TFT LCD Screen with CTP Capacitive Display Panel Module GC9306 MCU 23Pin

3.2 inch 320*240 IPS Small Strip TFT LCD Screen with CTP Capacitive Display Panel Module GC9306 MCU 23Pin

3.2 inch 320*240 IPS Small Strip TFT LCD Screen with CTP Capacitive Display Panel Module GC9306 MCU 23Pin

3.2 inch 320*240 IPS Small Strip TFT LCD Screen with CTP Capacitive Display Panel Module GC9306 MCU 23Pin

3.2 inch 320*240 IPS Small Strip TFT LCD Screen with CTP Capacitive Display Panel Module GC9306 MCU 23Pin

3.2 inch 320*240 IPS Small Strip TFT LCD Screen with CTP Capacitive Display Panel Module GC9306 MCU 23Pin

3.2 inch 320*240 IPS Small Strip TFT LCD Screen with CTP Capacitive Display Panel Module GC9306 MCU 23Pin

Glass type：TFT—Standard white
Pixel size:0.2025(H)*0.2025(V)
Resolution: 240*320
Interface:MCU
Product description: Hicenda Technology Co.,ltd can supply high quality 3.2 inch small tft display for medical or industrial device.320*240 dot matrix 3.2 inch 3.2" mipi dsi interface tft lcd display 240*320 pixels
INQUIRY

1. Display Specifications

LCD Size: 3.2 inches
Dot Matrix Size: 320*240
Backlight Type:7 LEDs
Hardware Interface: MCU
Driver IC: GC9306
Working Power Supply: 3.0V
PIN NO: 23Pin

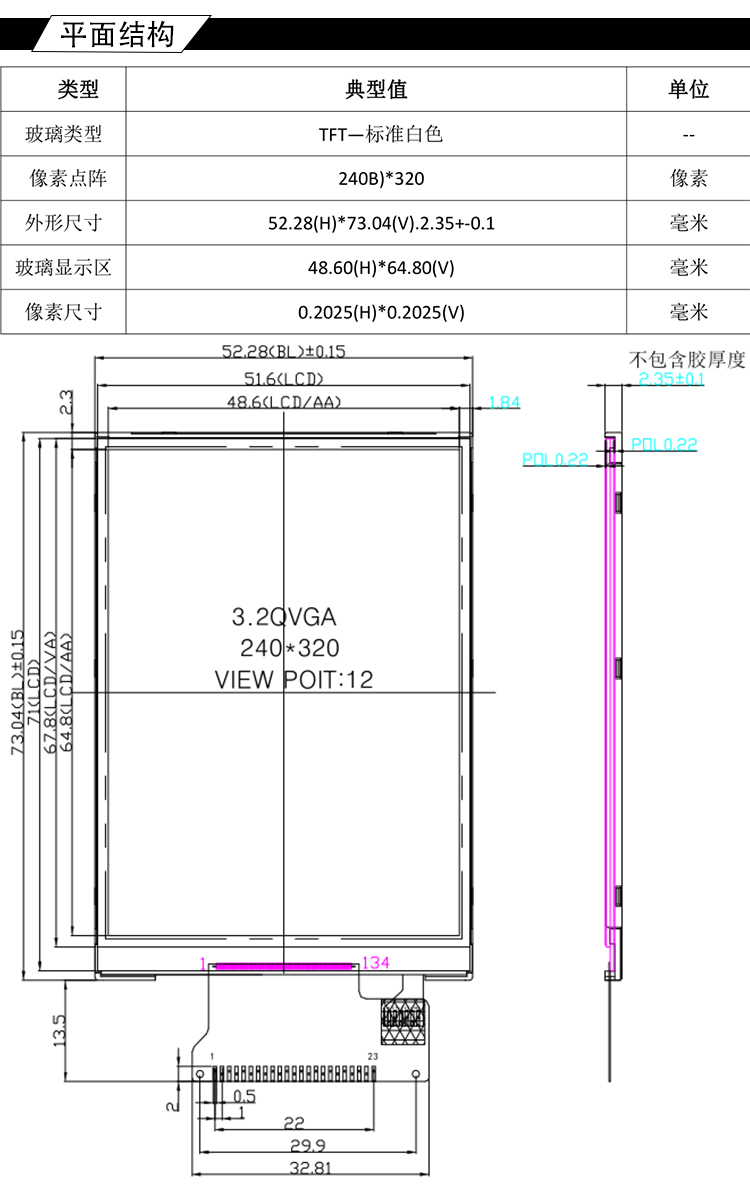

Display Area:48.6x64.84mm
Size: 52.28(H)x73.04(V)x2.35(D)
Viewing Direction: 12 O'CLOCK

PINo Symbol Description

Pin	Define
1	GND GroundD
2	VCC Power 3.3V
3	SCL Serial clock pin.
4	SDA Serial data input
5	RES LCM Reset pin
6	DC Data/Command Control
7	CS Chip Select
8	BLK Backlight control pin
