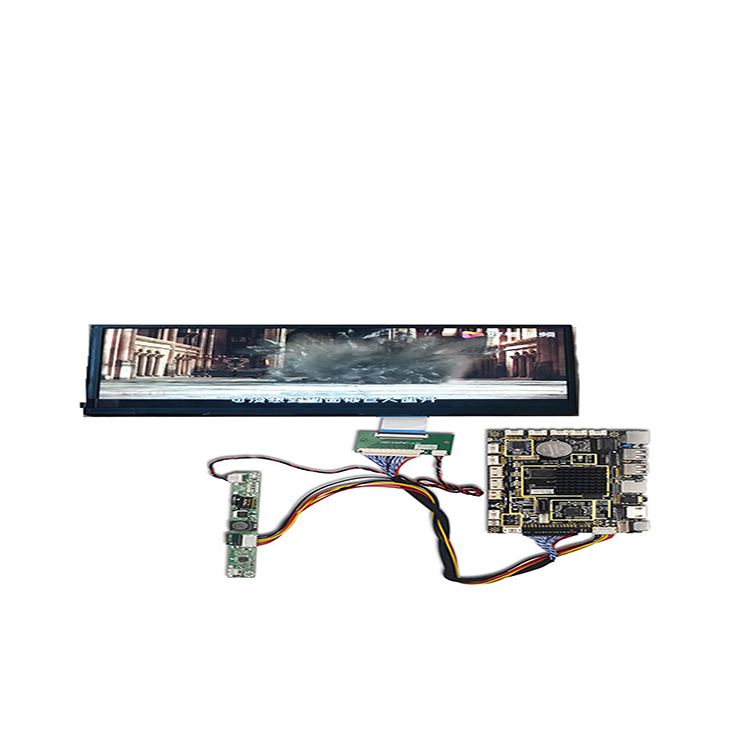

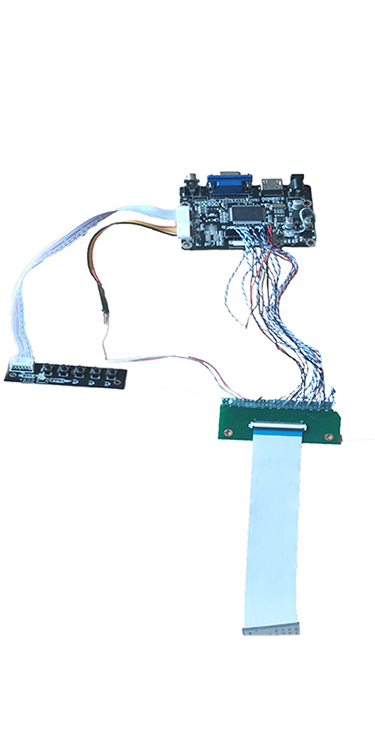

12.3 inch 900 cd/m2 IPS TFT LCD display with touch panel+hdmi board for automotive stretched bar

12.3 inch 900 cd/m2 IPS TFT LCD display with touch panel+hdmi board for automotive stretched bar

12.3 inch 900 cd/m2 IPS TFT LCD display with touch panel+hdmi board for automotive stretched bar

12.3 inch 900 cd/m2 IPS TFT LCD display with touch panel+hdmi board for automotive stretched bar

12.3 inch 900 cd/m2 IPS TFT LCD display with touch panel+hdmi board for automotive stretched bar

Active area: 292.032(H) x 109.512 (V)
Resolution:1920 RGBx720
Display mode: TFT
Pins No: 50 pins
Product description: 12.3 inch 1000cd/m2 high brightness ips automotive stretched bar tft lcd display touch screen panel 1920x720 HDMI controller board
INQUIRY

192x64 Dot Matrix Graphic LCD Display Module Panel

DESCRIPTION

You must of by now seen our incredible 12.3 inch TFT with wide temperature range, incredible resolution and more making it perfect for automation applications.

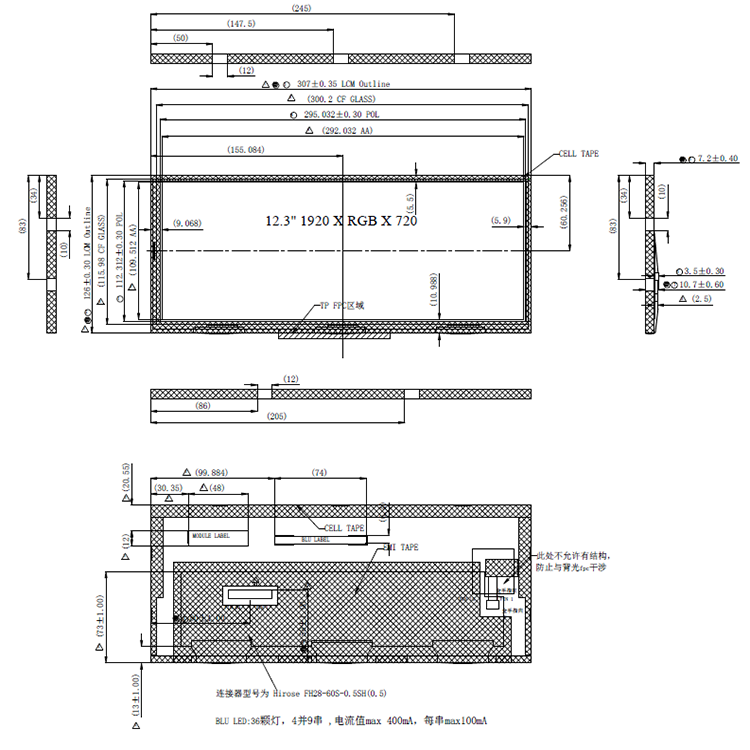

DRAWING

SPECIFICATIONS

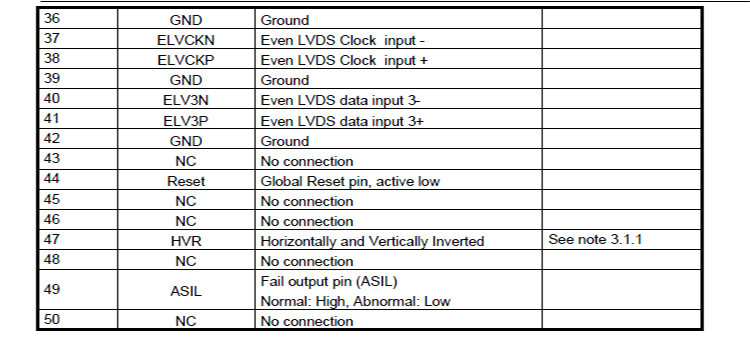

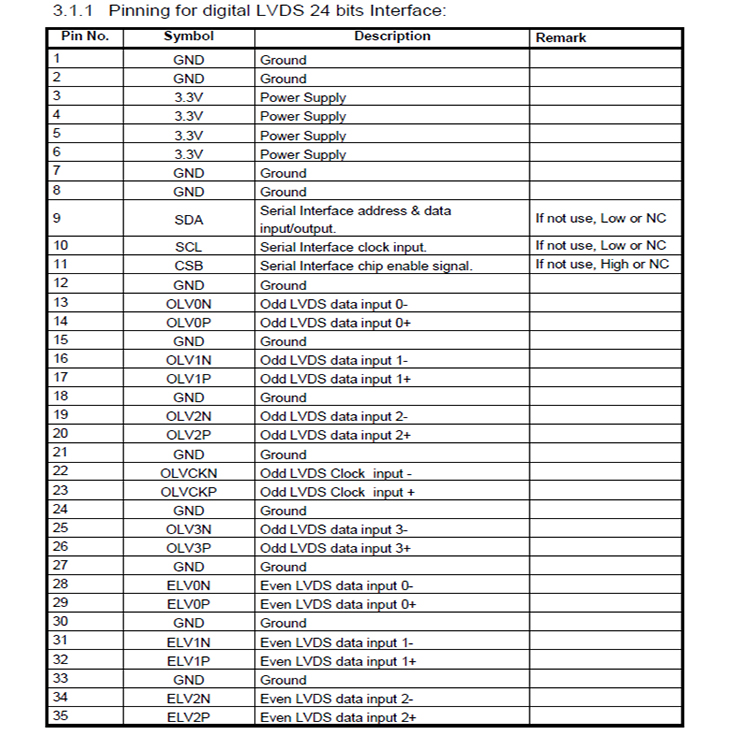

Interface Pin Function

General Specification

General Features

Diagonal Size

12.3 inch

Type

Full color, transmissive, normally
black, a-Si TFT active matrix,
super-wide view, COG drivers

Pixel Format

1920(RGB)×720

Configuration

RGB Vertical Stripe

Active Area

292.032(H) x 109.512 (V)

Outline Dim.

tbd

Bezel Area

-

Treatment

Antiglare

Luminance

900 cd/m² (Typ.)

Contrast Ratio

Min 900:1 (Typ.) (TM)

View Direction

Symmetry

Response Time

18/17 (Typ.)(Tr/Td) ms

Viewing Angle

85/85/85/85 (Typ.)(CR≥10)

Operating Mode

IPS Pro, Normally Black, Transmissive

Support Color

16.7M 70% (CIE1931)

Light Source

10S5P WLED , 30K hours , No Driver

Weight

-

Designed For

Automotive display;Outdoor Advertising

Frame Rate

60Hz

Touch Panel

yes

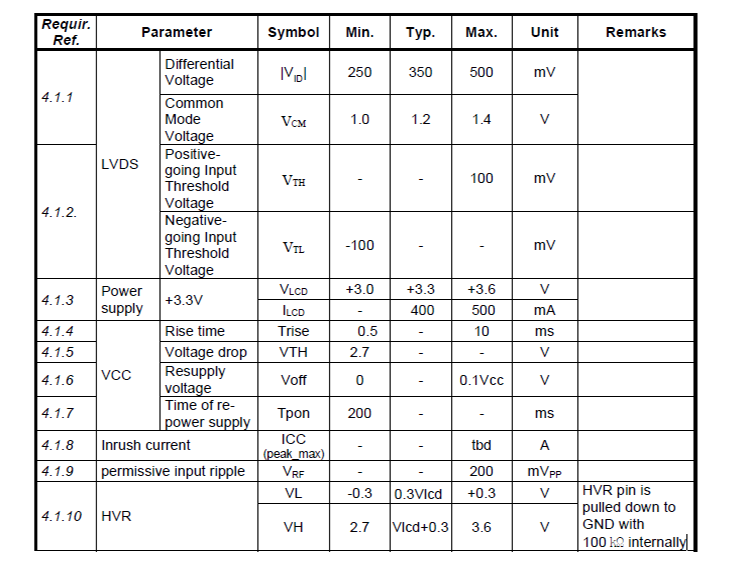

Electrical Characteristics
