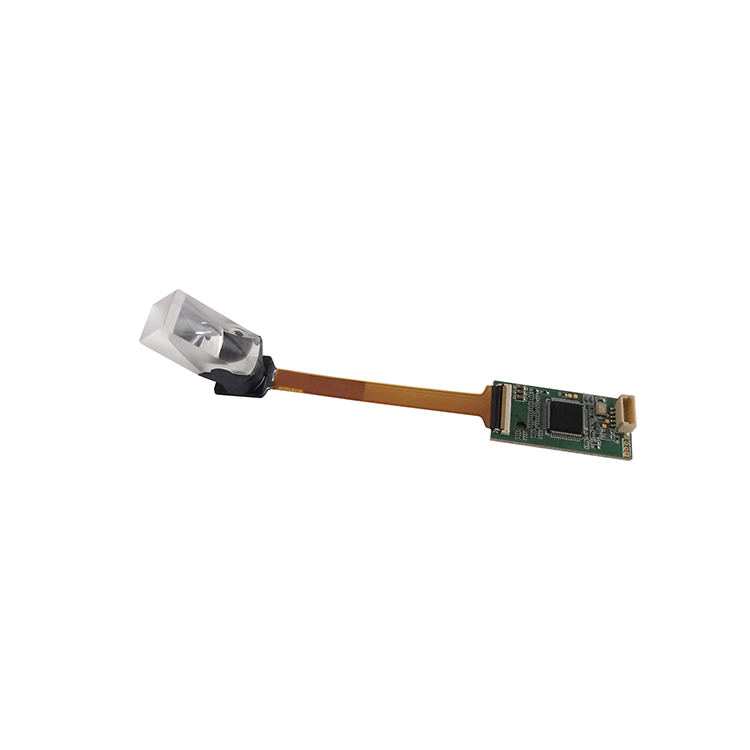

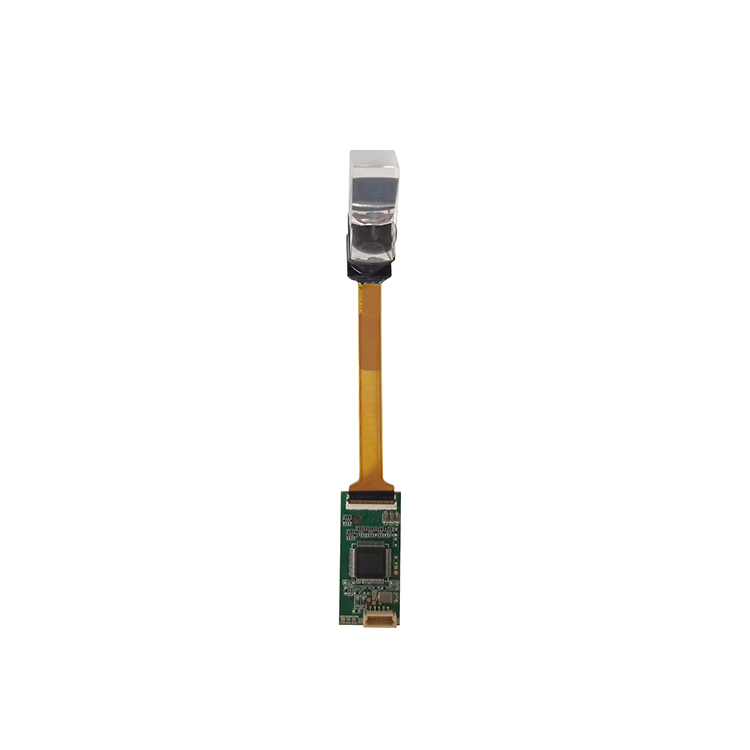

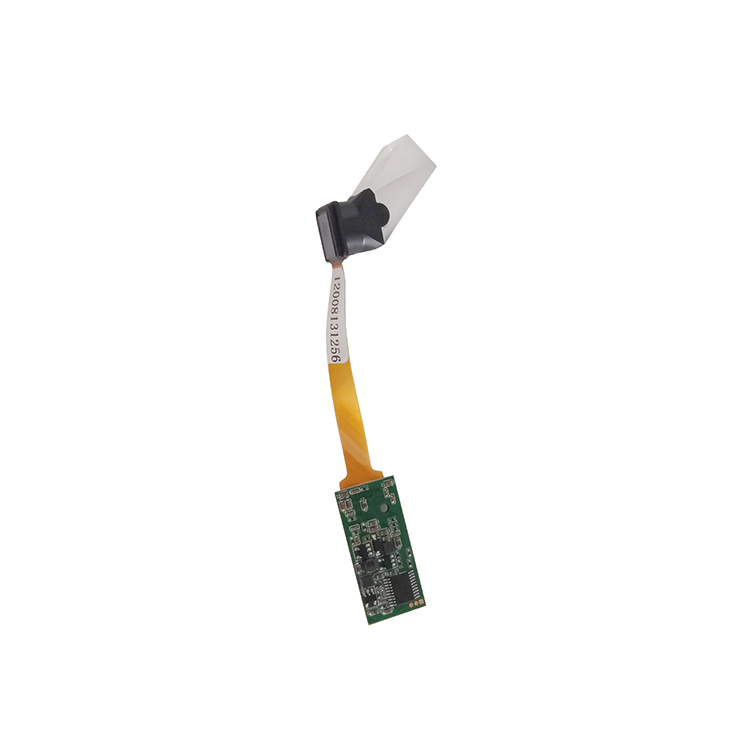

OLED Microdisplay 0.23 inch 640(RGB)x400 for AR VR

OLED Microdisplay 0.23 inch 640(RGB)x400 for AR VR

OLED Microdisplay 0.23 inch 640(RGB)x400 for AR VR

OLED Microdisplay 0.23 inch 640(RGB)x400 for AR VR

OLED Microdisplay 0.23 inch 640(RGB)x400 for AR VR

OLED Microdisplay 0.23 inch 640(RGB)x400 for AR VR

OLED Microdisplay 0.23 inch 640(RGB)x400 for AR VR

Size: 0.23

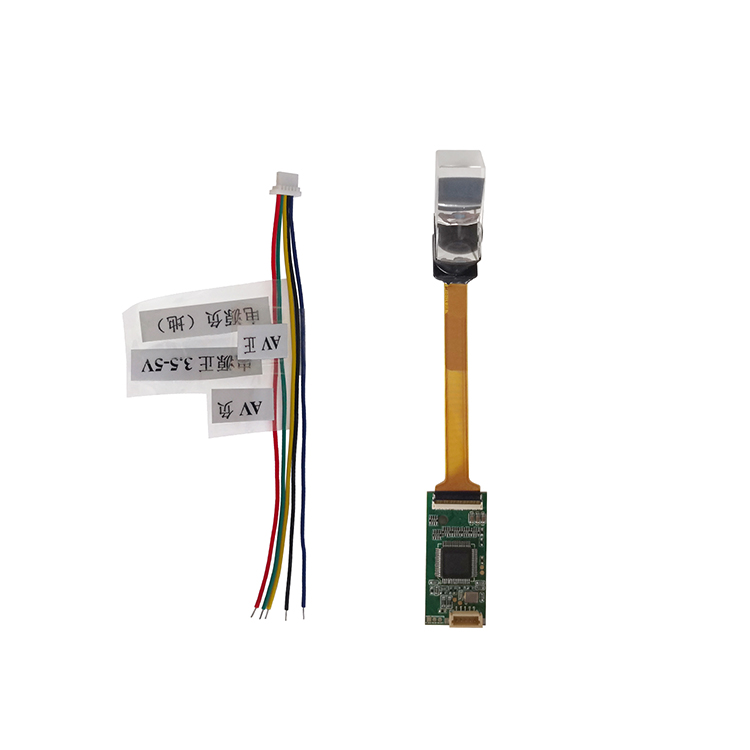

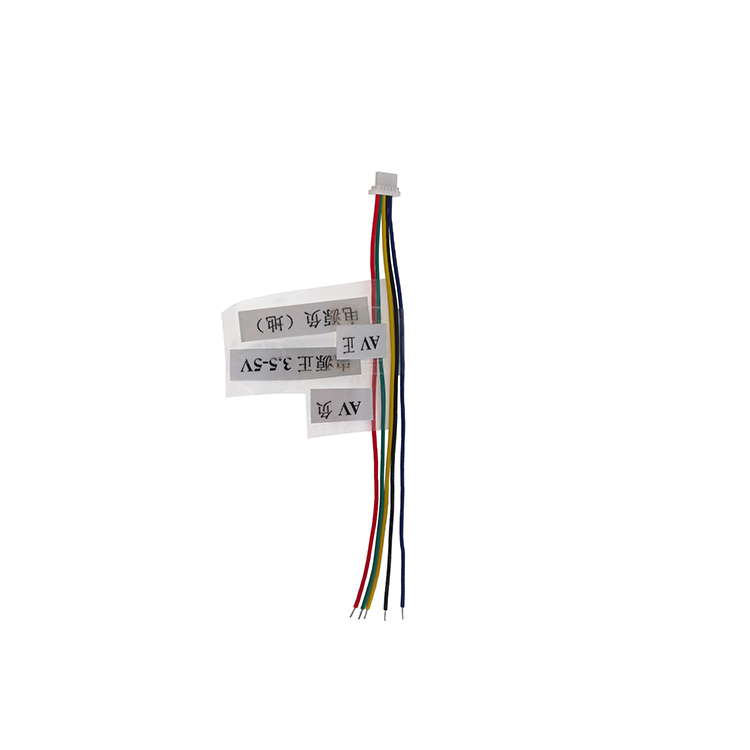

Driver Board: CVBS Board
Resolution: 0.23 inch AMOLED Microdisplay, 640(RGB)X400
Luminance:800 cd/m2/3000 cd/m2
Product description: OLED Microdisplay 0.23 inch 640(RGB)x400 for AR VR
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

The HGECX336AF is a 0.6 cm (type 0.23) diagonal, 640 (RGB) × 400 dots active matrix color OLED panel module using
single-crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight
and high definition.
(Applications: View finders, head mounted displays, very small monitors, etc.)

GENERAL SPECIFICATION

Display Type:	oled display
Display Mode:	Passive Matrix
Model Number:	HGECX336AF
Diagonal Screen size:	0.23 Inch
Interface:	parallel RGB 24-bit, YCbCr 24-bit and YCbCr 16-bit input
Number of Pixels:	640 (RGB) × 400
Panel Size:	15.6 x 13.6 x 0.2 (mm)
Active Area:	8.143x 6.146 (mm)
Weight:	TBD
Operating Temperature:	-10~70°

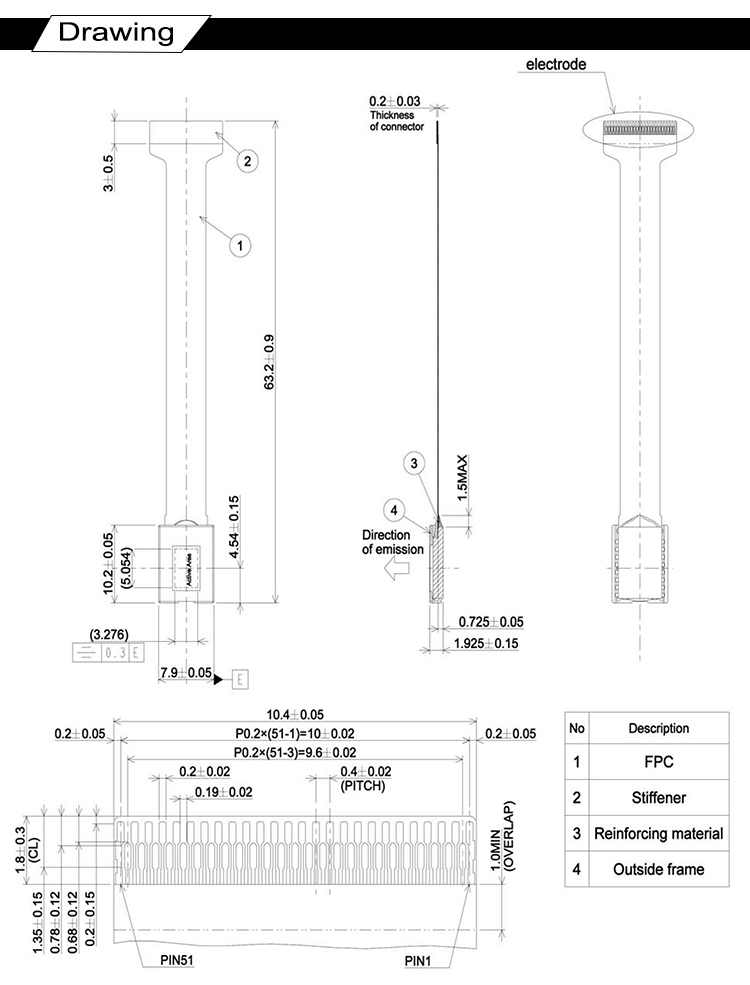

DRAWING

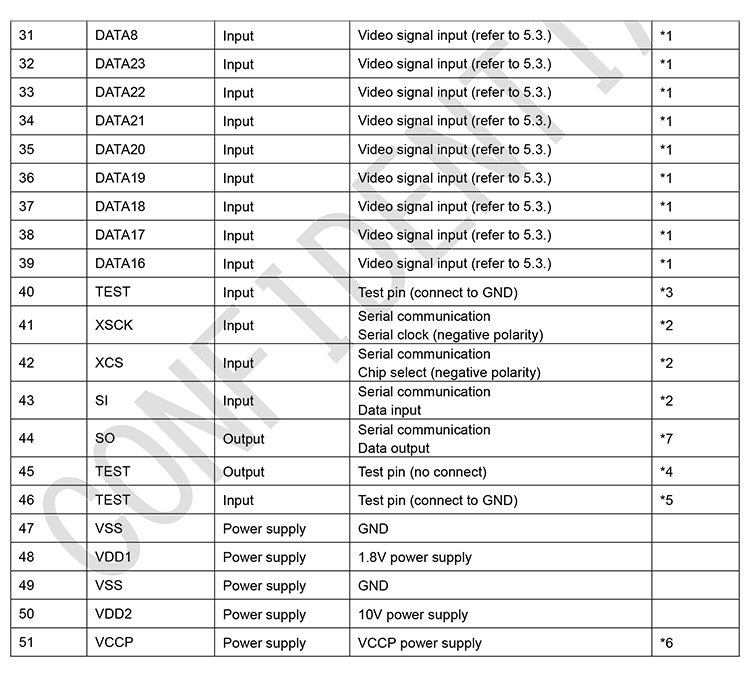

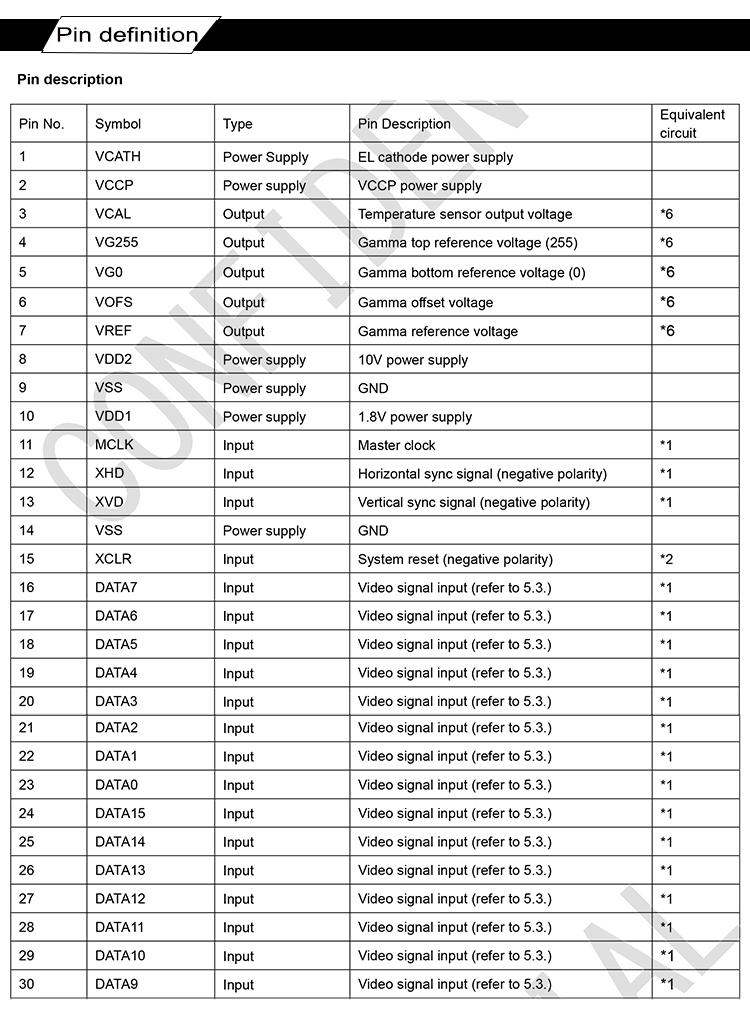

INTERFACE PIN FUNCTION
