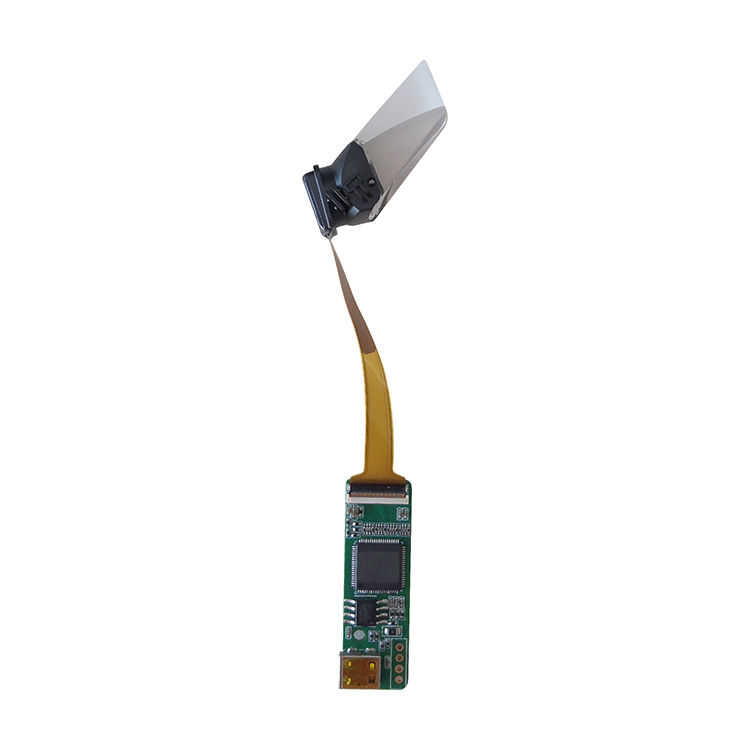

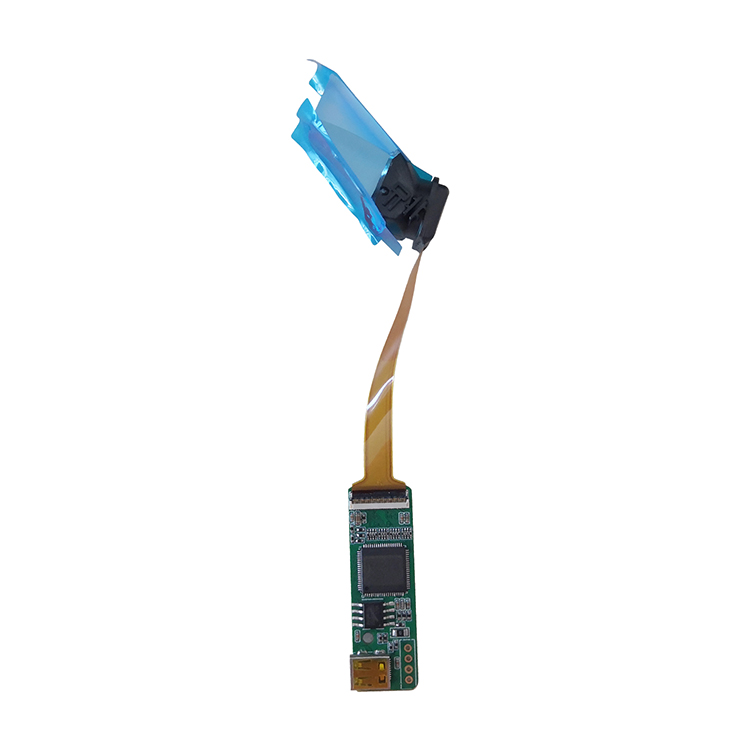

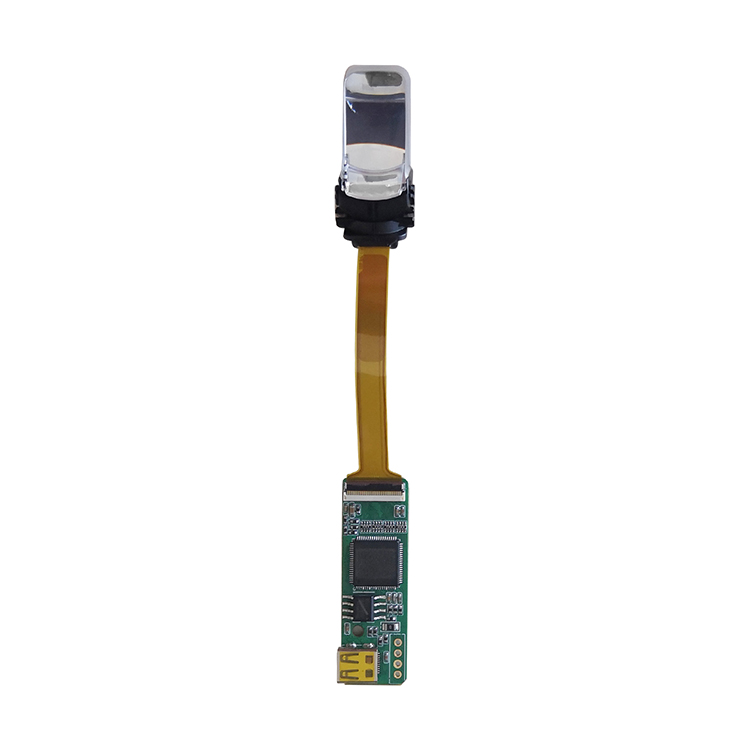

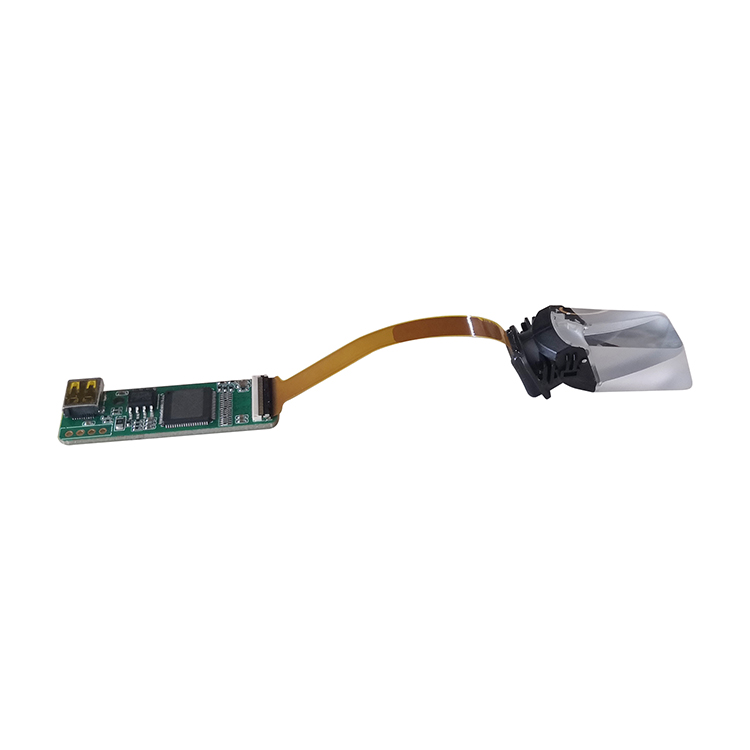

Micro AMOLED Display 0.23 inch  640x400 high resolution 4000nits micro oled screen for AR VR headsets

Please kindly contact us for full data sheet of the display.

DESCRIPTION

The micro oled screen panel is a 0.6 cm (type 0.23) diagonal, with high resolution 640 (RGB) × 400 full color micro OLED panel module using single-crystal silicon transistors and silicon wafers. this OLED microdisplay is considered to be the current state-of-the-art near-eye display technology which make many advantages over competing technologies

• No backlight - a direct emissive display with high contrast and a wide color gamut
• Fast refresh rate up to 60Hz
• Low power consumption (this depends on the image shown)
• Wide operation temperature range
• Good image quality
• High resolution
• impact size
• very thin and light in weight

more key features of the micro oled screen makes it very popular in the marketing and applied for many files such as industrial, medical and consumer fields

(Applications: ar devices, vr headsets,View finders, head mounted displays, very small monitors, etc.)

GENERAL SPECIFICATION

Display Type:	micro oled display
Display Mode:	Passive Matrix
Model Number:	HGECX336AF
Diagonal Screen size:	0.23 Inch
Interface:	parallel RGB 24-bit, YCbCr 24-bit and YCbCr 16-bit input
Number of Pixels:	640 (RGB) × 400
Panel Size:	15.6 x 13.6 x 0.2 (mm)
Active Area:	8.143x 6.146 (mm)
Weight:	TBD
Operating Temperature:	-10~70°

DRAWING

INTERFACE PIN FUNCTION
