Description

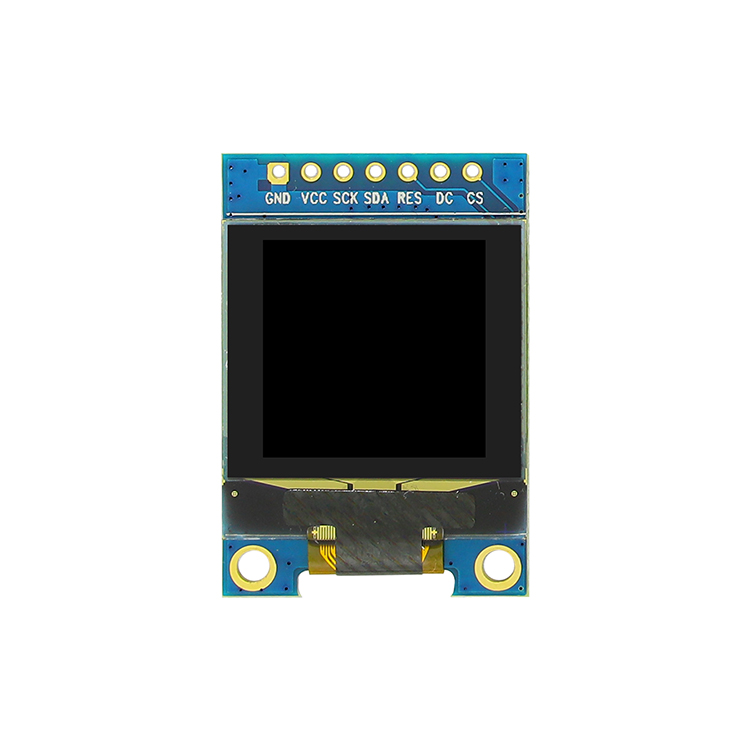

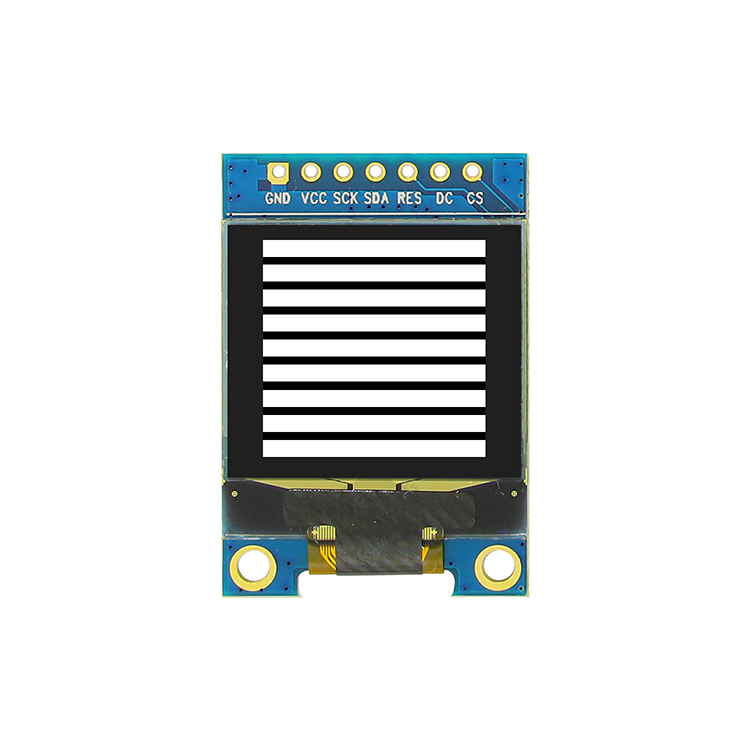

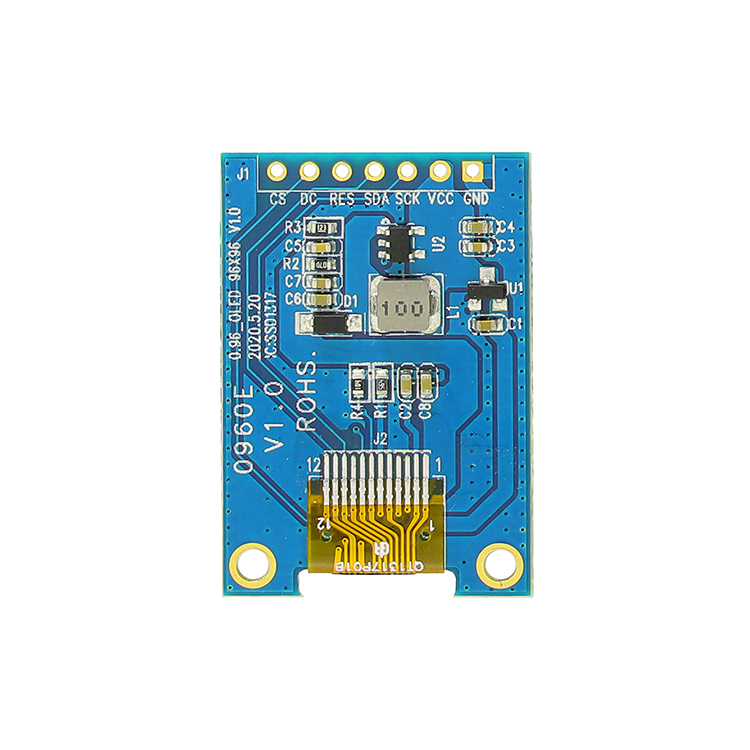

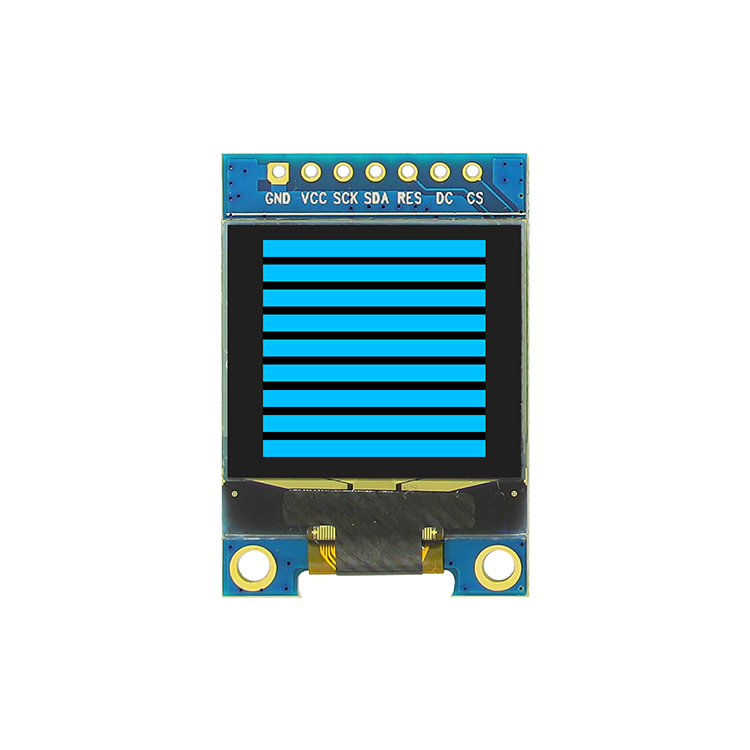

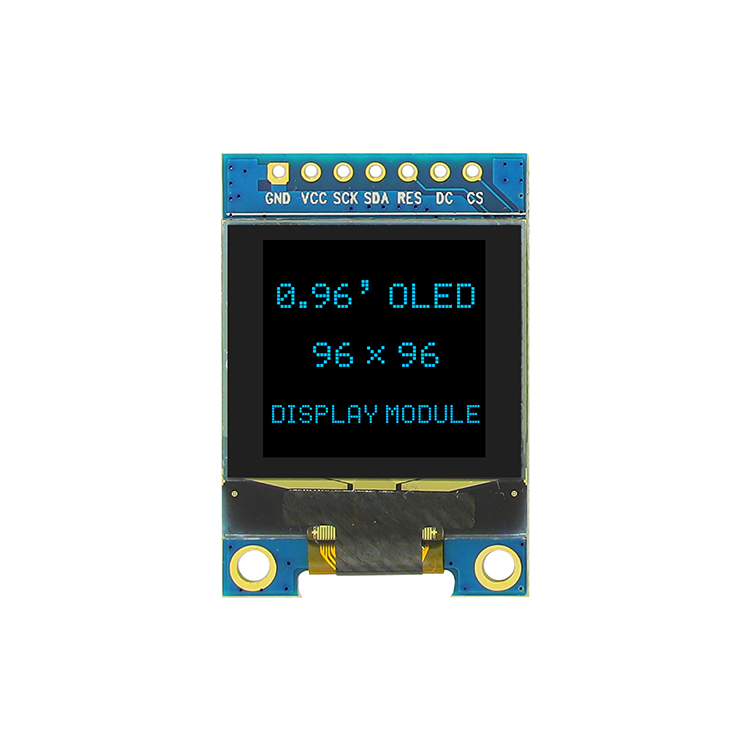

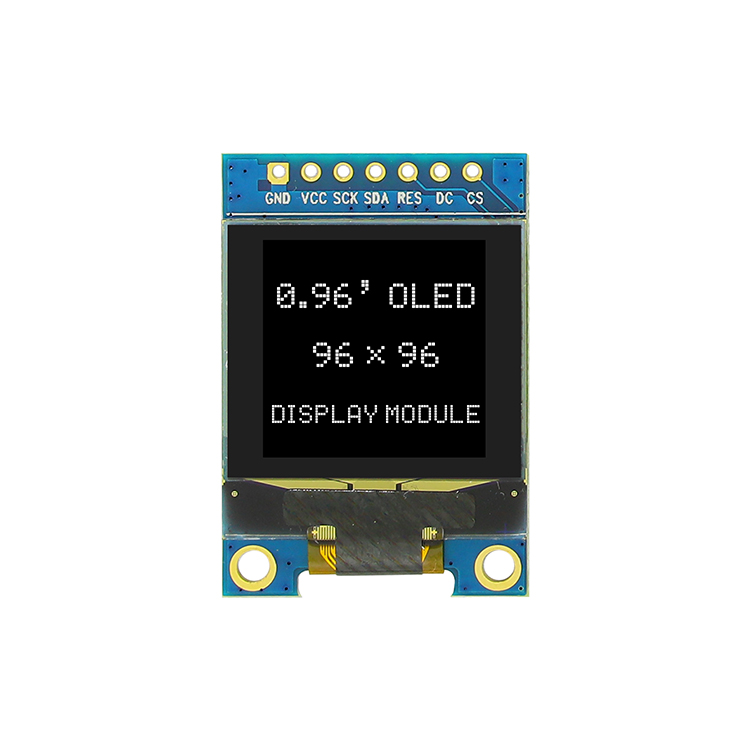

IPS OLED Module 0.96 inch OLED display module 96(H)×96(V) dots SSD1317 driver IC 4-wire SPI Interface

The HT096EWH12PG01S7V10 is a 0.96-inch square OLED display module built upon a Passive Matrix configuration. With a high-contrast resolution of 96×96 pixels and powered by the SSD1317 driver IC, this module delivers crisp, monochrome visuals (White/Blue) and supports a 4-wire SPI communication protocol. Its compact design, defined by an active area of 17.26mm × 17.26mm and a pixel pitch of 0.17mm, makes it particularly suitable for portable instrumentation, compact interfaces, and wearable electronics. The device offers reliable performance across a wide operating temperature range of -20℃ to +70℃, ensuring stability in various embedded systems and user-interactive designs.

Technical Specifications Table

Key Features and Architecture

High-Efficiency Display in Compact Dimensions

With its square 1:1 aspect ratio and high-precision 96×96 dot matrix layout, the HT096EWH12PG01S7V10 module balances spatial efficiency with graphical clarity. The display utilizes a Passive Matrix design for low-power operation while achieving excellent viewing characteristics via an IPS layout.

SSD1317 Driver IC Integration

The integrated SSD1317 driver IC is specifically tailored for high-resolution passive matrix OLED displays. It supports 1/64 duty driving, contributing to uniform brightness and optimized power efficiency. This IC architecture allows for robust refresh rates and supports grayscale rendering by pulse-width modulation (PWM) techniques.

4-Wire SPI Interface for Fast Communication

The 4-wire SPI (Serial Peripheral Interface) offers a lightweight yet high-speed communication method. This minimizes pin count without sacrificing data throughput, making the module suitable for microcontroller-driven platforms such as ARM Cortex-M series, Raspberry Pi, and other embedded SoCs.



Application Prospects and Use Cases

Precision Electronics and Wearables

Thanks to its compact form and high visibility, this OLED module is a strong candidate for wearable tech, medical devices, and compact handheld instruments. The symmetric resolution enables intuitive UI layouts, while the IPS enhancement ensures color consistency and broad viewing angles.

Industrial Interfaces

The module's durability across extended temperature ranges and its SPI interface simplify integration into industrial control panels, portable diagnostics, and environmental sensors where reliability is paramount.

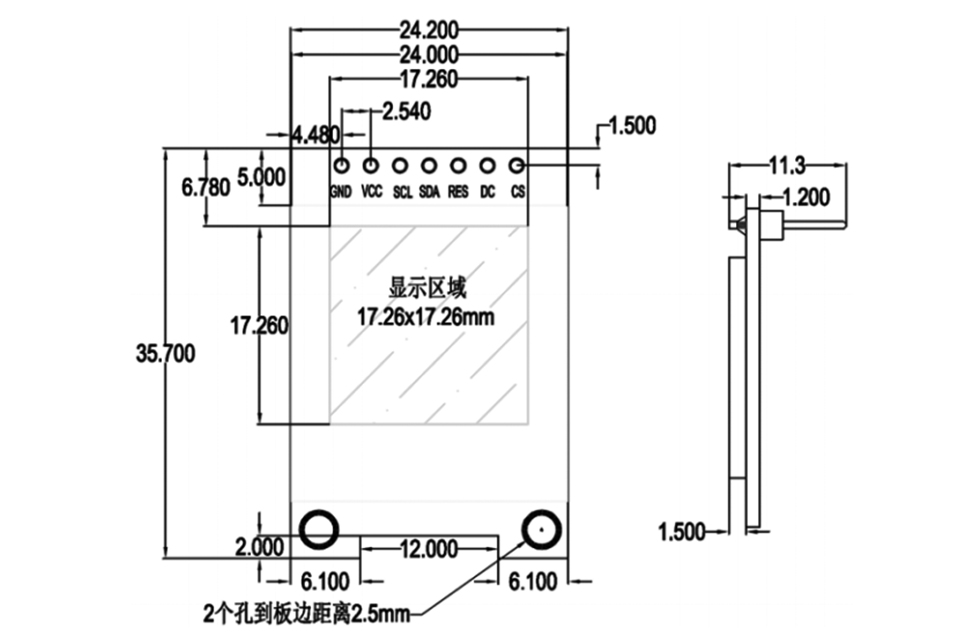

Drawing:

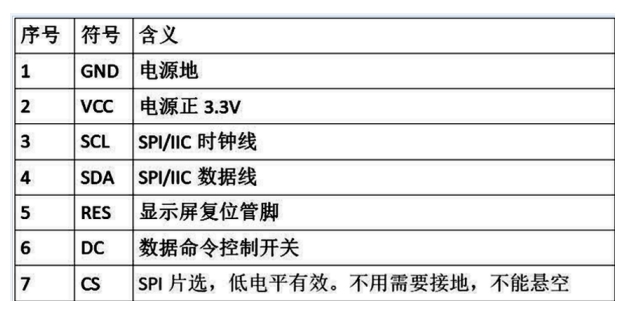

Pin Definition:

Conclusion

The HT096EWH12PG01S7V10 OLED display module brings together IPS-quality visuals, efficient SPI-based communication, and dependable SSD1317 controller logic into a small but versatile 0.96-inch package. Its harmonious balance of size, resolution, and mechanical durability makes it a favored component in today’s compact embedded and display-driven applications.
