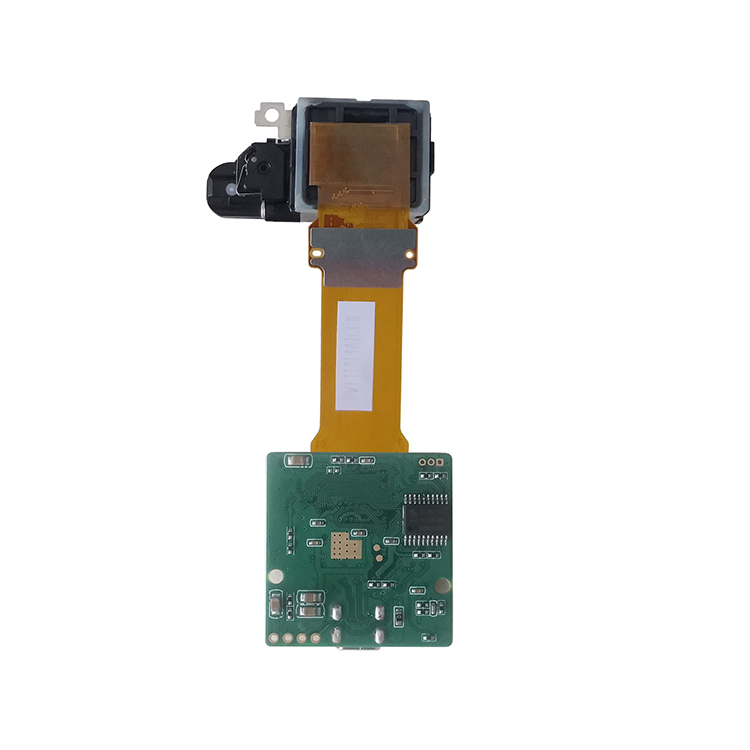

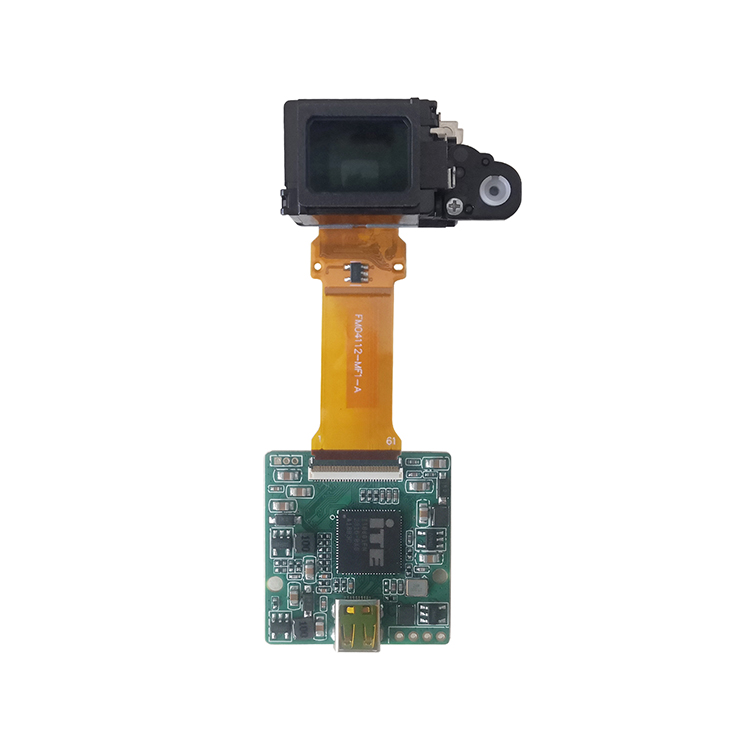

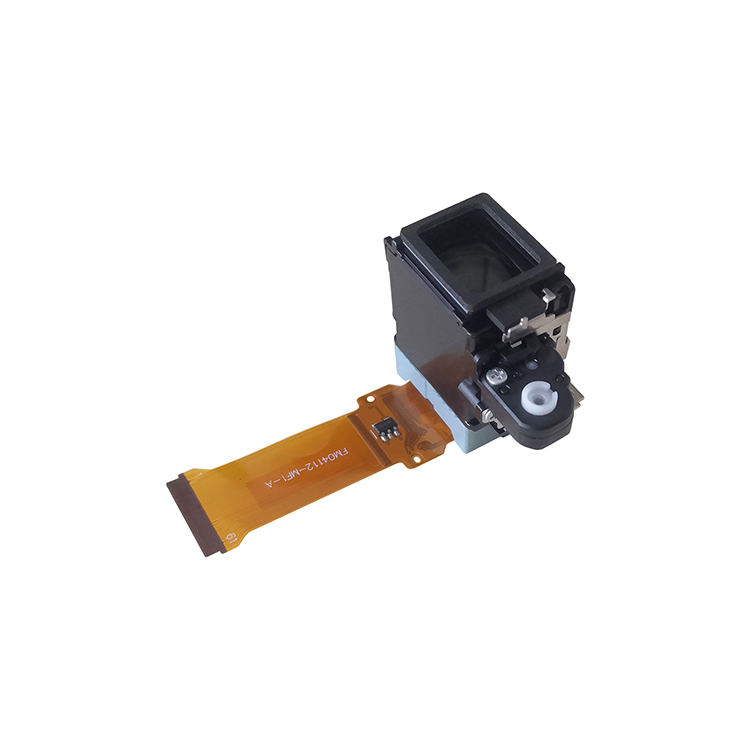

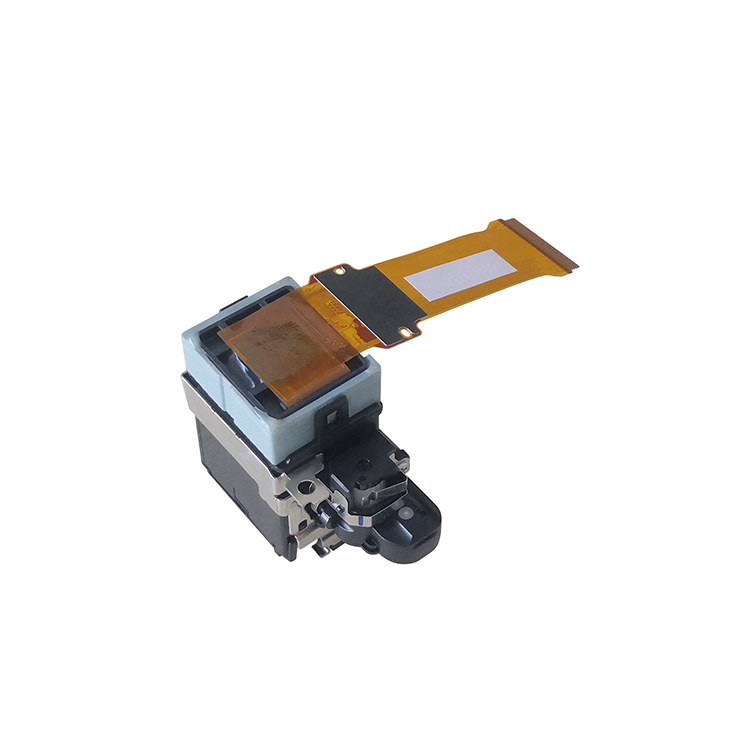

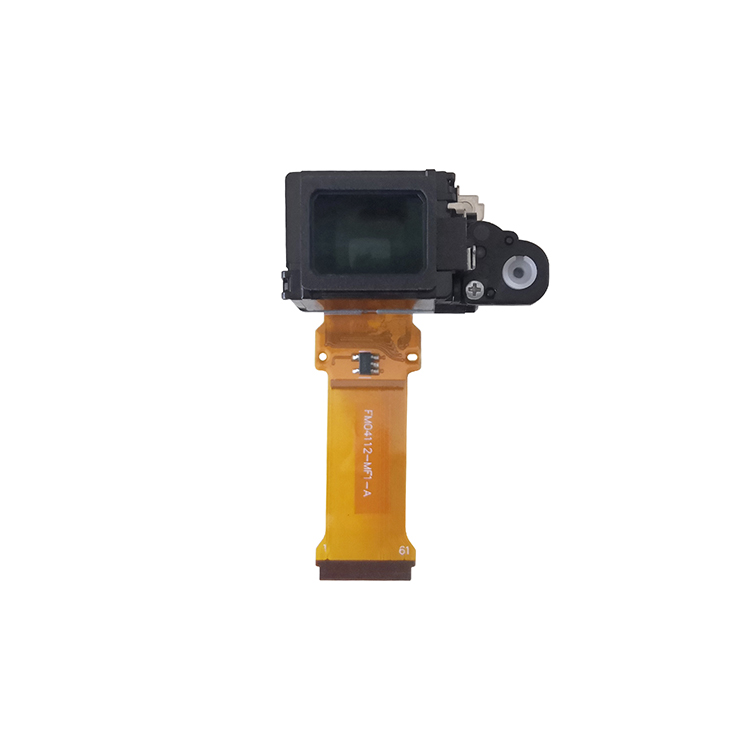

0.39 inch Micro OLED Display 1024(RGB)X768 Resolution for Viewfinder

  • Size: 0.39 inch micro oled
  • Interface:24-bit RGB digital video/
  • Resolution: 1024(RGB)X768
  • Luminance:500 cd/m2
  • Product description: 0.39 inch Micro OLED Display 1024(RGB)X768 Resolution for Viewfinder
  • INQUIRY

0.39 inch Micro OLED Display 1024(RGB)X768 Resolution for Viewfinder



Please kindly contact us for full data sheet of the display.



DESCRIPTION

HMX039-V1 is a 0.39-inch full color Si-OLED display module with 1024×768 dot
matrix. The characteristics of this Microoled display module is with a high brightness of 500 nits in typical, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.

(Potential applications:Virtual Reality application AR/VR , Head mounted displays, Near Eye Displays etc.)


GENERAL SPECIFICATION

Display Type:                                             OLED display
Display Mode: Passive Matrix
Model Number:

HMX039-V1

Diagonal Screen size: 0.39 Inch
Interface:

24-bit RGB

Number of Pixels:

1024(RGB)X768

Panel Size:

11.72×8.41mm2

Active Area:

7.92×6.00mm2

Weight:

TBD

Operating Temperature:

-10~70°

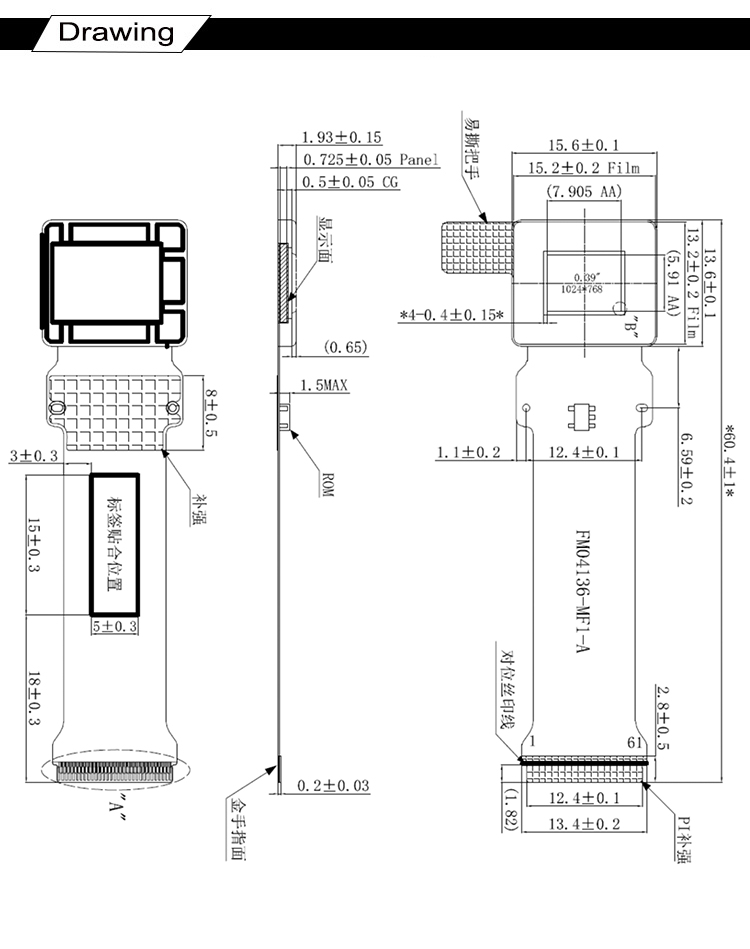

DRAWING

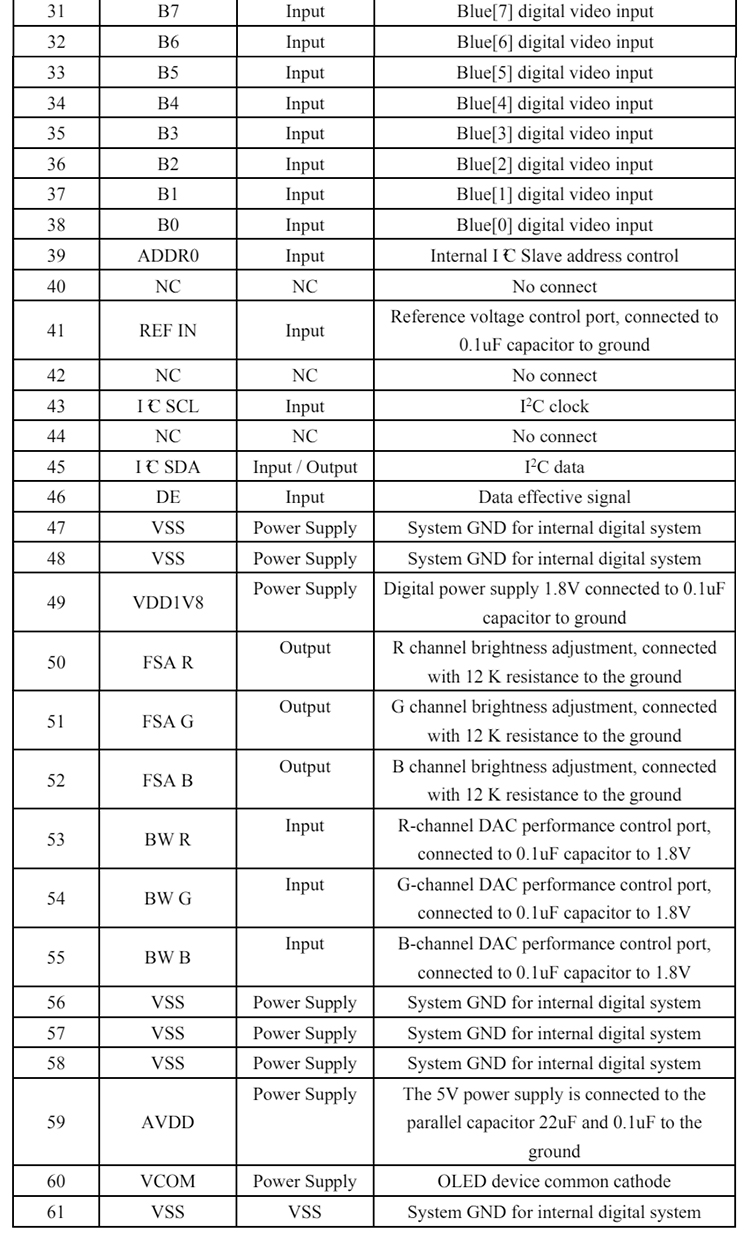

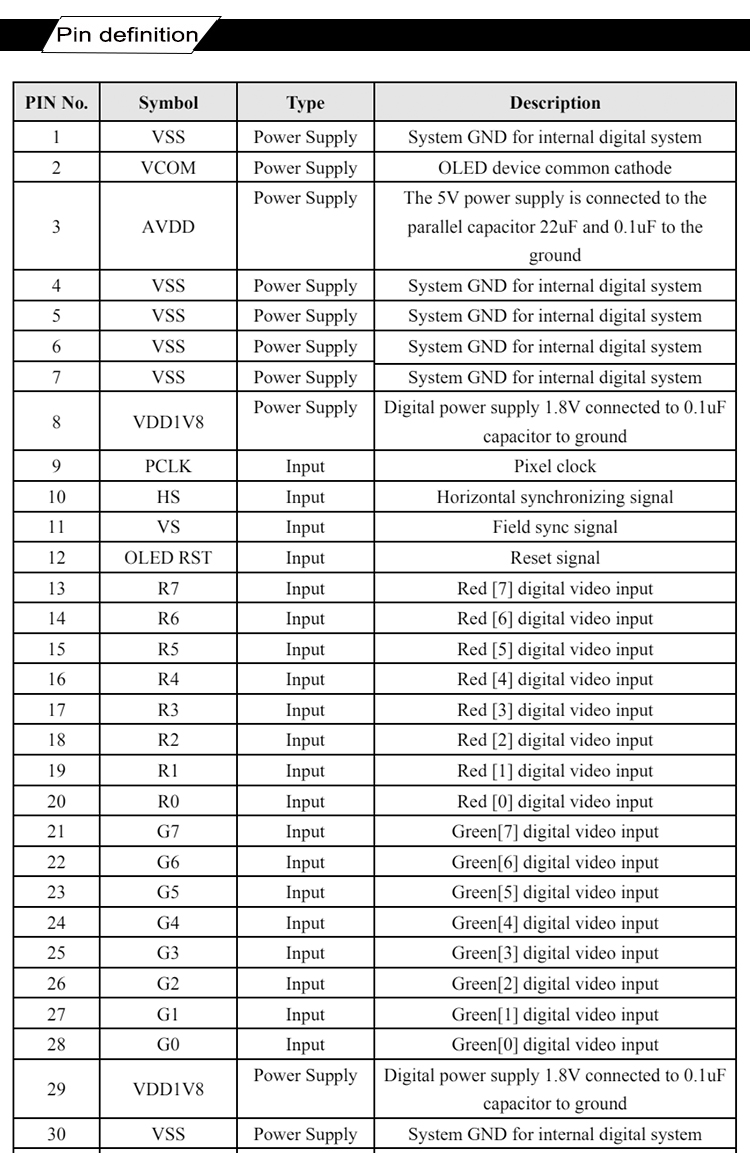

INTERFACE PIN FUNCTION
