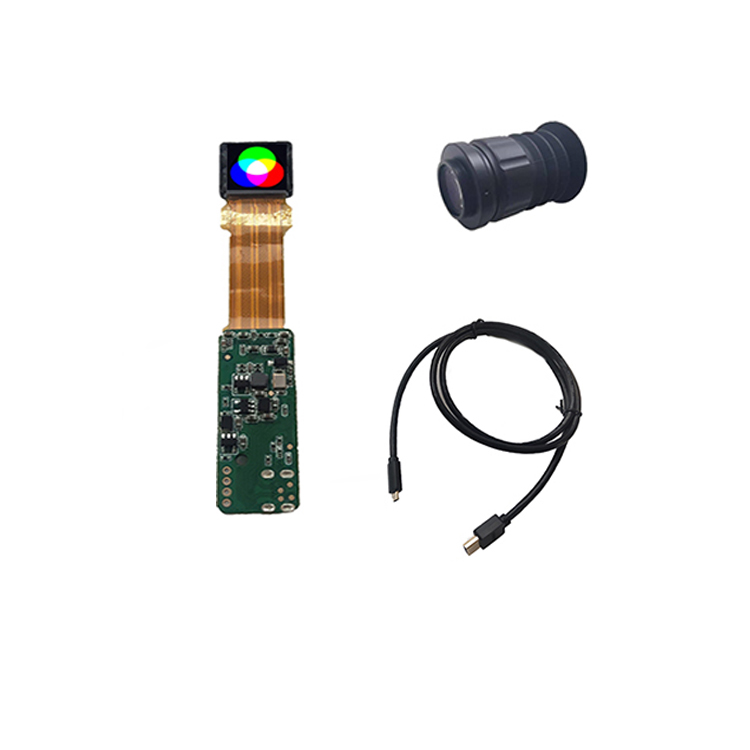

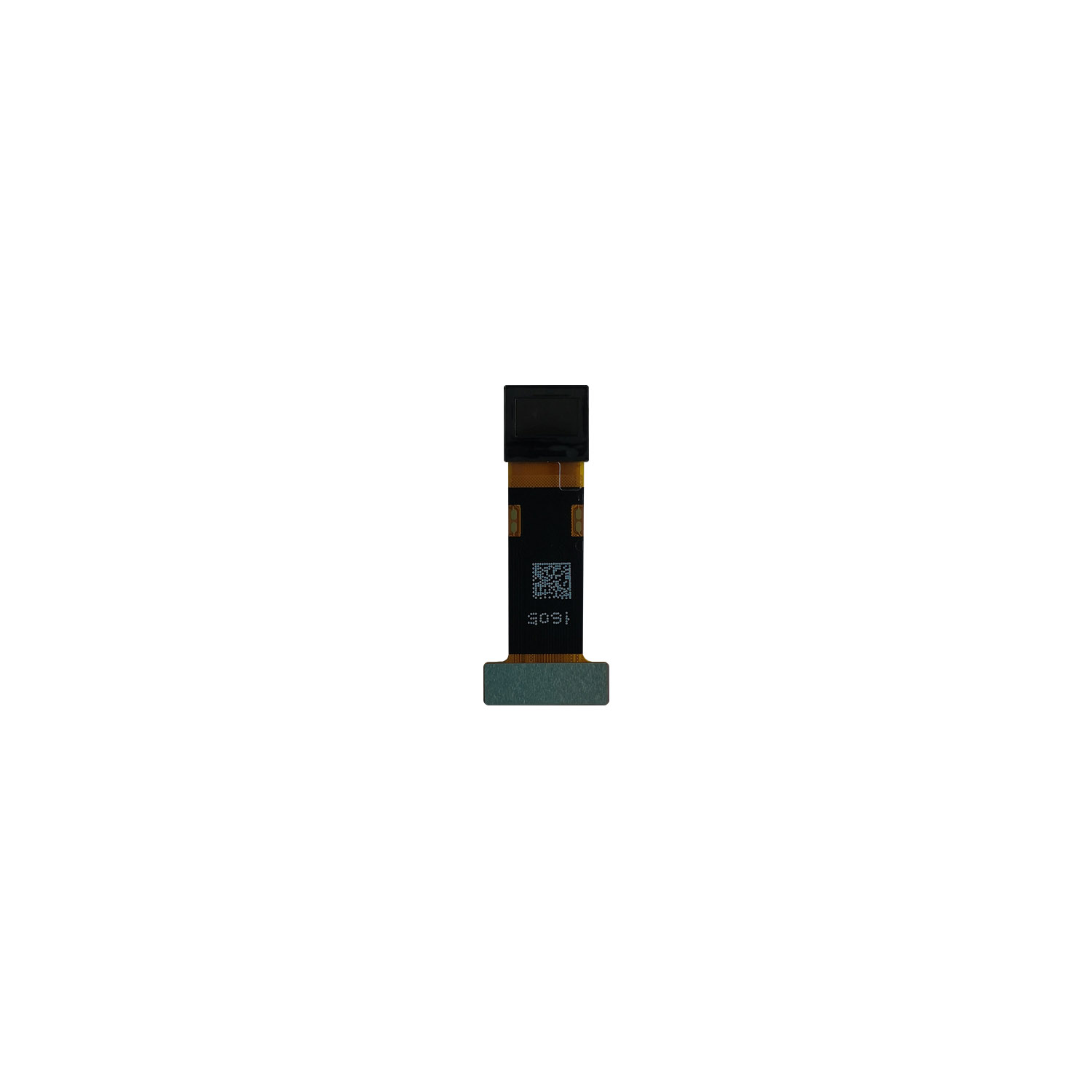

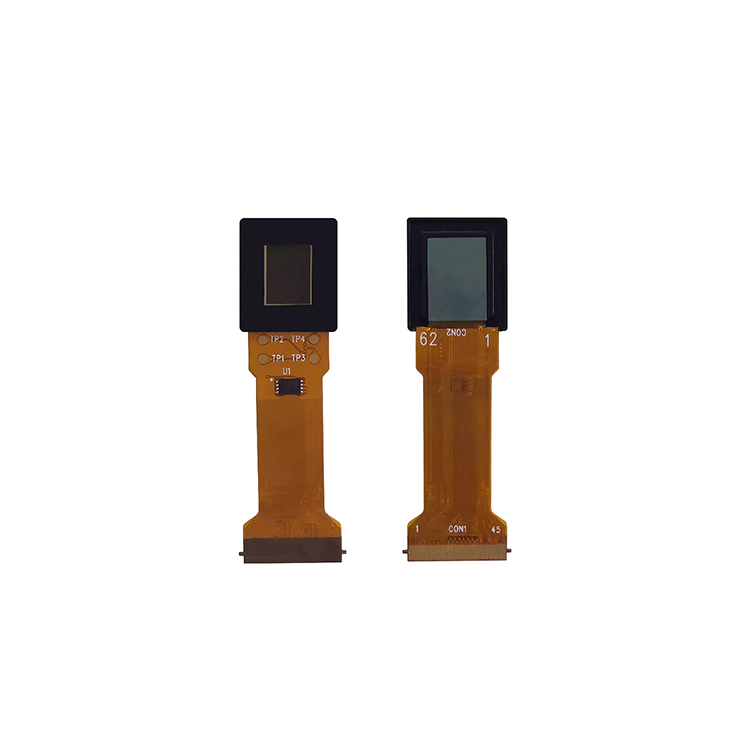

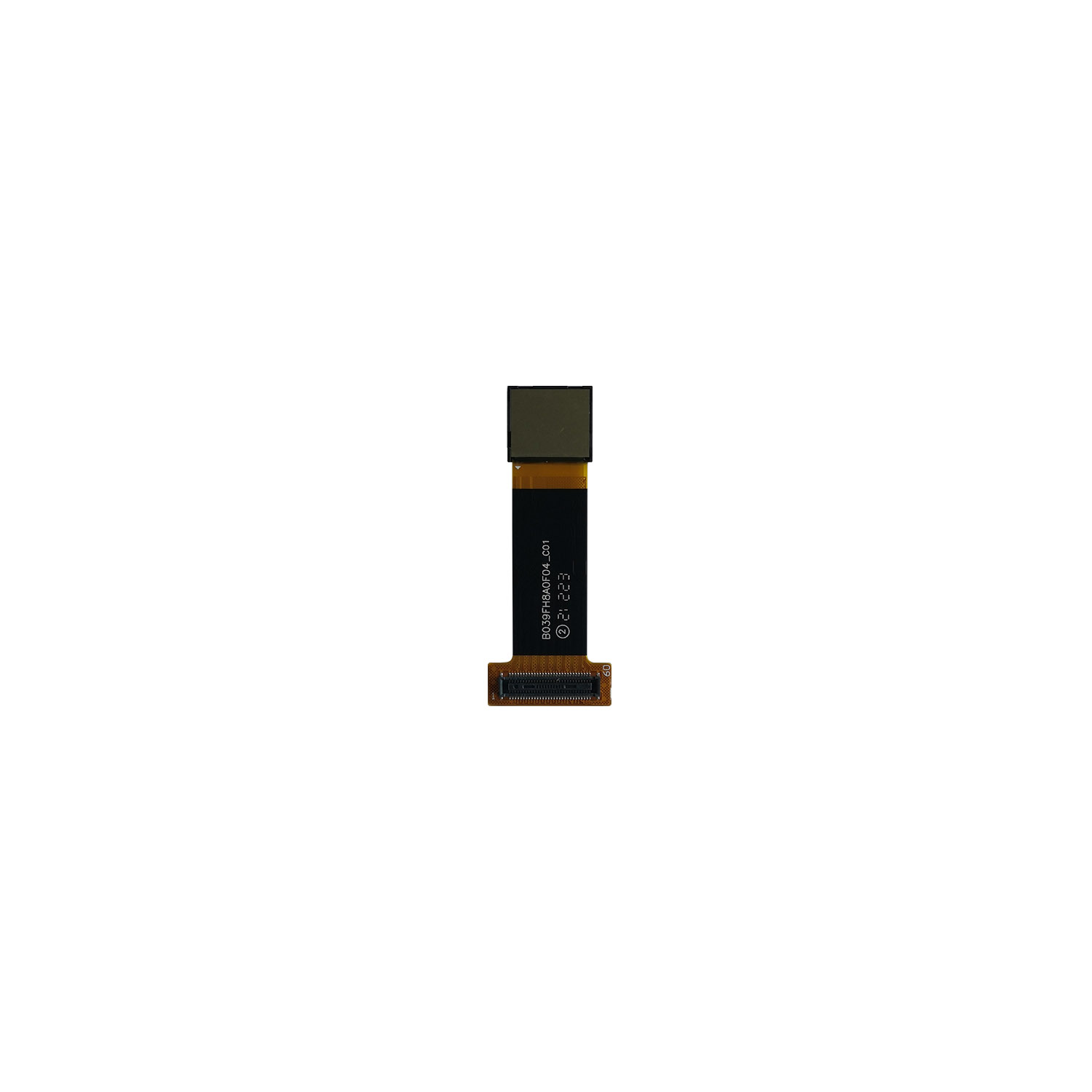

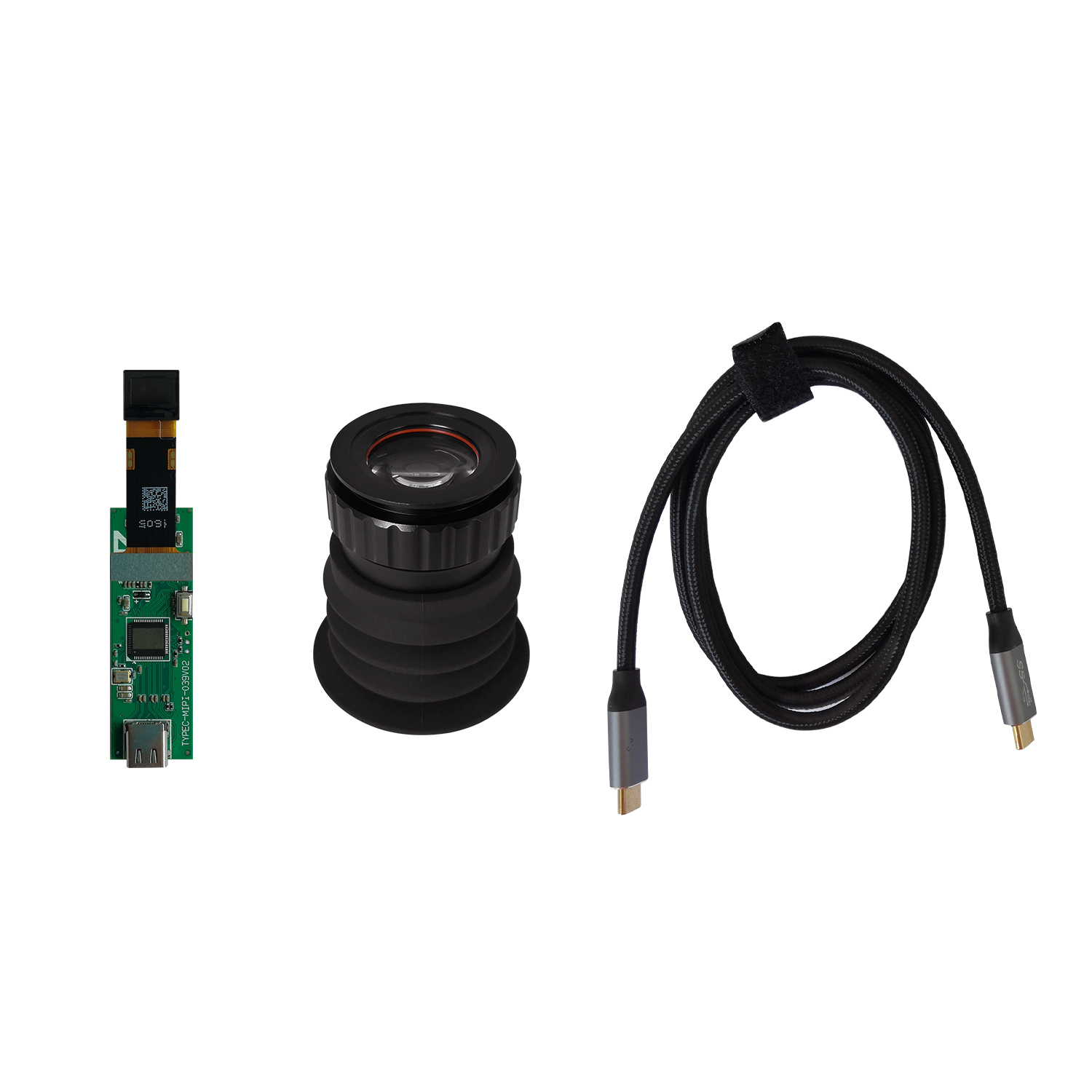

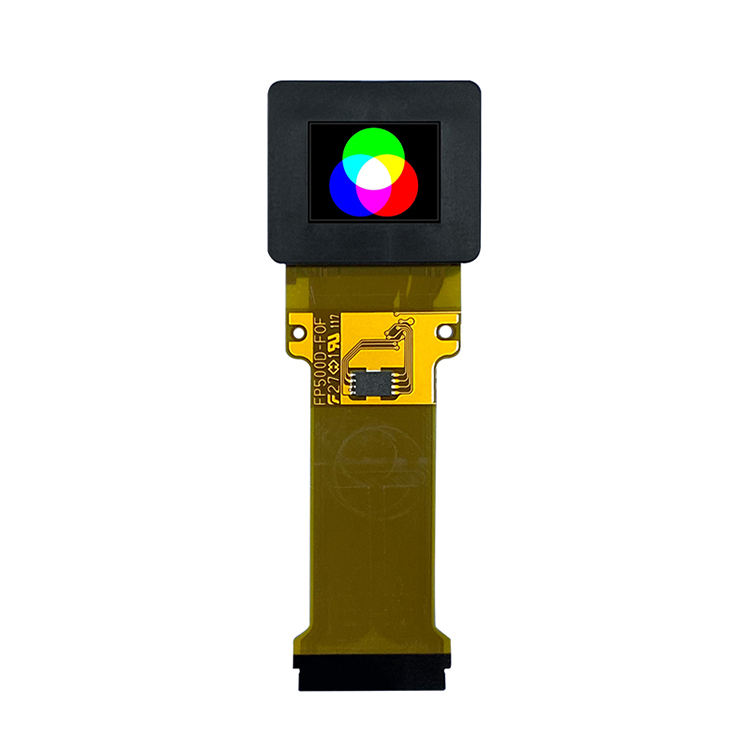

0.39 inch AMOLED Micro display, 1920(RGB)X1080,AR Glasses/VR Headset

  • Size: 0.39" AMOLED

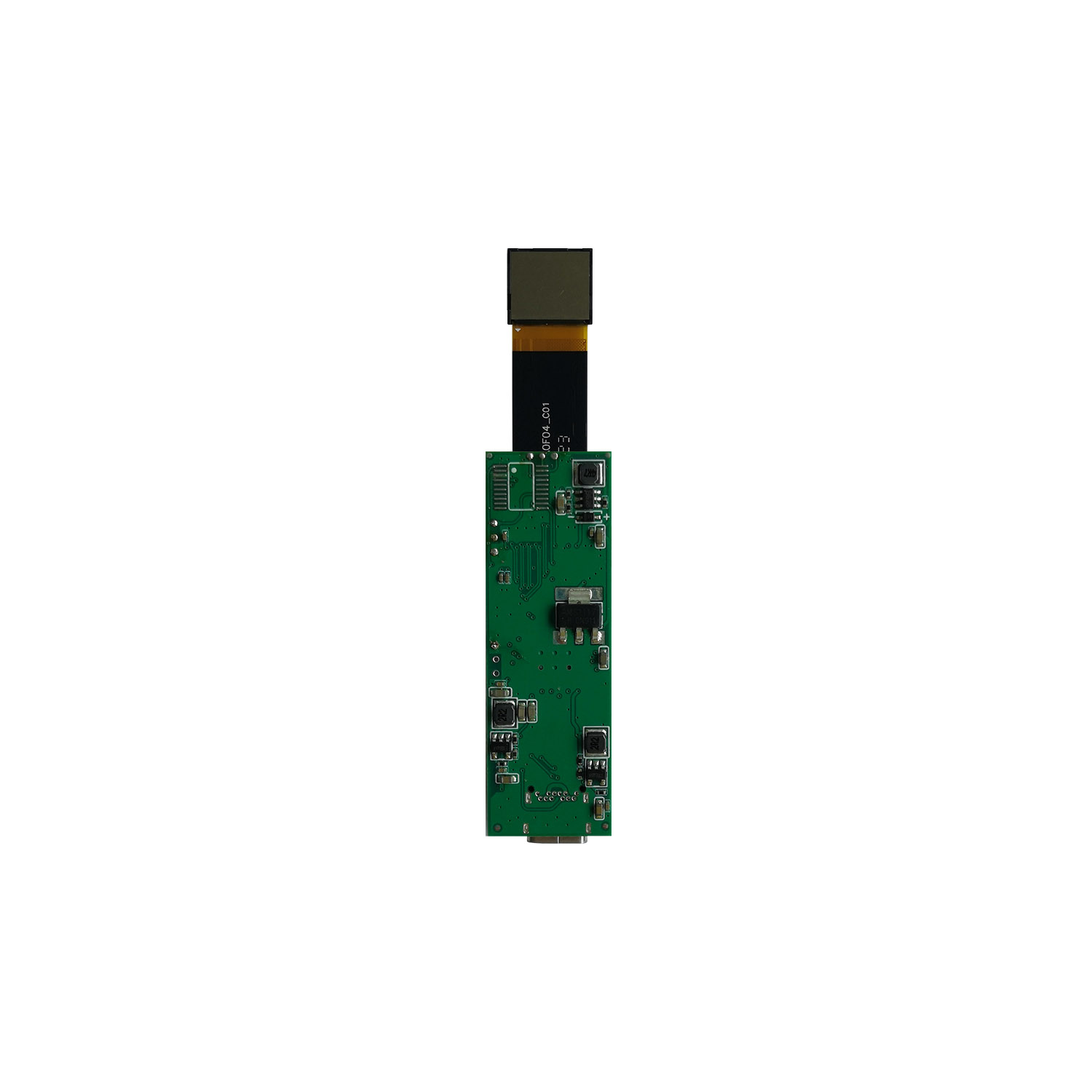

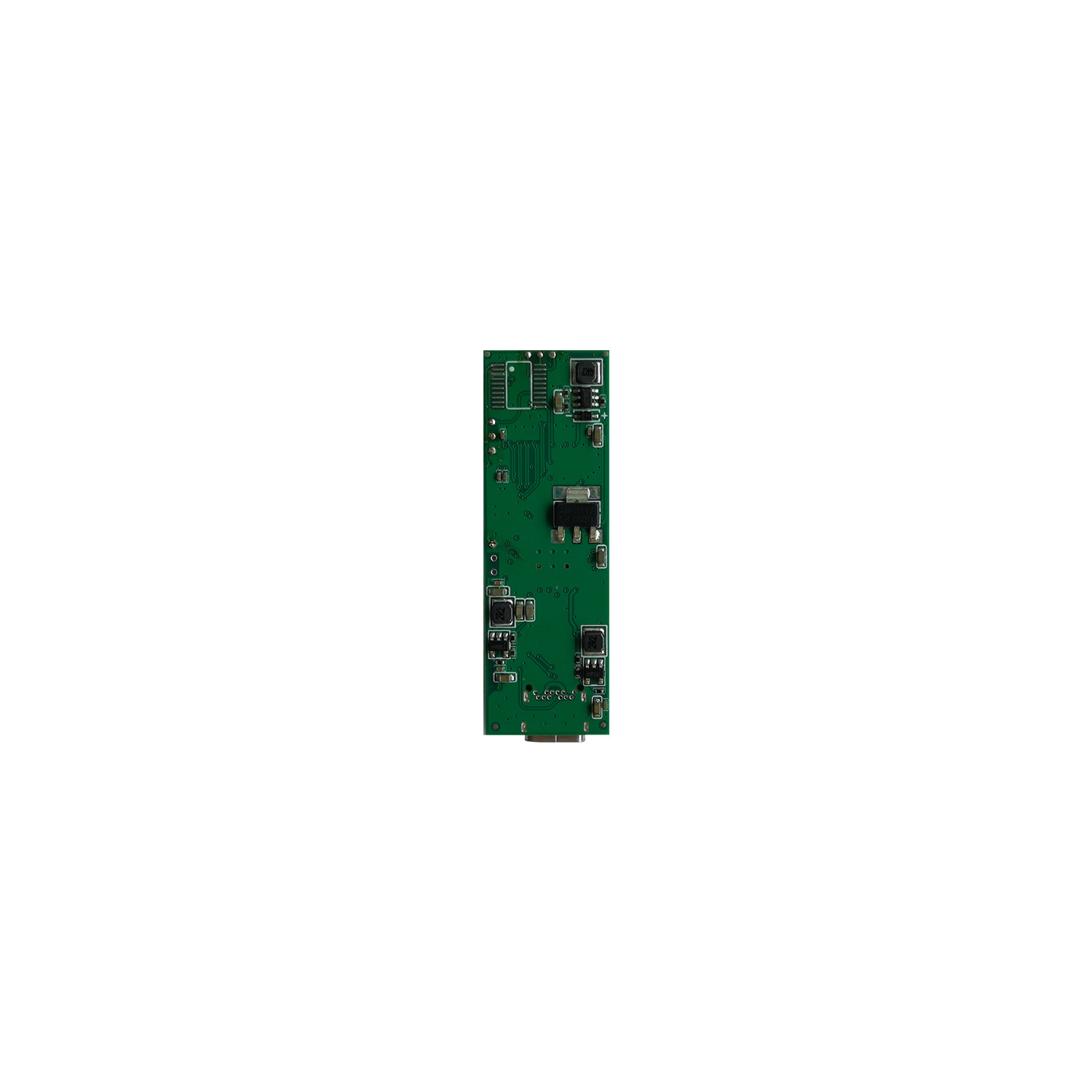

  • Driver Board: TYPE-C Board
  • Resolution: 1920(RGB)X960
  • Luminance:1500 cd/m2
  • Product description: 0.39 inch AMOLED Micro display, 1920(RGB)X1080,AR Glasses/VR Headset
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

HGB039FH8A0 is a 0.39 inch1 cm) diagonal, FHD resolution(1920 x1080), active matrix color OLED (Organic Light Emitting Display)panel module based on single crystal silicon backplane . The pixel circuits and driving IC are integrated on the silicon backplane to get the compact size and very low power consumption.
(Potential applications:Virtual Reality application AR/VR ））, Head mounted displays, Near Eye Displays etc.)


GENERAL SPECIFICATION

Display Type:                                              oled display
Display Mode:  Passive Matrix
Model Number:

HG039FH8A0

Diagonal Screen size: 0.39 Inch
Interface:

MIPI/I2C

Number of Pixels:

1920x1080

Panel Size:

15.6 x 13.6 x 0.2 (mm)

Active Area:

8.143x 6.146 (mm)

Weight:

TBD

Operating Temperature:

-10~70°

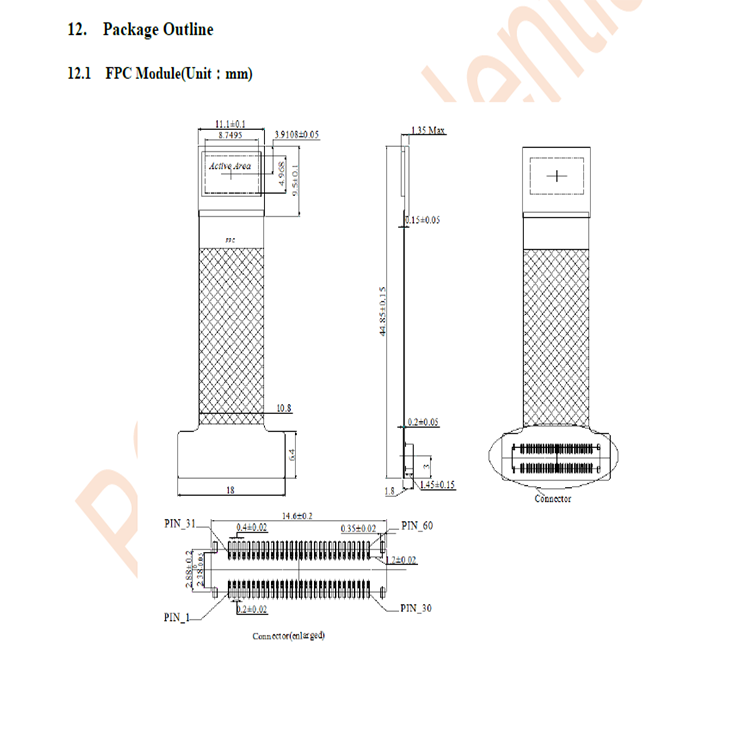

DRAWING

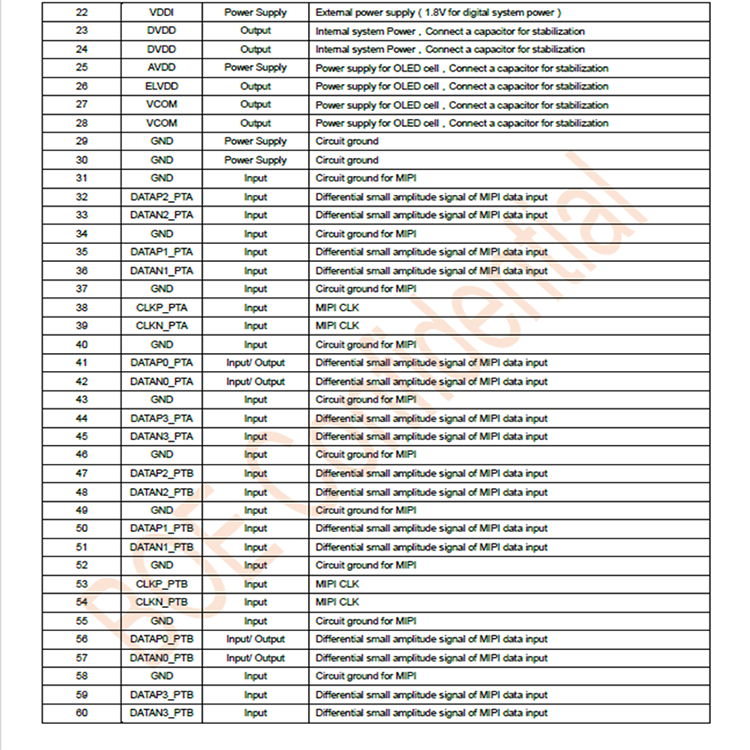

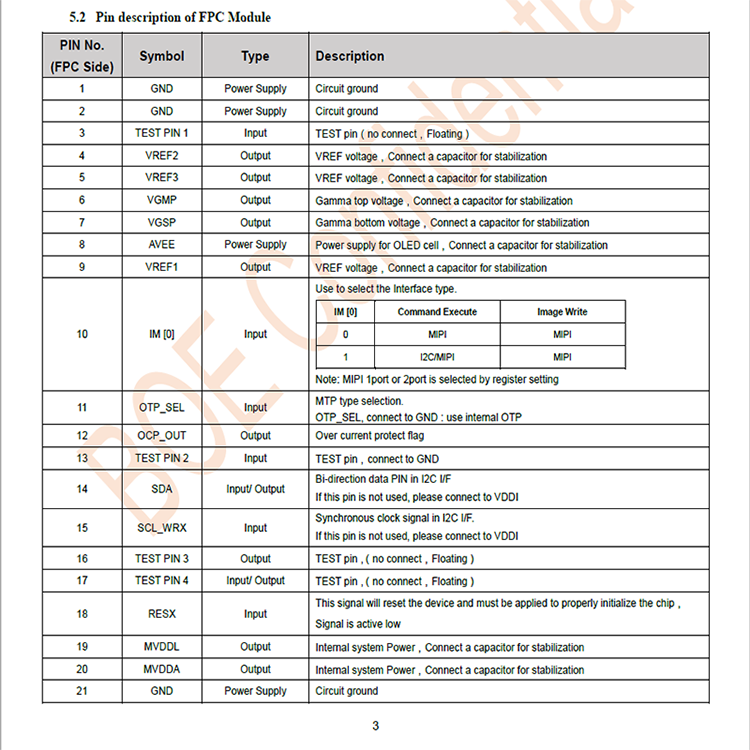

INTERFACE PIN FUNCTION
