0.39"

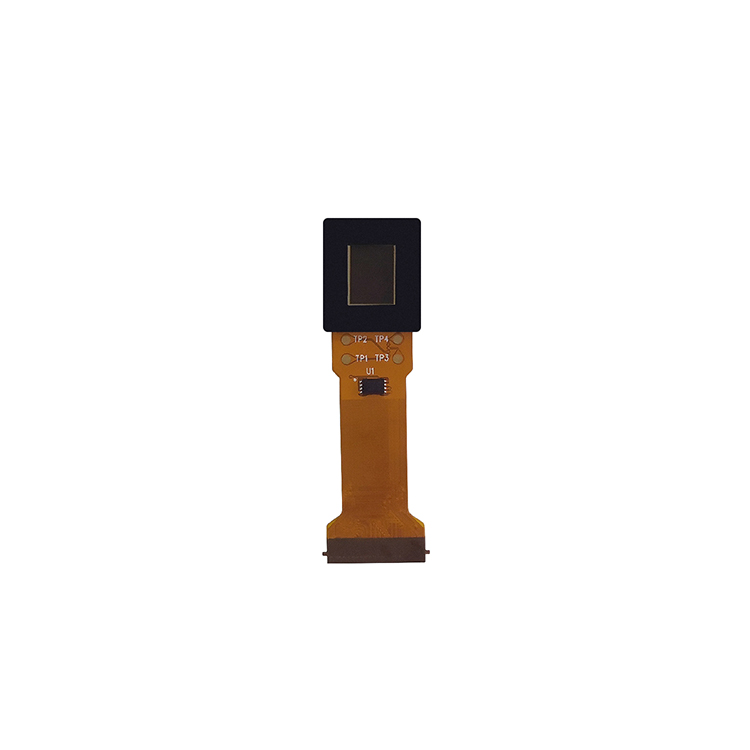

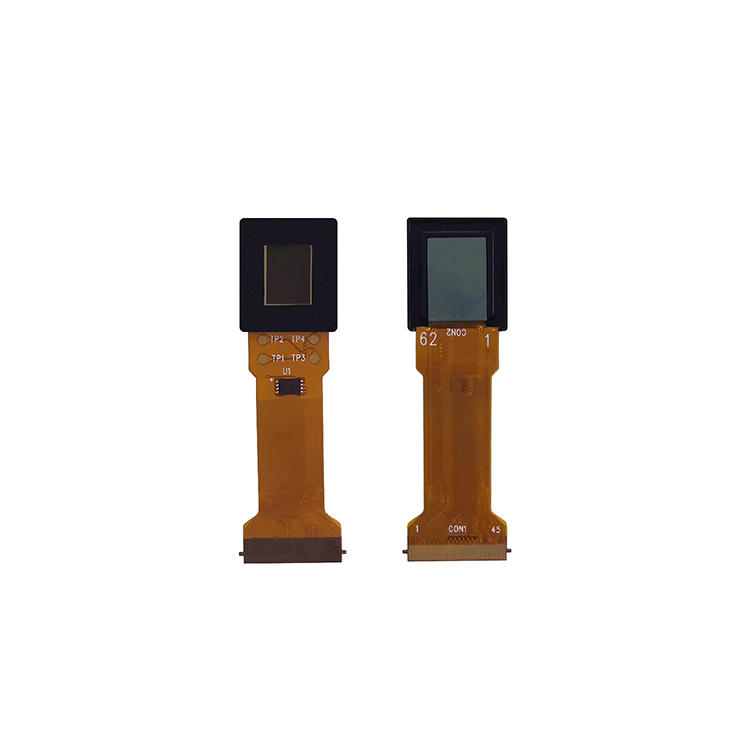

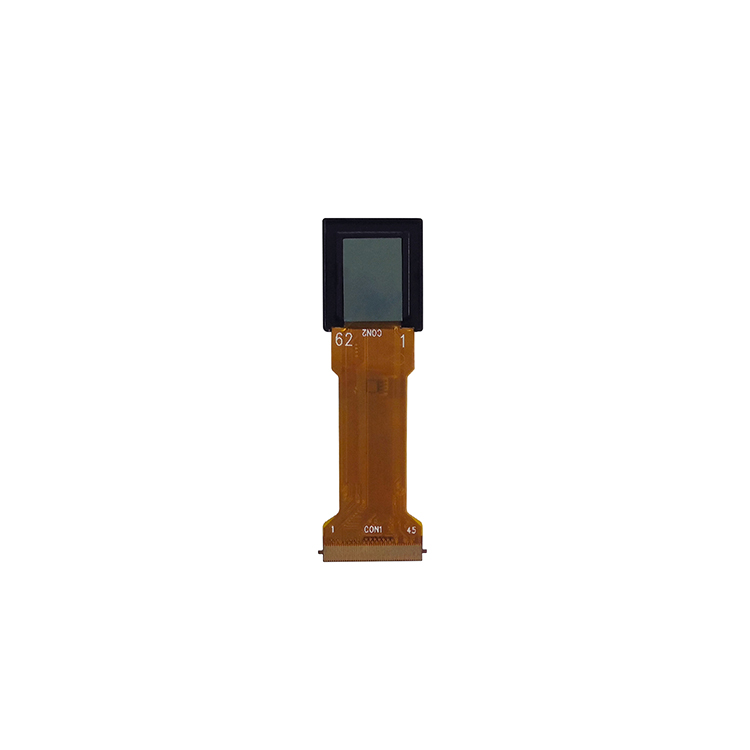

0.39 inch AMOLED Micro display, 1024(RGB)X768,AR Glasses/VR Headset

0.39 inch AMOLED Micro display, 1024(RGB)X768,AR Glasses/VR Headset

0.39 inch AMOLED Micro display, 1024(RGB)X768,AR Glasses/VR Headset

0.39 inch AMOLED Micro display, 1024(RGB)X768,AR Glasses/VR Headset

0.39 inch AMOLED Micro display, 1024(RGB)X768,AR Glasses/VR Headset

0.39 inch AMOLED Micro display, 1024(RGB)X768,AR Glasses/VR Headset

Size: 0.39
Driver Board: TYPE-C/HDMi Board
Resolution: 1024(RGB)X768
Luminance:500 cd/m2
Product description: 0.39 inch AMOLED Micro display, 1024(RGB)X768,AR Glasses/VR Headset
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

039S02 1024×768 micro display is a high-resolution, High light-emitting OLED micro display based on a CMOS backplane that also has a standard video interface.The display integrates a panel drive unit and a logic drive unit, while using low power consumption and RGB interface.

The 039S02 product has high contrast, high consistency and highlight performance.

GENERAL SPECIFICATION

Display Type:	oled display
Display Mode:	Passive Matrix
Model Number:	039S02
Diagonal Screen size:	0.39 Inch
Interface:	I2C
Number of Pixels:	1024x768
Panel Size:	13.8 x 48.086 x 2.15 (mm)
Active Area:	7.83x 5.91 (mm)
Weight:	TBD
Operating Temperature:	-10~70°

DRAWING

INTERFACE PIN FUNCTION
