  • 0.39 inch Micro OLED Screen 1024x768 for AR Glasses
  • 0.39 inch Micro OLED Screen 1024x768 for AR Glasses
  • 0.39 inch Micro OLED Screen 1024x768 for AR Glasses
  • 0.39 inch Micro OLED Screen 1024x768 for AR Glasses
  • 0.39 inch Micro OLED Screen 1024x768 for AR Glasses
  • 0.39 inch Micro OLED Screen 1024x768 for AR Glasses
0.39 inch Micro OLED Screen 1024x768 for AR Glasses0.39 inch Micro OLED Screen 1024x768 for AR Glasses0.39 inch Micro OLED Screen 1024x768 for AR Glasses0.39 inch Micro OLED Screen 1024x768 for AR Glasses0.39 inch Micro OLED Screen 1024x768 for AR Glasses0.39 inch Micro OLED Screen 1024x768 for AR Glasses

0.39 inch Micro OLED Screen 1024x768 for AR Glasses

  • Size: 0.39 inch micro oled
  • Interface:24-bit RGB digital video/
  • Resolution: 1024(RGB)X768
  • Luminance:500 cd/m2
  • Product description: 0.39 inch Micro OLED Screen 1024x768 for AR Glasses
  • INQUIRY

0.39 inch Micro OLED Screen 1024x768 for AR Glasses



Please kindly contact us for full data sheet of the display.



DESCRIPTION

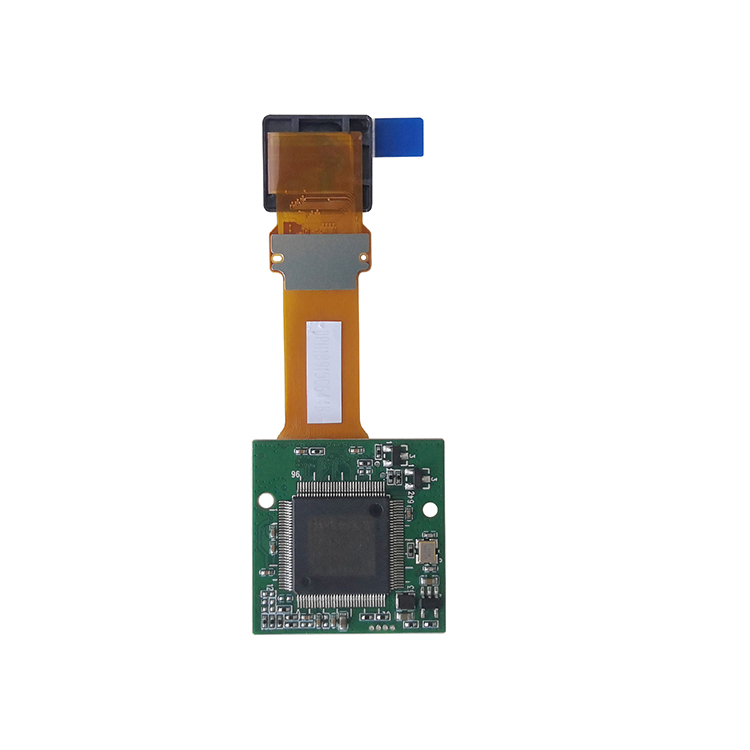

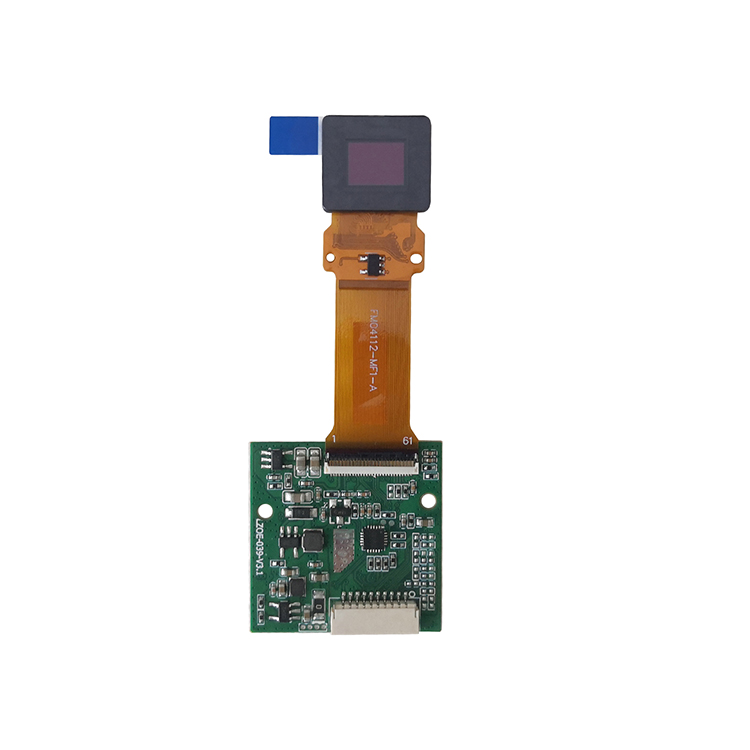

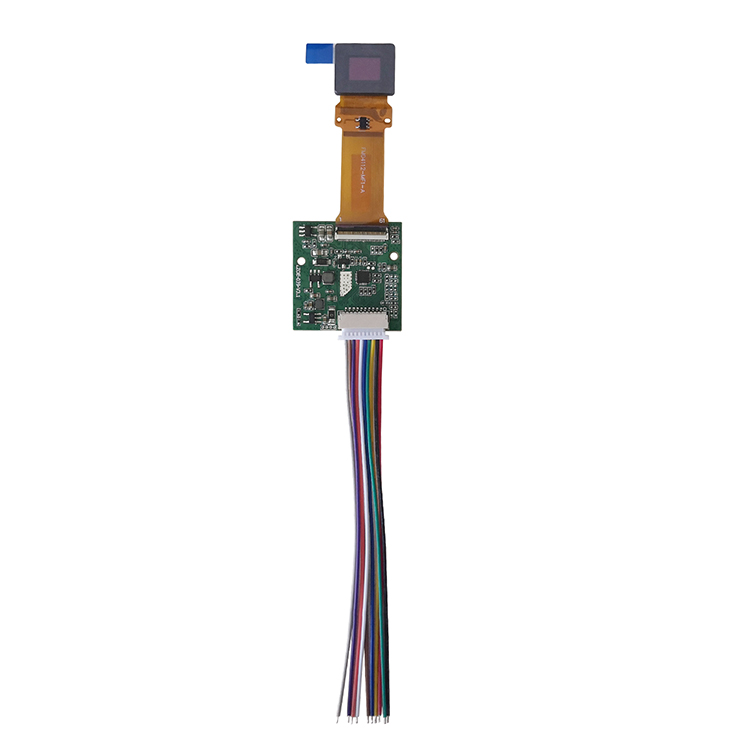

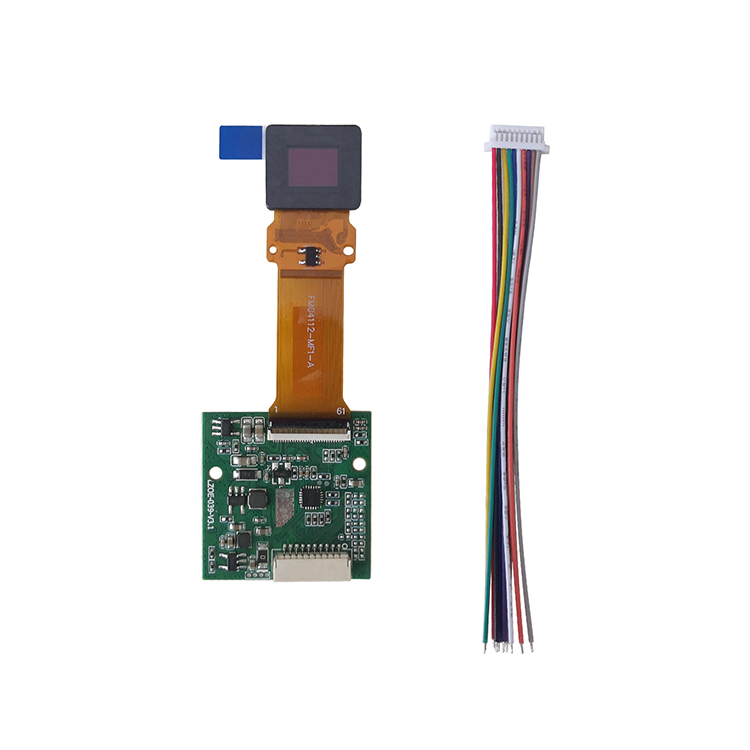

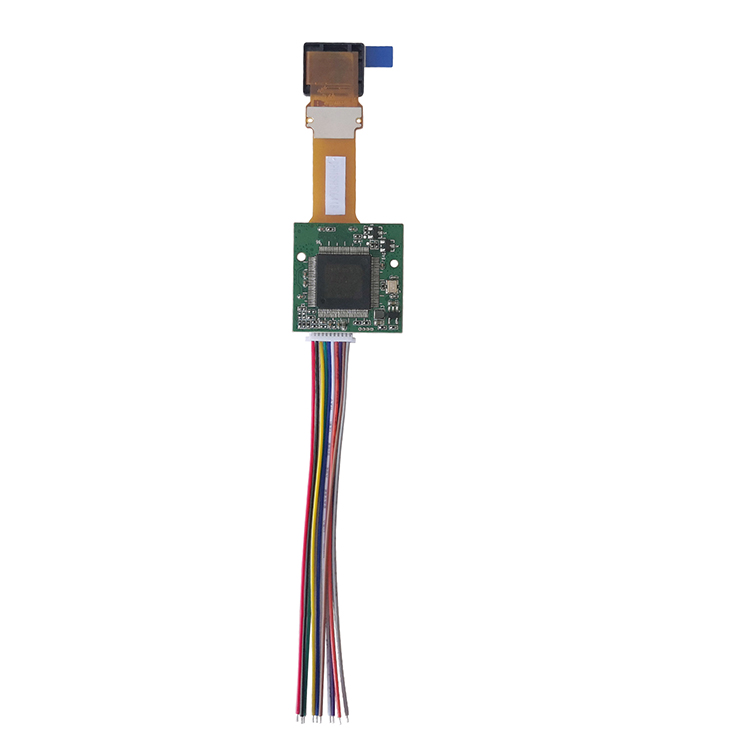

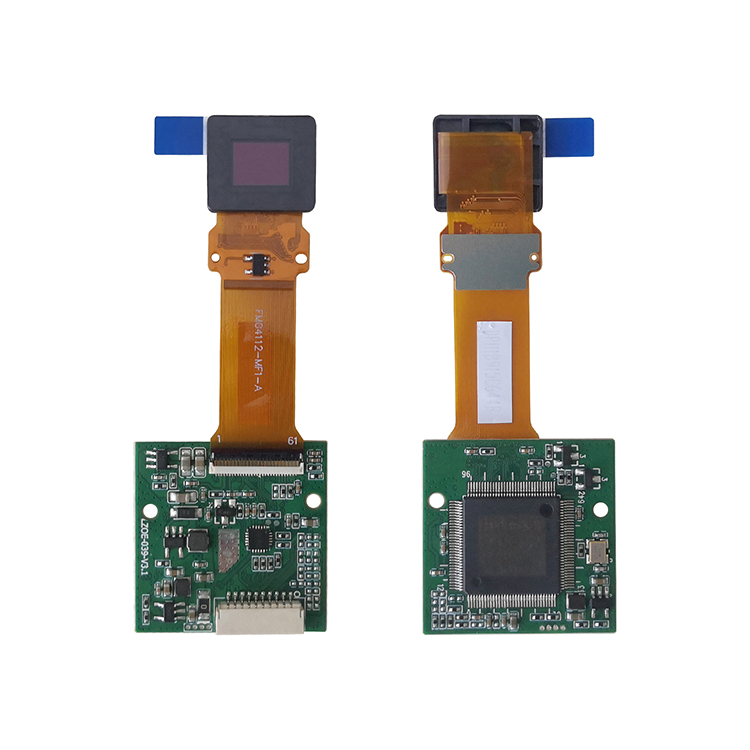

HMX039-V1 is a 0.39-inch full color Si-OLED display module with 1024×768 dot
matrix. The characteristics of this Microoled display module is with a high brightness of 500 nits in typical, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.

(Potential applications:Virtual Reality application AR/VR , Head mounted displays, Near Eye Displays etc.)


GENERAL SPECIFICATION

Display Type:                                                         OLED display
Display Mode: Passive Matrix
Model Number:

HMX039-V1

Diagonal Screen size: 0.39 Inch
Interface:

24-bit RGB

Number of Pixels:

1024(RGB)X768

Panel Size:

11.72×8.41mm2


Active Area:

7.92×6.00mm2


Weight:

TBD

Operating Temperature:

-10~70°



DRAWING



INTERFACE PIN FUNCTION
